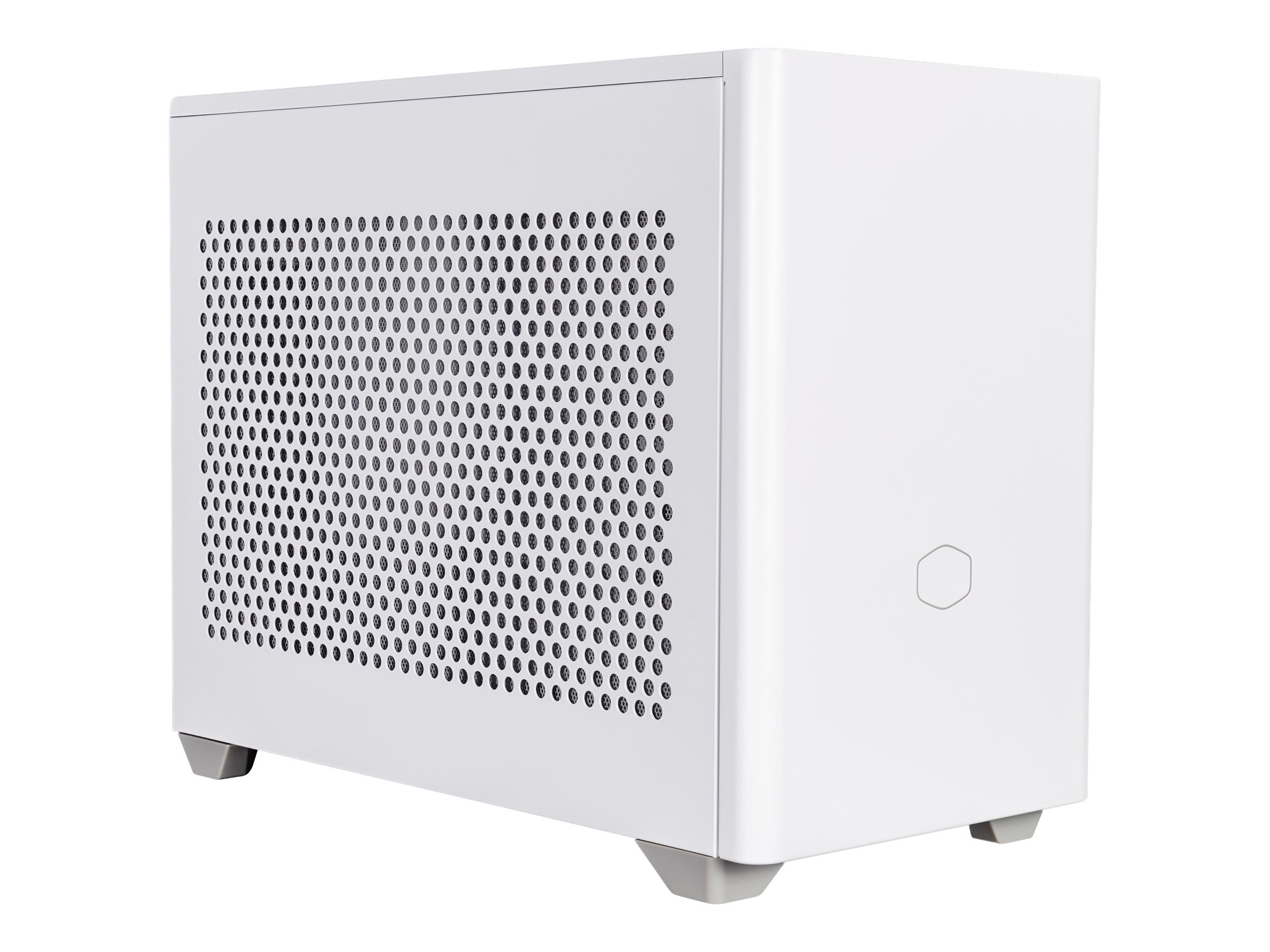

Cooler Master MasterBox NR200P Desktop White

BIG FEATURES, Small SizeStyle without sacrificeThe MasterBox NR200P uses features normally found in stylish, high-end ATX cases and cleverly utilizes space-saving measures to create a chassis taking up less than half the volume. Every feature is thoughtfully laid out in an 18-liter space to maximize component compatibility, thermal efficiency, and ease of assembly.Keep cool with a highly vented side panel, or look cooler with a crystal-clear tempered glass panel; both are included to satisfy performance and style preferences. Fit large graphics cards in the 3-slot capable NR200P, or utilize the two vertical cards slots with the included PCI riser to turn graphics cards and heads by making the GPU the centerpiece of the PC. Seven possible fan mounts, ample ventilation, and generous liquid and air-cooler clearances keep even the most powerful systems running at their optimum temperatures and speeds. The chassis frame is wrapped in a sleek and tasteful powder-coated steel chassis that makes a statement on a desk.Limited Size, Unlimited OptionsThe NR200P includes many features found in larger ATX chassis while retaining a space-efficient form factor. The NR200P comes with the choice of a vented steel side panel for unrestricted airflow, or a crystal-clear tempered glass side panel to reveal the beauty of a computing beast. A PCI Riser is included for vertical GPU installation to better showcase it against the glass, or to feed it fresh air from the side with the vented panel.Unrestricted Cooling PotentialThe NR200P can house up to 7 fans in total for every cooling configuration imaginable. Two 120mm Sickleflow fan are included. The compact structure can efficiently house CPU coolers up to 155mm in height and radiators up to 280mm in length, so even the hottest running hardware can t be held back.Triple-slot GPU support and Included Vertical Riser CableTriple slot GPUs are supported with a maximum length of 330mm and maximum width of 156mm allowing the fitment of large high-end graphics cards. A custom-sized riser cable is included to mount a graphics card vertically to showcase it, or allow radiator mounting at the bottom of the chassis to keep the system running as cool as it looks.Easy, Tool-free accessAll external panels, including the tempered glass and top mounted fans are secured with pins for easy removal, facilitating quick access to the internals without the use of tools.360 Degree AccessibilityEvery panel and frame part of the NR200P can be dismantled. Screws are used to secure the frame parts to allow advanced disassembly and multiple angles to easily work inside of the chassis.High quality materialsThick, powder coated SGCC steel keeps the fit and finish of the chassis clean and durable even with harsh traveling conditionsOut-of-the-box Custom Cooling SupportTwo liquid cooling pump locations alongside side and bottom radiator mounting locations allow for powerful, custom water-cooled builds inside a compact enclosure.Multiple motherboard support optionsCompatible with Mini-ITX and Mini DTX. The PSU can be front-mounted for extra motherboard clearance with a maximum space of 244 x 226 mm.Customization3D printable feetDuring the design phase we had created several variants for the case feet design. Following numerous iterations, the launch design was chosen, but we thought "why not share the iterations with our users " The team unanimously agreed with this direction.As a result, end users can 3D print a selection of different shapes and sizes, and even choose the color based on the filament they print with.Sickleflow PWM fans includedNewly Optimized blade design with updated curve that provides best balance between airflow and static pressure to take the heat away while remain extremely silence.

Design
Form factor:	Desktop
Type:	PC
Product colour:	White
Supported motherboard form factors:	Mini-DTX, Mini-ITX
Number of 3.5" bays:	2
Material:	Mesh, Plastic, SGCC, Steel, Tempered glass
Number of 2.5" bays:	3
Side window:
Anti-dust filter:
Maximum CPU cooler height:	15.5 cm
Maximum graphics card length:	33 cm
Maximum PSU length:	13 cm
Power supply
Power supply included:
Supported power supply form factors:	SFX
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	2
Audio input:
Audio output:
Cooling
Number of side fans supported (max):	2
Side fans diameters supported:	120,140 mm
Number of rear fans supported (max):	1
Rear fans diameters supported:	92 mm
Top fans installed:	2x 120 mm
Number of top fans supported (max):	2
Top fans diameters supported:	120 mm
Number of bottom fans supported (max):	2
Bottom fans diameters supported:	120 mm
Fan speed:	650 - 1800 RPM
Rear radiator sizes supported:	92 mm
Bottom radiator fan sizes supported:	120,240 mm
Storage
Supported HDD sizes:	2.5,3.5"
HDD/SSD combo cage:
Weight & dimensions
Width:	185 mm
Depth:	376 mm
Height:	292 mm
Weight:	5.1 kg
Packaging data
Package width:	284 mm
Package depth:	348 mm
Package height:	435 mm
Package weight:	7 kg
Logistics data
Harmonized System (HS) code:	84733080
Other features
Volume:	18.25 L
