- Details

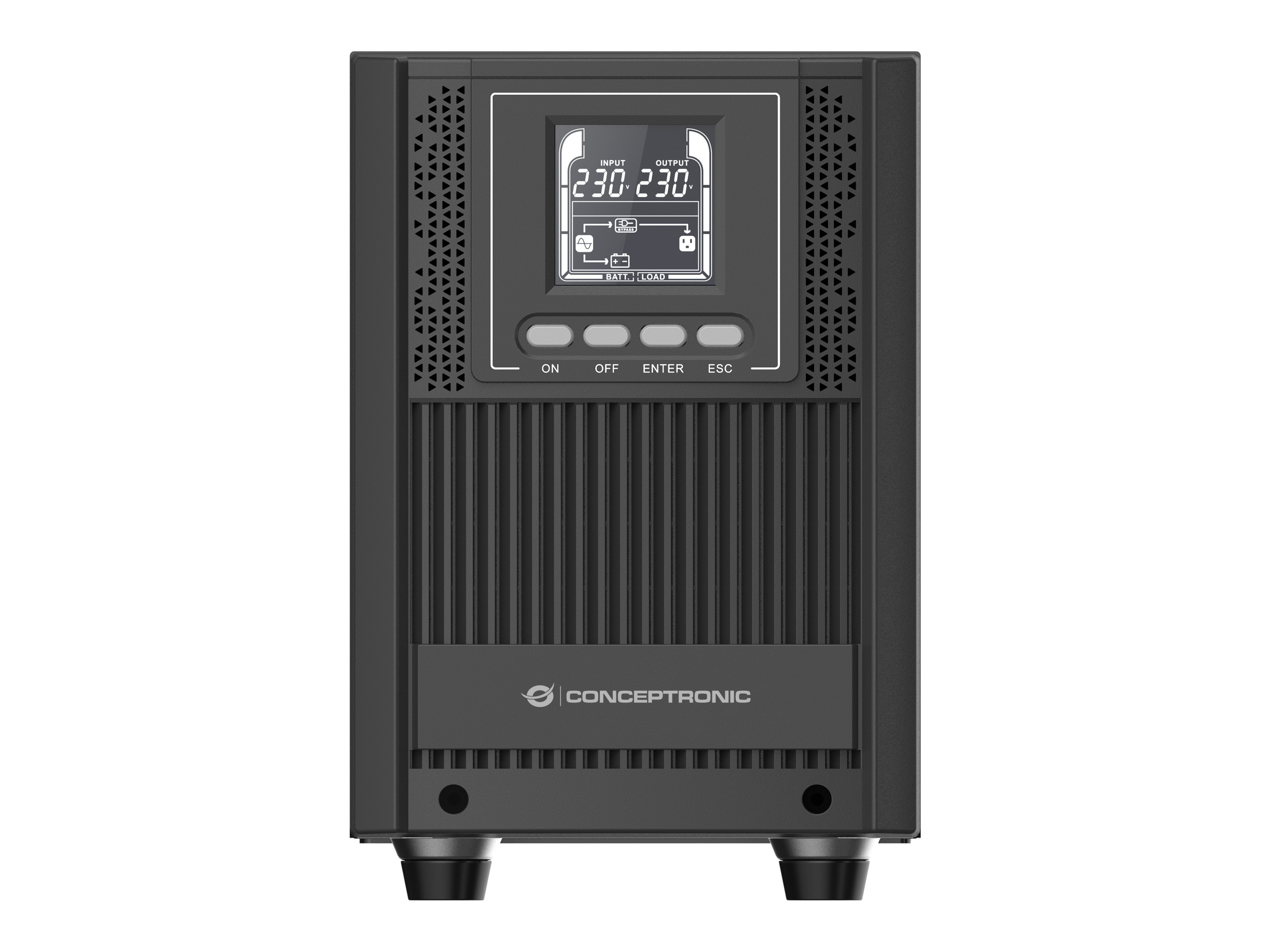

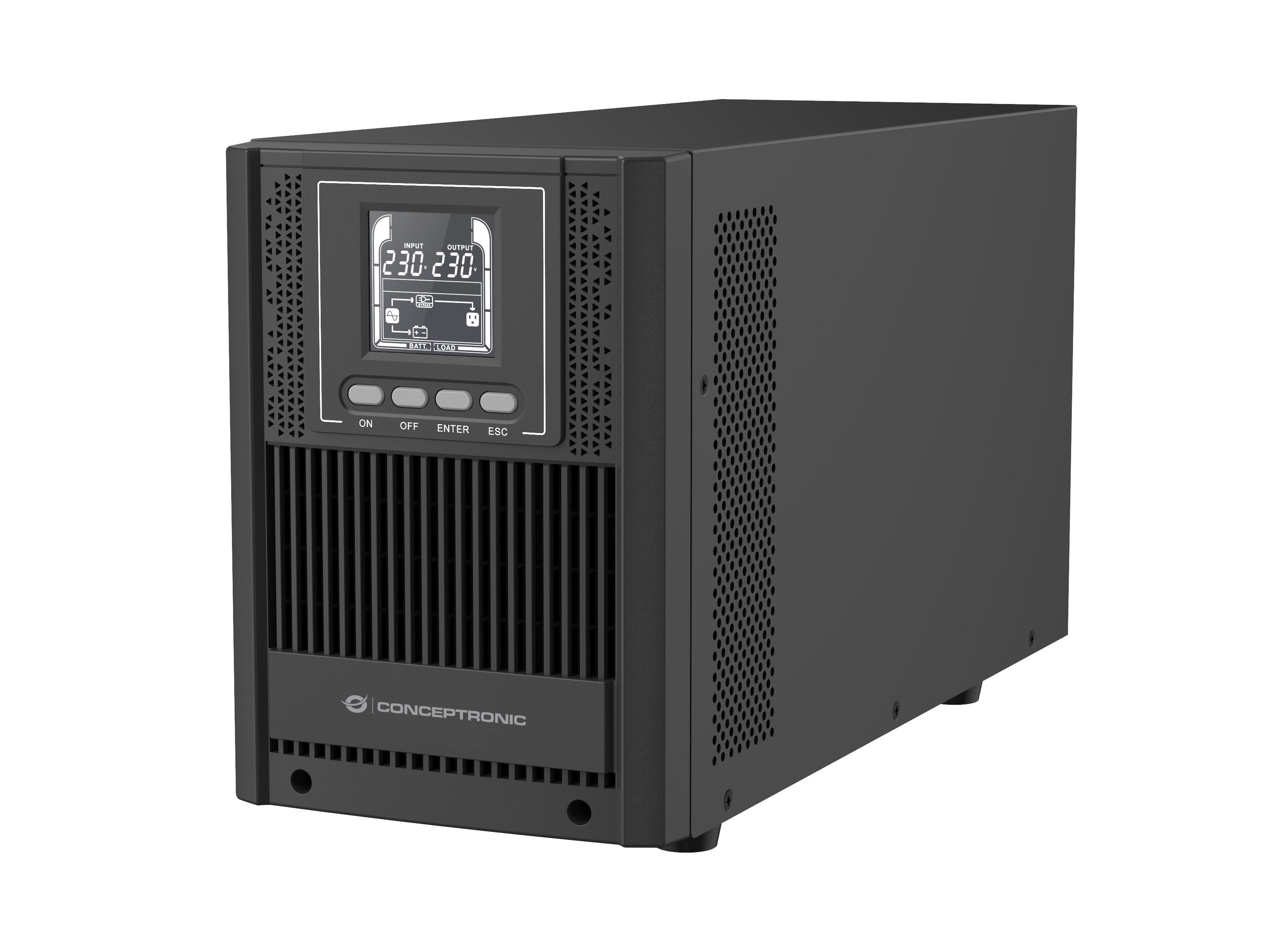

Introducing the Conceptronic Online Tower UPS the premier power backup solution for your home or office. Featuring an output power factor of 0.9, this UPS delivers superior efficiency and performance. Its ECO Mode enhances energy savings, while compatibility with generators ensures uninterrupted power during extended outages.
The Conceptronic Online Tower UPS comes with HID USB communication for seamless device connectivity and enhanced control and monitoring. For added safety during emergencies, it includes an Emergency Power Off (EPO) port for swift shutdowns in critical situations.
With its sleek, modern tower design, the Conceptronic Online Tower UPS integrates effortlessly into any environment, providing reliable power backup when you need it most.
| Features | |
| UPS topology: | Double-conversion (Online) |
| Output power capacity: | 2 kVA |
| Output power: | 1800 W |
| Waveform: | Sine |
| Input operation voltage (min): | 220 V |
| Input operation voltage (max): | 240 V |
| Input frequency: | 50/60 Hz |
| Output operation voltage (min): | 220 V |
| Output operation voltage (max): | 240 V |
| Maximum current: | 10 A |
| Efficiency (ECO mode): | 95% |
| Input power factor: | 0.99 |
| Output power factor: | 0.9 |
| Crest factor: | 3:1 |
| ECO mode: | Yes |
| Emergency Power Off (EPO): | Yes |
| Power protection features: | Overload, Short circuit |
| Audible alarm(s): | Yes |
| Audible alarm modes: | Alarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm |
| Country of origin: | China |
| Ports & interfaces | |
| AC outlet types: | Type F |
| AC outlets quantity: | 4 AC outlet(s) |
| USB port: | Yes |
| USB 2.0 ports quantity: | 1 |
| USB port type: | USB Type-B |
| RS-232 ports: | 1 |
| Emergency Power Off (EPO) connector: | Yes |
| Battery | |
| Battery capacity: | 9 Ah |
| Battery voltage: | 12 V |
| Battery recharge time: | 4 h |
| Cold start: | Yes |
| Battery capacity: | 108 Wh |
| Design | |
| Form factor: | Tower |
| Product colour: | Black |
| Cooling type: | Active |
| Built-in fan: | Yes |
| Display type: | LCD |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 40 °C |
| Operating relative humidity (H-H): | 20 - 90% |
| Technical details | |
| Compliance certificates: | CE, RoHS |
| Weight & dimensions | |
| Width: | 151 mm |
| Depth: | 394 mm |
| Height: | 225 mm |
| Weight: | 17.1 kg |
| Package type: | Box |
| Packaging data | |
| Cables included: | Input power cable, RS-232, USB cable |
| Quick installation guide: | Yes |
| Logistics data | |
| Pallet gross length: | 100 cm |
| Pallet gross width: | 120 cm |
| Pallet gross height: | 126 cm |
| Harmonized System (HS) code: | 8504406090 |
| Master (outer) case width: | 241 mm |
| Master (outer) case length: | 510 mm |
| Master (outer) case height: | 313 mm |
| Master (outer) case gross weight: | 17.6 kg |
| Products per master (outer) case: | 1 pc(s) |
