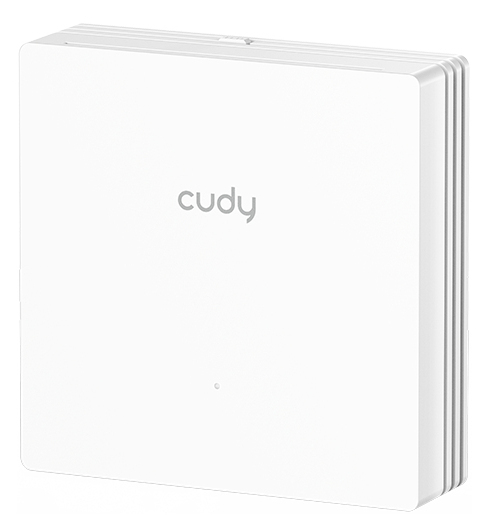

Built for Modern Spaces
Effortlessly integrates into any Interior
With its sleek, minimalist design, the device fits naturally into any room without disrupting your décor, delivering high-performance Wi-Fi while staying visually unobtrusive.

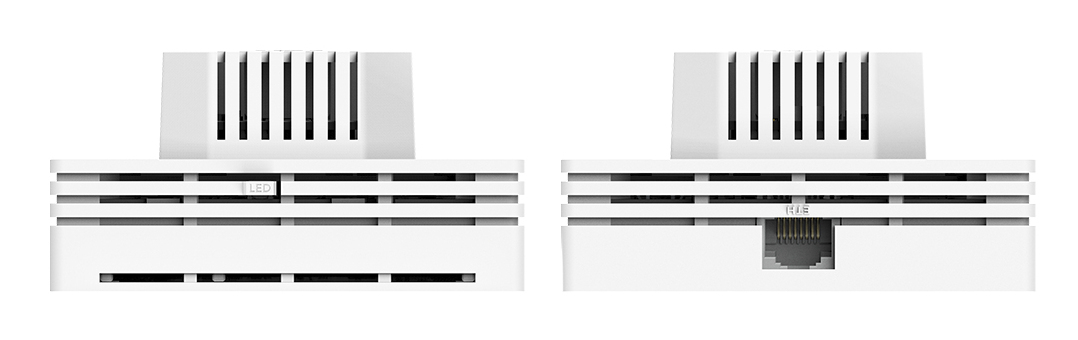

Efficient Heat Dissipation
Equipped with multiple cooling vents, the AP3000E Wall prevents overheating to maintain proper temperature and stable performance, even under heavy workloads.
Seamless Experiences in Multiple Scenarios
Apartment
Enjoy dedicated, high-speed Wi-Fi in every unit with zero signal overlap. Its sleek, low-profile design blends seamlessly into modern interiors.
Dormitory
Provide secure, high-speed access for each user without cross-room interference or weak zones. Designed to handle multiple users across closely packed rooms.
Hotel
Covers up to 50 m² (540 ft²), delivering fast, secure Wi-Fi in every guest room. Sleek design and easy integration with VoIP, IPTV, and other devices.
Office
Ensure reliable connectivity for each workspace or meeting room. Perfect for flexible, room-based deployments in modern offices.

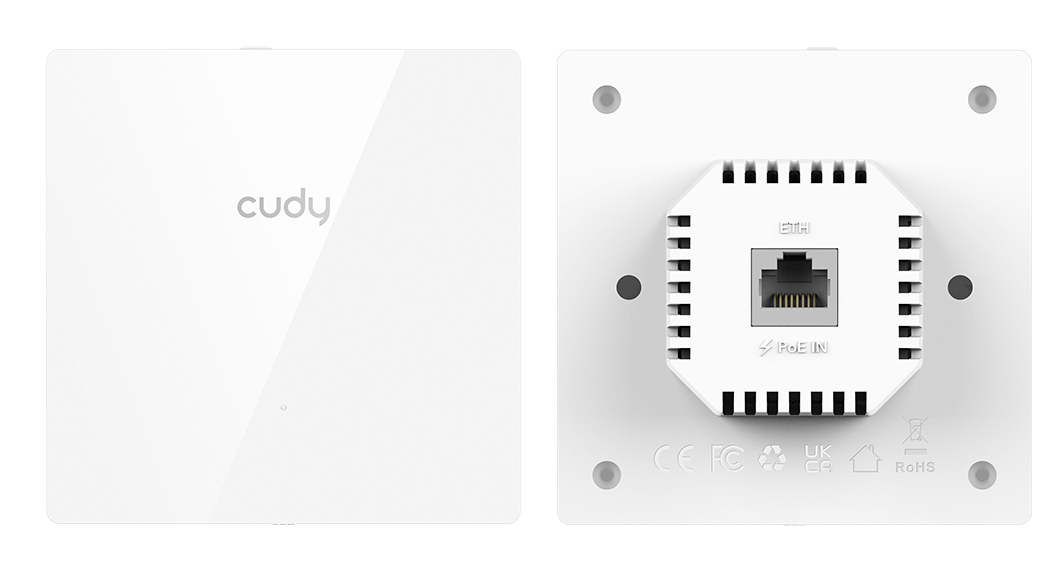

Shielded 2.5G Port with PoE
Engineered for clean deployment, with a shielded 2.5 Gbps port for interference protection and PoE for easy wiring.
Effortless Wall-Mount Installation
Fits perfectly in a standard electrical box. It simplifies setup by eliminating the need for complex wiring or additional equipment.
Centralized AP Management
Easily manage up to 200 access points with Cudy AP Controller Model:C200P , enabling efficient batch configuration and firmware updates through a unified interface.
| Features | |
| 2.4 GHz: | Yes |
| 5 GHz: | Yes |
| 6 GHz: | No |
| Maximum data transfer rate: | 2976 Mbit/s |
| Maximum data transfer rate (2.4 GHz): | 574 Mbit/s |
| Maximum data transfer rate (5 GHz): | 2402 Mbit/s |
| Ethernet LAN data rates: | 10,100,1000 Mbit/s |
| Number of simultaneously connected devices (max): | 256 |
| Networking standards: | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3af |
| Number of users: | 60 user(s) |
| Bluetooth: | No |
| MIMO: | Yes |
| MIMO type: | Multi User MIMO |
| Spread spectrum method: | OFDMA |
| VLAN support: | Yes |
| Quality of Service (QoS) support: | Yes |
| Security | |
| Security algorithms: | WPA, WPA2, WPA3 |
| Number of SSID supported: | 8 |
| Guest access: | Yes |
| IGMP snooping: | Yes |
| Protocols | |
| DHCP server: | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 2.0 ports quantity: | 0 |
| WAN connection: | Ethernet (RJ-45) |
| Power | |
| Power over Ethernet (PoE): | Yes |
| Power over Ethernet (PoE) type supported: | Passive PoE |
| Power consumption (max): | 14 W |
| Design | |
| Placement: | Wall |
| Product colour: | White |
| Reset button: | Yes |
| Antenna | |
| Antenna type: | Internal |
| Antenna direction type: | Omni-directional |
| Antennas quantity: | 3 |
| Performance | |
| Flash memory: | 128 MB |
| Technical details | |
| Products per shipping (inner) case: | 50 pc(s) |
| Weight & dimensions | |
| Width: | 86 mm |
| Depth: | 86 mm |
| Height: | 43 mm |
| Weight: | 178.2 g |
| Packaging data | |
| Package width: | 91 mm |
| Package depth: | 57 mm |
| Package height: | 89 mm |
| Package weight: | 252.1 g |

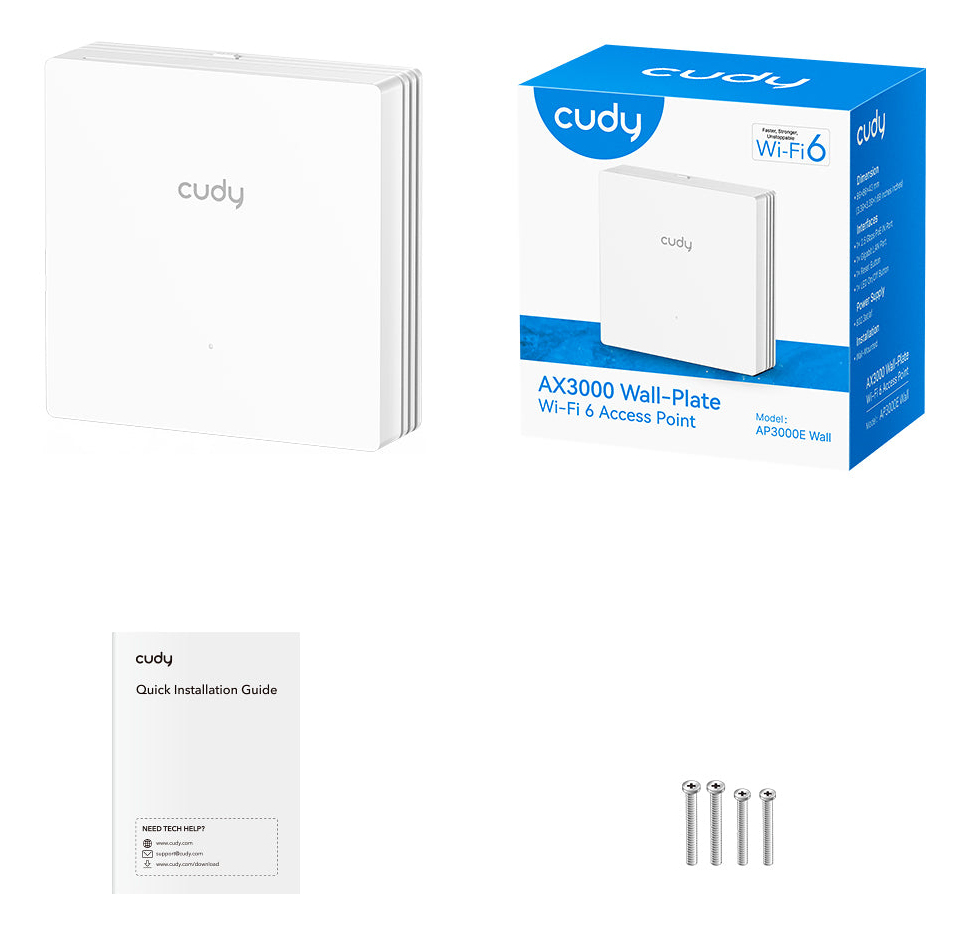

| Packaging content | |
| AC adapter included: | No |
| PoE adapter included: | No |
| Mounting kit: | Yes |
| Quick start guide: | Yes |
| Bundled software: | Cudy Software |
| Other features | |
| Wireless range: | 80 m |
| Operational conditions | |
| Operating relative humidity (H-H): | 10 - 90% |
| Operating temperature (T-T): | 0 - 40 °C |
| Storage temperature (T-T): | -40 - 70 °C |
| Storage relative humidity (H-H): | 5 - 90% |
| Logistics data | |
| Country of origin: | China |
