- Details

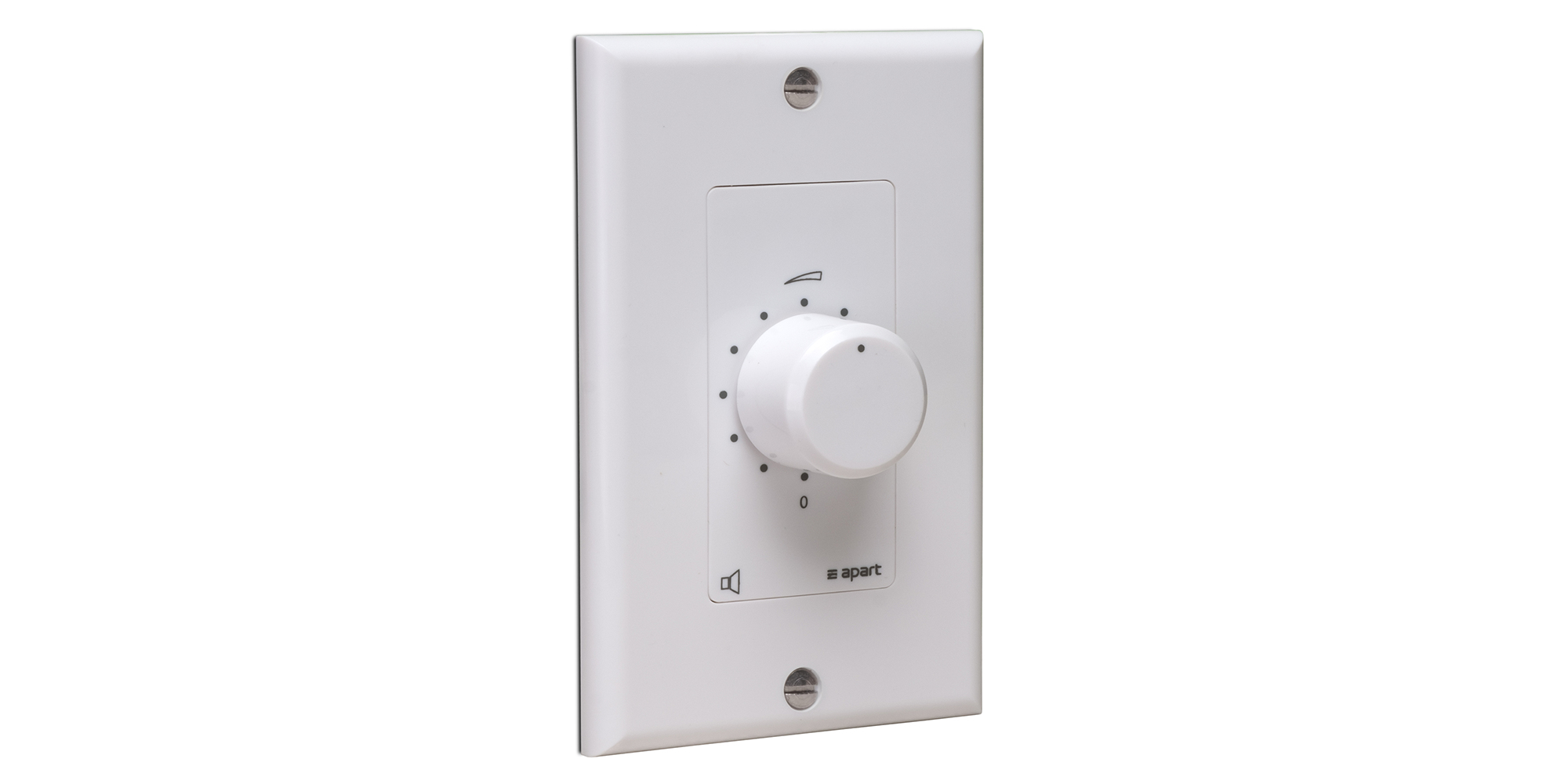

The D-VOL60 is a 70-volt volume control. It can handle up to 60 watts of power and is very durable thanks to the step-by-step attenuation in 11 steps + zero position. The D-VOL60 is designed to handle 24V priority signals. This means that you can always get an announcement out, even to zones where the local volume control is in the OFF position. If your amplifier has a 24V priority output, it will send a 24V signal when you push the talk button on the microphone. The 24V signal will close a relay on the D-VOL60 volume control, and the signal will pass, even when the volume control is in the OFF position. This can be very useful for emergency or evacuation messages. The D-VOL60 is built on a universal chassis that easily can be integrated with any Decora box offering a flush mount and neat finish.
| Features | |
| Type: | Rotary volume control |
| Mounting type: | Wall-mounted |
| Product colour: | White |
| Country of origin: | China |
| Power | |
| Power handling: | 60 W |
| Input operation voltage (max): | 70 V |
| Logistics data | |
| Export Control Classification Number (ECCN): | EAR99 |
| Weight & dimensions | |
| Width: | 70 mm |
| Depth: | 49 mm |
| Height: | 115 mm |
| Weight: | 410 g |
| Packaging data | |
| Package width: | 78 mm |
| Package depth: | 134.9 mm |
| Package height: | 89.9 mm |
| Package weight: | 380 g |
| Packaging content | |
| Quantity per pack: | 1 pc(s) |
