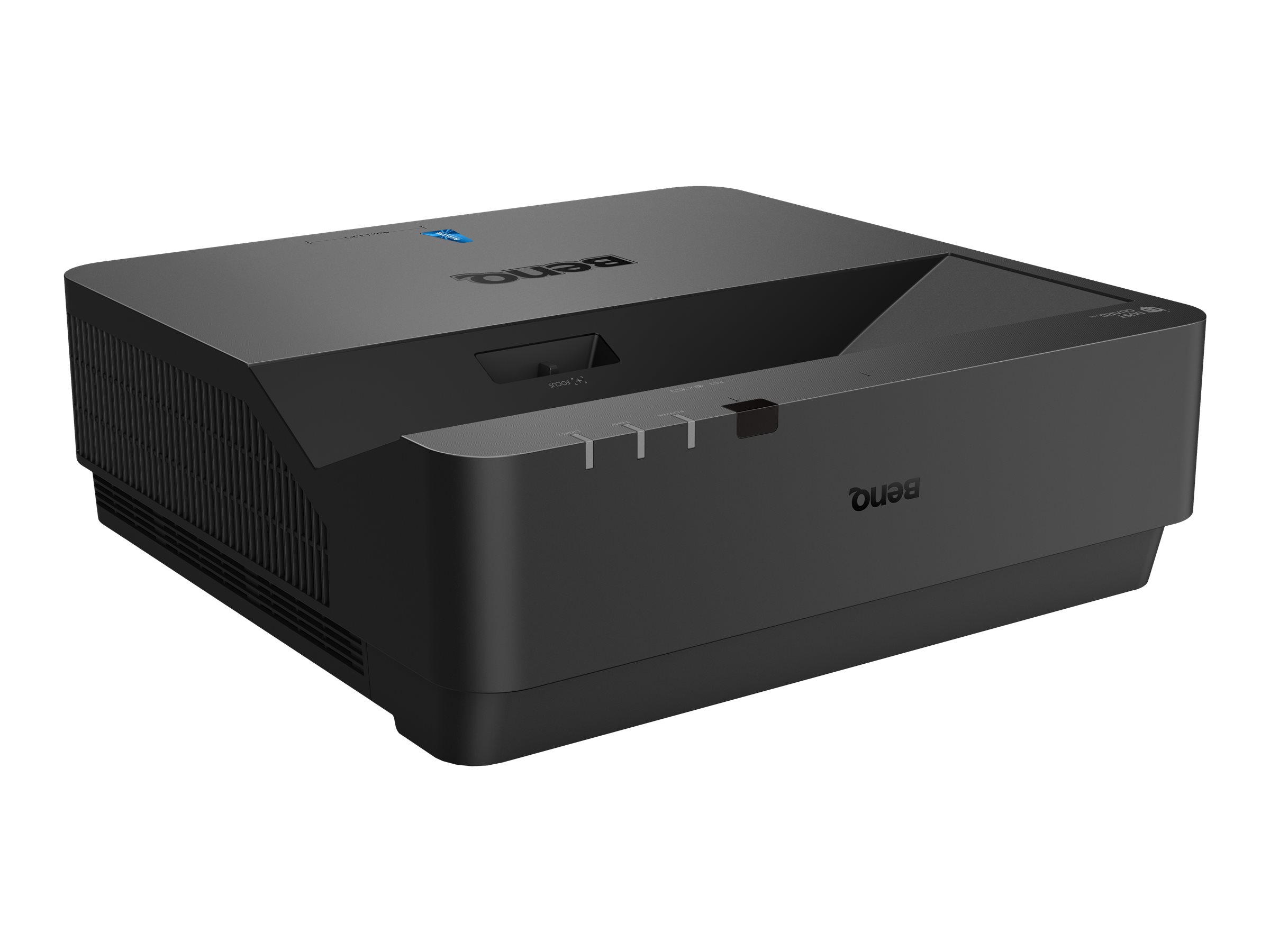

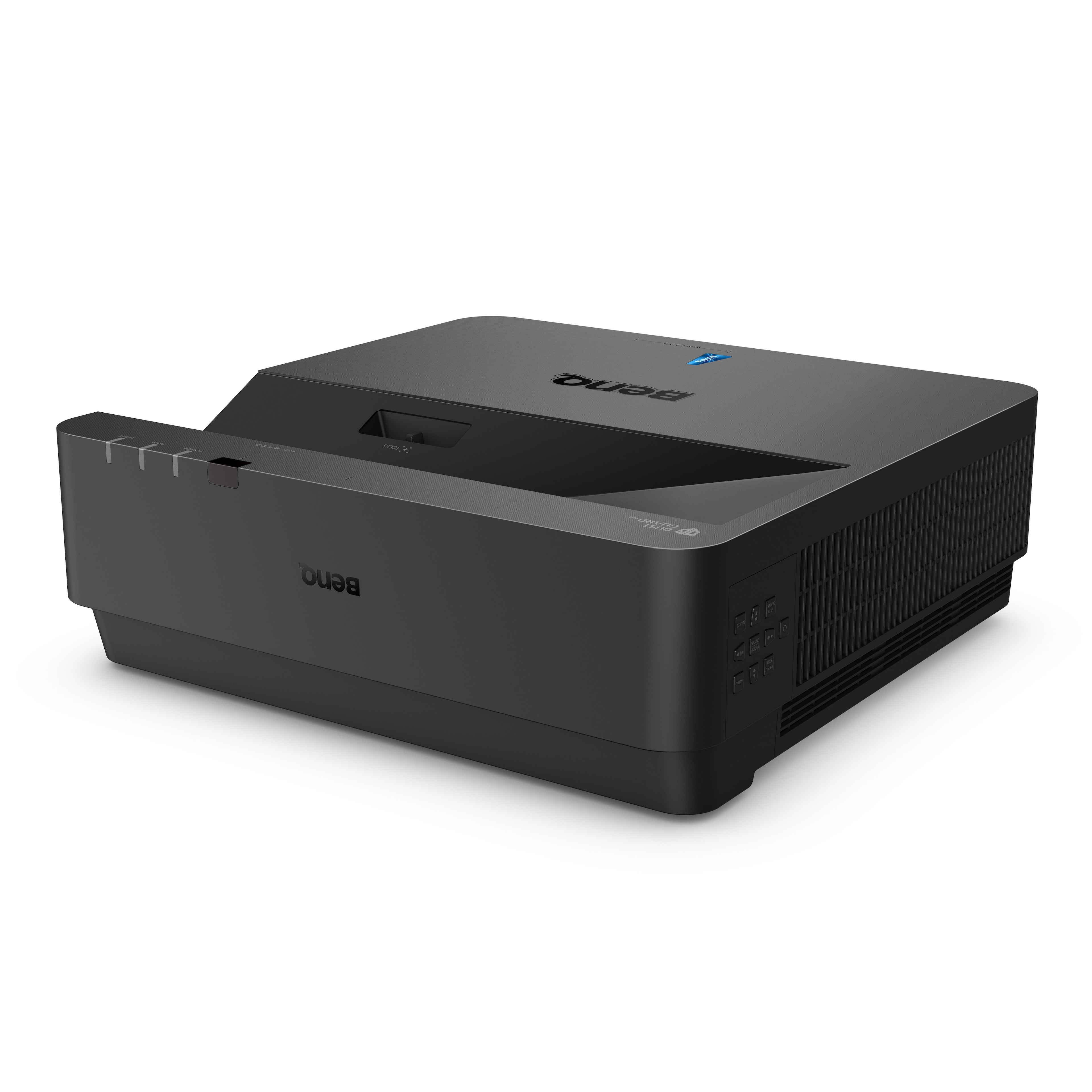

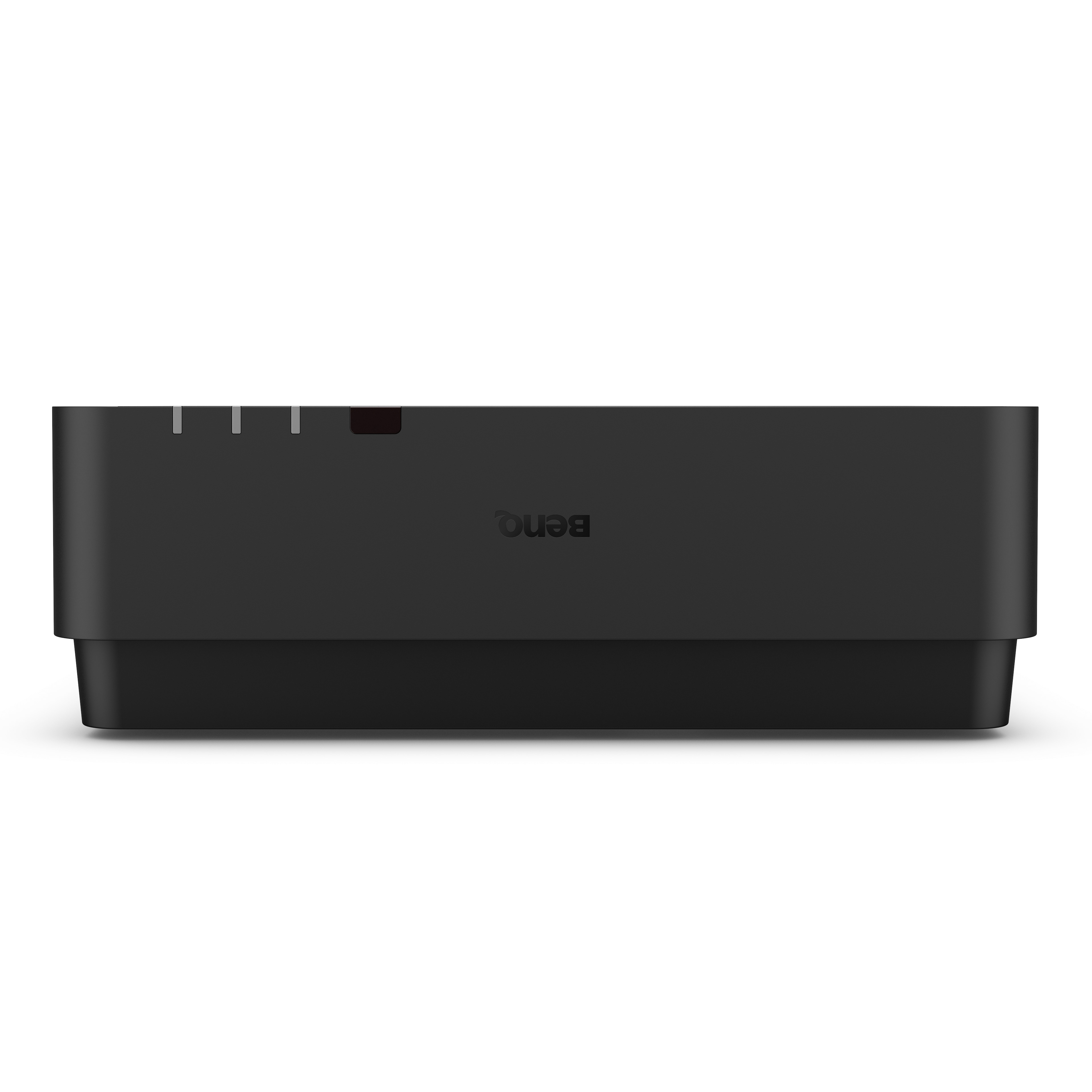

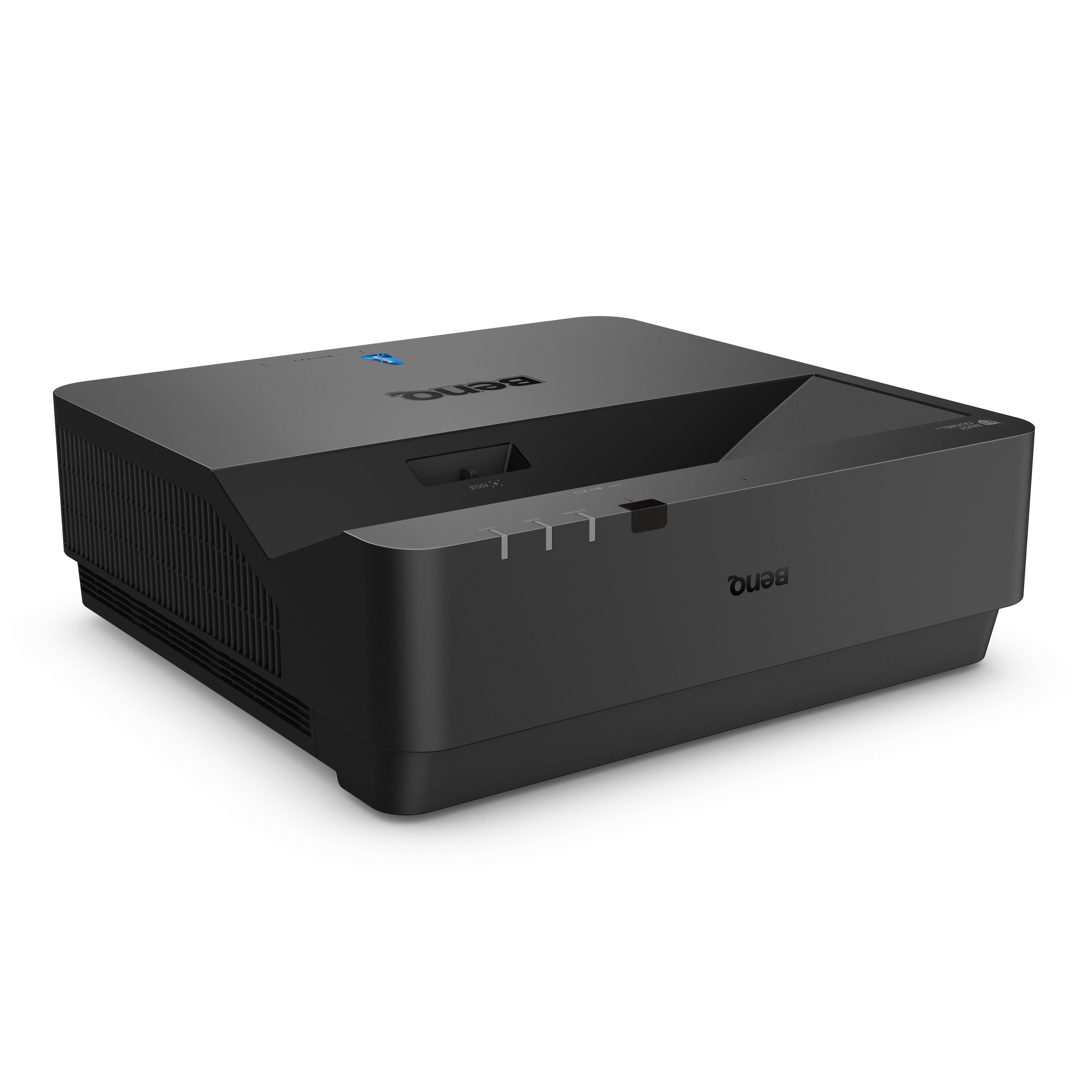

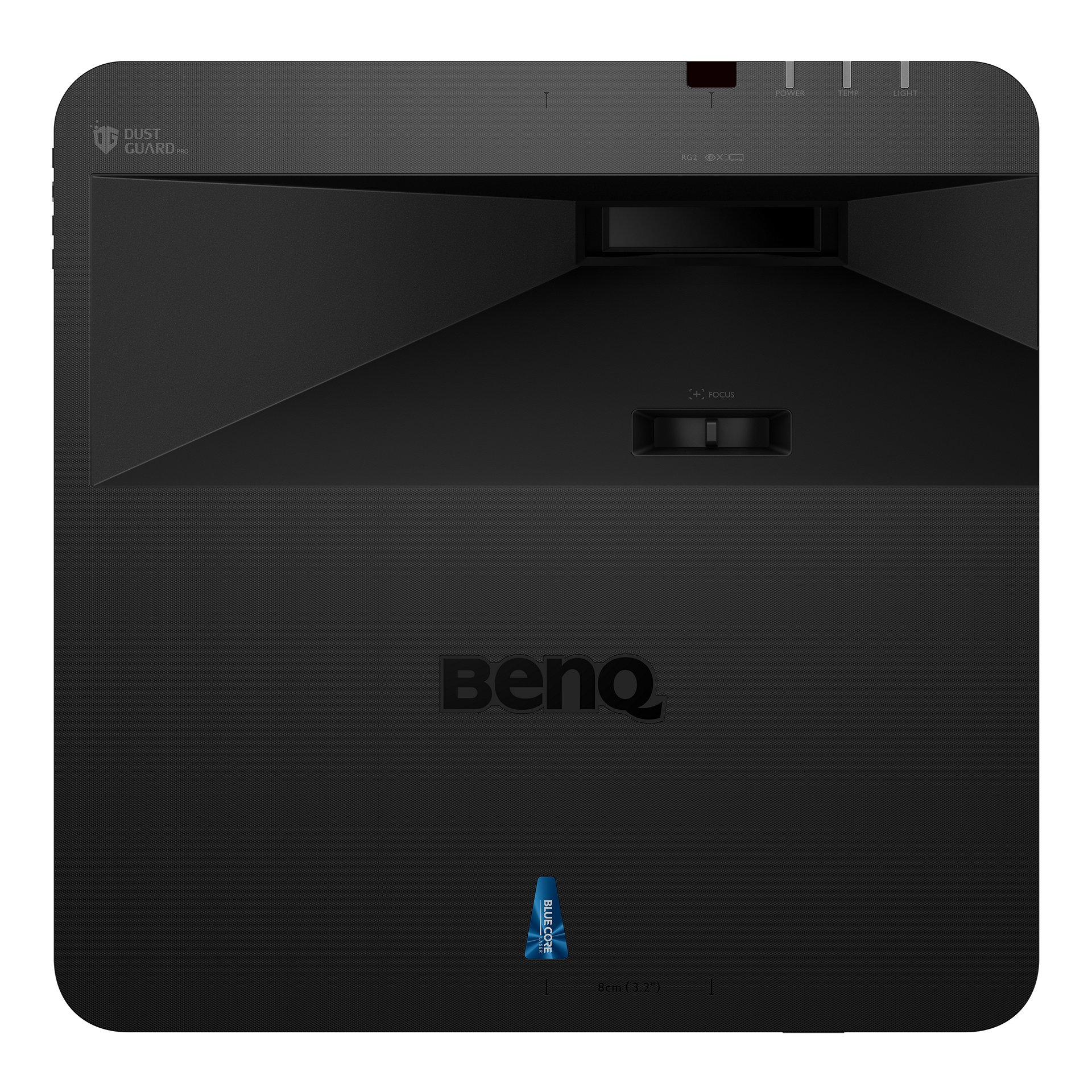

BenQ LU960UST data projector Ultra short throw projector 5200 ANSI lumens DLP WUXGA (1920x1200) 3D Black

LU960UST 5200lms WUXGA Installation ProjectorReproduce True-to-life Images for Totally Immersive ExperiencesCreating Lasting Lessons with Striking Picture QualityRevolutionary Laser TechnologyExtending its full line of revolutionary laser projectors, the world s No.1 DLP brand BenQ presents LU960UST, especially designed for ultra short throw fixed lens installation and reserves installation flexibility to merge into limited space.Superior BrightnessZero-deviation alignment of laser diodes boosts luminous flux into the light tunnel, improving light efficacy to 5,200 lumens.Superior PerformanceDual synchronized color wheels utilize an additive yellow segment, stimulating precise RGBY spectra for optimal chromatic performance.Superior DurabilityComprising over two million micromirrors that reflect pure light through the color wheel, the DLP chip is hermetically sealed to resist heat for over 200,000 hours without degradation.Excellent Installation FlexibilityUltra Short Throw Design for Unobstructed Viewing Without Space ConstraintsProducing larger-than-life images in tight spaces with a 0.25 ultra short throw ratio, LU960UST eliminates distracting shadows and glare for viewers to move freely in front of the screen while enjoying immersive viewing experiences in places with space limitation or retail application with a lot traffic.Native Resolution Switch and Digital Lens ShiftLU960UST is built with the native resolution switch function so users can change the native resolution from WUXGA into 1080P. When the native resolution is set at 1080P, the vertical lens shift function will be enabled for users to perfectly align images in any challenging venue such as when lights or vents that are located at the ceiling mounting site. Lens shift can move projected images up and down by 5% of screen height.Digital Shrink and Shift without DistortionDigital image shrinking and shift lets installers shrink the image to 80% of the original size in 0.5% increments via OSD menu. The image can also be shifted, so installers do not have to reinstall or adjust the projector physically in case the image is not precisely aligned on the desired frame and space.360° and Portrait Projection Accommodate Different SpacesLaser technology guarantees reliable projection from any angle. Dynamic installation options such as 360° rotation and portrait applications, allows projection onto ceiling, walls, floors or angled signage.Ensure Consistent Brightness Blending with Custom Light ModeCustom Light Mode modulates light power output from 40% to 100% under a scale of 80 steps, optimizing the projected image in a variety of ambient lighting situations. It is especially useful for blending consistent brightness across multiple projections.Wired Remote ControlWired Remote Control offers projector installers and IT managers extra set-up convenience and ease of operation. The added wired control functionality makes the device a dependable choice for projector installation adjustment.Remote Control Projector ID Setting for Independent ControlInstallers and IT managers can assign a specific remote control ID to each projector, avoiding signal interference and unintentional changes when installing multiple projectors in a venue.3D Sync In /3D Sync outConnect up to 3 projectors and project 3D content together by a single PC.HDBaseT for Uncompressed Transmission Up to 100m and ControlGroundbreaking HDBaseT connectivity combines video, audio, RS-232 and LAN signal control signals from multiple sources including: PCs, laptops, document cameras, Blu-ray and DVDs onto a single RJ-45 cable. This ensures seamless transmissions up to 100 meters.Superior Image QualityLag-Busting Response with Fast ModeBased on expertise gained from experience with near-zero latency displays used in gaming, LU960UST employs Fast mode functions to provide latency as low as 16.67ms. LU960UST can serve the fast-moving dynamic or interactive scenes such as in immersive cycling simulation and amusement park theaters very well.WUXGA Resolution for Enhanced Detail and Expanded ContentWith an impressive WUXGA (1920 x 1200) native resolution that far exceeds Full HD 1080p, BenQ LU960UST laser projector offers greater details and stunning image clarity when projecting high resolution images.Dual Color Wheels Produce 92% Rec.709 Color Coverage for Optimal Color PerformanceLU960UST s powerful laser projection utilizes a dual color wheel system to produce unparalleled color performance that achieves a 92% Rec.709 color coverage. By increasing color ratios and the purity of RGBY color, LU960UST dramatically enhances color saturation to ensure superior presentation quality.High Brightness Vivid Clarity in Bright Ambient EnvironmentsLU960UST s 5200lm high brightness produces wondrous displays in bright, compact exhibition spaces with superb image quality.Laser-Powered Ultra-High ContrastLU960UST laser projector creates strikingly clear images with stratospherically high 3,000,000:1 contrast ratio for true deep blacks, vivid rich colors and fine subtle details. LU960UST also features spontaneous response, requiring no wait to turn on or resume from blanking in true black for flexible performance capability.HDMI 2.0 for Supreme Image QualityLU960UST come with HDMI 2.0 ports that users can now effortlessly project content with much less friction and enjoy greater brightness and contrast range than SDR.Gamma SelectionSelect Gamma for your preference and optimizing image quality between input source and picture brightness. Besides, LU960UST also provides advanced BenQ and DICOM Gamma curve to satisfy your various needs.Enduring Reliability24/7 OperationBenQ laser light source supports continuous 24/7 operation and is suitable for public display applications in museums and exhibitions. Users can choose from three different light source modes to optimize energy consumption and delivers up to 70,000 hours under Dimming Mode.Superior Dustproofing for Severe Conditions with IP5X CertificationBenQ laser projectors are designed with sealed laser modules and enclosed light engines to protect the DMD chip, color wheel sensor, laser bank, and other optical components. This lock-and-key design hermetically seals the engine from dust to prolong projector lifespan.Highly Integrated Network Control and Management System CompatibilityCentralized Control with BenQ SoftwareBenQ centralized control software is a management tool for computers that enables remote and centralized management of multiple digital projectors by IT administrators/ technicians via a local network. The management capabilities include the ability to remotely monitor, control, and configure projectors individually or as groups.Network / Web ControlBenQ laser projectors are compatible with Creston, AMX and PJ Link control systems for convenient system integration with various third-party components and reduced cost to centrally maintain multiple projectors.

Projector
Projector brightness:	5200 ANSI lumens
Projection technology:	DLP
Projector native resolution:	WUXGA (1920x1200)
Contrast ratio (typical):	3000000:1
Native aspect ratio:	16:10
Screen size compatibility:	2540 - 3810 mm (100 - 150")
Number of colours:	1.07 billion colours
Horizontal scan range:	15 - 135 kHz
Vertical scan range:	23 - 120 Hz
Keystone correction, horizontal:	-30 - 30°
Keystone correction, vertical:	-30 - 30°
Light source
Light source type:	Laser
Service life of light source:	20000 h
Service life of light source (economic mode):	38000 h
Service life of light source (portrait mode):	70000 h
Lens system
Throw ratio:	0.25
Offset:	122%
Video
Analog signal format system:	NTSC, PAL, SECAM
Full HD:
3D:
Supported graphics resolutions:	640 x 480 (VGA), 1920 x 1200 (WUXGA)
Supported video modes:	480i, 480p, 576i, 576p, 720p, 1080i, 1080p

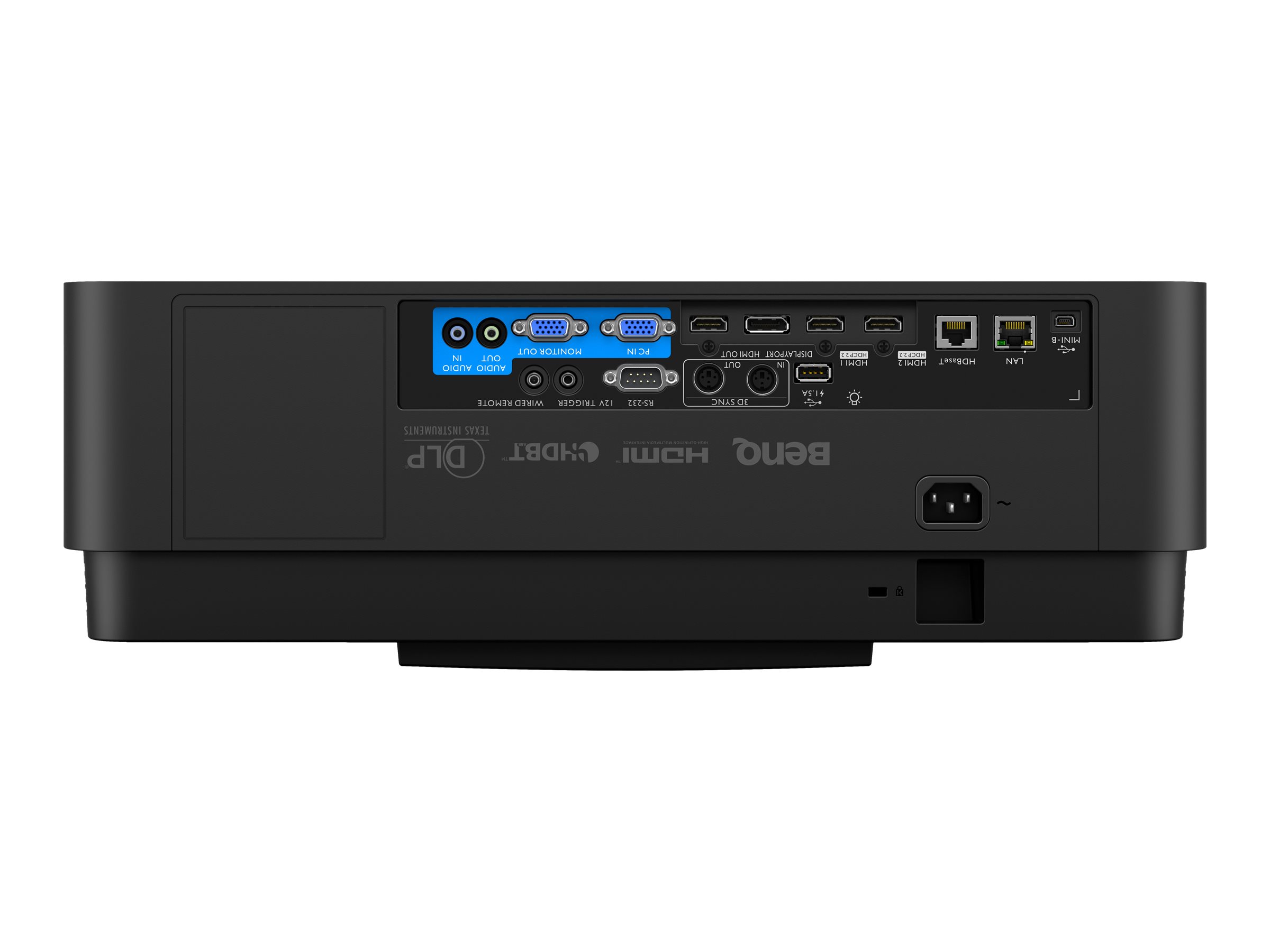

Ports & interfaces
VGA (D-Sub) ports quantity:	2
HDMI ports quantity:	3
DVI port:
USB 2.0 ports quantity:	1
Audio (L/R) in:	1
Serial interface type:	RS-232
HDMI connector type:	Full-size
HDMI version:	2.0
DisplayPorts quantity:	1
Mini-USB 2.0 ports quantity:	1
Audio (L/R) out:	1
3D sync port:
AC (power) in:
Network
Smart TV:
Ethernet LAN:
Wi-Fi:
Ethernet LAN (RJ-45) ports:	1
Storage
Card reader integrated:
Features
Noise level:	37 dB
Interactive:
Noise level (economic mode):	35 dB
HDCP:
On Screen Display (OSD):
On Screen Display (OSD) languages:	Arabic, Bulgarian, Simplified Chinese, Traditional Chinese, Croatian, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Swedish, Thai, Turkish
Multimedia
Built-in speaker(s):
RMS rated power:	10 W
Design
Product type:	Ultra short throw projector
Market positioning:	Business
Product colour:	Black
Cable lock slot:
Cable lock slot type:	Kensington
Display
Built-in display:
Power
Power source:	AC
Power consumption (typical):	450 W
Power consumption (standby):	0.5 W
Power consumption (max):	500 W
Power consumption (economy mode):	339 W
AC input voltage:	100 - 240 V
Operational conditions
Operating temperature (T-T):	0 - 40 °C
Weight & dimensions
Weight:	12 kg
Width:	480 mm
Depth:	473 mm
Height:	157.4 mm
Packaging content
Remote control included:
Remote control type:	Wireless/Wired
Batteries included:
3D glasses included:
Cables included:	AC
Manual:
Logistics data
Harmonized System (HS) code:	85286200
