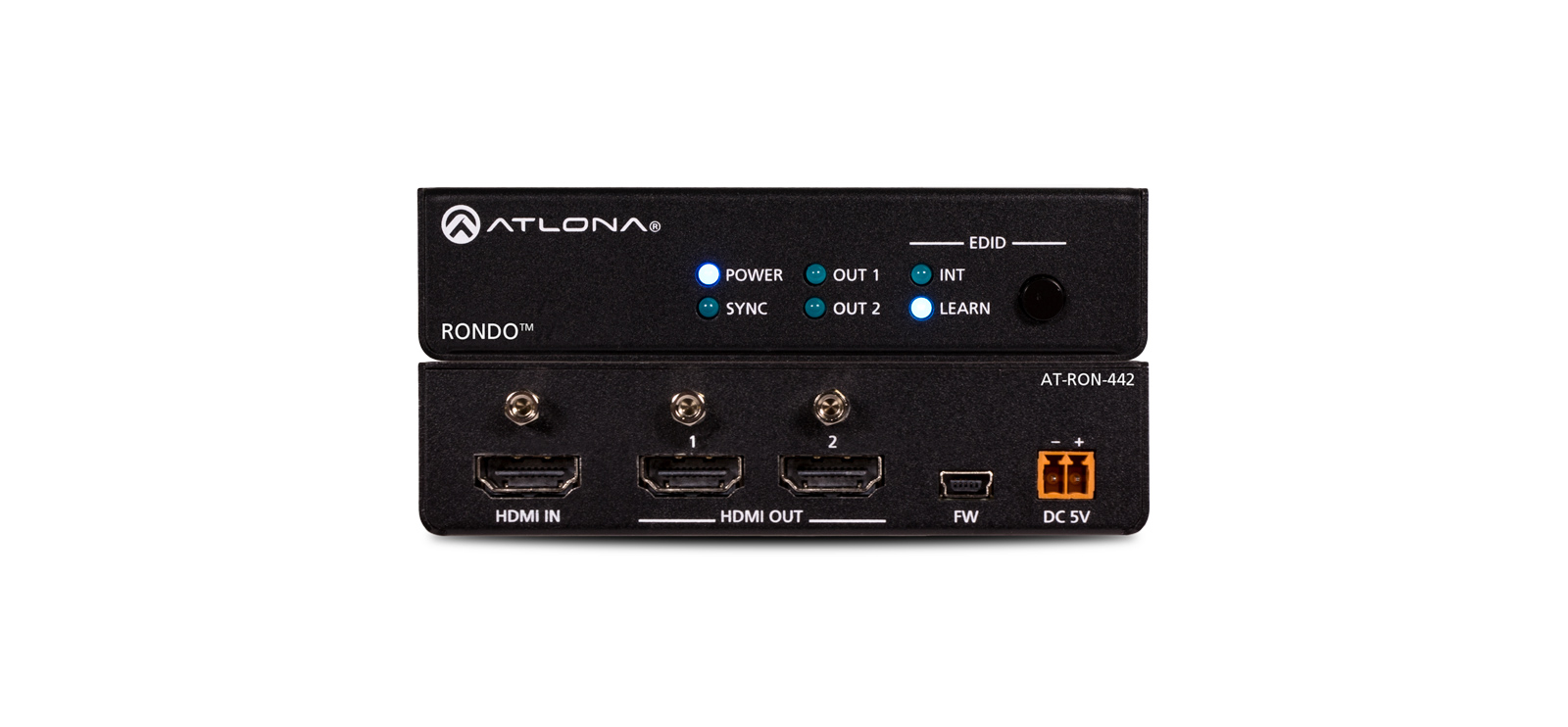

The Atlona Rondo 442 (AT-RON-442) is a 1×2 HDMI distribution amplifier for high dynamic range (HDR) formats. It is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. The Rondo 442 is ideal for applications requiring the latest as well as emerging 4K/UHD and HDR sources and displays. It is compatible with all video resolutions, audio formats, and color space formats supported in the HDMI 2.0a specification, plus the ability to pass metadata for HDR content. This Rondo Series HDMI distribution amplifier includes EDID management features, front panel LED indicators for power and signal status, and the capability to cascade several units without compromising performance.
The Rondo 442 is designed to deliver dependable, pristine-quality image presentations in commercial and residential applications. It includes Atlona s award-winning 10 year limited product warranty and customer support services, so that integrators can specify, purchase, and install with confidence.
| Features | |
| Converter type: | Active video converter |
| Product colour: | Black |
| Certification: | CE, FCC |
| Video | |
| Maximum video resolution: | 4096 x 2160 pixels |
| Supported video modes: | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Colour depth: | 12 bit |
| Bandwidth: | 18 Gbit/s |
| HDCP: | Yes |
| Ports & interfaces | |
| Host interface: | HDMI |
| Output interface: | HDMI |
| Video in: | HDMI |
| Video out: | HDMI |
| Power | |
| Input voltage: | 100 - 240 V |
| Input frequency: | 50 - 60 Hz |
| Operating voltage: | 5 V |
| Power consumption (typical): | 6 W |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 50 °C |
| Storage temperature (T-T): | -20 - 60 °C |
| Operating relative humidity (H-H): | 20 - 90% |
| Weight & dimensions | |
| Width: | 109 mm |
| Depth: | 89 mm |
| Height: | 26 mm |
| Weight: | 200 g |
| Packaging data | |
| Quantity: | 1 |
| Other features | |
| Supported resolutions: | 4096×2160, 3840×2160, 2048×1080 |
| Logistics data | |
| Harmonized System (HS) code: | 85176990 |
