Products description
Bring Together HDMI Sources

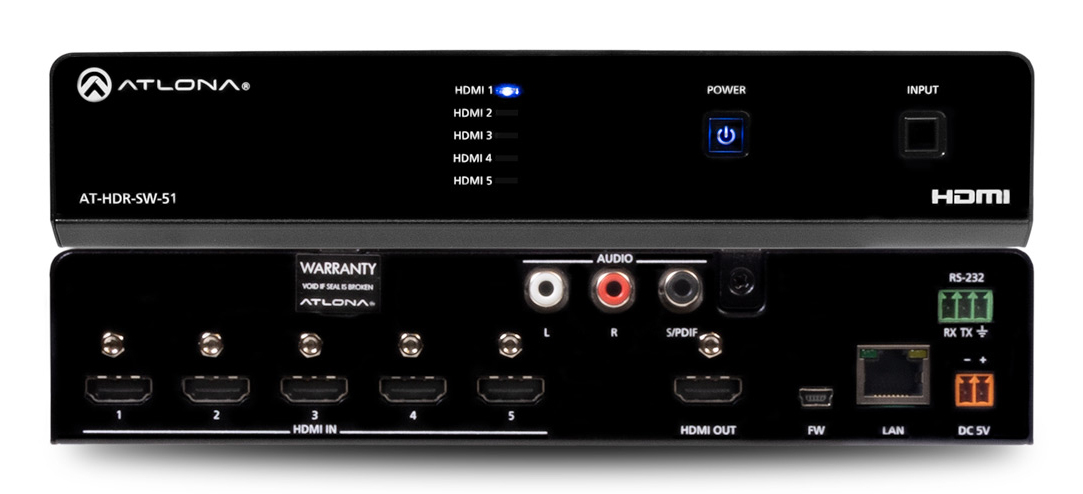

The AT-HDR-SW-51 goes anywhere AV switching is needed, such as for this meeting space with sources in the credenza and a presenter s laptop.
4K HDR Support
Provides 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling as well as HDR10, HLG, and Dolby® Vision HDR formats for very high, pristine image quality.
Sophisticated Integration Capabilities
Features and capabilities designed to ease integration in commercial AV applications include audio de-embedding, EDID and HDCP management, and HDBaseT link testing.
| Features | |
| Maximum pixel clock: | 600 MHz |
| Audio channels: | 2 |
| HDCP: | Yes |
| HDCP version: | 2.2 |
| High Dynamic Range (HDR) supported: | Yes |
| Ethernet LAN data rates: | 10,100 Mbit/s |
| Audio formats supported: | DTS, LPCM |
| Supported chroma subsampling: | 4:2:2, 4:4:4, 4:2:0 |
| Supported resolutions: | 4096×2160 (DCI) @ 24/25/30/50/60 Hz 3840×2160 (UHD) @ 24/25/30/50/60 Hz 1920x1080p @ 23.97/24/25/29.97/30/50/60 Hz 1920x1080i @ 50/60 Hz 1280x720p @ 30/50/60 Hz 720x576p @ 50 Hz 720x576i @ 25/50 Hz 720x480p @ 60 Hz 640x480p @ 60 Hz 640x480i @ 60 Hz |
| Design | |
| Housing colour: | Black |
| LED indicators: | Yes |
| Certification: | CE, RoHS, FCC CE, FCC, UL, CUL, TUV-GS, CB, PSE, CCC |
| Display | |
| Built-in display: | No |
| Ports & interfaces | |
| HDMI input ports quantity: | 5 |
| HDMI output ports quantity: | 1 |
| USB connector type: | Mini-USB |
| USB ports quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| RS-232 ports: | 1 |
| Audio (L/R) in: | 2 |
| DC-in jack: | Yes |
| Power | |
| Power consumption (max): | 13.53 W |
| AC input voltage: | 100 240 |
| AC input frequency: | 50/60 Hz |
| Input current: | 4 A |
| Output power: | 5 W |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 50 °C |
| Storage temperature (T-T): | -20 - 60 °C |
| Operating relative humidity (H-H): | 20 - 90% |
| Heat dissipation: | 46.1 BTU/h |
| Weight & dimensions | |
| Width: | 208 mm |
| Depth: | 112 mm |
| Height: | 34 mm |
| Weight: | 3.15 kg |
| Packaging content | |
| Quick start guide: | Yes |
