- Details
Supports HDR and 4K/60 4:4:4 video content.
The HDR-EX-70-2PS is cost-effective and ideal for applications requiring the latest as well as emerging 4K/UHD and HDR sources and displays. It is compatible with all video resolutions, audio formats, and color space formats supported in the HDMI 2.0b specification, plus the ability to pass metadata for HDR content. The HDR-EX-70-2PS supports 4K HDR10 @ 60 Hz and Dolby Vision @ 30 Hz.
An innovative yet practical solution for 4K HDR over HDBaseT.
HDR and 4K/60 4:4:4 video content requires data rates exceeding 10 Gbps and up to 18 Gbps a significant challenge for extending signals over HDBaseT. The HDR-EX-70-2PS provides the answer with visually lossless video compression technology that applies extremely light compression with no latency. This enables transmission of HDR and 4K/60 4:4:4 over a single category cable while ensuring very high, pristine image quality.

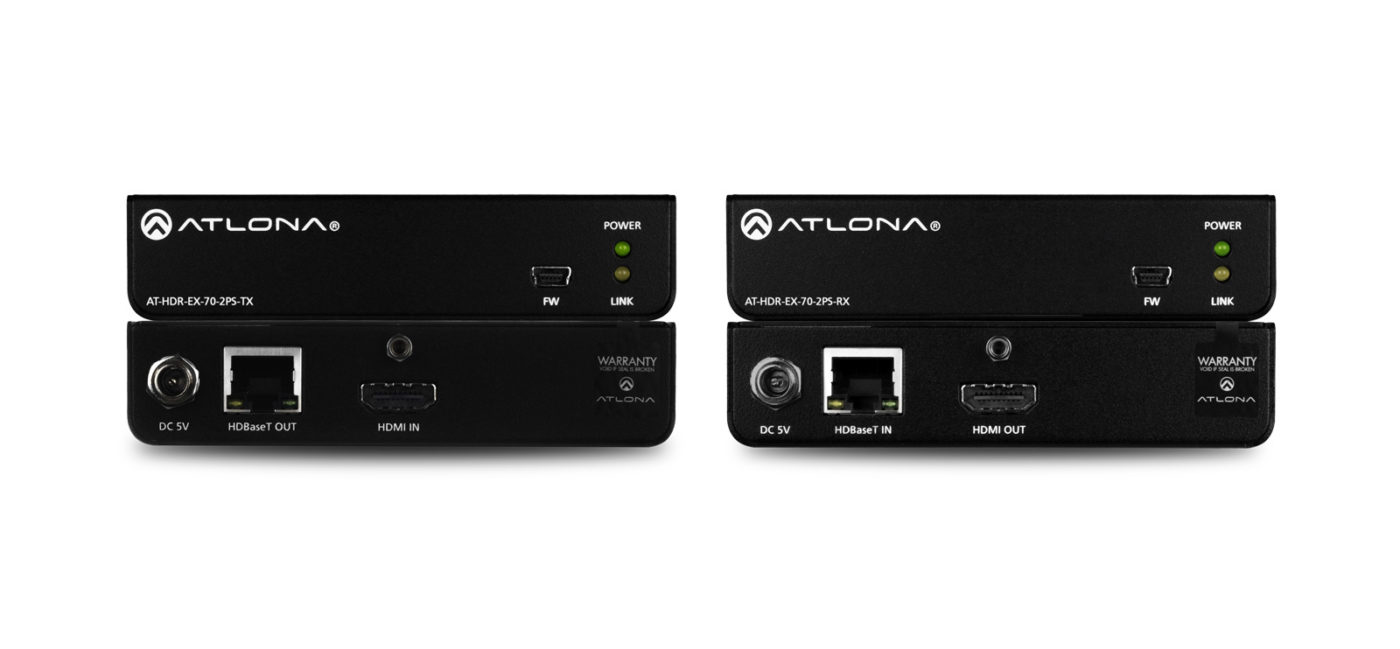

The Atlona AT-HDR-EX-70-2PS is an HDBaseT transmitter/receiver kit for high dynamic range (HDR) formats. The kit is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. The HDR-EX-70-2PS provides HDMI transmission up to 230 feet (70 meters) for 1080p video, and up to 130 feet (40 meters) for 4K HDR over CAT6a/7 cable. This extender kit features visually lossless compression with no latency to enable HDR and 4K/60 4:4:4 video signal extension over HDBaseT. The HDR-EX-70-2PS delivers a cost-effective solution for HDMI extension, with locally powered transmitter and receiver endpoints as well as surface mounting hardware for discreet installation.
The HDR-EX-70-2PS is ideal for residential and commercial applications with the latest as well as emerging 4K/UHD and HDR sources and displays. It is compatible with all video resolutions, audio formats, and color space formats supported in the HDMI 2.0b specification, plus the ability to pass metadata for HDR content. The HDR-EX-70-2PS includes Atlona s award-winning 10 year limited product warranty and customer support services, so that integrators can specify, purchase, and install with confidence.
| Features | |
| Type: | AV transmitter & receiver |
| Maximum resolution: | 4096 x 2160 pixels |
| Maximum transfer distance: | 70 m |
| Audio system: | Multichannel |
| Audio output channels: | 7.1 channels |
| Supported video modes: | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Supported graphics resolutions: | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1376 x 768, 1400 x 1050 (SXGA+), 1440 x 900, 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 2048 x 1536 (QXGA), 2560 x 1600 (WQXGA), 2560 x 2048 |
| Bandwidth: | 18 Gbit/s |
| HDCP: | Yes |
| Colour depth: | 12 bit |
| Consumer Electronics Control (CEC) support: | Yes |
| Certification: | CE, FCC |
| Ports & interfaces | |
| Connectivity technology: | Wired |
| RJ-45 input ports: | 1 |
| RJ-45 output ports: | 1 |
| HDBaseT port: | Yes |
| HDMI in: | 1 |
| Number of HDMI outputs: | 1 |
| USB ports quantity: | 2 |
| USB connector type: | Mini-USB B |
| DC-in jack: | Yes |
| Power | |
| AC input voltage: | 100 - 240 V |
| AC input frequency: | 50 - 60 Hz |
| Operating voltage: | 5 V |
| Power consumption (transmitter) (max): | 4 W |
| Power consumption (receiver) (max): | 5.9 W |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 50 °C |
| Storage temperature (T-T): | -20 - 60 °C |
| Operating relative humidity (H-H): | 20 - 90% |
| Weight & dimensions | |
| Receiver dimensions (WxDxH): | 109 x 76 x 25 mm |
| Receiver weight: | 220 g |
| Transmitter dimensions (WxDxH): | 109 x 76 x 25 mm |
| Transmitter weight: | 220 g |
