- Details

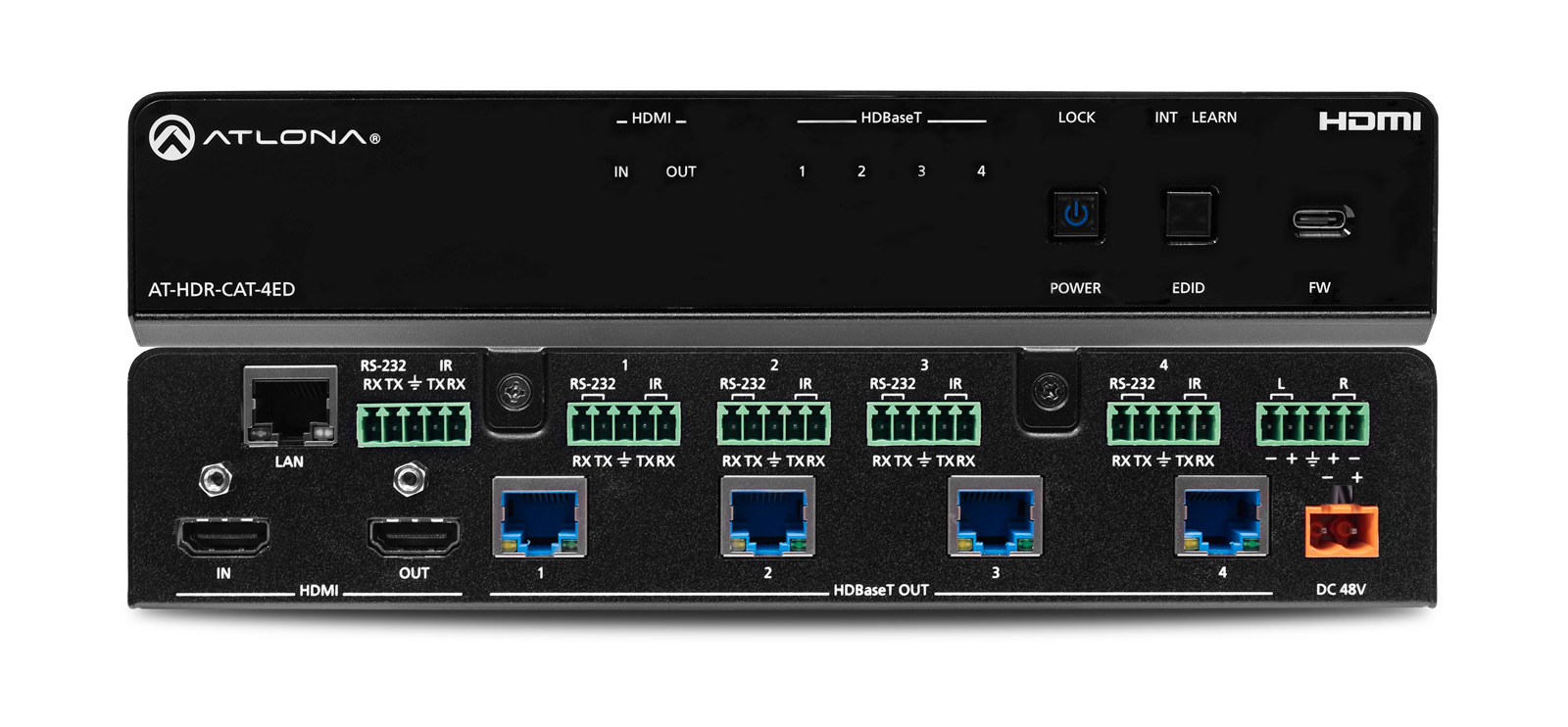

Long Distance HDBaseT Distribution
Send a single HDMI source to four displays at distances up to 330 (100 m) for video distribution applications including hospitality and retail, commercial reception areas or warehouses, and educational AV systems that require multiple screens.
4K HDR Support
Provides 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling as well as HDR10, HLG, and Dolby Vision HDR formats for very high, pristine image quality.
Sophisticated Integration Capabilities
Features and capabilities designed to ease integration in commercial AV distribution applications include HDMI signal pass-through, audio de-embedding, EDID management, CEC display control, RS-232 and IR control extension, remote power for receivers, and HDBaseT link testing.
| Features | |
| Maximum resolution: | 4096 x 2160 pixels |
| Audio channels: | 2 |
| HDCP: | Yes |
| HDCP version: | 2.2 |
| High Dynamic Range (HDR) supported: | Yes |
| Ethernet LAN data rates: | 10,100 Mbit/s |
| Audio formats supported: | DTS, LPCM, PCM |
| Supported chroma subsampling: | 4:2:2, 4:4:4, 4:2:0 |
| Supported resolutions: | 4096×2160 (DCI) @ 24/25/30/50/60 Hz 3840×2160 (UHD) @ 24/25/30/50/60 Hz 1920x1080p @ 23.97/24/25/29.97/30/50/60 Hz 1920x1080i @ 50/60 Hz 1280x720p @ 30/50/60 Hz 720x576p @ 50 Hz 720x576i @ 25/50 Hz 720x480p @ 60 Hz 640x480p @ 60 Hz |
| Design | |
| Housing colour: | Black |
| Rack mounting: | Yes |
| Rack capacity: | 1U |
| LED indicators: | Yes |
| Display | |
| Built-in display: | No |
| Ports & interfaces | |
| HDMI input ports quantity: | 1 |
| HDMI output ports quantity: | 1 |
| RJ-45 output ports: | 4 |
| USB connector type: | USB Type-C |
| USB ports quantity: | 1 |
| RS-232 ports: | 5 |
| Remote (IR) input: | 5 |
| DC-in jack: | Yes |
| Power | |
| Power consumption (max): | 71.5 W |
| AC input voltage: | 100 240 |
| AC input frequency: | 50/60 Hz |
| Output voltage: | 48 V |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 50 °C |
| Storage temperature (T-T): | -20 - 60 °C |
| Operating relative humidity (H-H): | 20 - 90% |
| Heat dissipation: | 39.2 BTU/h |
| Packaging content | |
| Manual: | Yes |
