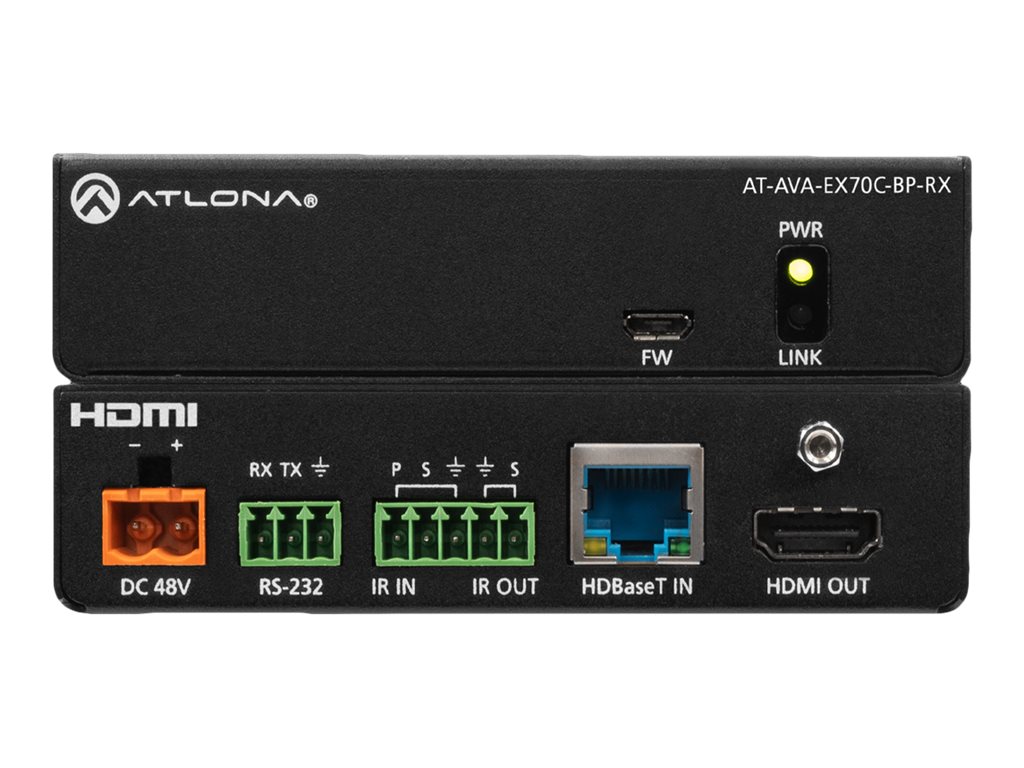

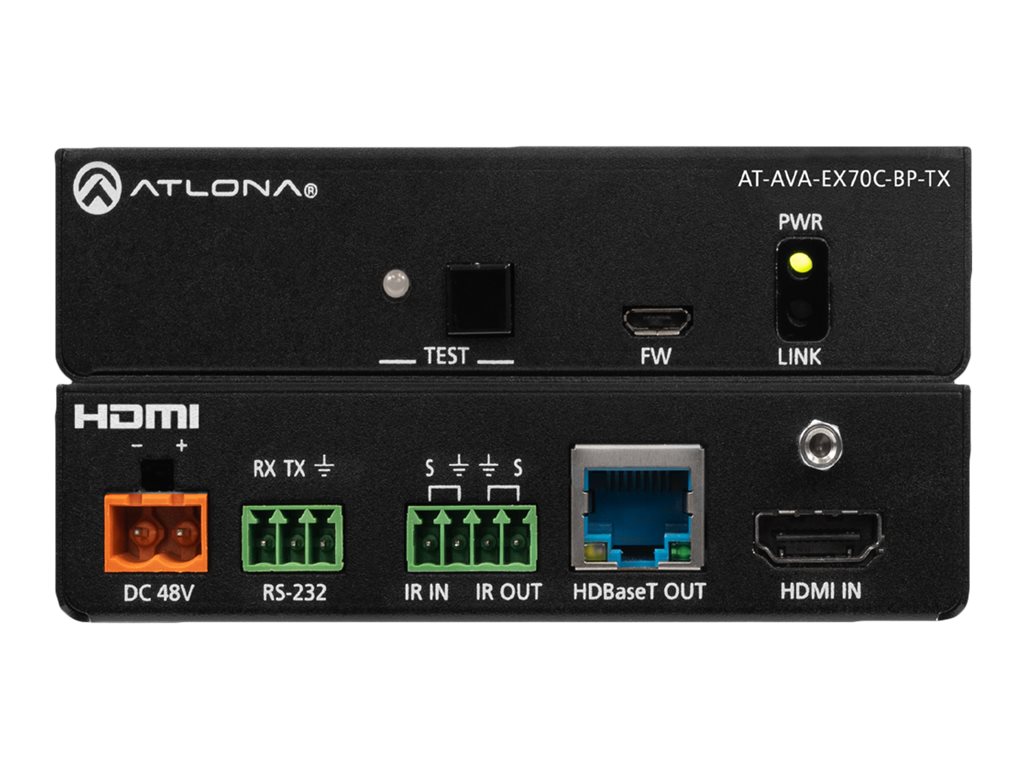

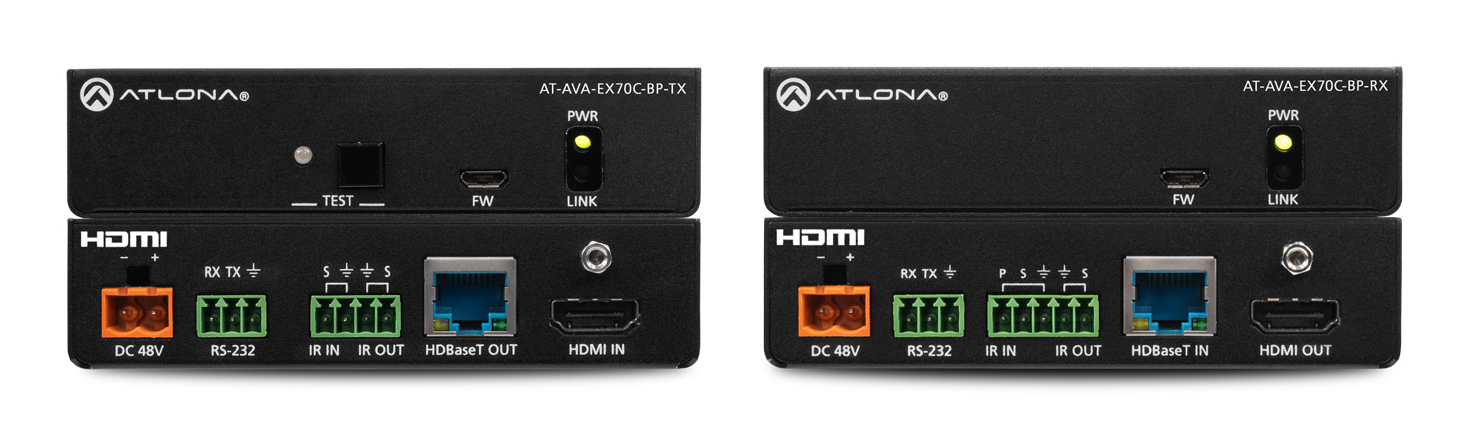

Avance 4K/UHD Extender Kit with Control and Bidirectional Remote Power
The Atlona AT-AVA-EX70C-BP-KIT is an Avance Series HDBaseT extender kit that supports control pass-through and bidirectional remote power capabilities. The kit transmits 4K/UHD 60 Hz 4:2:0 video up to 130 feet (40 meters) or 1080p 60 Hz video up to 230 feet (70 meters). In addition to video with embedded multi-channel audio, RS-232 and IR control signals, and remote powering by either the transmitter or the receiver are supported on the single Category 6/6A cable. EDID filtering and clock stretching ensure video transmission integrity and stable connections. Integrated HDBaseT link test allows quick verification of cable, termination, and link quality. Audio Return Channel (ARC) is available on the HDMI® connections to minimize cabling in audio return applications. The AT-AVA-EX70C-BP-KIT includes both transmitter and receiver endpoints. Compact enclosures and included brackets allow the devices to be surface mounted in furniture or behind a display. The AT-AVA-EX70C-BP-KIT delivers a cost-effective solution for extension of video, audio, control, and bidirectional power at resolutions up to 4K/UHD.
| Performance | |
| Type: | Network transmitter & receiver |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports: | 2 |
| RJ-45 ports quantity (transmitter): | 1 |
| RJ-45 ports quantity (receiver): | 1 |
| Micro-USB 2.0 ports quantity: | 1 |
| Design | |
| Product colour: | Black |
| LED indicators: | Link, Power |
| Certification: | CE, FCC, cULus, RoHS |
| Power | |
| AC input voltage: | 100 - 240 V |
| AC input frequency: | 50 - 60 Hz |
| Power consumption (typical): | 7.71 W |
| Output voltage: | 48 V |
| Output current: | 0.83 A |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 50 °C |
| Storage temperature (T-T): | -20 - 60 °C |
| Operating relative humidity (transmitter): | 20 - 60% |
| Weight & dimensions | |
| Width: | 106.8 mm |
| Depth: | 75 mm |
| Height: | 23.7 mm |
| Transmitter weight: | 0.25 g |
| Receiver weight: | 0.25 g |
| Packaging content | |
| Cables included: | HDMI, IR, RS-232 |
| Certificates | |
| Compliance certificates: | CE, Federal Communications Commission (FCC), RoHS, cULus |
| Logistics data | |
| Harmonized System (HS) code: | 85176990 |
