Products description

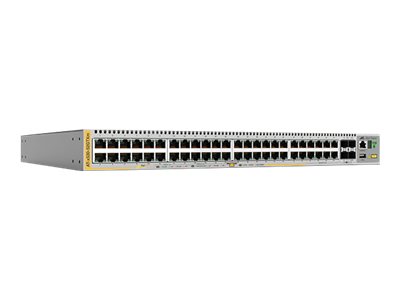

The x530-52GPXm stackable Gigabit layer 3 switch is high-performing and feature-rich, with 40 x 100M/1G and 8 x 100M/1G/2.5G/5G PoE+ ports, and 4 x 10G uplinks.
| Management features | |
| Switch type: | Managed |
| Switch layer: | L3 |
| Quality of Service (QoS) support: |  |
| Web-based management: | |
| Configuring Location Settings (CLI): | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity: | 40 |
| Basic switching RJ-45 Ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity: | 4 |
| Network | |
| Networking standards: | IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support: | |
| Port mirroring: | |
| Link aggregation: | |
| VLAN support: | |
| Number of VLANs: | 4094 |
| Optical fiber | |
| Fiber ethernet cabling technology: | 100BASE-X, 1000BASE-X |
| Data transmission | |
| MAC address table: | 16000 entries |
| Switching capacity: | 240 Gbit/s |
| Forwarding rate: | 179 Mpps |
| Latency (10-100 Mbps): | 7.42 µs |
| Latency (1 Gbps): | 4.1 µs |
| Latency (10 Gbps): | 1.68 µs |
| Number of queues: | 8 |
| Jumbo frames support: | |
| Jumbo frames: | 10000 |
| Packet buffer memory: | 1.5 MB |
| Security | |
| DHCP features: | DHCP snooping, DHCPv6 client, DHCPv6 relay |
| Access Control List (ACL): | |
| Security algorithms: | 3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES, DES, MD5, SHA-1, SHA-2, SHA-256 |
| MAC address filtering: | |
| SSH/SSL support: | |
| Loop protection: | |
| BPDU filtering/protection: | |
| Authentication: | MAC-based authentication, Web-based authentication |
| Password protection: | |
| Multicast features | |
| Multicast support: | |
| Protocols | |
| Routing protocols: | BGP, OSPF, RIP |
| Design | |
| Rack mounting: | |
| Stackable: | |
| Product colour: | Grey |
| Electromagnetic compatibility: | EN55032 A, FCC A, VCCI A, ICES-003 A |
| Certification: | EN55024, EN61000-3 UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 UL, cUL RoHS |
| Performance | |
| Memory type: | DDR3-SDRAM |
| Internal memory: | 1024 MB |
| Flash memory: | 256 MB |
| Power | |
| Power supply included: | |
| Power consumption (max): | 88 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE): | |
| Power over Ethernet plus (PoE+) ports quantity: | 48 |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 50 °C |
| Storage temperature (T-T): | -25 - 70 °C |
| Operating relative humidity (H-H): | 5 - 90% |
| Storage relative humidity (H-H): | 5 - 95% |
| Operating altitude: | 0 - 3048 m |
| Heat dissipation: | 300 BTU/h |
| Weight & dimensions | |
| Width: | 441 mm |
| Depth: | 421 mm |
| Height: | 44 mm |
| Weight: | 6.9 kg |
| Packaging data | |
| Package width: | 563 mm |
| Package depth: | 632 mm |
| Package height: | 128 mm |
| Package weight: | 8.9 kg |
