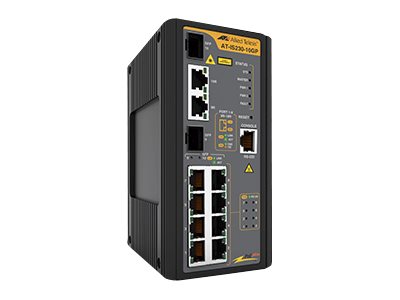

Allied Telesis AT-IS230-10GP-80 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Our ruggedized IS230 Industrial managed Switches provide enduring performance in harsh environments, such as those found in outdoor IoT, transportation and industrial applications.The Allied Telesis IS230 Series is a multipurpose product line of managed layer 2 switches ideal for industrial applications, including manufacturing, rail transportation (telecommunication and signaling), road transportation (traffic control), and Smart Cities.With fanless operation and a wide operating temperature range of -40° to 75°C, the robust IS230 Series easily tolerates harsh and demanding environments, such as those found in industrial and outdoor deployments.An integrated voltage regulator ensures the PoE output voltage always stays at the rated value, regardless of any fluctuations in the input voltage of powered devices. An extended input voltage range makes the IS230 Series ideal for deployment in traffic control cabinets.Network resiliencyThe IS230 Series supports highly stable and reliable network switching. You can customize the IS230 with X-Ring protocol to prevent network connection failure. X-Ring protocol recovers network faults within 20ms. It supports couple-ring, dual-ring and dual-homing network topologies. Dual-homing is available even if the other network is running a different ring protection protocol such asRSTP or STP.Securing the Network EdgeEnsuring data protection means controlling network access. Protocols such as IEEE 802.1X port-based authentication guarantee that only known users are connected to the network. Unknown users who physically connect can be segregated into a pre-determined part of the network. This offers network guests Internet access, while ensuring the integrity of private network data.Quality of ServiceComprehensive wire-speed QoS provides flow-based traffic management with Port/Tag Base and Type of Service prioritization. Bandwidth control limits ingress/egress traffic and broadcast/multicast/flooded unicast packets.Gigabit and Fast EthernetThe IS230 Series offers combo ports supporting both Gigabit and Fast Ethernet Small Form-Factor Pluggables (SFPs). Support for both SFP types allows organizations to stay within budget even as they migrate to faster technologies.Configurable power budgetOn PoE-sourcing IS230 switches, all LAN ports source POE+ up to 30W.You can configure both the overall power budget and the power feeding limit on a per-port basis, to establish a close relationship between the power sourcing feature and the real capabilities of the external Power Supply Unit (PSU).Dual power inputsThe IS230 Series provides redundant power inputs for higher system reliability; the power inputs are protected against reverse polarity and over-current.The integrated voltage regulator allows a wide input voltage range and ensures the PoE output voltage always stays at the rated value, regardless the fluctuation on input voltage.ECO friendlyThe IS230 Series are Energy Efficient Ethernet (EEE) devices. They facilitate power saving by switching off parts of the LAN that are not transmitting or recieving data. This sophisticated feature can significantly reduce operating costs, by reducing the power requirements of the switch and any associated cooling equipment.

Management features
Switch type:	Managed
Switch layer:	L2
Quality of Service (QoS) support:
MIB support:	RFC 1212, RFC 1213, RFC 1239, RFC 2819, RFC 2863, RFC 3418, RFC 4022, RFC 4113
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:	8
Basic switching RJ-45 Ethernet ports type:	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity:	2
Fiber optic connector:	SFP
Network
Networking standards:	IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support:
Copper ethernet cabling technology:	1000BASE-T
Port mirroring:
Full duplex:
Flow control support:
Link aggregation:
Spanning tree protocol:
VLAN support:
Virtual LAN features:	Multicast VLAN, Stacked VLAN, Tagged VLAN
Number of VLANs:	4094
Optical fiber
Fiber ethernet cabling technology:	100BASE-X, 1000BASE-X
Data transmission
MAC address table:	8000 entries
Switching capacity:	20 Gbit/s
Forwarding rate:	14.88 Mpps
Number of queues:	8
Jumbo frames support:
Jumbo frames:	9000
Packet buffer memory:	4 MB
Security
DHCP features:	DHCP relay
IGMP snooping:
Security algorithms:	3DES, 802.1x RADIUS, DES, RSA, SHA-1, SNMP, SNMPv3, SSH, SSH-2, SSL/TLS
SSH/SSL support:
Loop protection:
Authentication:	Port-based authentication
Multicast features
Multicast support:
Protocols
GARP VLAN Registration Protocol (GVRP):
Design
Rack mounting:
Product colour:	Black
Housing material:	Metal
LED indicators:
International Protection (IP) code:	IP30
Wall mountable:
DIN rail mounting:
Safety:	CSA C22.2 No. 61010-2-201, IEC60950-1, UL60950-1, UL61010-2-201
Electromagnetic compatibility:	AS/NZS CISPR 32, A; EN55024; EN55032, A; EN61000-6-2; EN61000-6-4, A; FCC 15B, A; ICES-003, 6, A; VCCI, A
Certification:	CE, FCC, RCM, TUV, VCCI, RoHS, WEEE
Performance
Buffer size:	512 KB
Power
DC input voltage:	24 - 48 V
Power consumption (max):	139.3 W
Power over Ethernet (PoE)
Power over Ethernet (PoE):
Power over Ethernet (PoE) ports quantity:	8
Power over Ethernet plus (PoE+) ports quantity:	4
Power over Ethernet (PoE) power per port:	30 W
Total Power over Ethernet (PoE) budget:	120 W
Operational conditions
Operating temperature (T-T):	-40 - 75 °C
Storage temperature (T-T):	-40 - 85 °C
Operating relative humidity (H-H):	10 - 95%
Storage relative humidity (H-H):	10 - 95%
Operating altitude:	0 - 3000 m
Heat dissipation:	475.3 BTU/h
Weight & dimensions
Width:	74 mm
Depth:	105 mm
Height:	152 mm
Weight:	1.2 kg
Logistics data
Harmonized System (HS) code:	85176990
