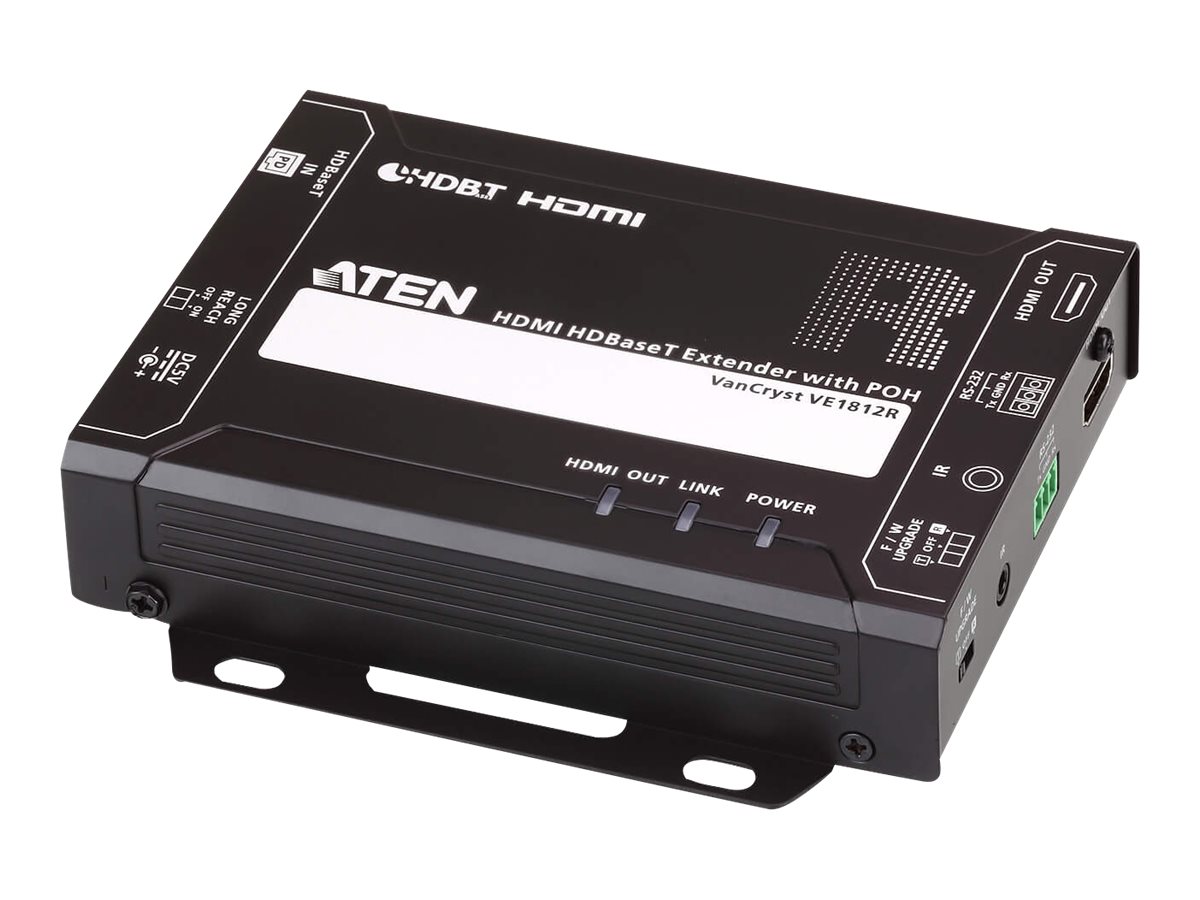

ATEN VE1812R AV extender AV receiver Black

The VE1812R features Power over HDBaseT (POH) which sends power from Tx to Rx over Cat 5e / 6 / 6a cable without any additional power supply. The VE1812R supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the receiver unit (VE1812R) while also accessing the HDMI display device from the transmitter unit (VE1812T). The IR signals can also be extended in both directions.The VE1812R HDMI HDBaseT Receiver with POH is HDMI (3D, Deep Color, 4kx2k) and HDCP compatible. When transmitting HDMI / 4K with a Cat 6a or ATEN 2L-2910 Cat 6 cable, the maximum distance can reach up to 100 meters. With Long Reach Mode enabled, the VE1812R can extend HDMI signal up to 150m @1080p. The VE1812R is perfect for digital classrooms, video conference rooms, gaming or any installation that requires superior video quality.

Features
Type:	AV receiver
Maximum resolution:	4096 x 2160 pixels
Cable types supported:	Cat5e, Cat6, Cat6a
Maximum transfer distance:	150 m
LED indicators:
Supported video modes:	1080p
Supported graphics resolutions:	3840 x 2160, 4096 x 2160
Bandwidth:	10.2 Gbit/s
Bandwidth:	340 MHz
HDCP:
Material:	Metal
3D:
Consumer Electronics Control (CEC) support:
Impedance:	100
Product colour:	Black
Ports & interfaces
Connectivity technology:	Wired
RJ-45 input ports:	1
HDBaseT port:
Number of HDMI outputs:	1
RS-232 output ports:	1
Video out:	1
3.5 mm (1/8-inch) out:
Remote (IR) output:	1
DC-in jack:
Power
Operating voltage (receiver):	5 V
Power consumption (receiver) (max):	6.4 W
External power adapter:
Operational conditions
Operating temperature (T-T):	0 - 40 °C
Storage temperature (T-T):	-20 - 60 °C
Operating relative humidity (H-H):	0 - 80%
Weight & dimensions
Receiver dimensions (WxDxH):	123 x 140.4 x 30 mm
Receiver weight:	450 g
Packaging content
AC adapter included:
Quick start guide:
Technical details
Sustainability certificates:	RoHS
