- Details

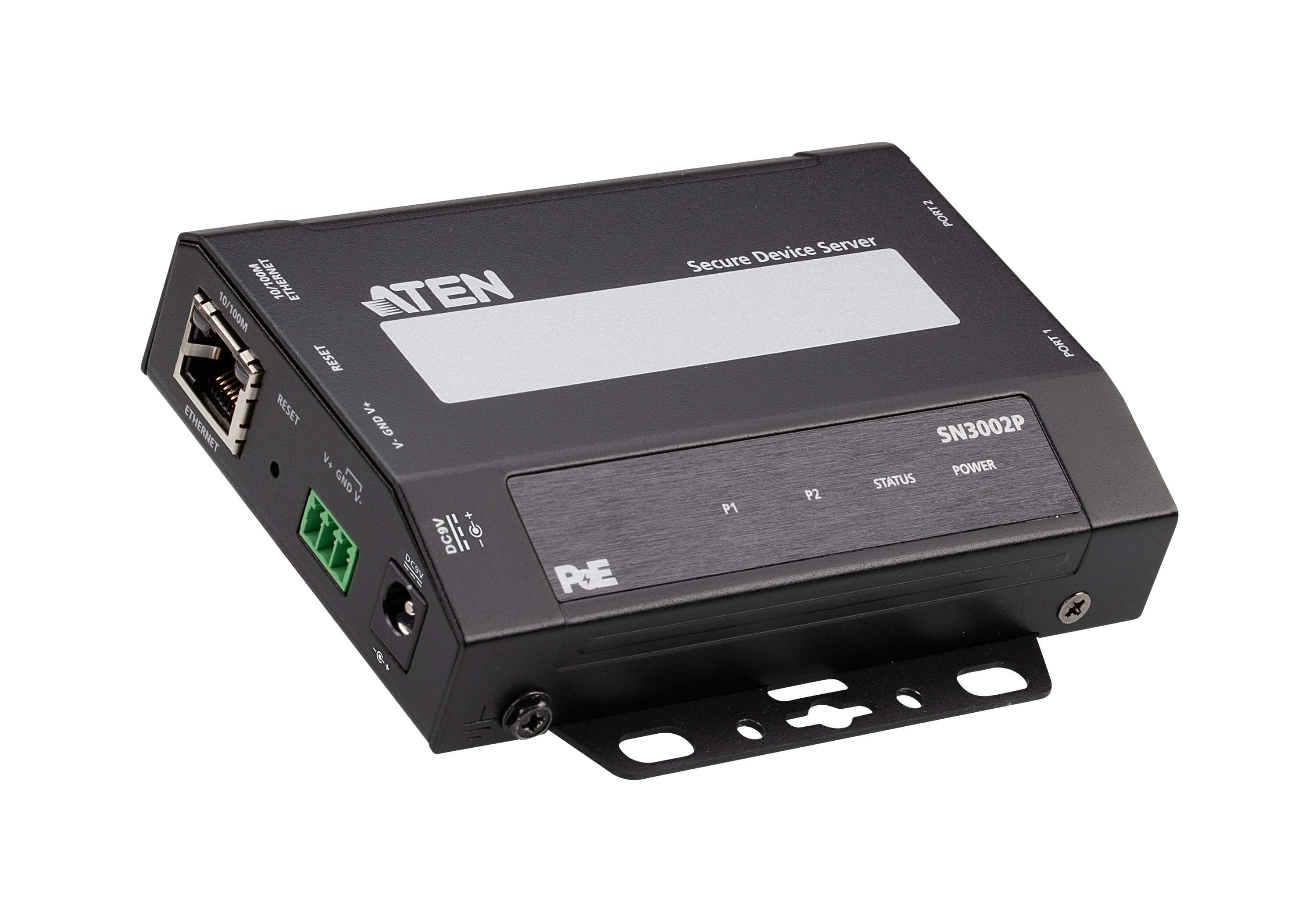

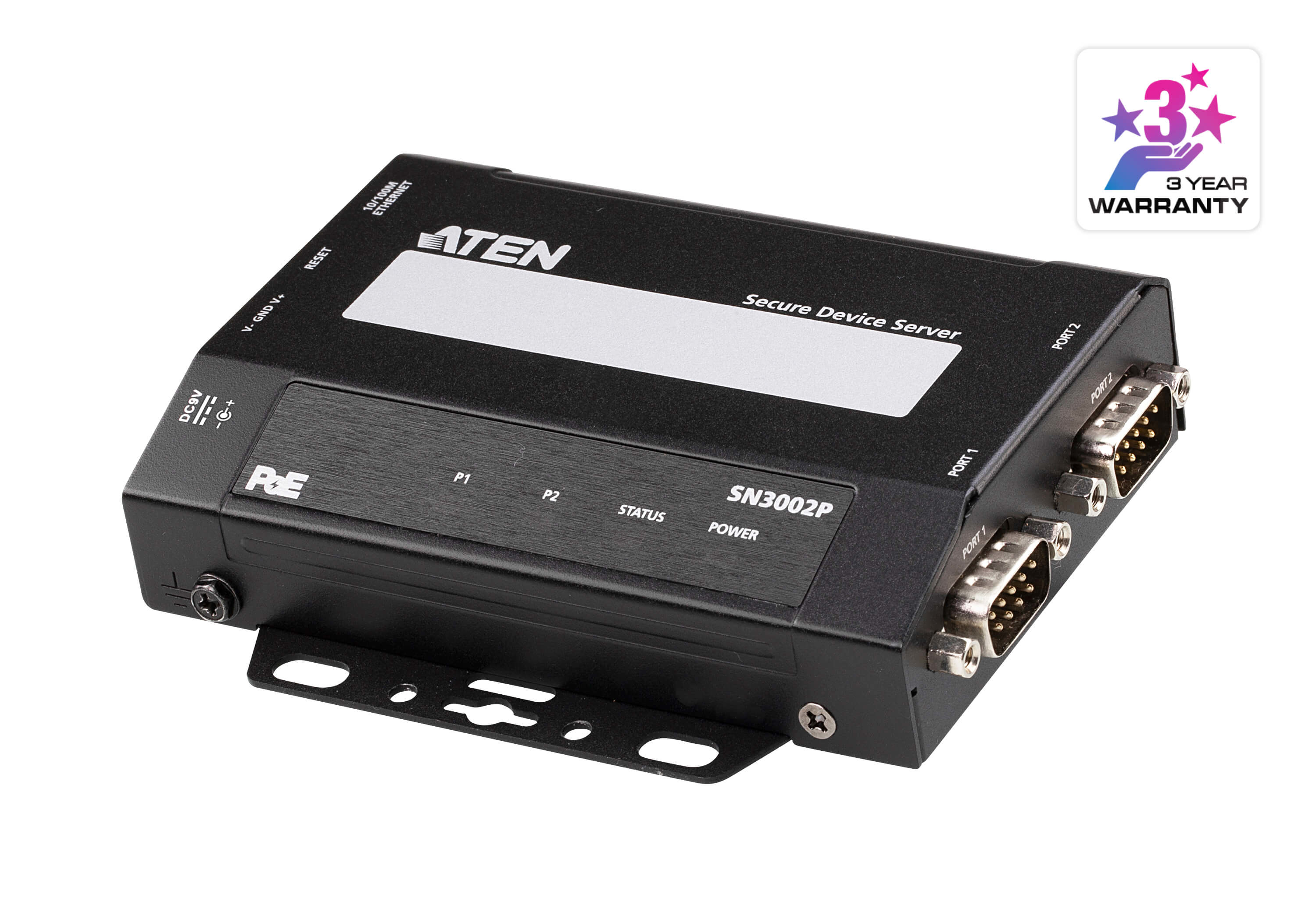

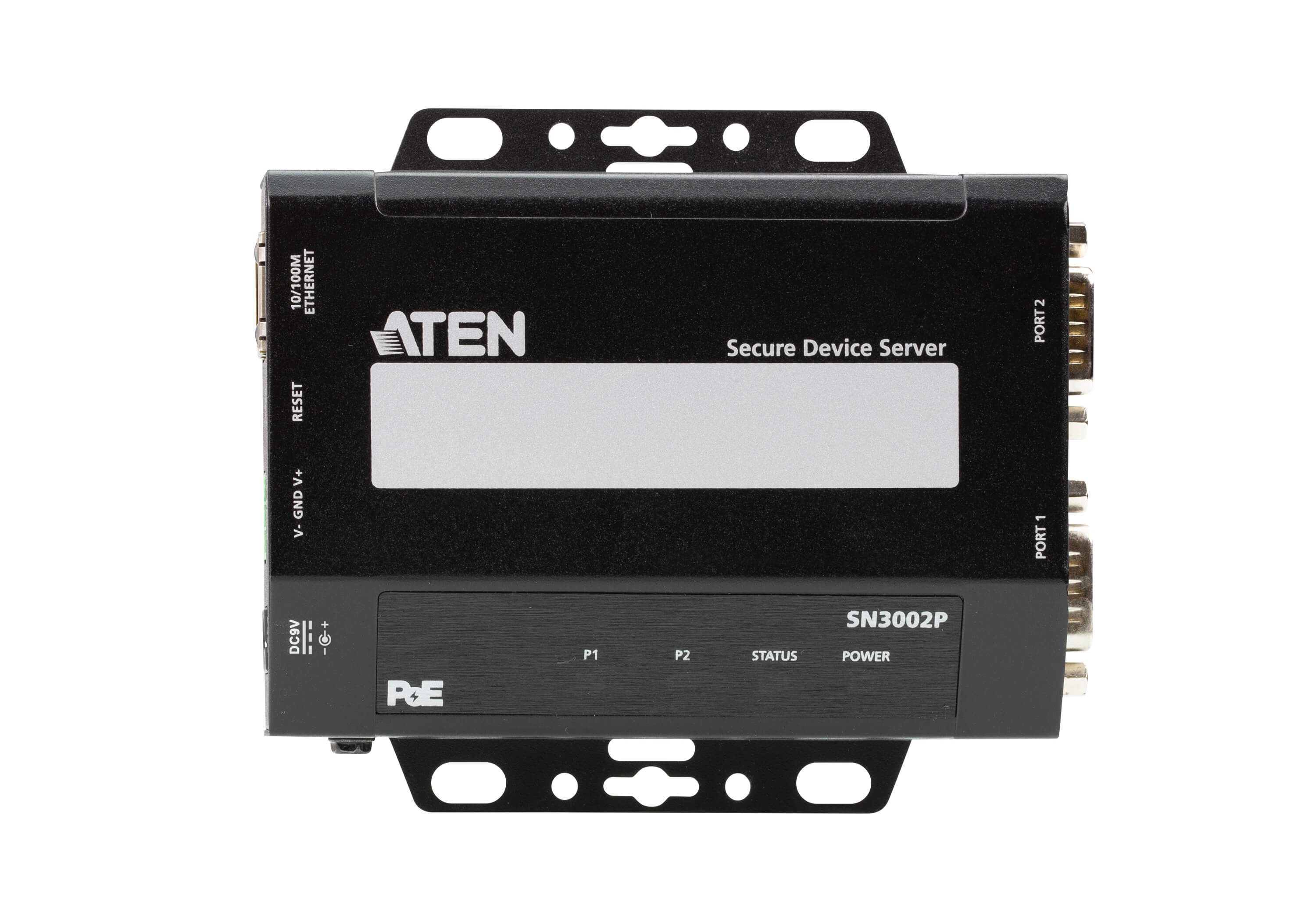

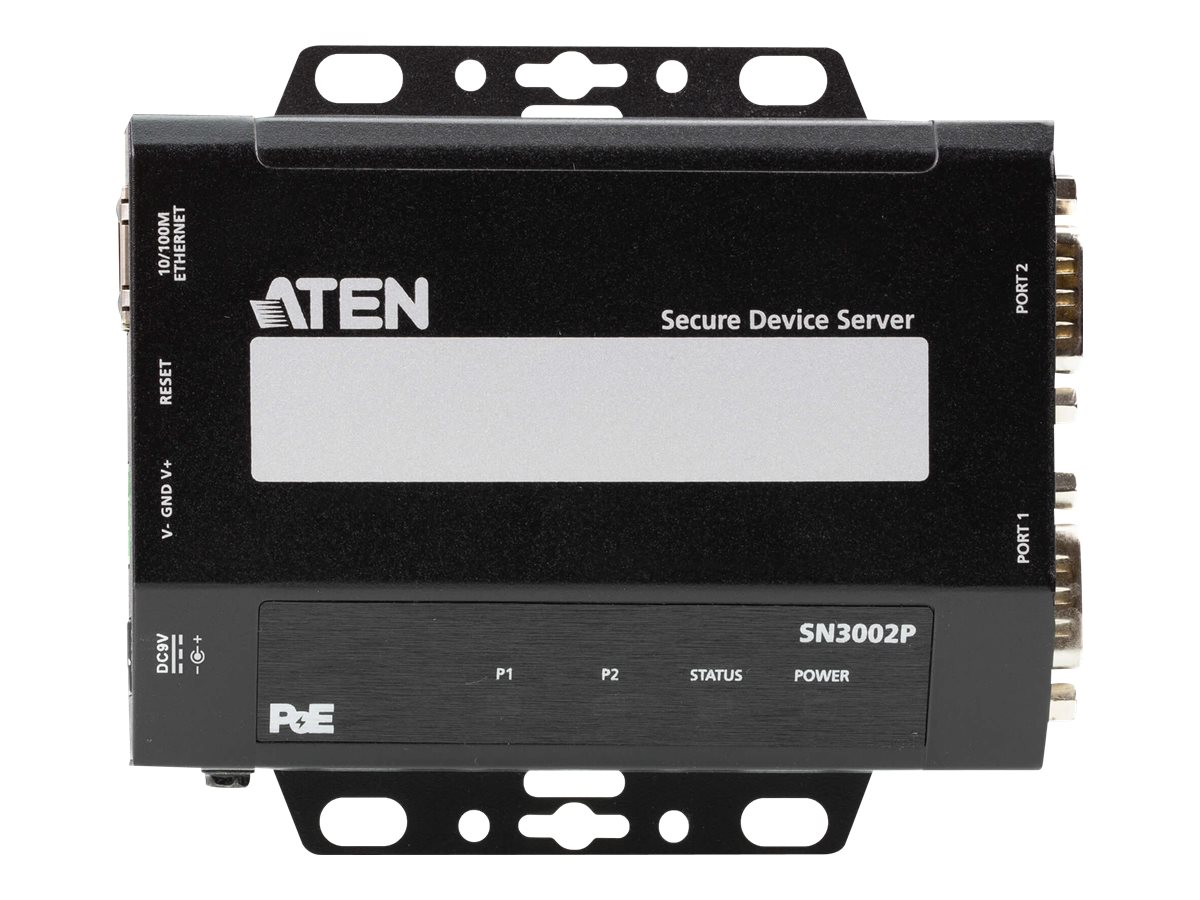

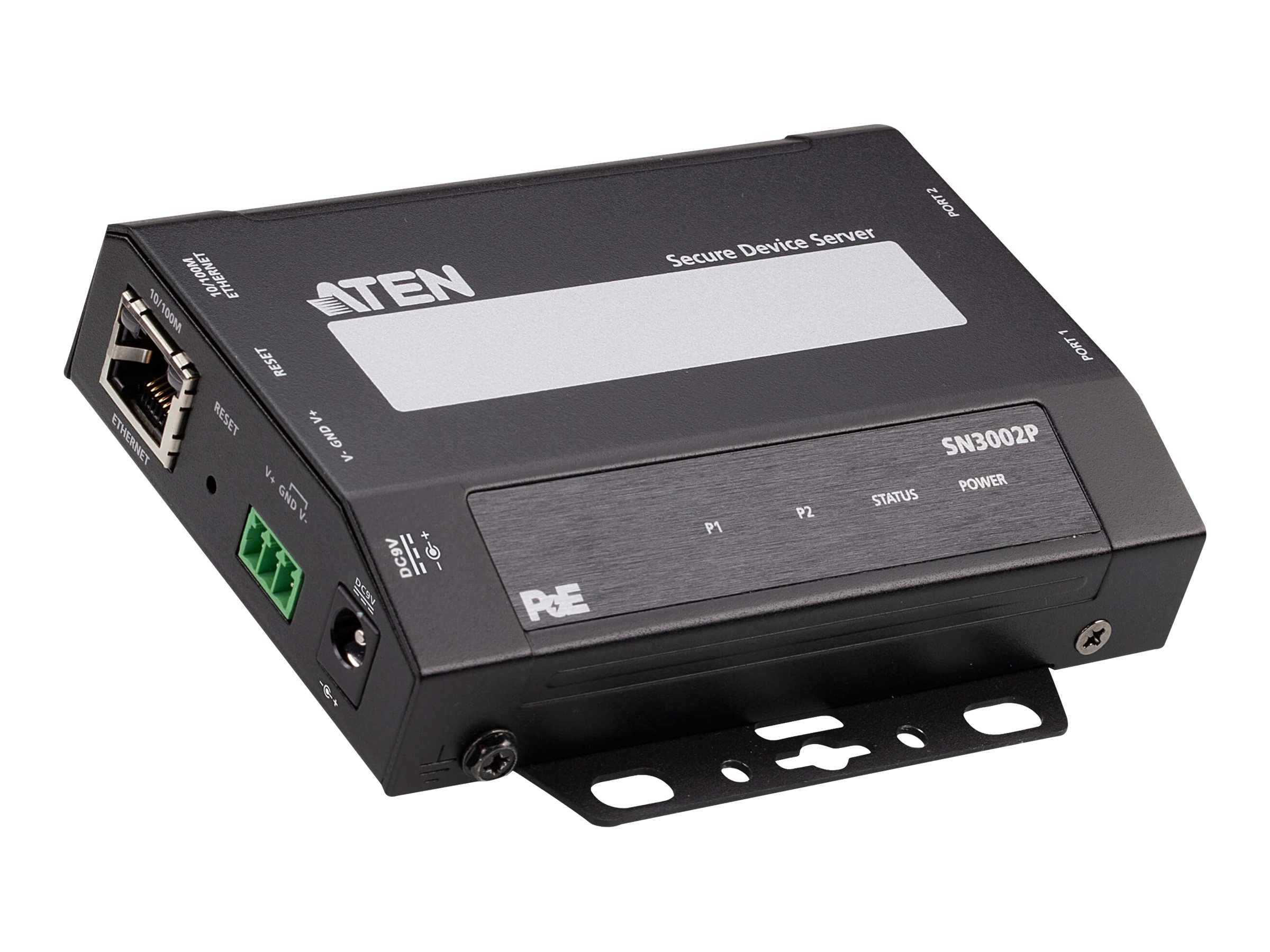

ATEN SN3000 series Secure Device Servers are external IP-based network devices that securely connect legacy serial RS-232 devices to an Ethernet network to be accessed remotely from a computer located anywhere, allowing you to expand the number of serial ports for any host computer over a network.
The SN3000 series is especially suited for industrial process control applications, given the abundant use of the Supervisory Control and Data Acquisition (SCADA) systems across many industries for collecting data from PLCs, meters, and sensors via serial ports. The SN3000 series bidirectionally translates data between serial and Ethernet formats, and facilitates access to the data from all data collection instruments from local and remote sites through an Ethernet network.
The SN3000 series has a number of useful operation modes. It supports secure TCP server / client, secure serial tunneling server / client, secure Real COM, and console management modes for security-critical applications, such as telecom, access control, and remote site management. Furthermore, its IEEE 802.3afcompliant models can be powered by a PoE PSE device without an additional power supply.
| Technical details | |

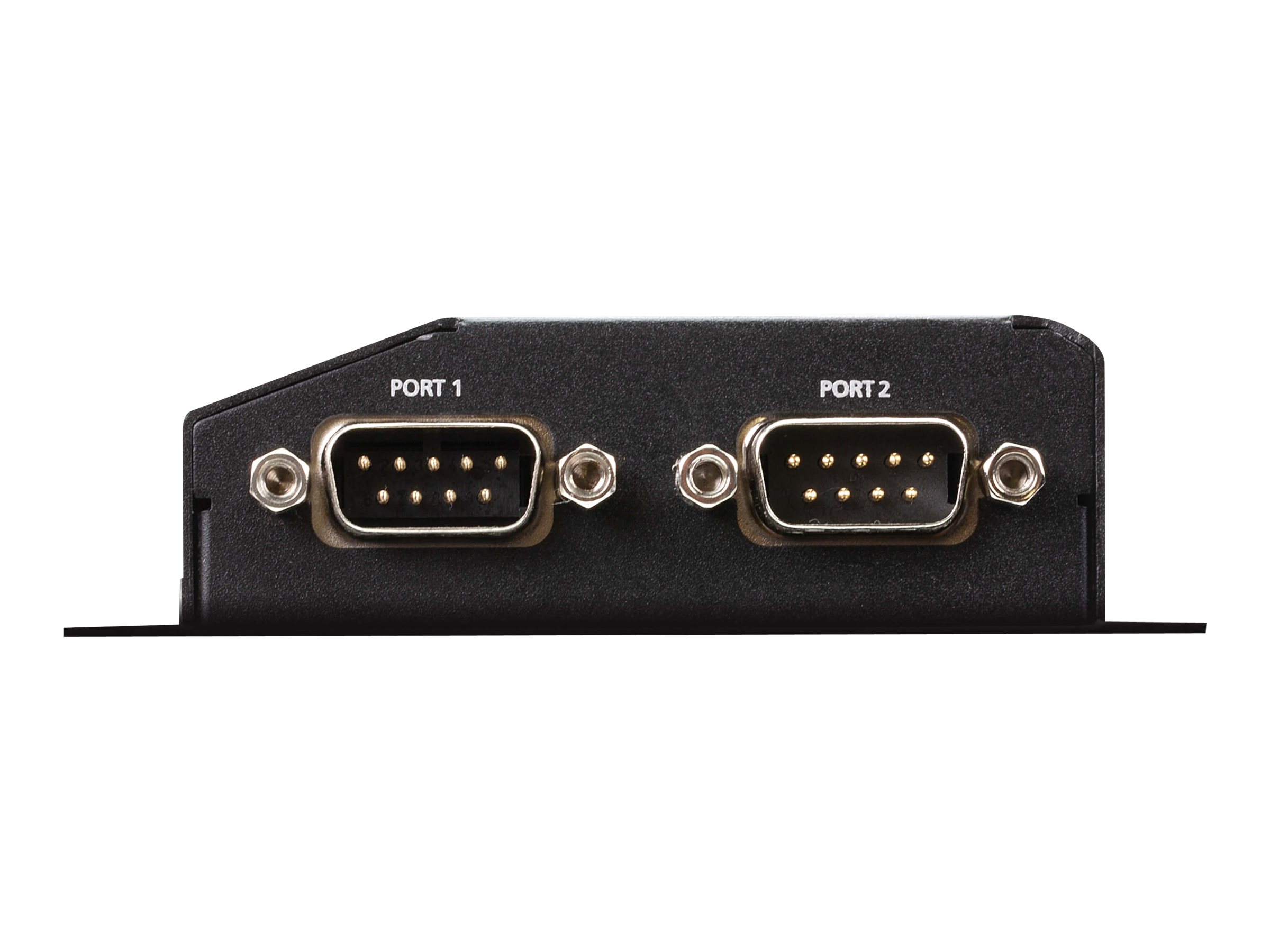

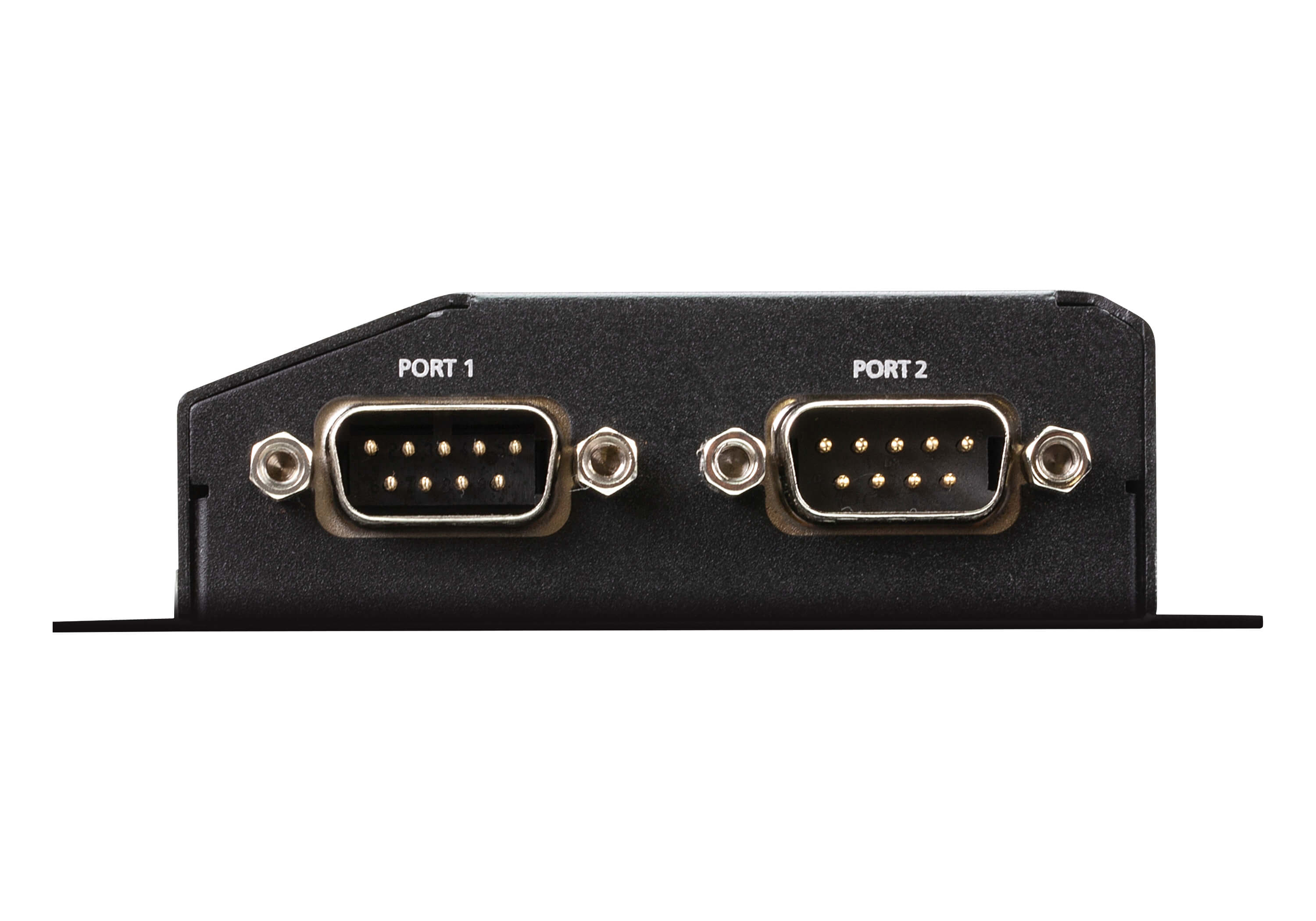

| Serial ports quantity: | 2 |
| Serial interface type: | RS-232 |
| Isolation: | 1.5 kV |
| Ethernet LAN data rates: | 10,100 Mbit/s |
| Networking standards: | IEEE 802.3af |
| Baud rate: | 921.6 Kbit/s |
| RS-232 signals: | CTS, DCD, DSR, DTR, GND, RTS, RXD, TXD |
| Data bits: | 5, 6, 7, 8 |
| Flow Control type: | DTR/DSR, RTS/CTS, XON/XOFF |
| Parity bit: | Even, Mark, No, Odd, Space |
| Stop bits: | 1, 1.5, 2 |
| Compliance certificates: | RoHS |
| Certification: | EMC: EN 55032/35 EMI: CISPR 32, FCC 15B A EMS: IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-8 IEC 61000-4-11 |
| Ports & interfaces | |

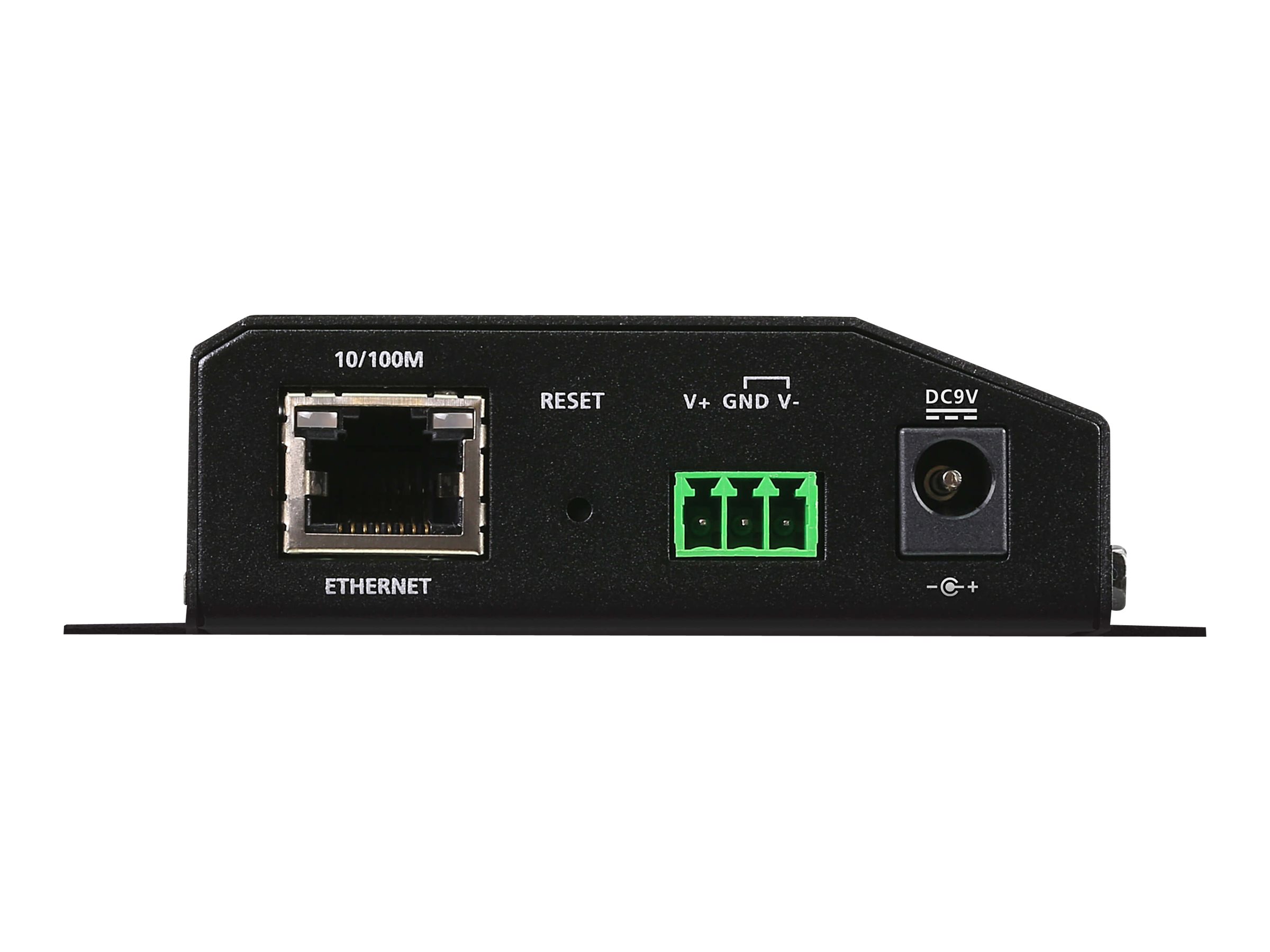

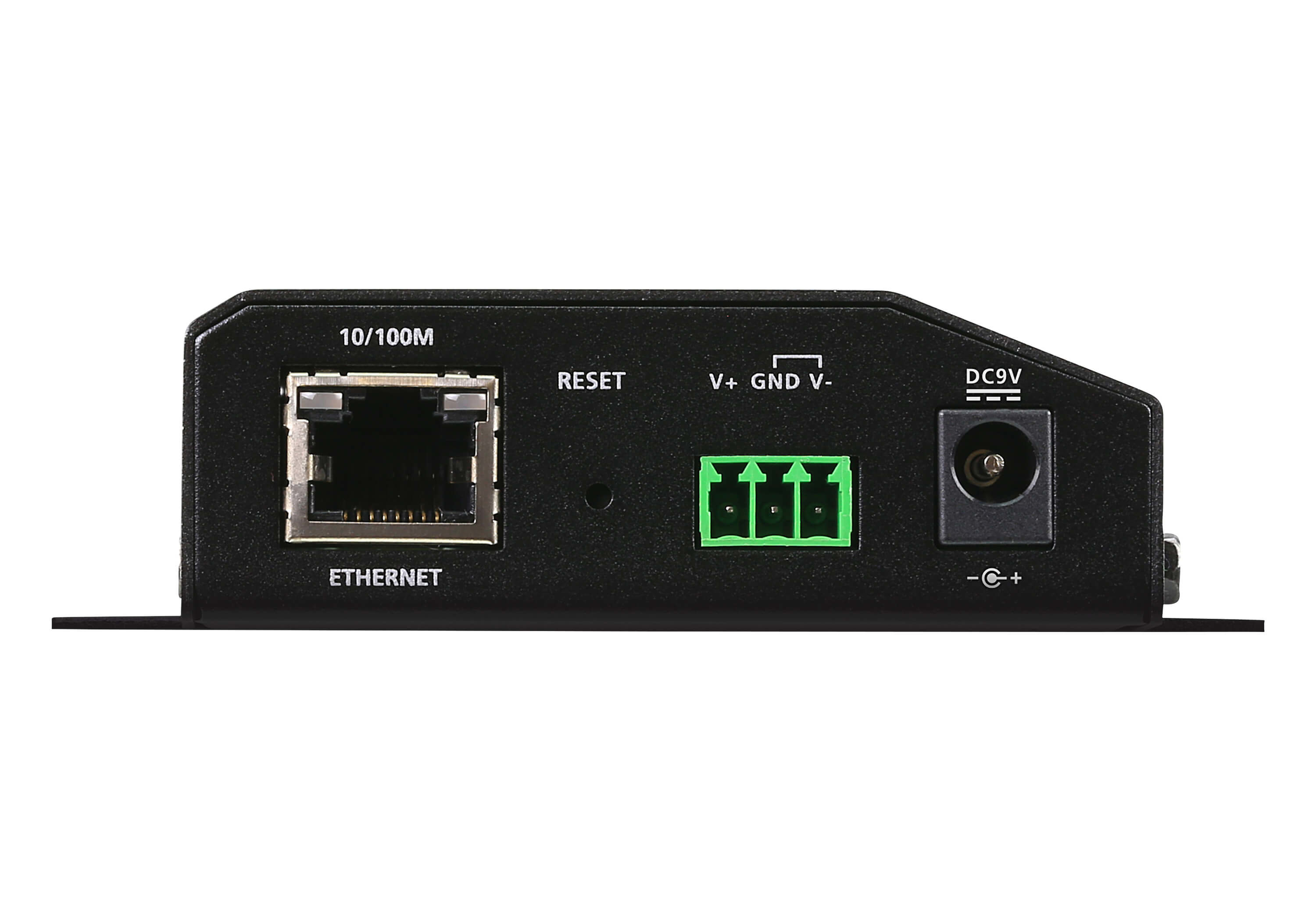

| Ethernet LAN (RJ-45) ports: | 1 |
| Cabling technology: | 10/100Base-T(X) |
| Power | |
| Power source type: | DC, PoE |
| Input voltage: | 9/48 V |
| Indication | |
| LED indicators: | LAN, Power, Status |
| Weight & dimensions | |
| Weight: | 220 g |
| Dimensions (WxDxH): | 98 x 117 x 26 mm |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 60 °C |
| Storage temperature (T-T): | -40 - 75 °C |
| Operating relative humidity (H-H): | 5 - 95% |
| Storage relative humidity (H-H): | 5 - 95% |
| Design | |
| Product colour: | Black |
| Housing material: | Metal |
| Safety: | UL 60950-1, UL 62368-1 |
| Packaging content | |
| User guide: | Yes |
