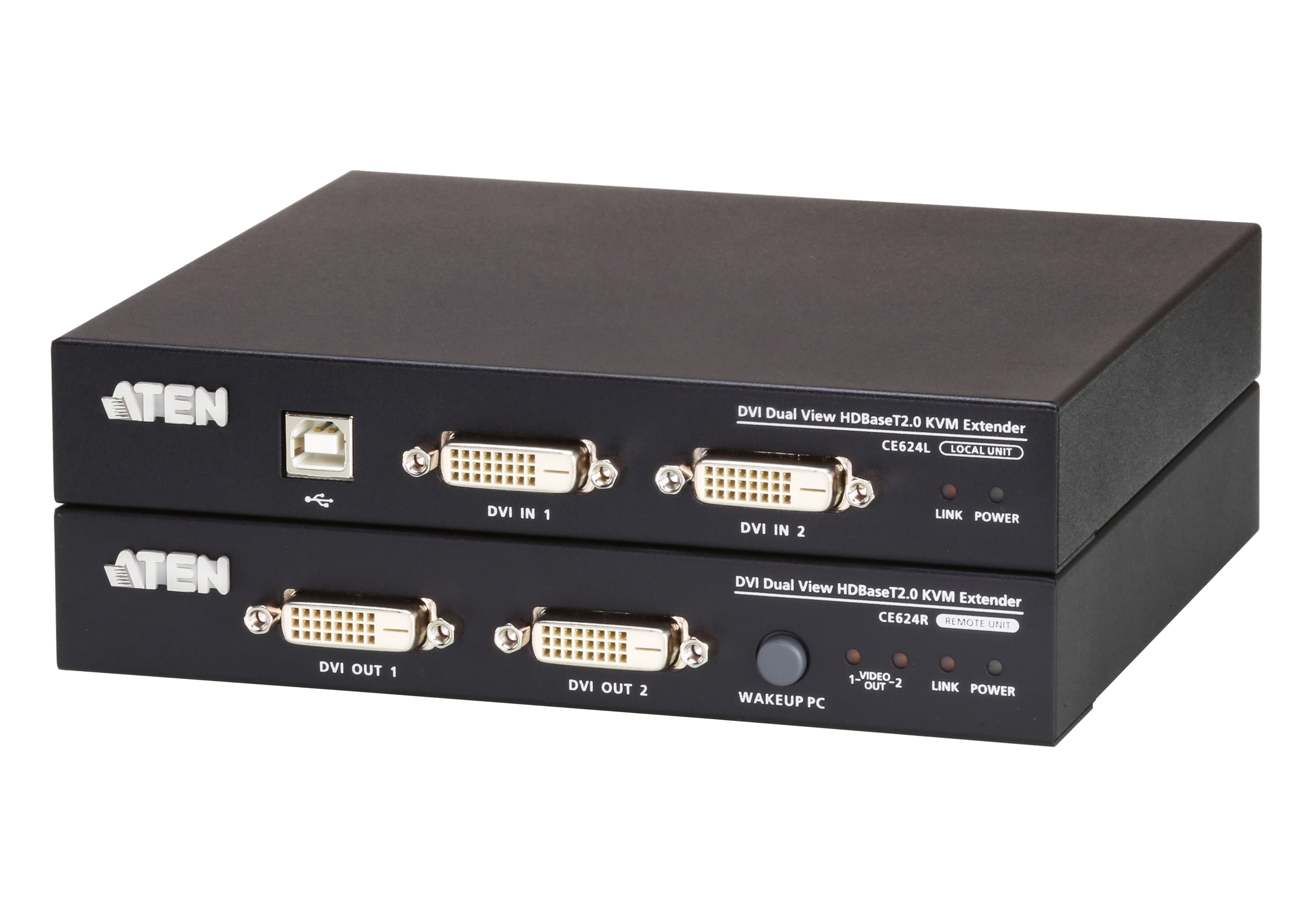

ATEN CE624 KVM extender Transmitter & receiver

The ATEN CE624 USB DVI Dual View HDBaseT 2.0 KVM Extender integrates the latest HDBaseT 2.0 technologies to provide the most reliable transmission of video, audio, USB and RS-232 signals available on the market. The CE624 delivers high-quality DVI Dual View video, PCM 2-channel digital audio, USB 2.0 and RS-232 signals up to 100 meters from the source computer using a single Cat6/6a cable. With a simple cable installation supporting various signals, the CE624 is ideal for applications where convenient remote access is required in places such as transportation control centers, medical facilities, industrial warehouses and extended workstations.

Features
Type:	Transmitter & receiver
Connectivity technology:	Wireless
Maximum transfer distance:	150 m
Cable types supported:	Cat5e, Cat6, Cat6a
KVM port selection:	Hotkeys, Push-buttons
Product colour:	Black
Material:	Metal

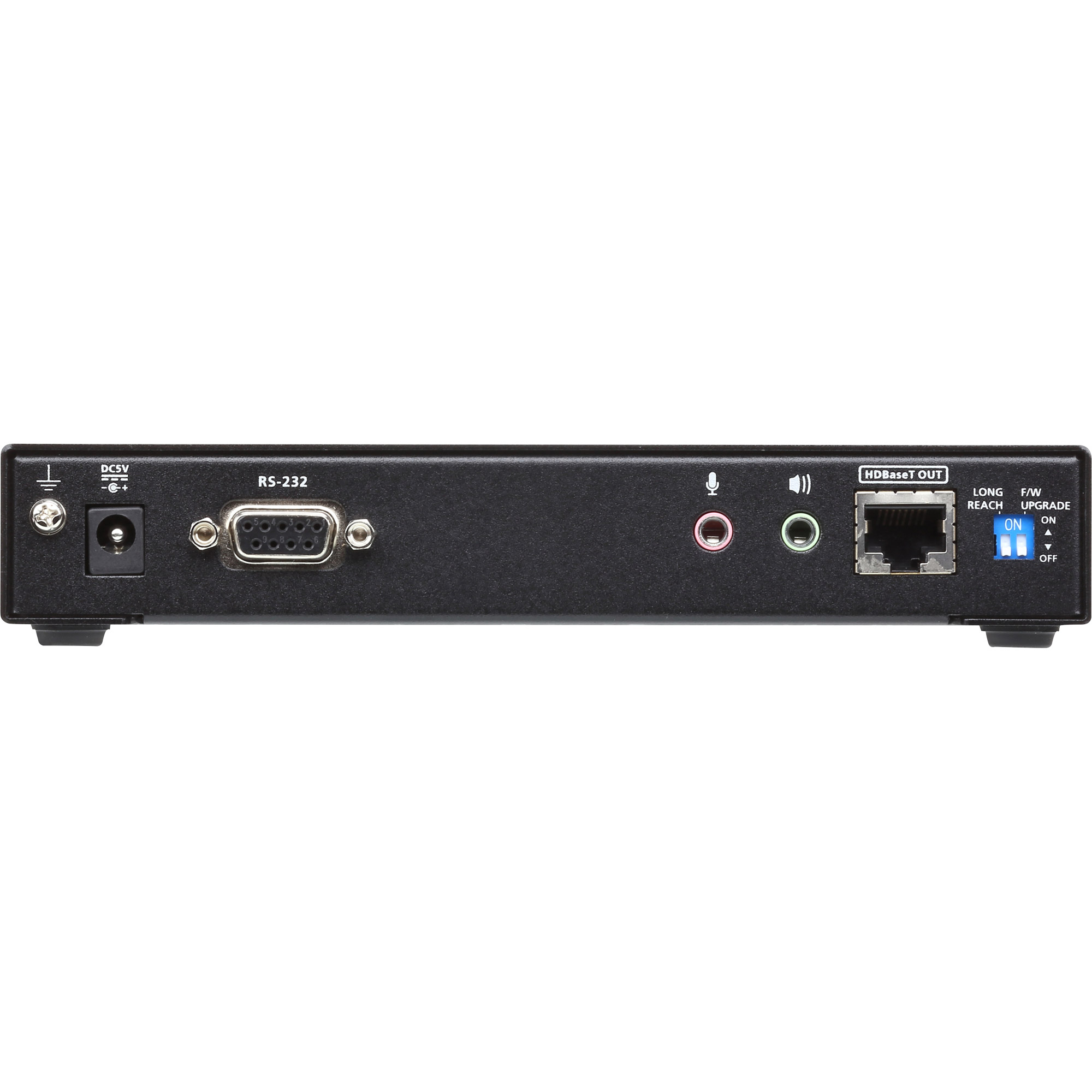

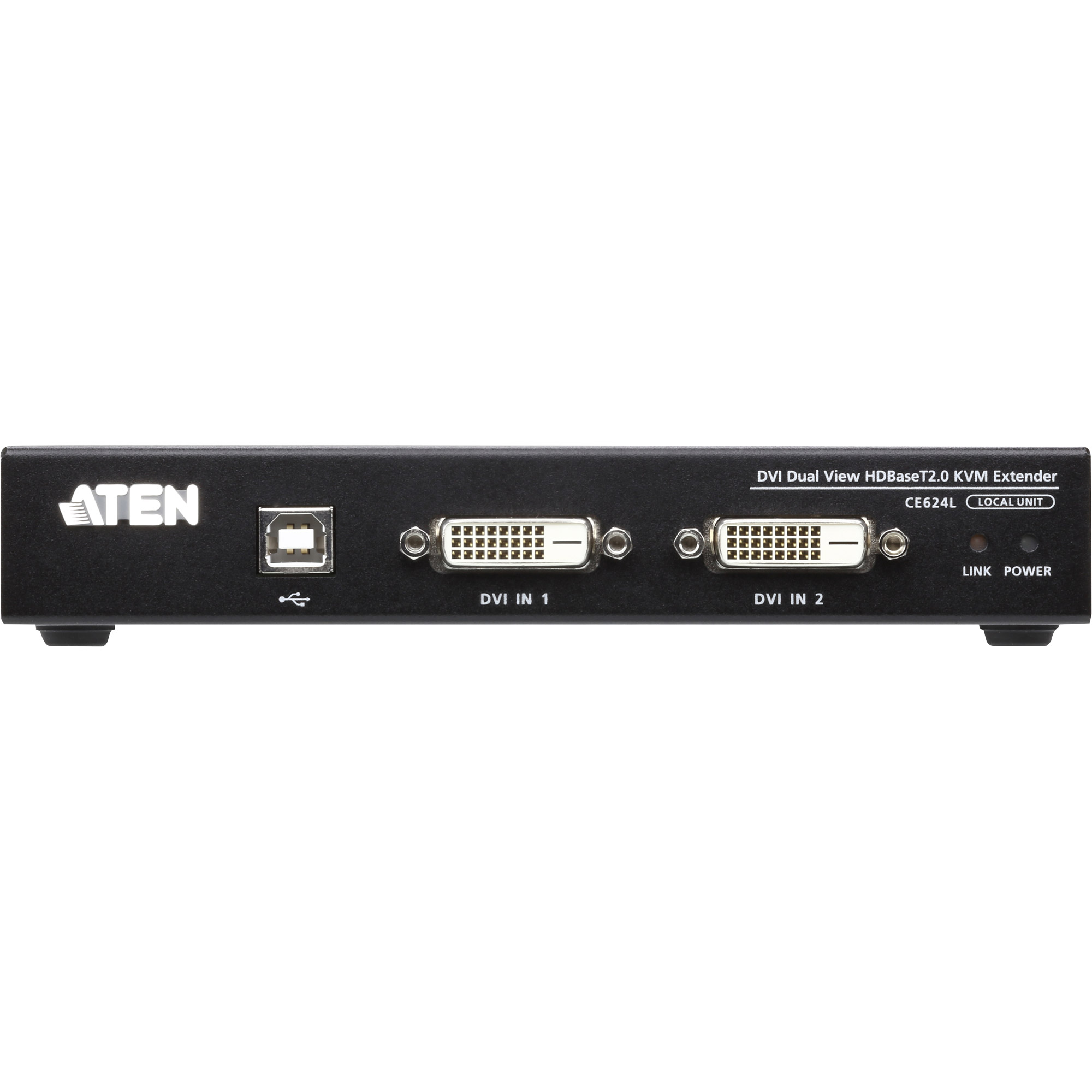

Transmitter
Transmitter video port type:	DVI-D
Transmitter local video port:
Transmitter local video port type:	DVI-D
Transmitter local keyboard/mouse port type:	USB
Receiver
Receiver local video port type:	DVI-D
Receiver local keyboard/mouse port type:	USB
Operational conditions
Operating temperature (T-T):	0 - 40 °C
Storage temperature (T-T):	-20 - 60 °C
Operating relative humidity (H-H):	0 - 80%
Weight & dimensions
Transmitter width:	15.9 cm
Transmitter depth:	17.4 cm
Transmitter height:	2.88 cm
Transmitter weight:	800 g
Receiver width:	15.9 cm
Receiver depth:	17.4 cm
Receiver height:	2.88 cm
Receiver weight:	810 g
Logistics data
Harmonized System (HS) code:	84733080
