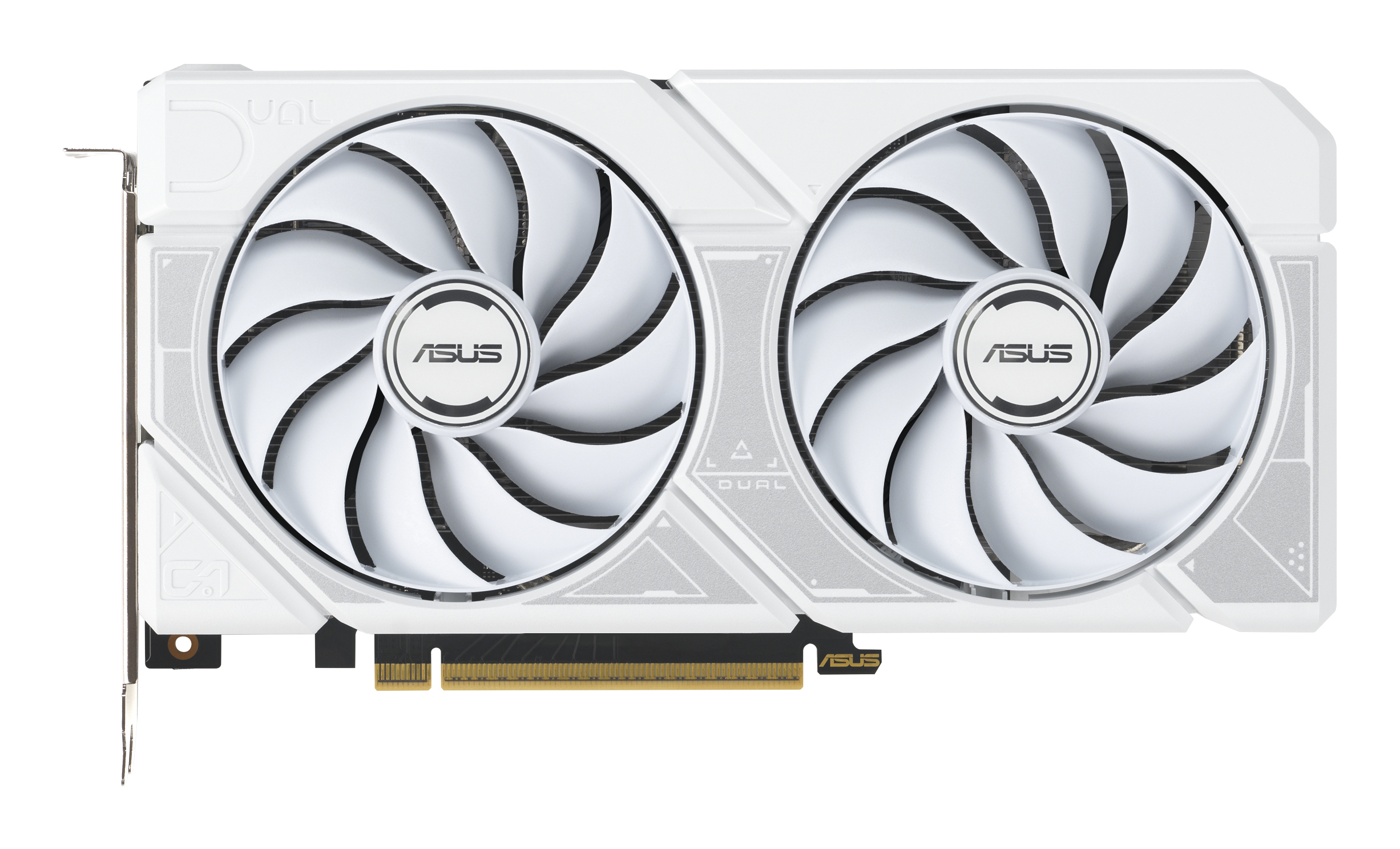

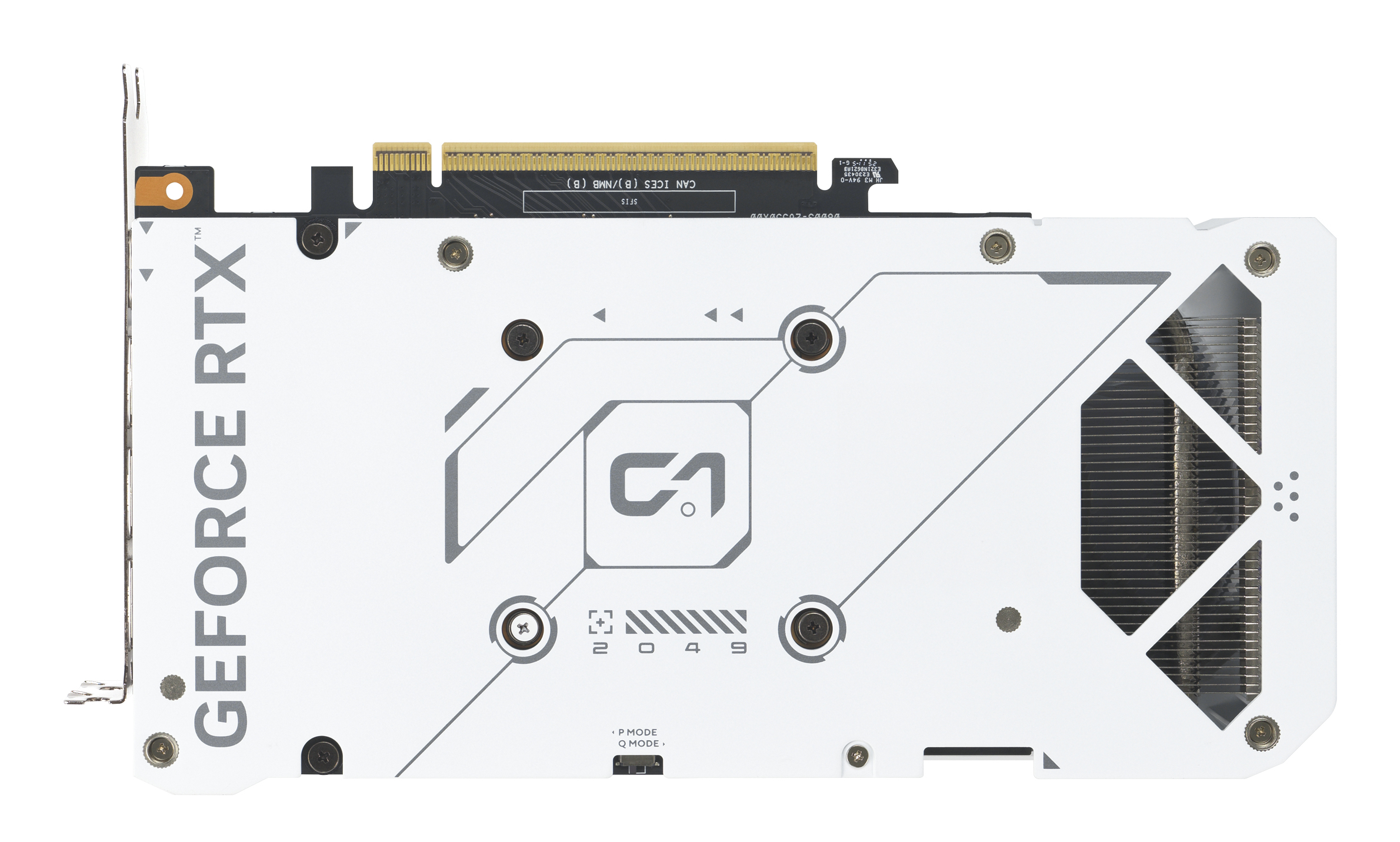

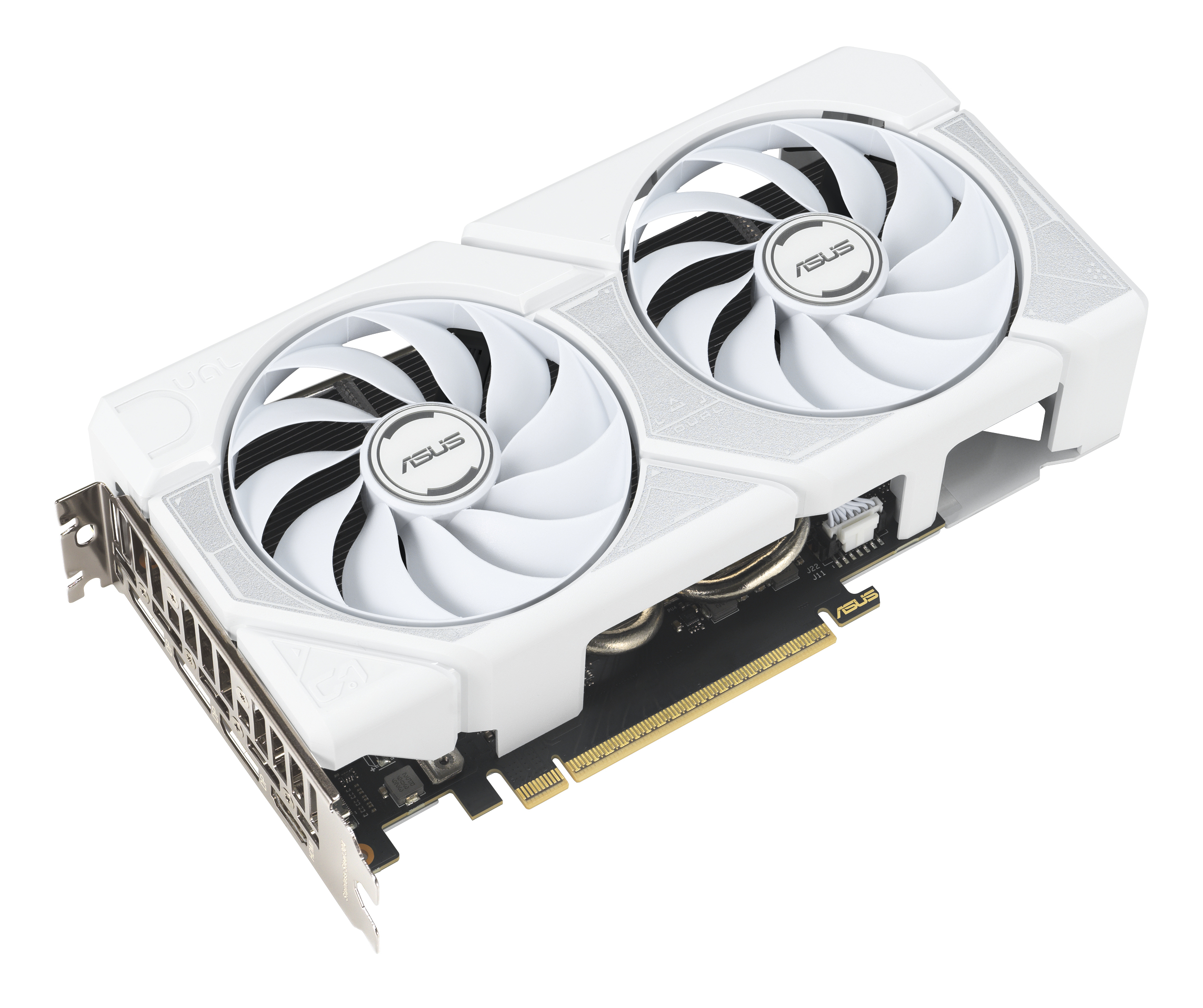

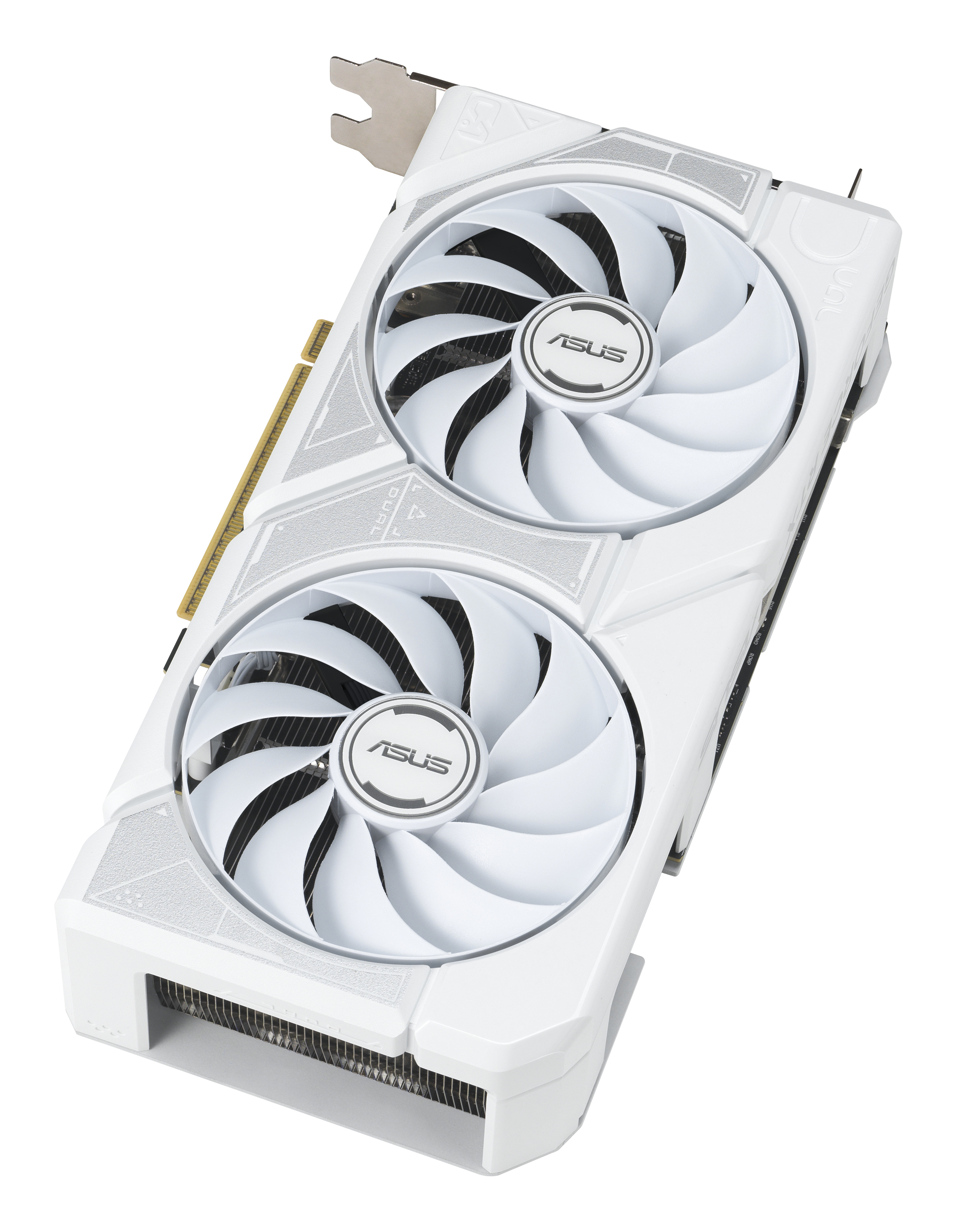

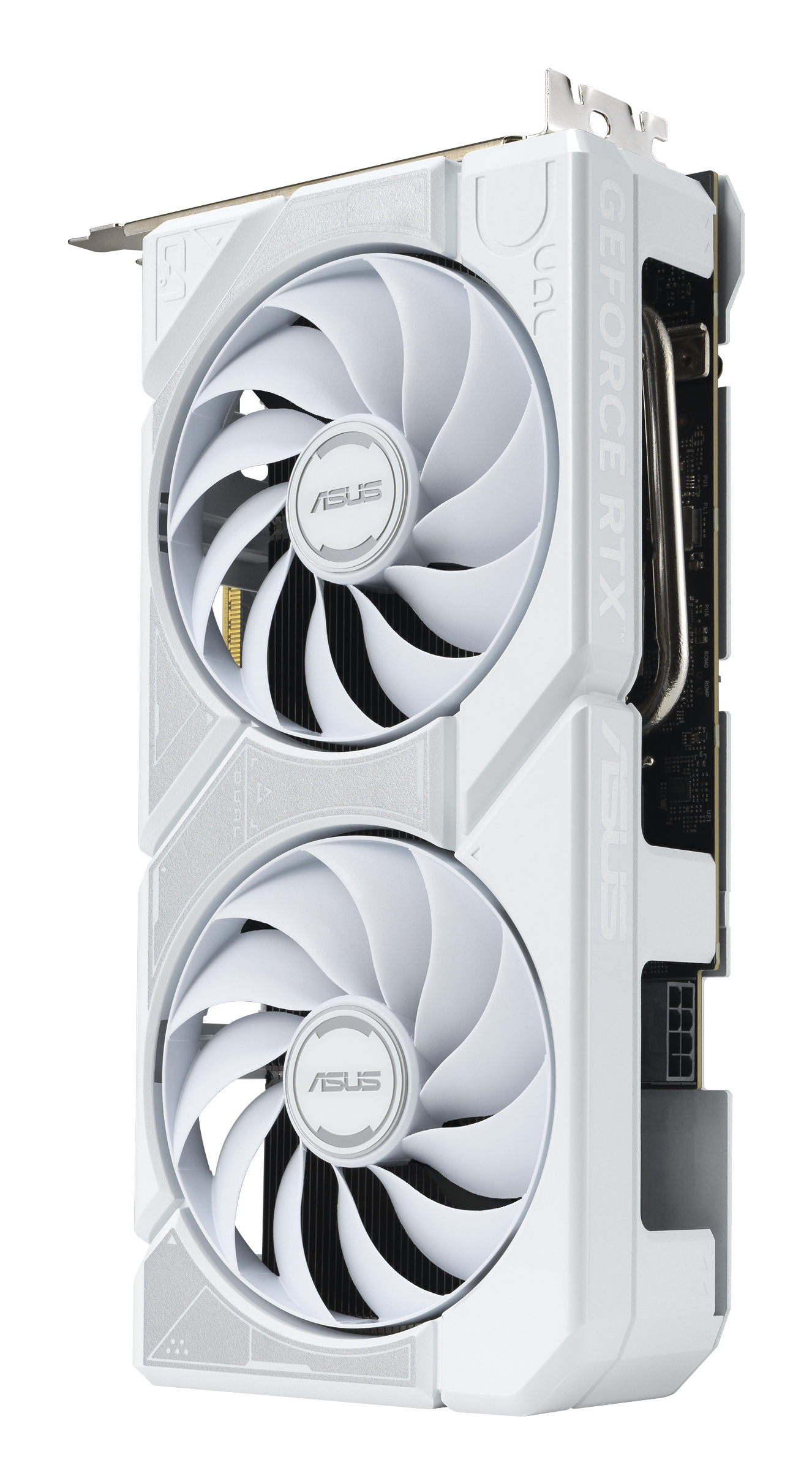

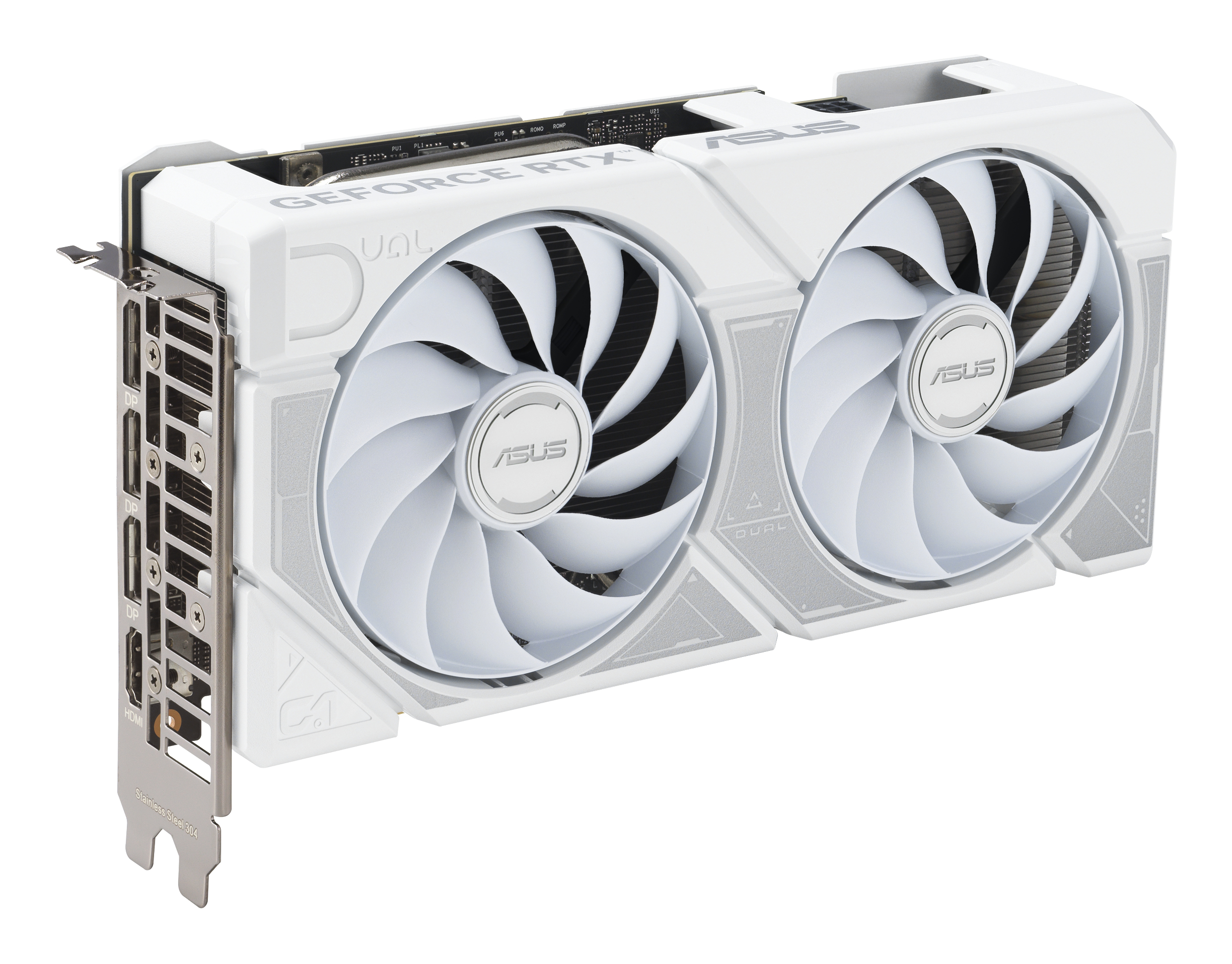

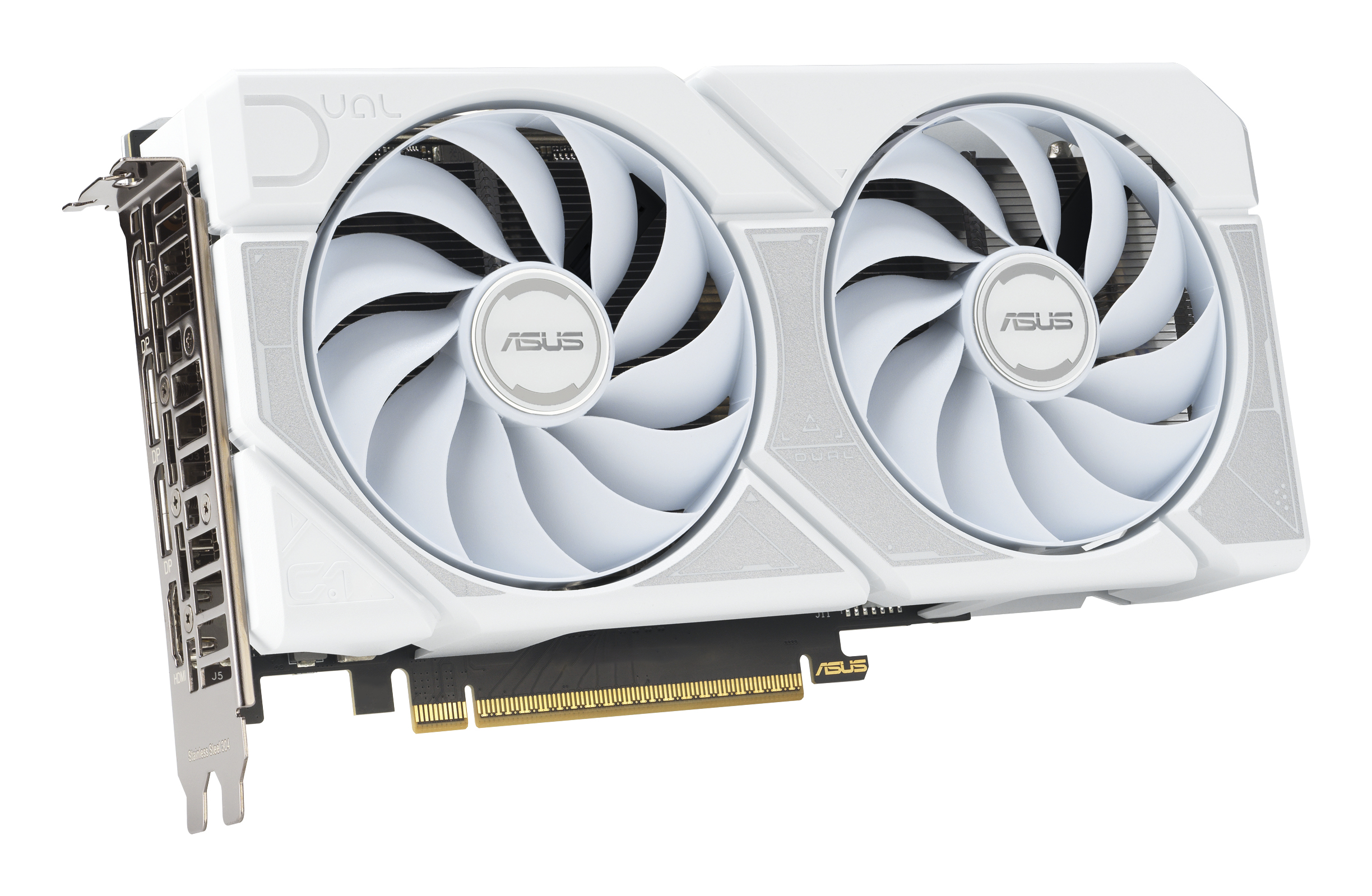

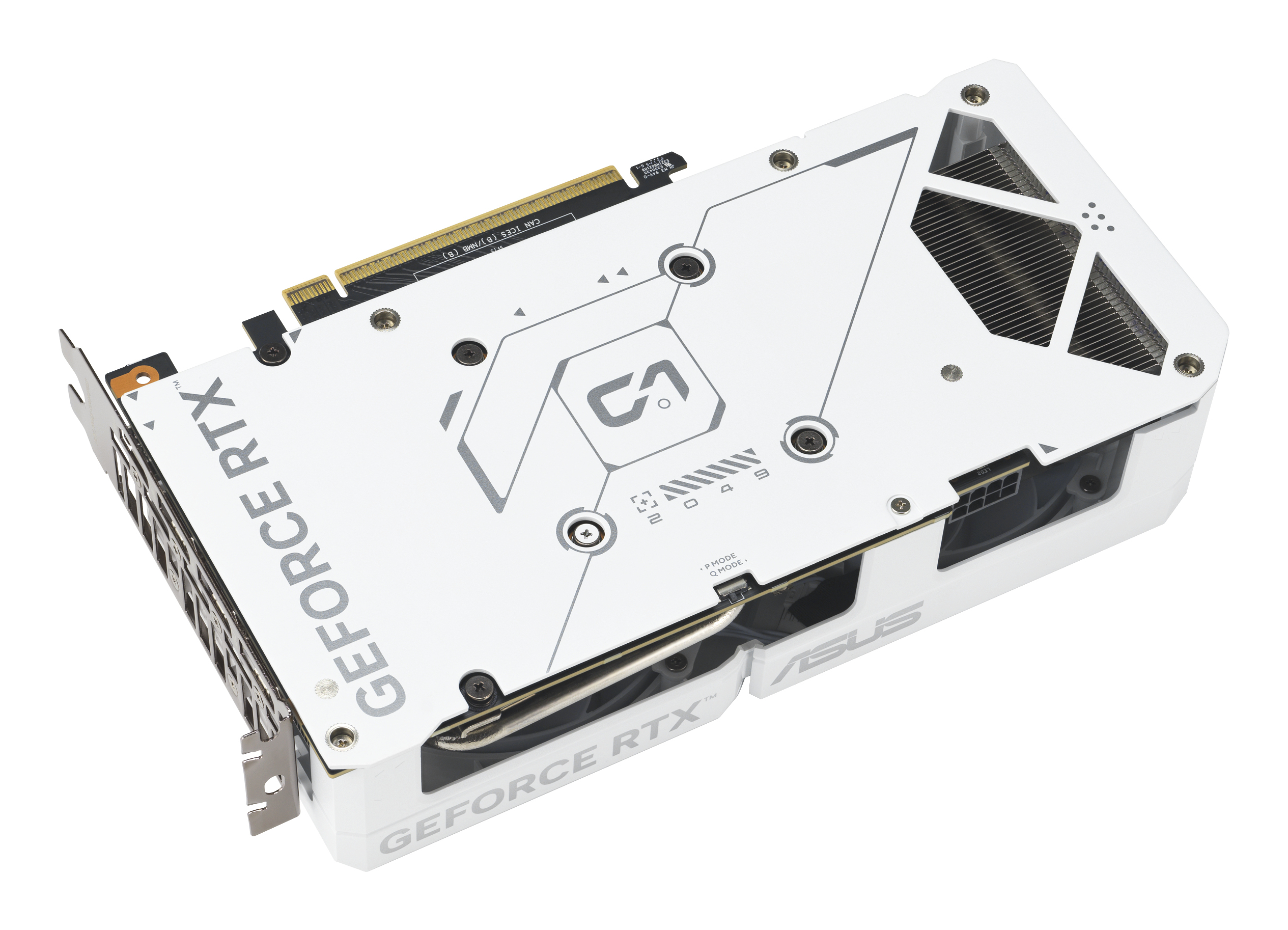

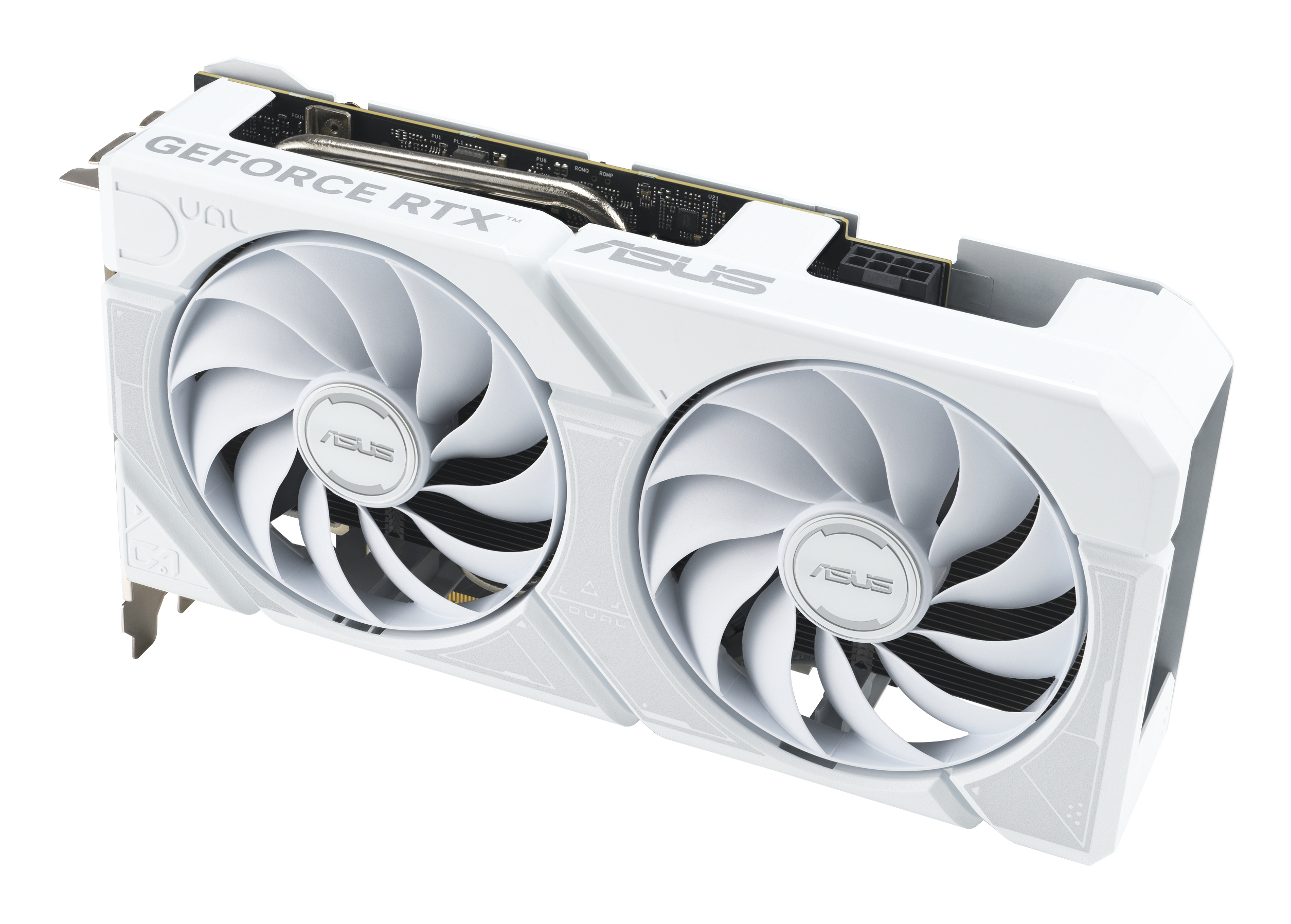

DUAL GEFORCE RTX 5060 Ti White Edition
Dual Fans, Perfect Fit
ASUS Dual GeForce RTX 5060 Ti White Edition combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
Cooling
2.5-slot Design

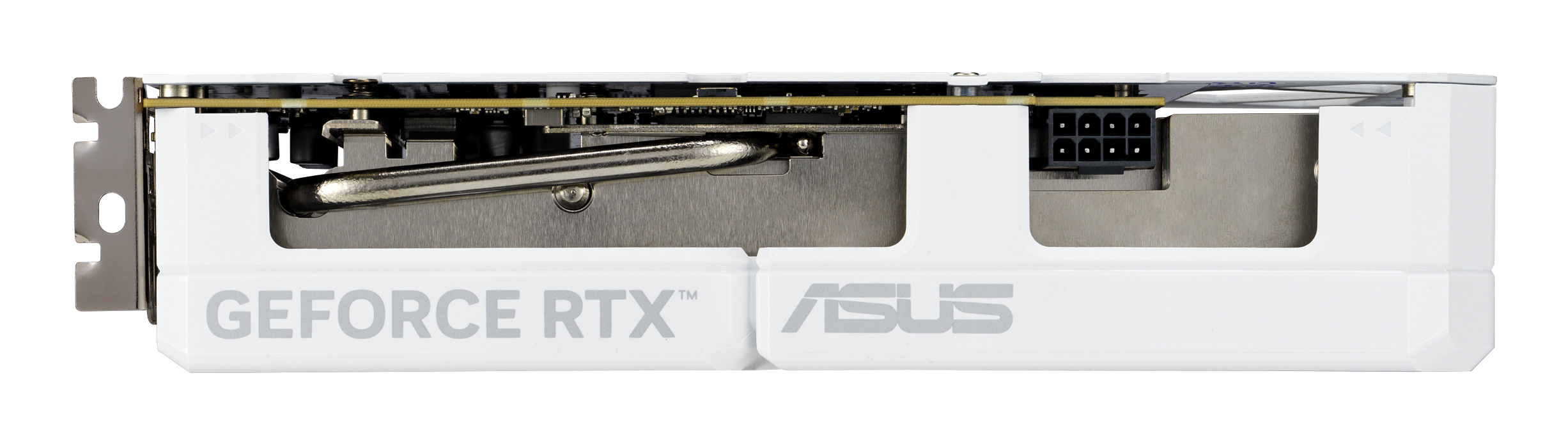

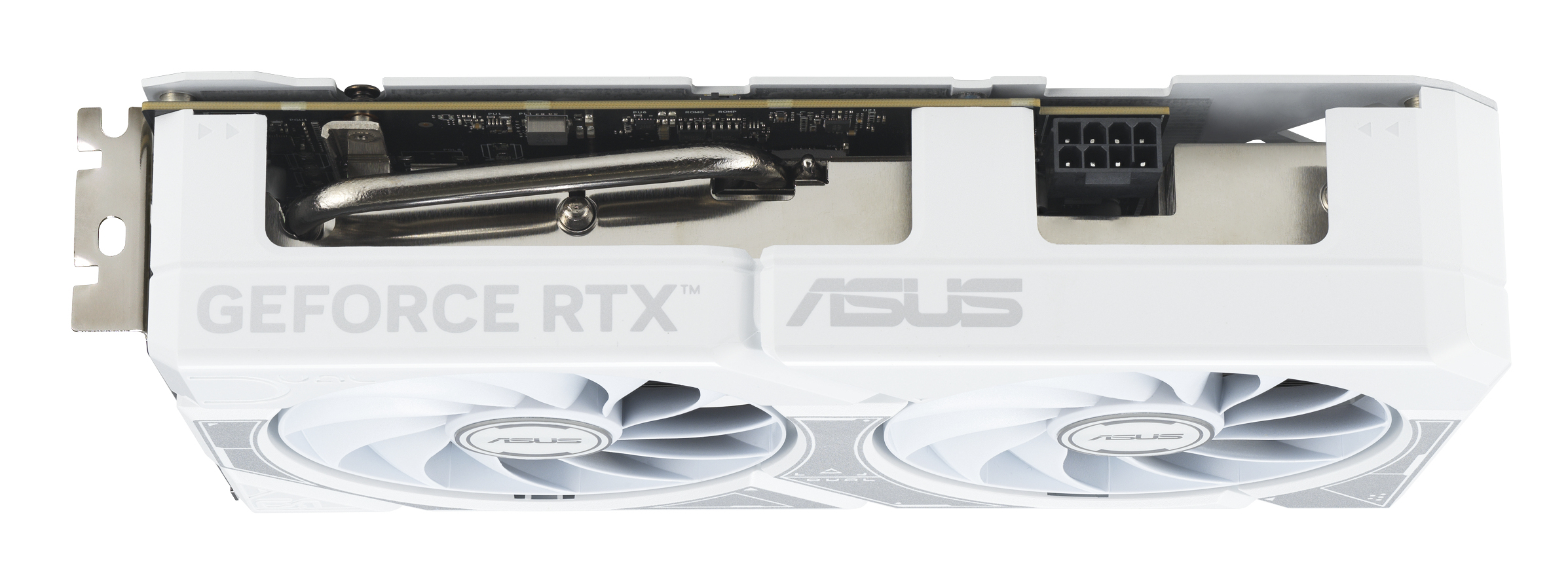

A carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.
Axial-tech Upgrades
Two tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure.
| Processor | |
| Graphics processor family: | NVIDIA |
| Graphics processor: | GeForce RTX 5060 Ti |
| Maximum resolution: | 7680 x 4320 pixels |
| CUDA: | Yes |
| Parallel processing technology support: | Not supported |
| CUDA cores: | 4608 |
| Processor boost clock speed: | 2602 MHz |
| Processor frequency (OC mode): | 2632 MHz |
| Maximum displays per videocard: | 4 |
| Memory | |
| Discrete graphics card memory: | 16 GB |
| Graphics card memory type: | GDDR7 |
| Memory bus: | 128 bit |
| Data transfer rate: | 28 Gbit/s |
| Ports & interfaces | |
| Interface type: | PCI Express 5.0 |
| HDMI ports quantity: | 1 |
| DVI-D ports quantity: | 0 |
| DVI-I ports quantity: | 0 |
| DisplayPorts quantity: | 3 |
| HDMI version: | 2.1b |
| DisplayPort version: | 2.1b |
| Performance | |
| TV tuner integrated: | No |
| OpenGL version: | 4.6 |
| HDCP: | Yes |
| HDCP version: | 2.3 |
| NPU performance up to: | 767 TOPs |
| Overclocked (OC) edition: | Yes |
| Design | |
| Cooling type: | Active |
| Cooling technology: | ASUS Axial-tech |
| Number of fans: | 2 fan(s) |
| Number of slots: | 2.5 |
| Product colour: | White |
| Power | |
| Minimum system power supply: | 550 W |
| Supplementary power connectors: | 1x 8-pin |
| Weight & dimensions | |
| Weight: | 656 g |
| Length: | 229 mm |
| Depth: | 50 mm |
| Height: | 120 mm |
| Packaging data | |
| Package width: | 364 mm |
| Package depth: | 217 mm |
| Package height: | 66 mm |
| Package weight: | 1.12 kg |
| Package type: | Box |
| Packaging content | |
| Manual: | Yes |
