It s 2022. The Republic of Gamers is launching new equipment for the EVANGELION project. The ROG Thor II platinum EVA edition wears an EVA-inspired skin and wields component and cooling upgrades that enable the lowest noise levels even during the most demanding skirmishes with the opposition.
THE QUIETEST 1000W POWER SUPPLY

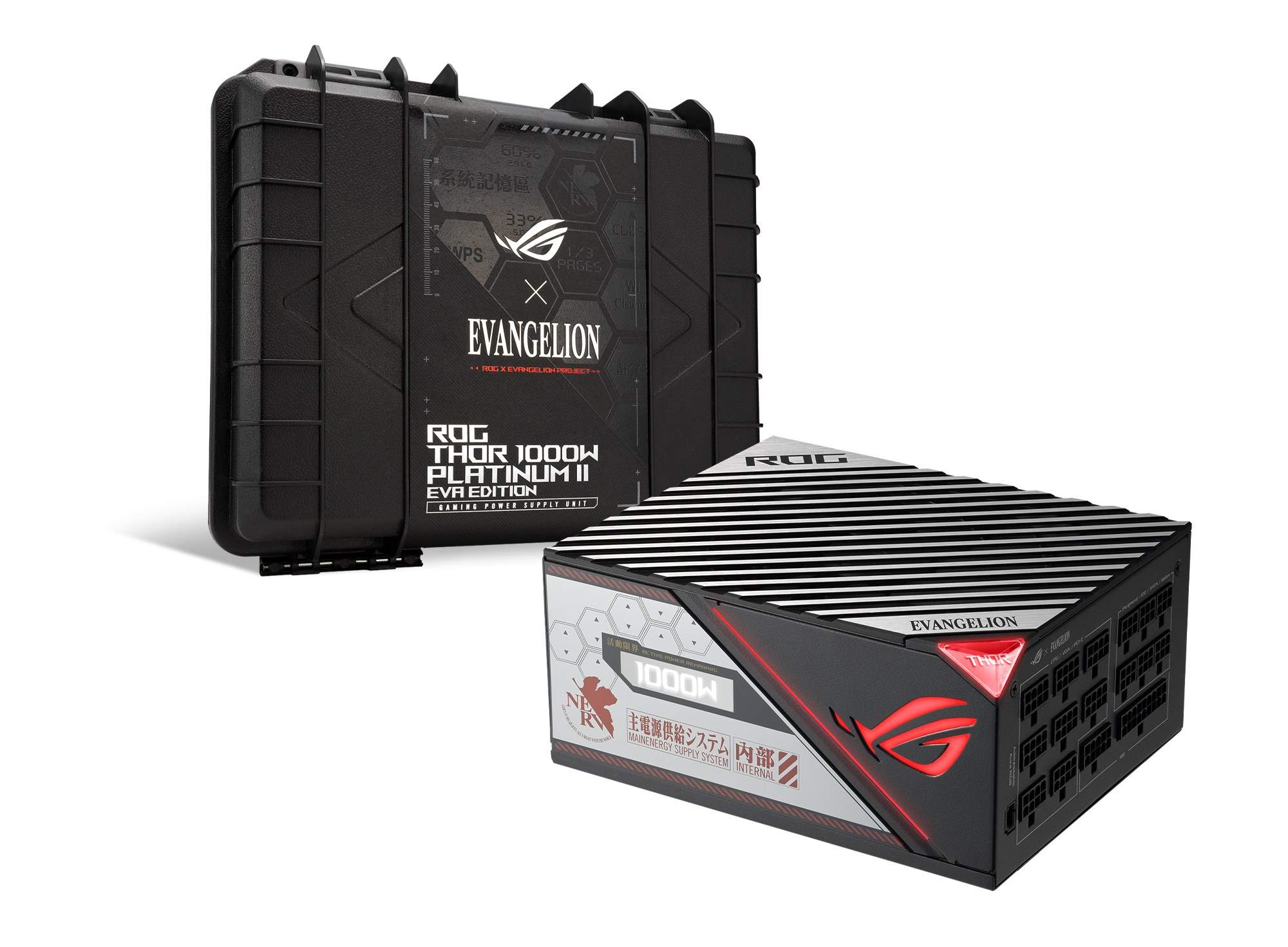

ROG THOR 1000W Platinum II EVA EDITION
Axial-tech Fan Design
A 135mm Axial-tech fan with PWM control delivers lower noise and keeps thermals in check.
ROG Heatsinks
ROG heatsinks have 2x more volume than traditional designs, facilitating lower temperatures, longer component lifespan, and extended 0dB operation.
Lambda A++ Certification
Thor II cooling upgrades result in a coveted Lambda A++ noise rating, confirming the latest iteration wields menacing power in absolute stealth.
| Power | |
| Total power: | 1000 W |
| AC input voltage: | 100 - 240 V |
| Combined power (+3.3V): | 125 W |
| Combined power (+12V): | 996 W |
| Combined power (+5V): | 125 W |
| Combined power (-12V): | 3.6 W |
| Combined power (+5Vsb): | 15 W |
| Max output current (+3.3V): | 25 A |
| Max output current (+12V): | 83 A |
| Max output current (+5V): | 25 A |
| Max output current (-12V): | 0.3 A |
| Max output current (+5Vsb): | 3 A |
| Power protection features: | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power connector: | 20+4 pin ATX |
| Peripheral (Molex) power connectors (4-pin): | 6 |
| Motherboard power cable length: | 61 cm |
| Number of SATA power connectors: | 12 |
| SATA power cable length: | 120,400 mm |
| Peripheral (Molex) power cable length: | 120,450 mm |
| EPS power connector (4+4 pin): | Yes |
| PCI Express power connectors (6+2 pin): | 8 |
| PCI Express power cable length: | 67.5 cm |
| CPU power connector (4+4 pin): | Yes |
| CPU power cable length: | 65 cm |
| ATX power connector (20+4 pin): | Yes |
| Cabling type: | Modular |
| Performance | |
| Purpose: | PC |
| 80 PLUS certification: | 80 PLUS Platinum |
| Silent mode: | Yes |
| Certification: | Cybenetics Noise Level Certification A++ |
| Design | |
| Product colour: | Black |
| Cooling type: | Active |
| Fan diameter: | 13.5 cm |
| Number of fans: | 1 fan(s) |
| Illumination: | Yes |
| On/off switch: | Yes |
| Weight & dimensions | |
| Width: | 190 mm |
| Depth: | 150 mm |
| Height: | 86 mm |
| Weight: | 2.35 kg |
| Packaging data | |
| Package width: | 339 mm |
| Package depth: | 287 mm |
| Package height: | 135 mm |
| Package weight: | 4.9 kg |
| Technical details | |
| Sustainability compliance: | Yes |
| Sustainability certificates: | RoHS |
