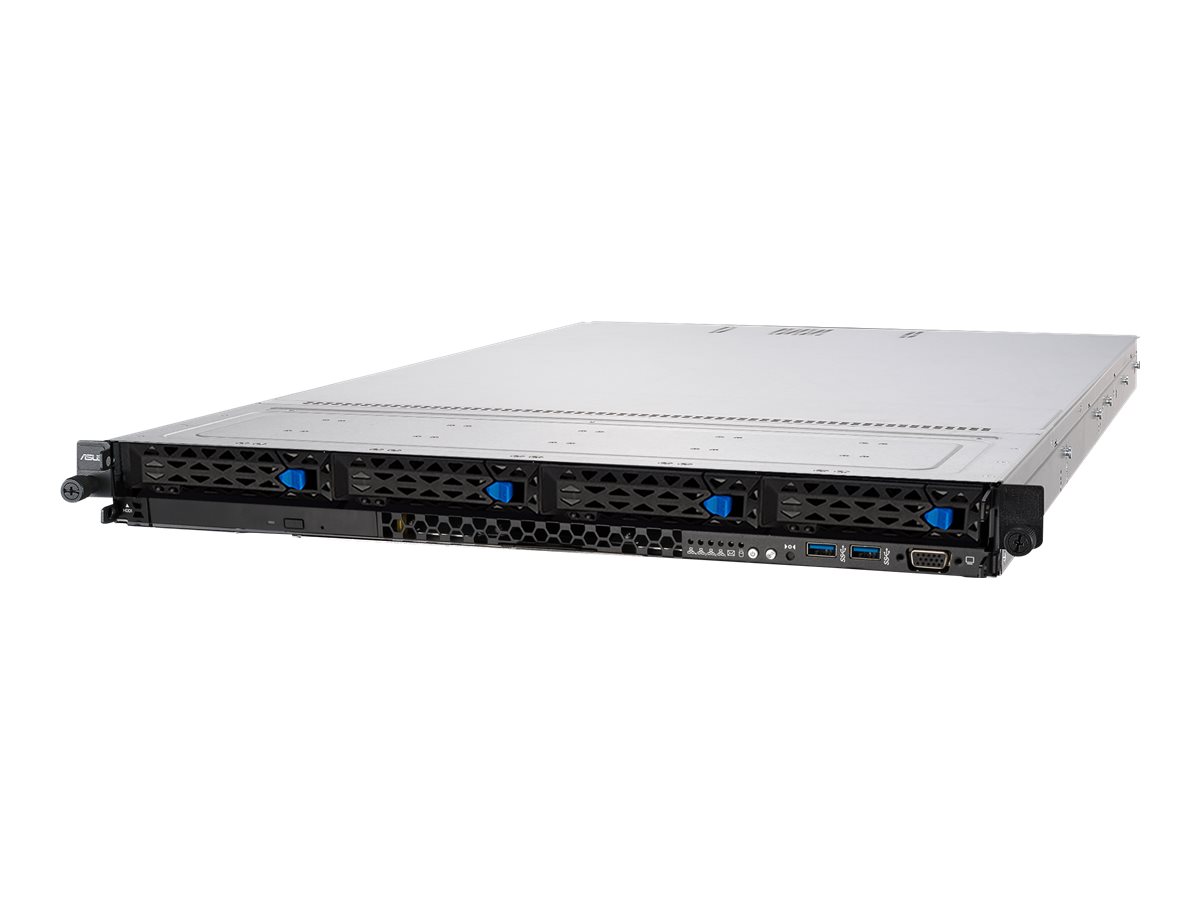

ASUS RS700-E10-RS12U/10G/12NVME Intel C621A LGA 4189 Rack (1U) Black

3rd Gen Intel® Xeon® Scalable ProcessorsThe latest 3rd Gen Intel® Xeon® Scalable Processors feature core counts from 8 to 40 cores and an array of frequency and power supports, and deliver up to 40% better performance compared to the previous generations. With built-in security features, this new platform delivers outstanding performance in security including encryption, authentication and data integrity across the breadth of standards that are prevalent in networking, enterprise and the cloud.PCIe 4.0 ReadyPCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS RS700-E10 servers are PCIe 4.0 ready to support a diverse array of graphics, storage and networking enabling flexible scalability for demanding or increasing workloads.Dual-slot GPU SupportASUS RS700-E10 servers support one dual-slot GPU to securely run different workloads in virtualized environments and are Xilinx Alveo-qualified to provide optimized acceleration for workloads across cloud and on-premises data centers, and for hybrid cloud environments in financial computing, machine learning, computational storage, and data search and analytics.* FPGA Xilinx verification is available on request.CPU-balanced ArchitectureThe new 3rd Gen Intel® Xeon® Scalable Processors excel at providing full features and functionality for both dual-socket and single-socket platforms, but our new servers ASUS is introducing an CPU-balanced architecture to enable secure and optimal CPU-performance efficiency.This architecture extends the full bandwidth to either dual- or single-CPU configurations, enabling more computing capability and much-improved overall power efficiency for compute-intensive workloads. This architecture allows customers to take full advantage of bandwidth capabilities of the dual-CPU architecture with a single CPU, while offering the flexibility to upgrade later with the addition of a second CPU.Modular designASUS RS700-E10 servers offer a flexible, modular design to enable easy scale-up of configurations to meet increasing data-center workloads.Scalable storage solutionASUS RS700-E10 servers feature scalable storage solutions to support maximum performance for data center flexibility, and enable industry-standard SAS/SATA/NVMe interfacing through Broadcom Tri-Mode RAID adapters for increased connectivity and security. Up to 12 all-flash NVMe drives on front panel enable extensive storage and high-throughput performance.Cooling SolutionsData centers typically demand high-performance processors, GPUs or memory in dense configurations to run HPC or AI workloads. ASUS RS700-E10 servers feature either air or liquid-cooled solutions, with Asetek s Direct-to-Chip (D2C) liquid-cooling technology achieving lower power-usage effectiveness (PUE) and optimized TCO for data centers.Enhanced SecurityASUS RS700-E10 servers integrate PFR FPGA as the platform Root-of-Trust solution for firmware resiliency to prevent from hackers from gaining access to infrastructure. ASUS security solutions are fully compliant with the 2018 National Institute of Standards and Technology (NIST) SP 800 193 specification.In addition, all RS700-E10 servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities.OCP 3.0ASUS RS700-E10 servers feature the latest OCP NIC 3.0 card with PCIe 4.0 bandwidth for a faster time-to-market network solution, delivering the speeds of up to 200 Gbps for high bandwidth and low latency. It also features a tool-less, hot-swappable design to simplify installation and serviceability.ASUS ASMB10-iKVMASUS ASMB10-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish® API.

Processor
Built-in processor:
Motherboard chipset:	Intel C621A
Processor socket:	LGA 4189
Number of processors supported:	2
Processor manufacturer:	Intel
Processor family:	Intel® Xeon® Scalable
Memory
Number of DIMM slots:	32
Supported memory types:	DDR4-SDRAM
Supported DIMM module capacities:	8GB, 16GB, 32GB, 64GB, 128GB, 256MB
Maximum internal memory:	6144 GB
Supported RDIMM clock speeds:	2933,3200 MHz
Storage
Number of storage drives supported:	14
Hot-swap HDD bays:
Storage drive sizes supported:	2.5,M.2
Supported storage drive types:	HDD & SSD
RAID levels:	0, 1, 5, 10, 50
Graphics
On-board graphics card model:	Aspeed AST2600
On-board graphics card memory:	64 MB
Network
Ethernet LAN:
Ethernet interface type:	10 Gigabit Ethernet
LAN controller:	Intel X710-AT2
Ports & interfaces
Ethernet LAN (RJ-45) ports:	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	2
IPMI LAN (RJ-45) port:
VGA (D-Sub) ports quantity:	1
Expansion slots
PCI Express slots version:	4.0
PCI Express x8 slots:	1
PCI Express x16 slots:	3
Number of M.2 (M) slots:	2
Logistics data
Harmonized System (HS) code:	84714100
Design
Chassis type:	Rack (1U)
Product colour:	Black
LED indicators:
On/off switch:
Reset button:
Power
Power supply:	1600 W
Number of main power supplies:	1
Redundant power supply (RPS) support:
Number of redundant power supplies supported:	1
Number of redundant power supplies installed:	1
AC input voltage:	100 - 240 V
AC input frequency:	50 - 60 Hz
Input current:	13 A
80 PLUS certification:	80 PLUS Platinum
Operational conditions
Operating temperature (T-T):	10 - 35 °C
Storage temperature (T-T):	-40 - 60 °C
Storage relative humidity (H-H):	20 - 90%
Weight & dimensions
Width:	439.5 mm
Depth:	842.5 mm
Height:	44 mm
Weight:	13.7 kg
