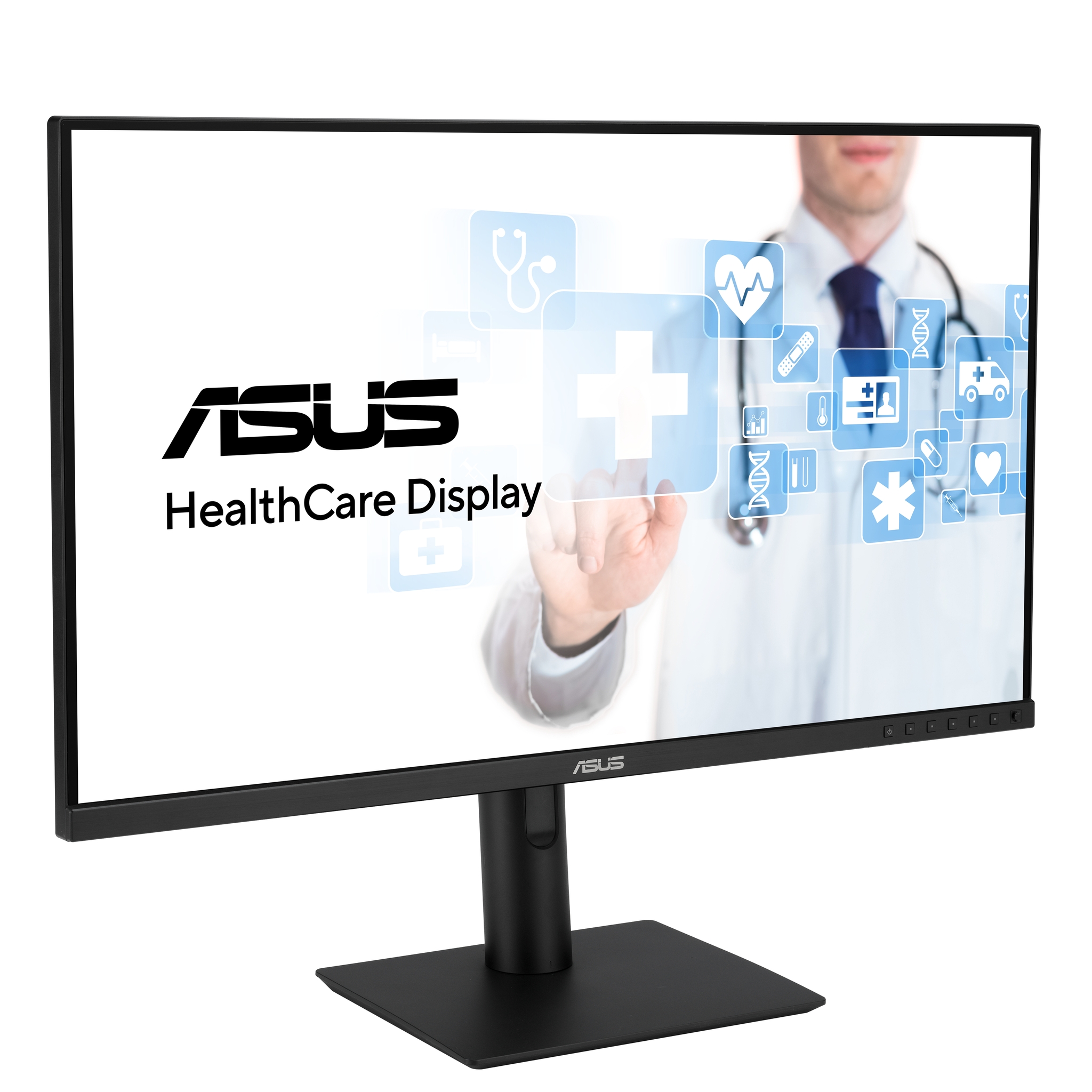

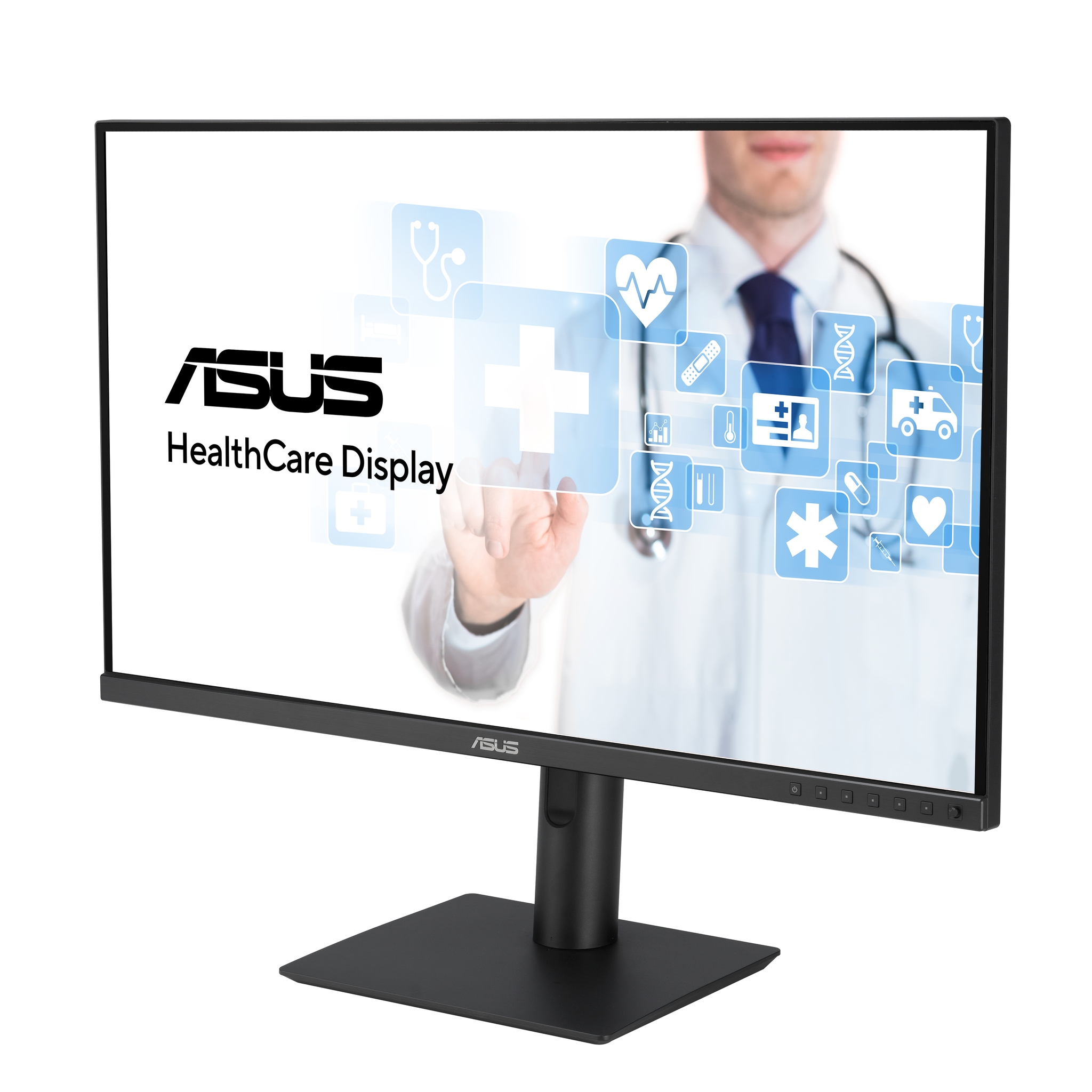

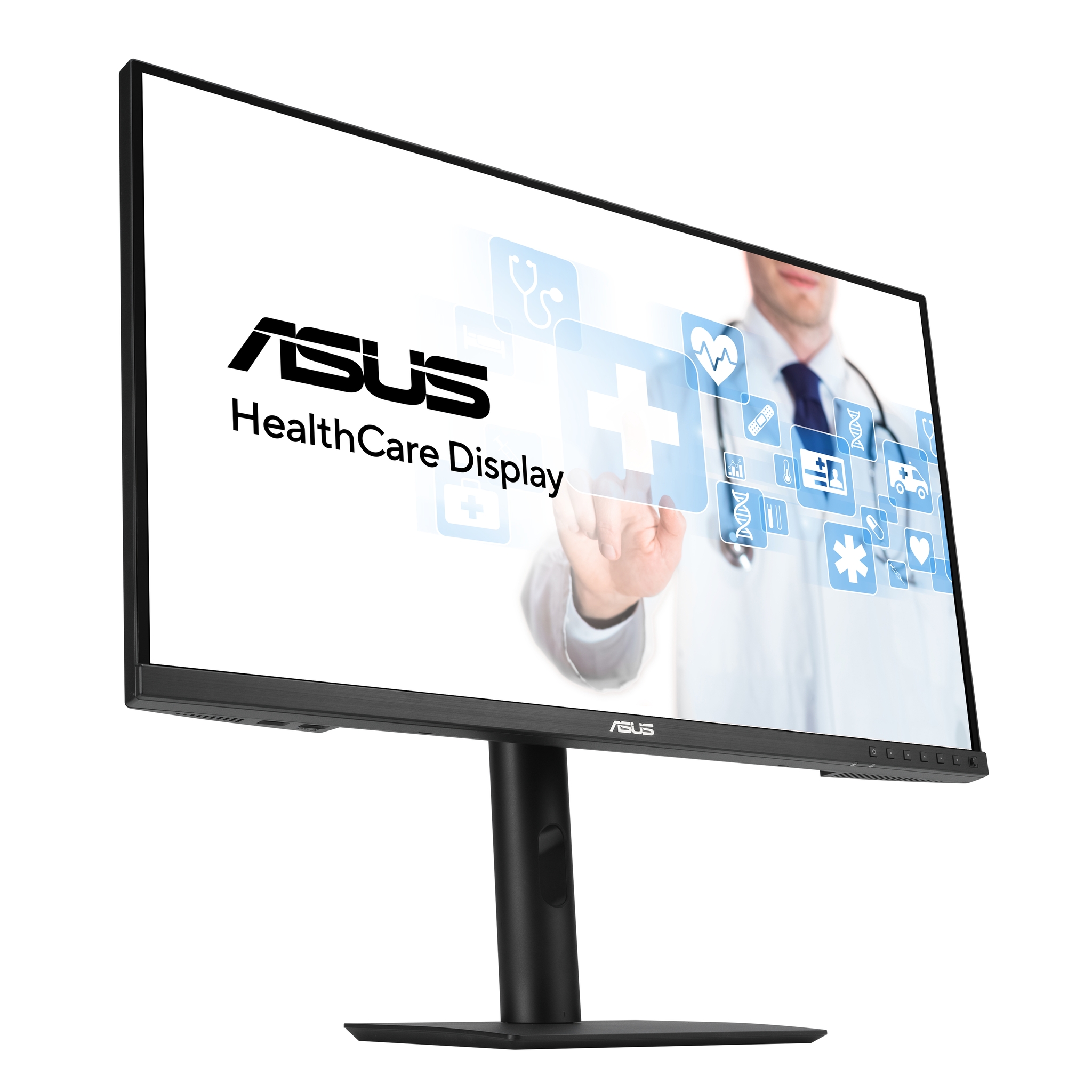

HealthCare Monitor

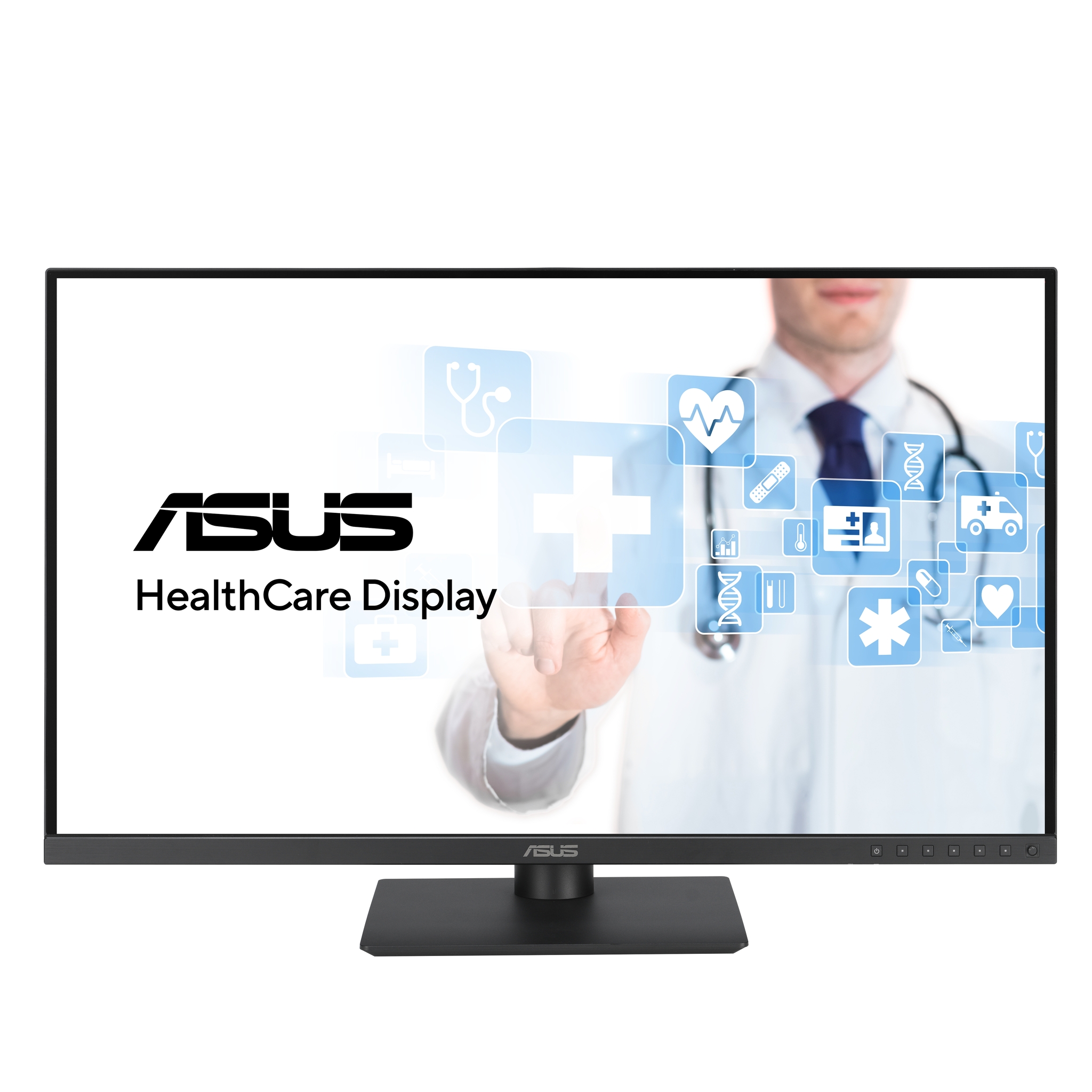

ASUS HealthCare Displays provides comprehensive line-up targeting for every HealthCare institutions needs. ASUS HealthCare Displays are factory calibrated with DICOM® Part 14 GSDF (Grayscale Standard Display Function) compliance to ensure visual accuracy and consistency in finest details. ASUS HA2741A features 27-inch 3.6MP Anti-Glare, Low-Reflection (AGLR) IPS panel, ASUS exclusive Hardware Calibration Technology supports auto calibration to keep DICOM long term accuracy. ASUS HealthCare Displays delivers high-performance, precise and stable capabilities to fit any scenario.
Lifelike Views Vith 178° Wide View Angle
ASUS HA2741A IPS panel provides 178° viewing angles, both horizontally and vertically, so you can reproduce excellent contrast, ensuring the accurate and clear medical images from almost any direction.
| Display | |
| Display diagonal: | 68.6 cm (27") |
| Display resolution: | 2560 x 1440 pixels |
| Native aspect ratio: | 16:9 |
| Display technology: | LCD |
| Touchscreen: | No |
| HD type: | Quad HD |
| Panel type: | IPS |
| Screen shape: | Flat |
| Contrast ratio (typical): | 900:1 |
| Maximum refresh rate: | 75 Hz |
| Display number of colours: | 16.7 million colours |
| LED backlight: | Yes |
| Backlight type: | LED |
| Display brightness (typical): | 300 cd/m² |
| Response time: | 5 ms |
| Anti-glare screen: | Yes |
| Viewing angle, horizontal: | 178° |
| Viewing angle, vertical: | 178° |
| Pixel pitch: | 0.233 x 0.233 mm |
| Viewable size, horizontal: | 59.7 cm |
| Viewable size, vertical: | 33.6 cm |
| Display diagonal (metric): | 69 cm |
| Colour gamut standard: | sRGB |
| Colour gamut: | 100% |
| Performance | |
| Brand specific technologies: | Eye Care+ |
| Flicker-free technology: | Yes |
| Low Blue Light technology: | Yes |
| Multimedia | |
| Built-in speaker(s): | No |
| Built-in camera: | No |
| Design | |
| Market positioning: | Medical |
| Product colour: | Black |
| Frameless design: | Yes |
| Feet colour: | Black |

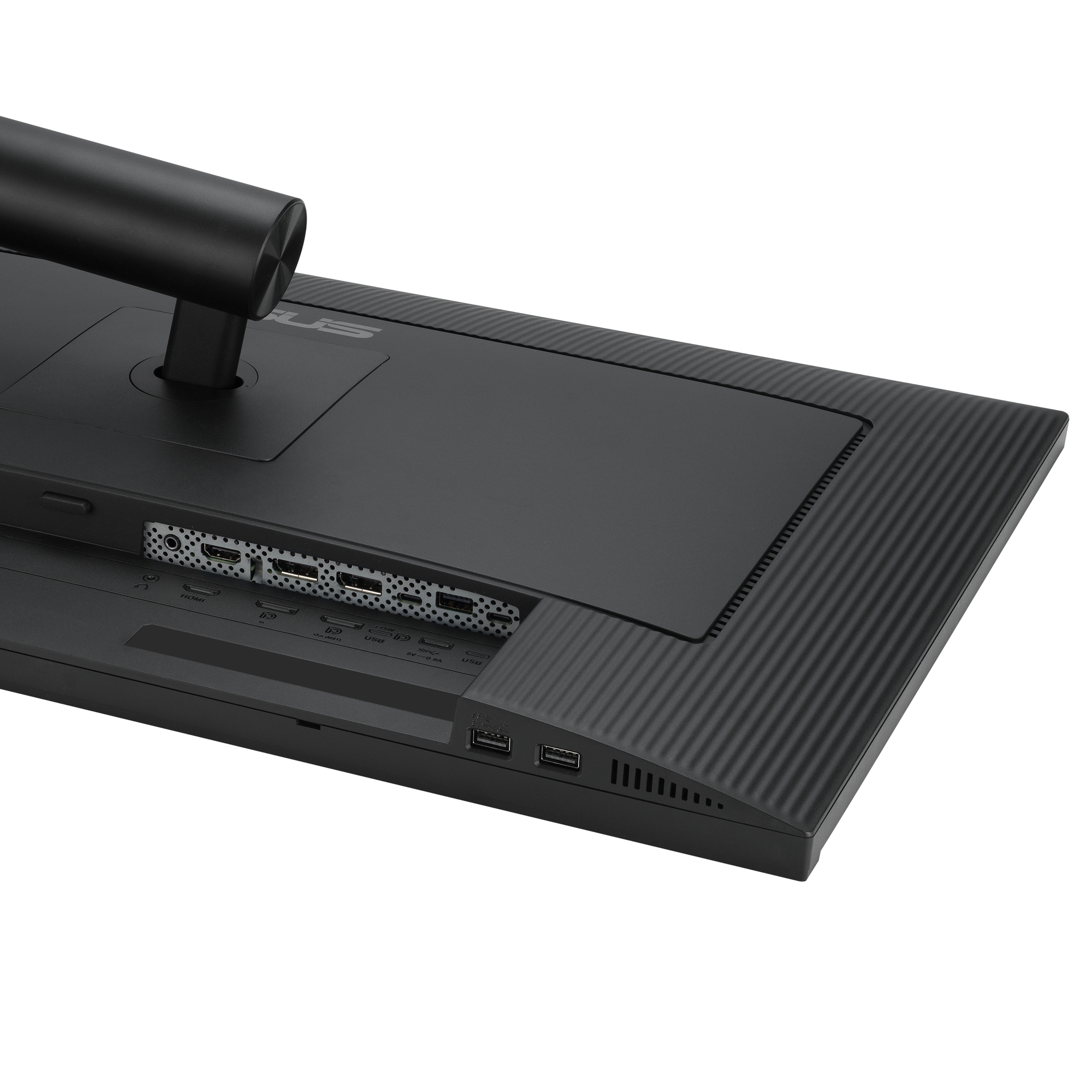

| Ports & interfaces | |
| Built-in USB hub: | Yes |
| HDMI: | Yes |
| Headphone out: | Yes |
| USB hub version: | 3.2 Gen 1 (3.1 Gen 1) |
| Number of USB Type-C upstream ports quantity: | 1 |
| USB Type-A downstream ports quantity: | 3 |
| USB Type-C downstream ports quantity: | 1 |
| USB Type-C DisplayPort Alternate Mode: | Yes |
| USB Power Delivery: | Yes |
| USB Power Delivery up to: | 15 W |
| HDMI ports quantity: | 1 |
| HDMI version: | 2.0 |
| DisplayPorts quantity: | 2 |
| DisplayPort version: | 1.4 |
| Headphone outputs: | 1 |
| HDCP: | Yes |
| HDCP version: | 2.2 |
| Ergonomics | |
| VESA mounting: | Yes |
| Cable lock slot: | Yes |

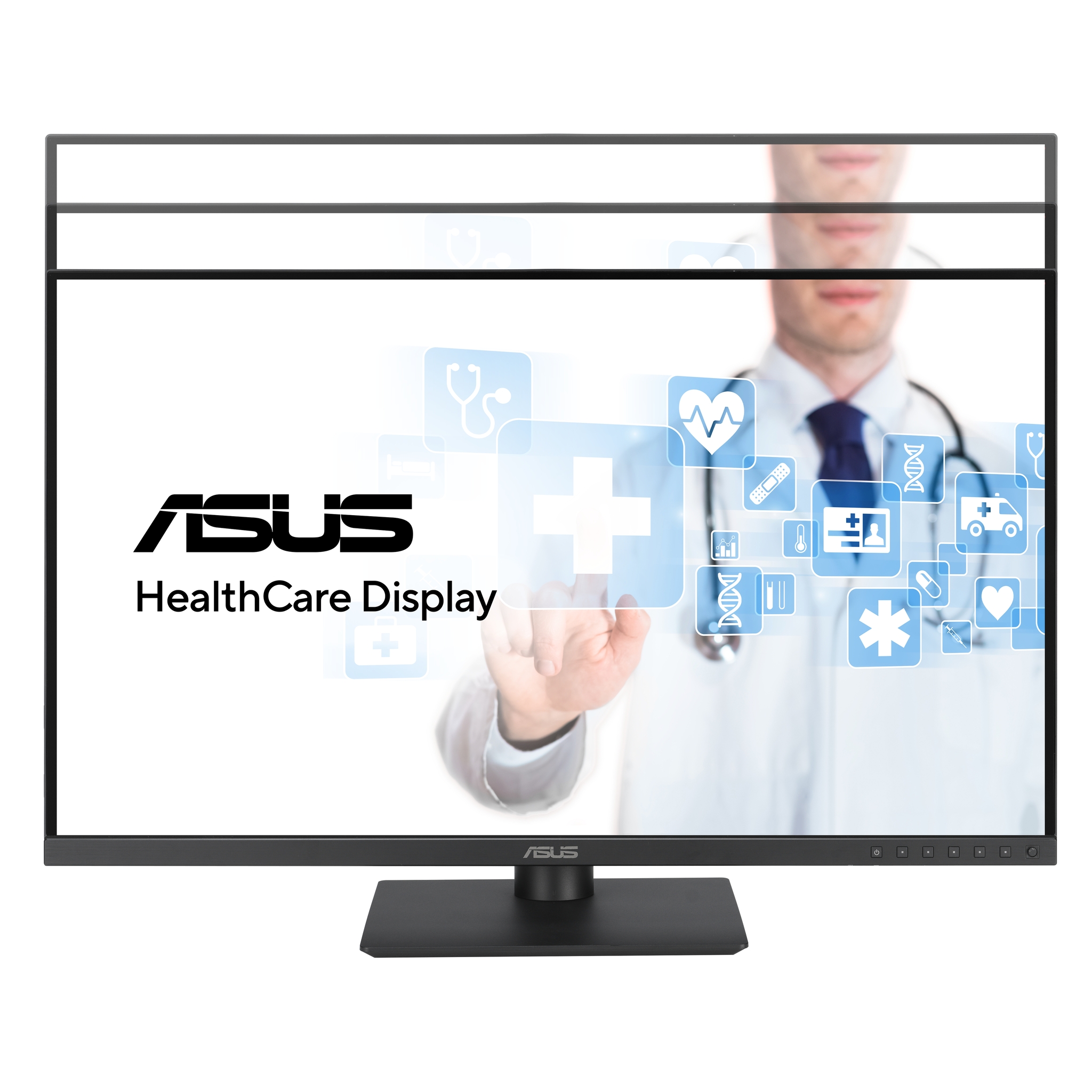

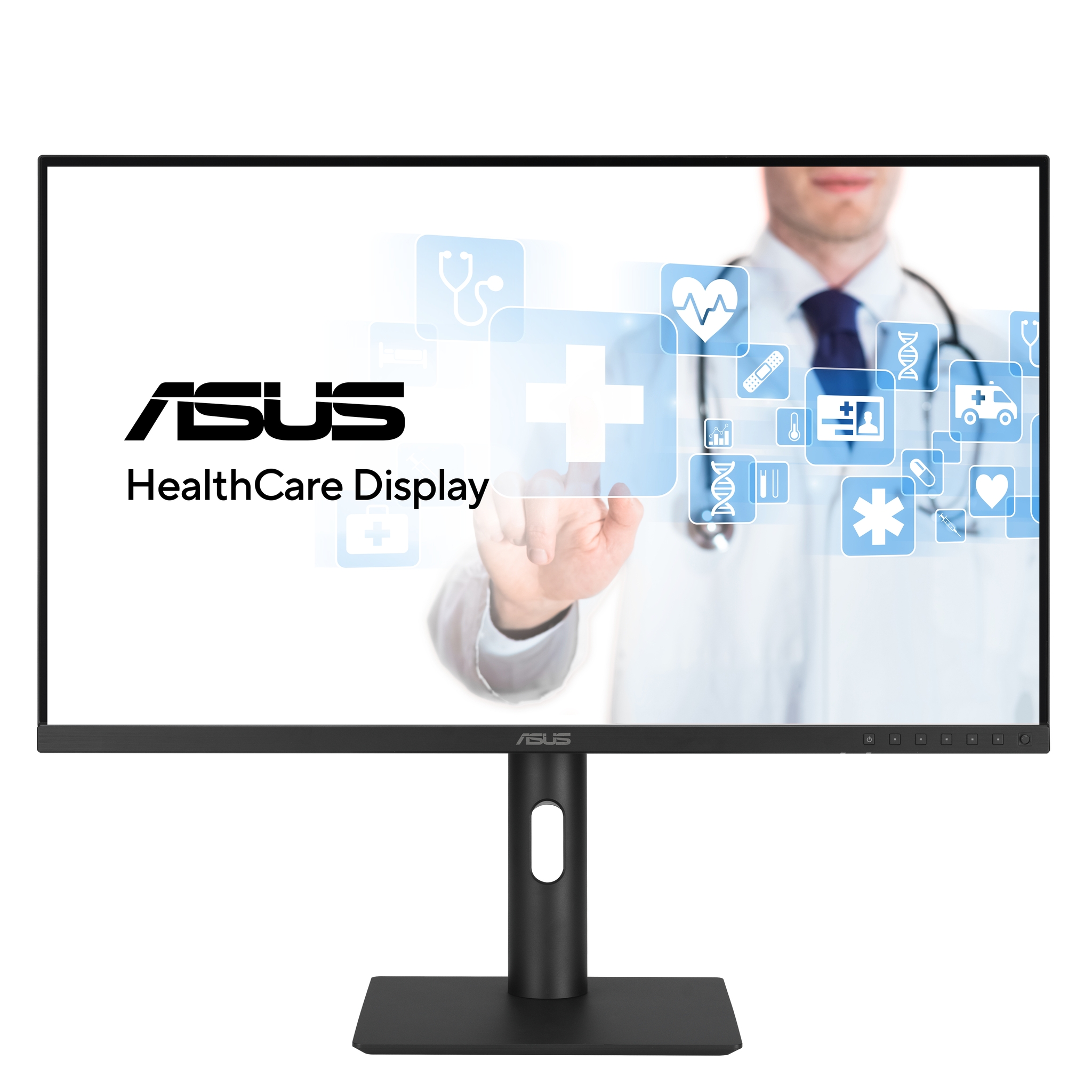

| Height adjustment: | Yes |
| Panel mounting interface: | 100 x 100 mm |
| Wall mountable: | Yes |
| Cable lock slot type: | Kensington |
| Height adjustment: | 13 cm |

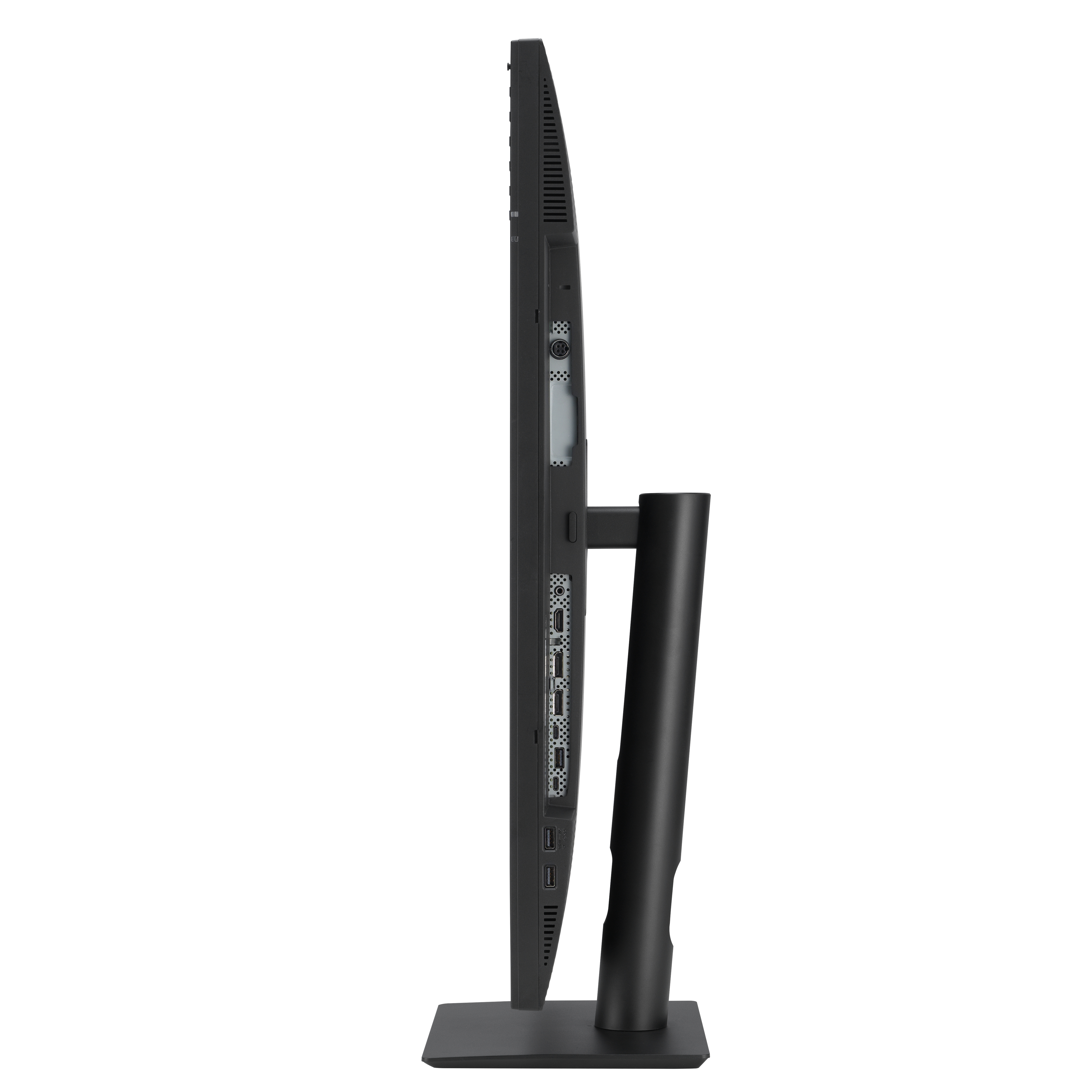

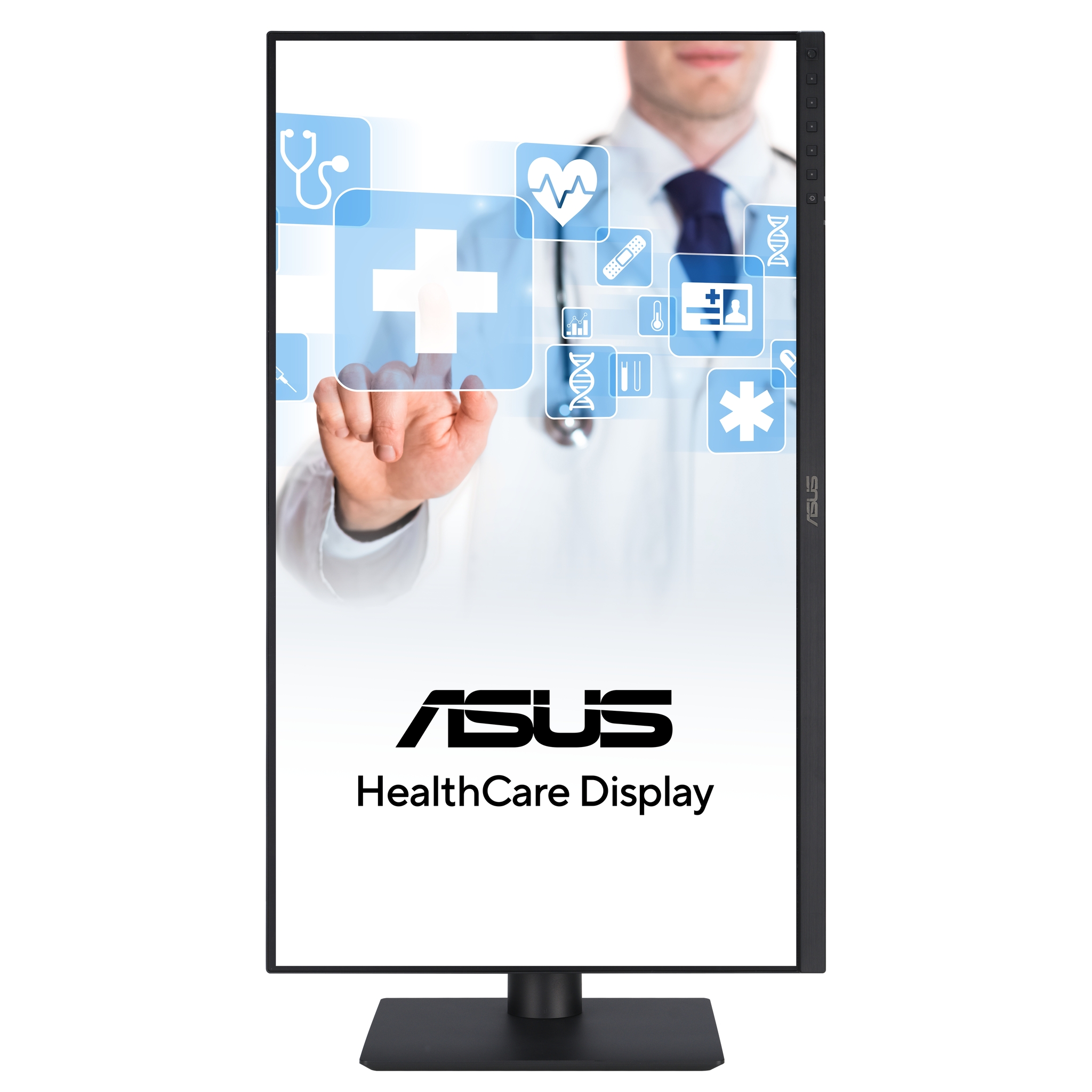

| Pivot: | Yes |
| Pivot angle: | -90 - 90° |
| Swivelling: | Yes |
| Swivel angle range: | -30 - 30° |
| Tilt adjustment: | Yes |
| Tilt angle range: | -5 - 23° |
| Power | |
| Energy efficiency class (SDR): | D |
| Energy efficiency class (HDR): | F |
| Energy consumption (SDR) per 1000 hours: | 17 kWh |
| Energy consumption (HDR) per 1000 hours: | 23 kWh |
| Power consumption (typical): | 13.7 W |
| AC input voltage: | 100 - 240 V |
| AC input frequency: | 50/60 Hz |
| Energy efficiency scale: | A to G |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 40 °C |
| Operating relative humidity (H-H): | 5 - 90% |
| Weight & dimensions | |
| Width (with stand): | 613.3 mm |
| Depth (with stand): | 197.2 mm |
| Height (with stand): | 536.7 mm |
| Weight (with stand): | 6.7 kg |
| Width (without stand): | 613.3 mm |
| Depth (without stand): | 44.9 mm |
| Height (without stand): | 363.4 mm |
| Weight (without stand): | 5 kg |
| Packaging data | |
| Package width: | 695 mm |
| Package depth: | 133 mm |
| Package height: | 421 mm |
| Package weight: | 9.3 kg |
| Package type: | Box |
| Sustainability | |
| Sustainability certificates: | Forest Stewardship Council (FSC) Mix, ENERGY STAR |
| European Product Registry for Energy Labelling (EPREL) code: | 1854534 |
| Sustainability compliance: | Yes |
