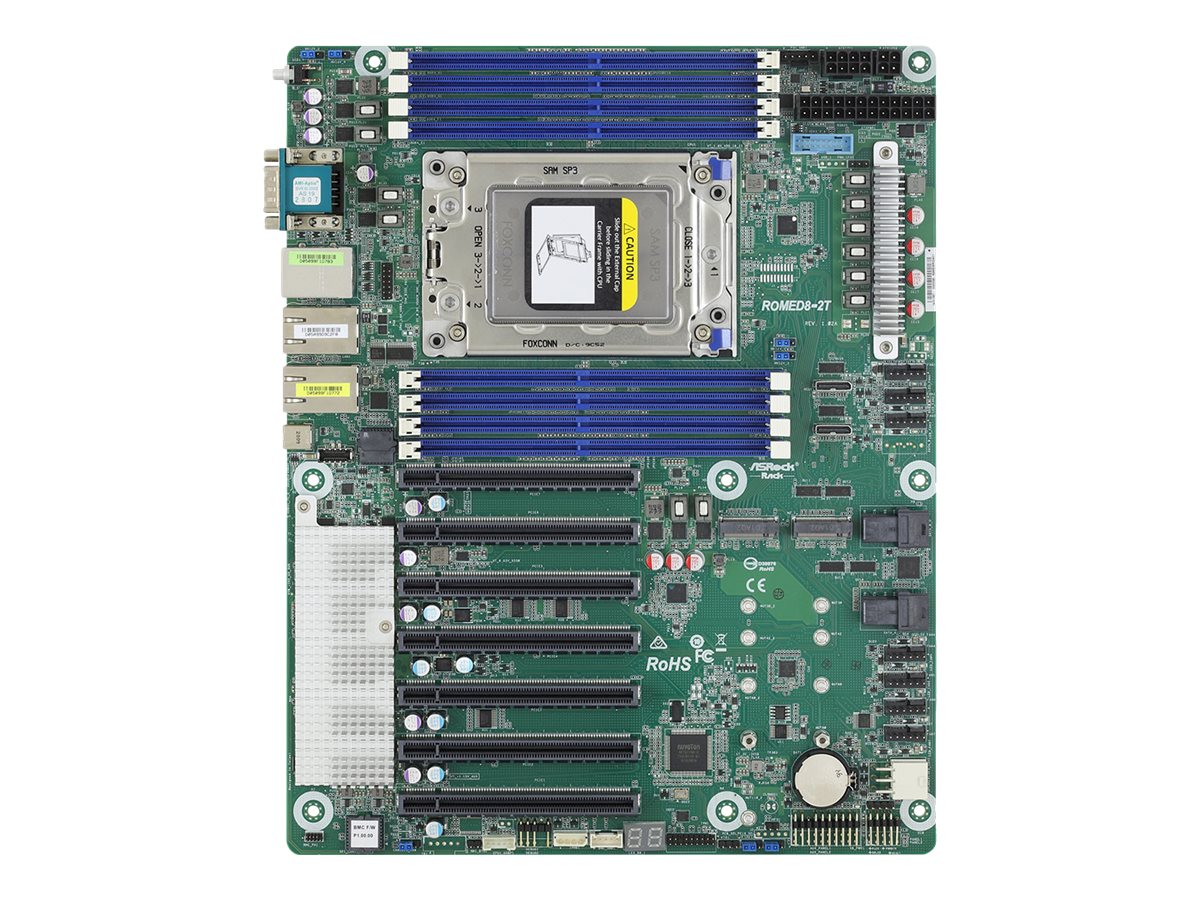

ASRock ROMED8-2T | Asrock ROMED8-2T motherboard LGA 4094 ATX

Your settings

Languages

Welcome back!

You do not have any products in your shopping cart yet.

Details

Products description

Processor
Processor manufacturer:	AMD
Processor socket:	LGA 4094
Compatible processor series:	AMD EPYC
Maximum number of SMP processors:	1
Memory
Supported memory types:	DDR4-SDRAM
Number of memory slots:	8
Memory slots type:	DIMM
Memory channels:	Octa-channel
Memory voltage:	1.2 V
Supported memory clock speeds:	2400,2666,2933,3200 MHz
Supported memory module capacities:	8GB, 16GB, 32GB, 64GB, 128MB, 256MB
Storage controllers
Supported storage drive interfaces:	M.2, SATA III
Supported storage drive types:	HDD & SSD
Graphics
Graphics card:	AST2500
Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) connectors:	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors:	1
Number of SATA III connectors:	8
ATX Power connector (24-pin):
Power fan connector:
CPU fan connector:
Number of chassis fan connectors:	7
TPM connector:
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:	1
Ethernet LAN (RJ-45) ports:	3
VGA (D-Sub) ports quantity:	1
COM ports quantity:	1
Network
Wi-Fi:
Ethernet LAN:
Ethernet interface type:	10 Gigabit Ethernet
LAN controller:	Realtek RTL8211E
Wake-on-LAN ready:
Features
Motherboard form factor:	ATX
Compatible operating systems:	Microsoft® Windows® - Server 2016 (64 bit) - Server 2019 (64 bit) Linux - RedHat Enterprise Linux Server 8.0 (64 bit) / 7.6 (64 bit) - CentOs 8.0 (64 bit) / 7.6 ( 64 bit) - SUSE SLES 15.1 (64 bit) / 12.4 (64 bit) - UBuntu 18.04.3 (64 bit) / 16.04.6 (64 bit) - CITRIX Hypervisor 8.1 Virtual - VMWare® ESXi 6.5 u3 / 6.7 u3 - vSphere 6.5 u3/ / 6.7 u3
Expansion slots
PCI Express x16 (Gen 4.x) slots:	7
Number of M.2 (M) slots:	2
BIOS
BIOS type:	AMI
BIOS memory size:	256 Mbit
ACPI version:	2.0
System Management BIOS (SMBIOS) version:	2.8
Operational conditions
Storage temperature (T-T):	-40 - 70 °C
Operating temperature (T-T):	10 - 35 °C
Logistics data
Harmonized System (HS) code:	84733020
Weight & dimensions
Width:	305 mm
Depth:	244 mm
Height:	70 mm
Other features
Weight:	1.69 kg
Technical details
Sustainability certificates:	RoHS
