- Details

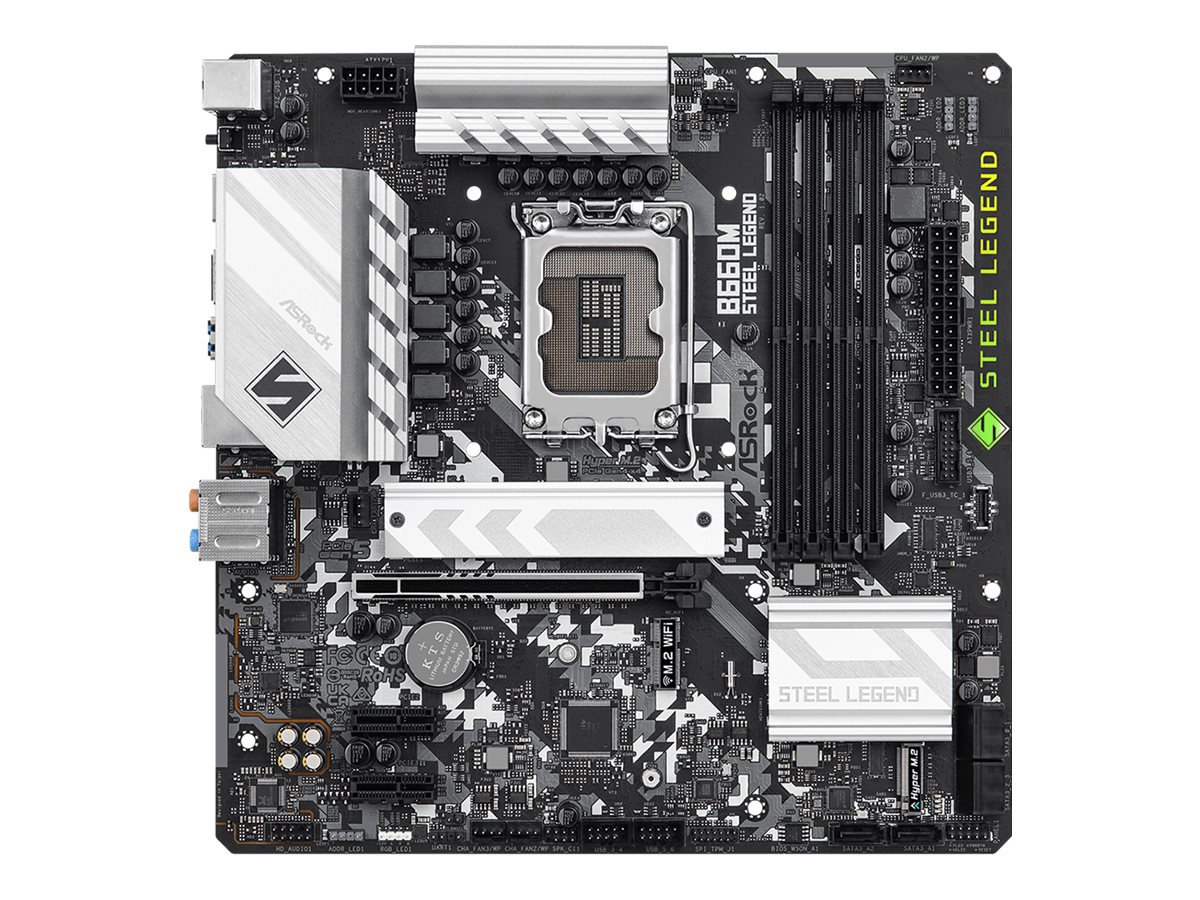

Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance.Optimized VRM DesignDr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!PCIe 5.0 + Surface-Mount TechCompares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.Nahimic AudioWhether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.POLYCHROME RGBIn addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.High Speed M.2 SolutionThis motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.Dragon 2.5 Gb/s LANThe intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.Front USB 3.2 Gen2x2 Type-CThe latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.BIOS FlashbackGet the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.M.2 (KEY E) For WiFiBesides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
| Processor | |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1700 |
| Compatible processor series: | Intel® Celeron®, Intel® Core i3, Intel® Core i5, Intel® Core i7, Intel® Core i9, Intel® Pentium® |
| Maximum number of SMP processors: | 1 |
| Memory | |
| Supported memory types: | DDR4-SDRAM |
| Number of memory slots: | 4 |
| Maximum internal memory: | 128 GB |
| Memory slots type: | DIMM |
| Memory channels: | Dual-channel |
| Non-ECC: |  |
| Supported memory clock speeds: | 5000 MHz |
| Unbuffered memory: | |
| Storage controllers | |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| RAID support: | |
| RAID levels: | 0, 1, 5, 10 |
| Graphics | |
| Maximum resolution: | 7680 x 4320 pixels |
| HDCP: | |
| Internal I/O | |
| USB 2.0 connectors: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| Number of SATA III connectors: | 6 |
| ATX Power connector (24-pin): | |
| CPU fan connector: | |
| Number of chassis fan connectors: | 3 |
| Chassis intrusion connector: | |
| TPM connector: | |
| 12V power connector: | |
| RGB LED pin header: | |
| Rear panel I/O ports | |
| USB 2.0 ports quantity: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 4 |
| Ethernet LAN (RJ-45) ports: | 1 |
| HDMI ports quantity: | 1 |
| PS/2 ports quantity: | 1 |
| DisplayPorts quantity: | 1 |
| S/PDIF out port: | |
| Digital audio optical out: | 1 |
| Network | |
| Wi-Fi: |  |
| Ethernet LAN: | |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| LAN controller: | Dragon RTL8125BG |
| Wake-on-LAN ready: | |
| Features | |
| Component for: | PC |
| Motherboard form factor: | micro ATX |
| Motherboard chipset family: | Intel |
| Motherboard chipset: | Intel B660 |
| Audio output channels: | 7.1 channels |
| Audio chip: | Realtek ALC897 |
| PC health monitoring: | CPU, Fan, Temperature, Voltage |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots: | 2 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| Number of M.2 (M) slots: | 2 |
| BIOS | |
| BIOS type: | UEFI AMI |
| BIOS memory size: | 128 Mbit |
| ACPI version: | 6.0 |
| System Management BIOS (SMBIOS) version: | 2.7 |
| Logistics data | |
| Harmonized System (HS) code: | 84733020 |
| Weight & dimensions | |
| Width: | 244 mm |
| Depth: | 244 mm |
| Packaging content | |
| Cables included: | SATA |
| Drivers included: | |
