A versatile UPS developed for unstable power conditions worldwideSmart-UPS On-Line provides high-density, double-conversion, online power protection for servers, voice/data networks, medical labs, and light industrial applications. The Smart-UPS On-Line is capable of supporting loads from 2.2 kVA 10 kVA in a rack/tower convertible chassis. The 6 kVA, 8 kVA, and 10 kVA models feature unity output power factor enabling them to support power-hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with multiple battery packs to meet aggressive runtime demands. The included PowerChute Network Shutdown management software provides unattended graceful shutdown of network operating systems. Models 5 kVA to 10 kVA include an integrated network management card for remote management. The entire Smart-UPS On-Line family provides value to customers with demanding power conditions, including a very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
| Features | |
| UPS topology: | Double-conversion (Online) |
| Output power capacity: | 3 kVA |
| Output power: | 2700 W |
| Waveform: | Sine |
| Input operation voltage (min): | 100 V |
| Input operation voltage (max): | 275 V |
| Input frequency: | 40 - 70 Hz |
| Output operation voltage (min): | 220 V |
| Output operation voltage (max): | 240 V |
| Output frequency: | 50/60 Hz |
| Automatic Voltage Regulation (AVR): |  |
| Surge energy rating: | 340 J |
| Efficiency: | 92% |
| Crest factor: | 3:1 |
| Emergency Power Off (EPO): | |
| Output voltage Total Harmonic Distortion (THD): | 2% |
| Noise level: | 55 dB |
| Surge protection: | |
| Power protection features: | Overload |
| Audible alarm(s): | |
| Audible alarm modes: | Battery replacement |
| Auto-restart: | |
| Ports & interfaces | |

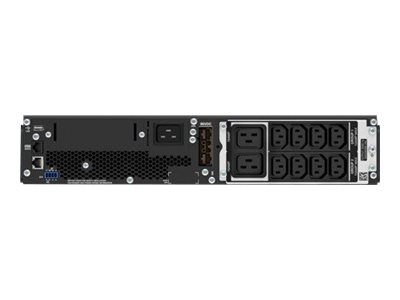

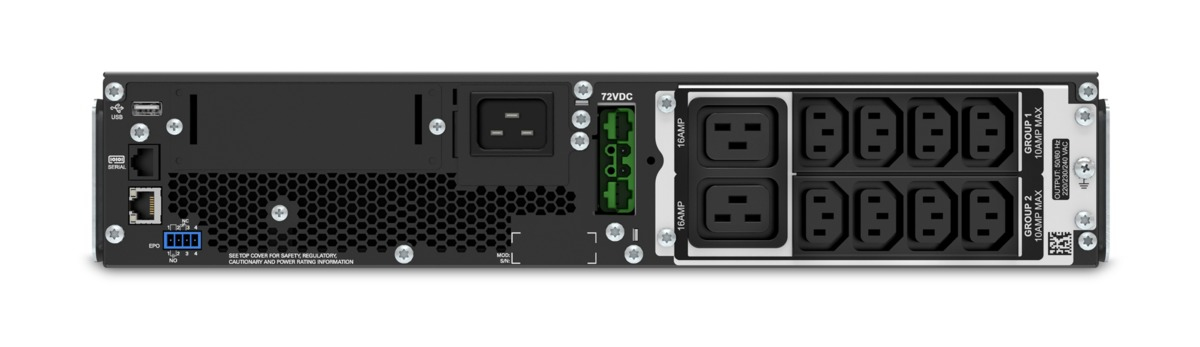

| AC outlet types: | C13 coupler, C19 coupler |
| Power plug: | C20 coupler |
| USB port: | |
| Serial interface: | |
| Serial interface type: | RJ-45 |
| SmartSlot: | |
| Battery | |
| Battery technology: | Sealed Lead Acid (VRLA) |
| Battery capacity: | 505 VAh |
| Typical backup time at full load: | 4 min |
| Typical backup time at half load: | 11.8 min |
| Battery life (max): | 5 year(s) |
| Battery recharge time: | 3 h |
| Hot-swap battery: | |
| Automatic battery test: | |
| Cold start: | |
| Design | |

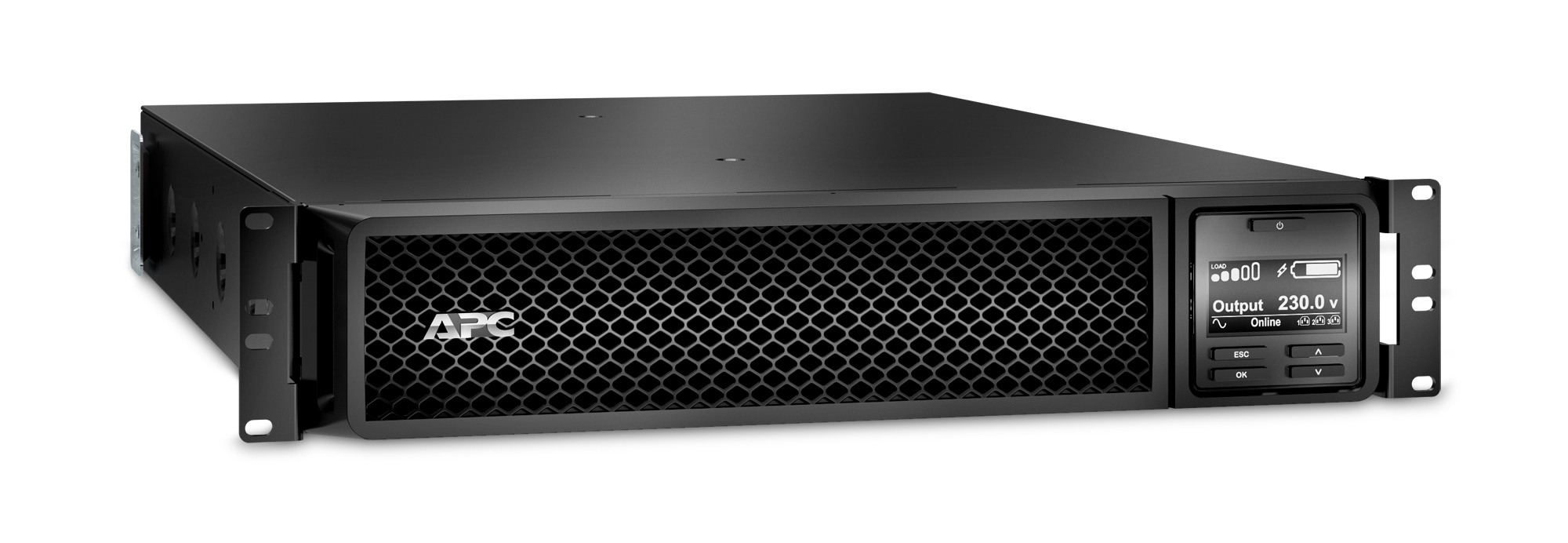

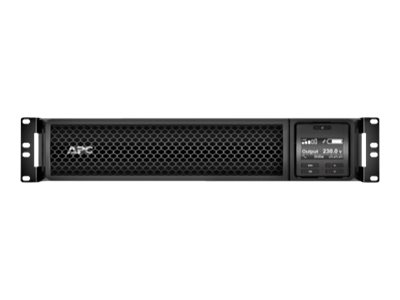

| Form factor: | Rackmount |
| Product colour: | Black |
| Rack capacity: | 2U |
| Cable length: | 2.44 m |

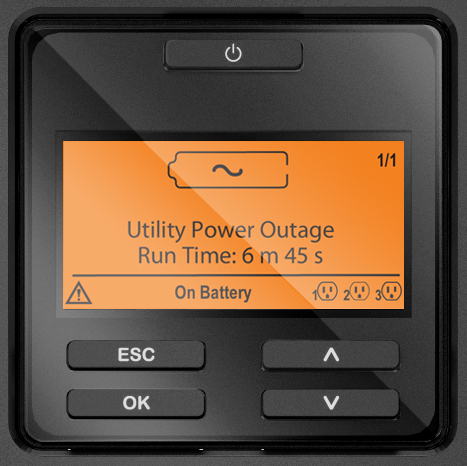

| Display type: | LCD |
| LED indicators: | Battery replacement |
| International Protection (IP) code: | IP20 |
| Certification: | CE, VDE, RCM, EAC, IEC/EN 62040-1, IEC/EN 62040-2, UL-1778, FCC 15 A, CSA |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 40 °C |
| Storage temperature (T-T): | -15 - 45 °C |
| Operating relative humidity (H-H): | 0 - 95% |
| Storage relative humidity (H-H): | 0 - 95% |
| Operating altitude: | 0 - 3000 m |
| Non-operating altitude: | 0 - 15000 m |
| Technical details | |
| Sustainability certificates: | Green Premium, RoHS |
| Weight & dimensions | |
| Width: | 432 mm |
| Depth: | 635 mm |
| Height: | 85 mm |
| Weight: | 31.3 kg |
| Package width: | 599 mm |
| Package depth: | 871 mm |
| Package height: | 246 mm |
| Package weight: | 39.3 kg |
| Packaging data | |
| Quick installation guide: | |
| Logistics data | |
| Products per pallet: | 6 pc(s) |
| Harmonized System (HS) code: | 85078000 |
| Other features | |
| Output voltage: | 230 V |
