Metering-by-Outlet capability
Individual outlet level power metering provides a more granular view of the power distributed to equipment within the enclosure. It also provides the ability to analyze component power trends and perform capacity planning.
Metering-by-Outlet capability
Individual outlet level power metering provides a more granular view of the power distributed to equipment within the enclosure. It also provides the ability to analyze component power trends and perform capacity planning.
Network Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage rack PDUs from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)
Local Current Monitoring Display
The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)
Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. (Note: Only available with units with local current monitoring feature)
Flash Upgradeable
Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)
Integrates with StruxureWare Data Center Expert
An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

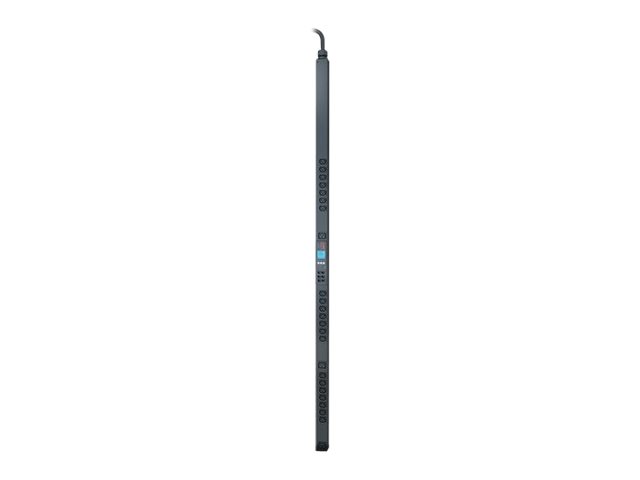

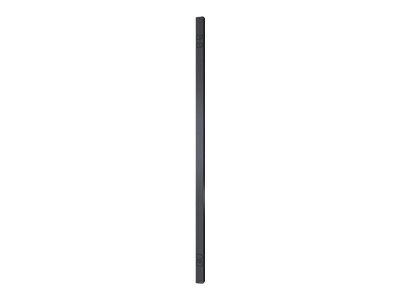

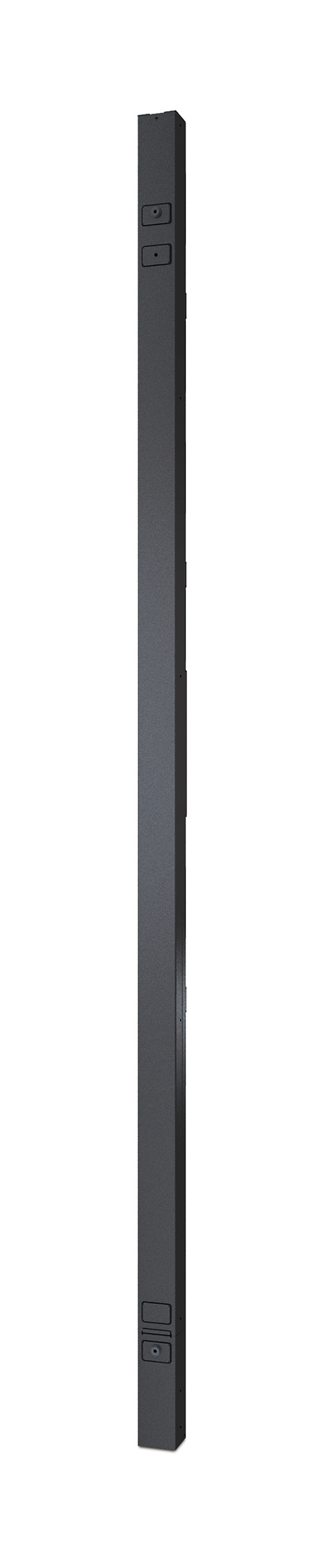

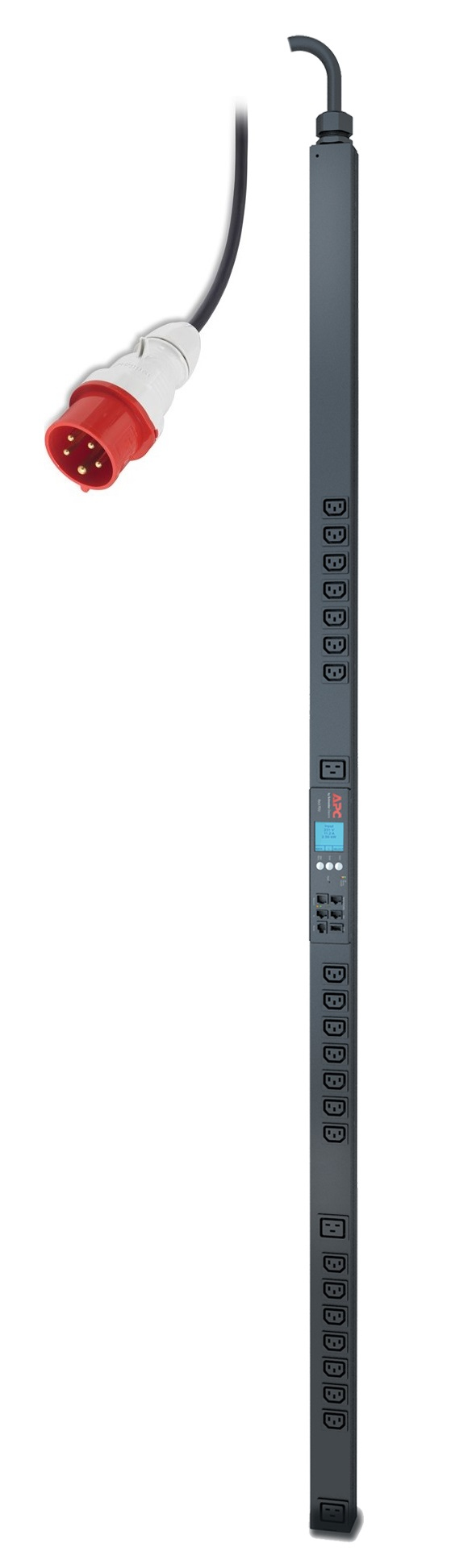

| Design | |
| PDU types: | Metered, Metered-by-outlet |
| Rack capacity: | 0U |
| Mounting: | Vertical |
| Product colour: | Black |
| Ports & interfaces | |
| AC outlets quantity: | 24 AC outlet(s) |
| AC outlet types: | C13 coupler, C19 coupler |

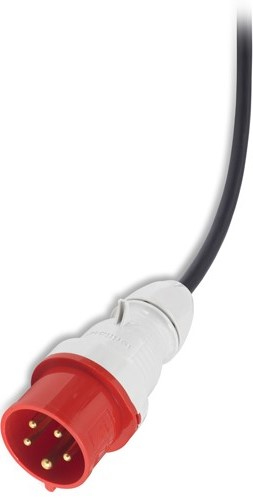

| Power plug: | IEC309 |
| Input connection type: | IEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E |
| Output connections: | 21 x C13 & 3 x C19 |
| Features | |
| LED indicators: | Yes |
| Cable length: | 1.83 m |
| Certification: | EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003, UL, VDE, REACH |
| Management features | |
| Monitoring: | Current, Power, Voltage |
| Management platform: | Web, SNMP, Telnet |
| Power | |
| Nominal input voltage: | 400 V |
| AC input frequency: | 50 - 60 Hz |
| Nominal output voltage: | 230 V |
| Load capacity: | 11040 VA |
| Maximum input current per phase: | 16 A |
| Maximum total current draw per phase: | 16 A |
| Maximum power: | 11040 W |
| Weight & dimensions | |
| Dimensions (WxDxH): | 56 x 51 x 1829 mm |
| Weight: | 8.21 kg |
| Packaging data | |
| Package dimensions (WxDxH): | 163 x 117 x 2037 mm |
| Package weight: | 10.5 kg |
| Operational conditions | |
| Operating temperature (T-T): | -5 - 45 °C |
| Storage temperature (T-T): | -25 - 65 °C |
| Operating relative humidity (H-H): | 5 - 95% |
| Storage relative humidity (H-H): | 5 - 95% |
| Operating altitude: | 0 - 15000 m |
| Technical details | |
| Sustainability certificates: | RoHS |
