- Details

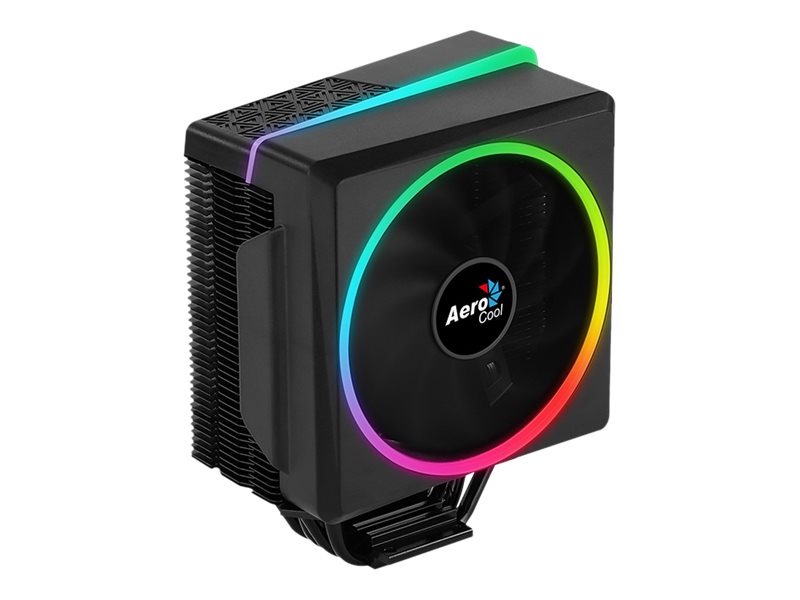

PWM air cooling solution with stylish Addressable RGB LED on the top and side of the air cooler. Powered by Heat Core Touch Technology (HCTT) with 4 ultra-efficient thermal heat pipes. Black coating on fins increase heat dissipation area and improves cooling efficiency. Cover on the top of the air cooler achieves a unidirectional air flow, improving heat dissipation.
DYNAMIC RGB LED DESIGN
Comes equipped with an RGB LED Slash on the top and an RGB LED Ring on the side of the air cooler, adding a stylish and dynamic effect to your rig.
ADDRESSABLE RGB COMPATIBLE
Access 16.8 million colors using compatible Addressable RGB motherboards including ASUS Aura Sync and MSI Mystic Light Sync as well as Gigabyte RGB Fusion motherboards using 3-Pin XWD connector.
TOP COVER FOR IMPROVED AIR FLOW
Cover on the top of the air cooler achieves a unidirectional air flow, allowing heat to dissipate
more quickly and efficiently.
HEAT CORE TOUCH TECHNOLOGY (HCTT)
4 Heat pipes provide a perfectly flat and smooth surface to maximize contact surface area.
This allows for minimal heat transfer loss while in direct contact with the CPU to increase the efficiency of heat dissipation.
PWM HIGH-PRESSURE FAN
120mm high-pressure fan provides a stronger airflow to push heat away from the aluminum fins faster.
HIGH EFFICIENCY FINS WITH BLACK COATING
Upgraded high efficiency fins for maximum thermal performance.
Black coating on fins allows for faster heat absorption, improving cooling efficiency.
COMPATIBILITY
Compatible with most current motherboard designs.
Socket compatibility: LGA 2066/2011/115X/775
AM4/AM3+/AM3/AM2+/AM2/FM2/FM1
| Performance | |
| Suitable location: | Processor |
| Type: | Cooler |
| Fan diameter: | 12 cm |
| Supported processor sockets: | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 2011 (Socket R), LGA 2066, LGA 775 (Socket T), Socket AM1, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4 |
| Rotational speed (min): | 800 RPM |
| Rotational speed (max): | 1800 RPM |
| Noise level (low speed): | 14 dB |
| Noise level (high speed): | 26 dB |
| Minimum airflow (imperial): | 26.1 cfm |
| Maximum airflow: | 52.5 cfm |
| Minimum air pressure: | 0.72 mmH2O |
| Maximum air pressure: | 1.21 mmH2O |
| Bearing type: | Hydraulic |
| Mean time between failures (MTBF): | 60000 h |
| Design | |
| Product colour: | Black |
| Material: | Aluminium |
| Number of fans: | 1 fan(s) |
| Number of heat pipes: | 4 |
| Illumination LED: | Yes |
| Illumination colour: | Blue, Green, Red |
| Fan connector: | 4-pin |
| Power | |
| Power consumption (typical): | 7.2 W |
| Rated voltage: | 12 V |
| Starting voltage: | 5 V |
| Rated current: | 0.6 A |
| Thermal Design Power (TDP): | 145 W |
| Weight & dimensions | |
| Width: | 126.5 mm |
| Depth: | 76 mm |
| Height: | 155 mm |
| Fan dimensions (W x D x H): | 120 x 120 x 25 mm |
| Heat pipes diameter: | 6 mm |
