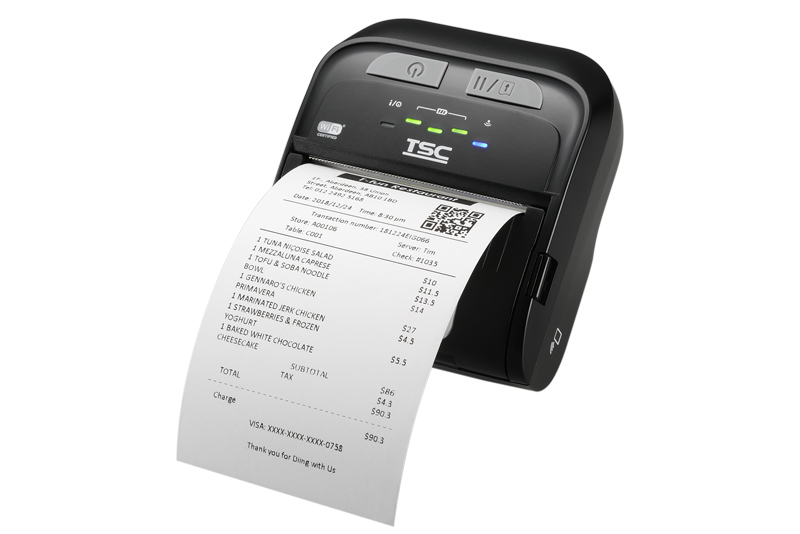

TSC TDM-30 Wired & Wireless Direct thermal Mobile printer

Rugged Palm Size DesignThe TDM Series has been tested to withstand a drop test of 1.8 m without protective case/2.5 m with protective case as well as MIL-STD-810G military standard for drop test. It is also rated IP54 for dust and water resistance with the optional protective case. Support for Various Media WidthsTDM-30's adjustable media hanger with label fixing tab allows for a variety of media widths ranging from 20 mm to 70 mm. TDM Series can handle media including receipts, selected labels and linerless printing etc. The media spacer is easy to install and allows for specific media width. Default black mark sensor and optional gap sensor (TDM-30 only) are reserved for a wide range of media needs. Self-Diagnostic TPH Care MechanismTSC TPH Care Mechanism offers an advanced level of auto-detection ensuring the real-time printhead health status. By scanning and detecting bad dots during the entire process of printing, it has been proven to stabilize high-quality printouts consistently and minimize the waste of consumables for maximum cost-effectiveness. Smart Battery with TSC Printer ManagementWith TSC Battery Management System (BMS), it is easy to check battery status includingBattery Health Monitor Battery performance: charging stateHistory of battery usage and charging cyclesBattery health status report Battery Remaining CapacityWith its friendly GUI design, monitor battery capacity in real time and ensure completing a full shift to avoid downtime Integrated Software PackTSC offers an advanced software pack including practical solutions to effectively support TDM Series for customized label creation from different platforms.OPOS for POS applicationCompatible with CPCL and ESC-POS printer languages New developed iOS & Android APP enables: Via mobile configuration, workforce/user can maximize convenience on printer setting/status check/troubleshooting anywhere and anytime Web print supports direct printing from browser-based applicationsMultiple ConnectivityTDM Series supports USB2.0 + MFi Bluetooth 5.0 + passive NFC tag or USB2.0 + 802.11 a/b/g/n Wi-Fi with Bluetooth 4.2+ passive NFC tag. Passive NFC tag for Bluetooth can quickly connect by one touch.

Printing
Print technology:	Direct thermal
Type:	Mobile printer
Colour:
Paper handling
Printing media thickness:	60 - 160 µm
Maximum roll diameter:	4 cm
Supported paper width:	80 mm
Maximum printing width:	7.2 cm
Maximum media length:	2.79 m
Ports & interfaces
Connectivity technology:	Wired & Wireless
USB port:
USB 2.0 ports quantity:	1
Bluetooth:
Bluetooth version:	4.2
Standard interfaces:	Bluetooth, USB 2.0
Network
Ethernet LAN:
Wi-Fi:
Wi-Fi standards:	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Features
Built-in barcodes:	1D, 2D, AZTECCODE, Code 128 (A/B/C), Code 39, Code 93, EAN128, EAN13, EAN8, MaxiCode, QR Code, UPC-A, UPC-E
Page description languages:	CPCL-native, DPL, EPL2, ESC/POS, ZPL II
Storage media:	Flash
Flash memory:	16 MB
RAM capacity:	0.032 GB
Certification:	RoHS, WEEE, REACH
Design
Product colour:	Black
Built-in display:
Power
Power source type:	Battery
Battery technology:	Lithium-Ion (Li-Ion)
Battery voltage:	7.4 V
Battery capacity:	3080 mAh
Operational conditions
Operating temperature (T-T):	-15 - 50 °C
Storage temperature (T-T):	-30 - 70 °C
Operating relative humidity (H-H):	10 - 90%
Storage relative humidity (H-H):	10 - 90%
System requirements
Windows operating systems supported:
Mac compatibility:
Mac operating systems supported:
Mobile operating systems supported:	Android, iOS
Weight & dimensions
Width:	105 mm
Depth:	49.5 mm
Height:	116 mm
Weight:	375 g
Packaging content
Quick start guide:
AC adapter included:
Logistics data
Harmonized System (HS) code:	84433210
Other features
LED indicators:	Status
International Protection (IP) code:	IP42
Rechargeable:
Media types supported:	Reflective sensor model: receipt paper, bline receipt paper (black mark in printing side) & selected label, Transmissive sensor model: receipt paper, bline receipt paper (black mark in printing side or backside) & label with gap
Storage media type:	Flash
