Products description

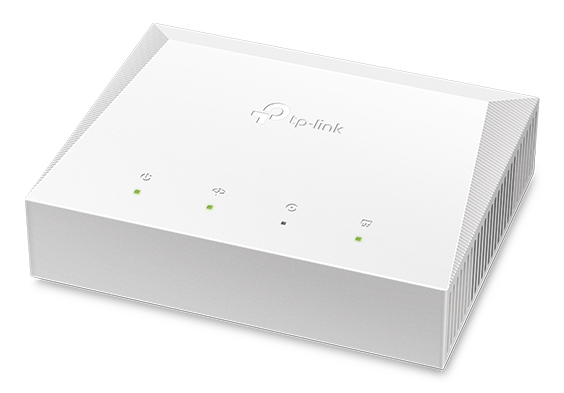

1-Port
Gigabit XPON Terminal
High-Speed GPON Service
Compliant with the ITU-T G.984 GPON standards, XZ000-G7 supports maximum data rates of up
to 2.488 Gbps downstream, 1.244 Gbps upstream.
Make
Fiber-to-the-Home Yours
TP-Link s XZ000-G7 is a GPON (Gigabit Passive Optical Network) + EPON (Ethernet Passive Optical Network) combo terminal, ideal for Fiber-to-the-Home solution.
Gigabit Internet Access
One PON port and one Gigabit Ethernet port, XZ000-G7 provides high-performance forwarding capabilities to ensure smooth VoIP, HD video streaming experiences.
Ease of Use
Quick and hassle-free installation
| Design | |
| Product type: | Optical network terminal (ONT) |
| Product colour: | White |
| LED indicators: | Yes |
| Network | |
| Networking standards: | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3u |
| ITU standards: | G.984.1, G.984.3, G.984.4 |
| Ethernet LAN data rates: | 10,100,1000 Mbit/s |
| Upstream data rate: | 1244 Mbit/s |
| Downstream data rate: | 2488 Mbit/s |
| Transmission distance (max): | 20 km |
| Management features | |
| Web-based management: | Yes |
| Quality of Service (QoS) support: | Yes |
| Reset button: | Yes |

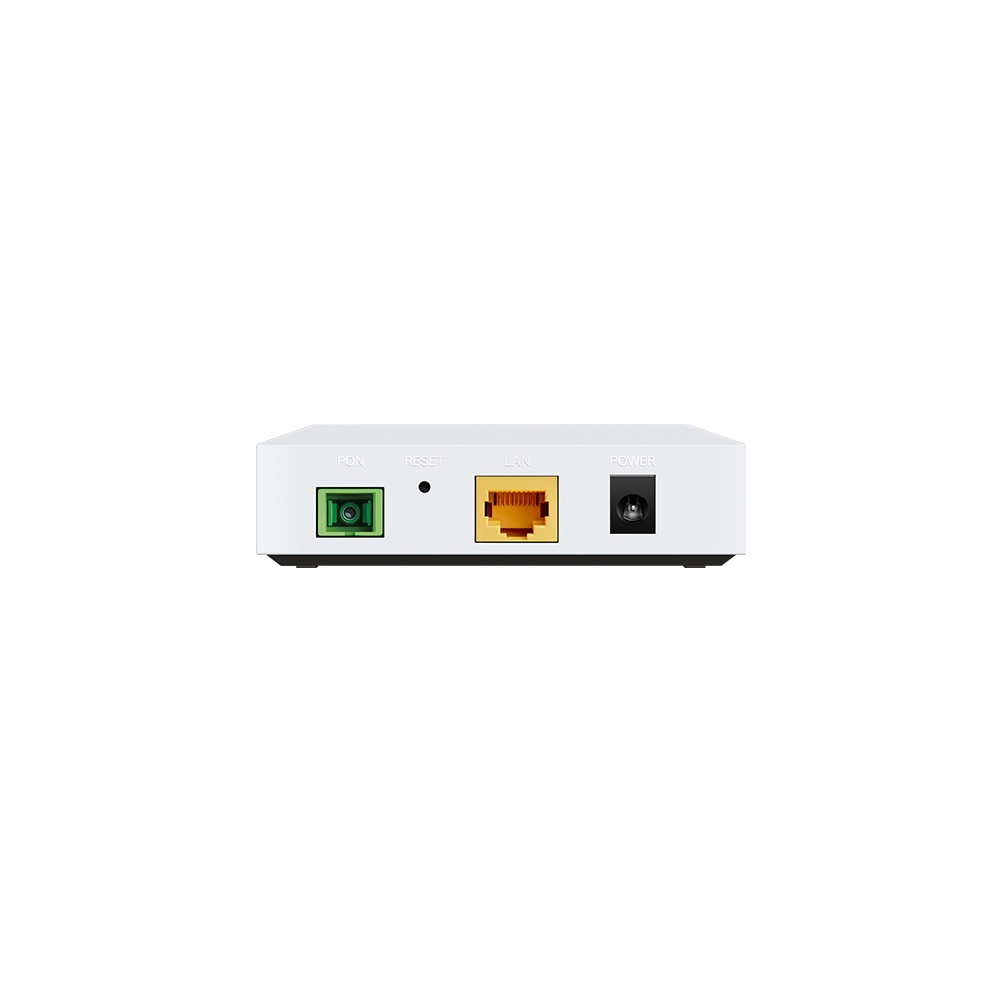

| Ports & interfaces | |
| Fiber ports quantity: | 1 |
| Fiber optic connector: | SC/APC |
| Ethernet LAN (RJ-45) ports: | 1 |
| DC-in jack: | Yes |
| Power | |
| Output voltage: | 9 V |
| Output current: | 0.6 A |
| Certificates | |
| Compliance certificates: | RoHS |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 40 °C |
| Storage temperature (T-T): | -40 - 60 °C |
| Operating relative humidity (H-H): | 10 - 90% |
| Storage relative humidity (H-H): | 5 - 90% |
| Weight & dimensions | |
| Width: | 95 mm |
| Depth: | 75 mm |
| Height: | 29.3 mm |
| Packaging content | |
| AC adapter included: | Yes |
| Quantity per pack: | 1 pc(s) |
| Quick start guide: | Yes |
| Sustainability | |
| Sustainability compliance: | Yes |
Product Safety Information
Responsible Person in the EU:
TP-Link Deutschland GmbH Am Trippelsberg 100 40589 Düsseldorf Deutschland https://www.tp-link.com/de/
