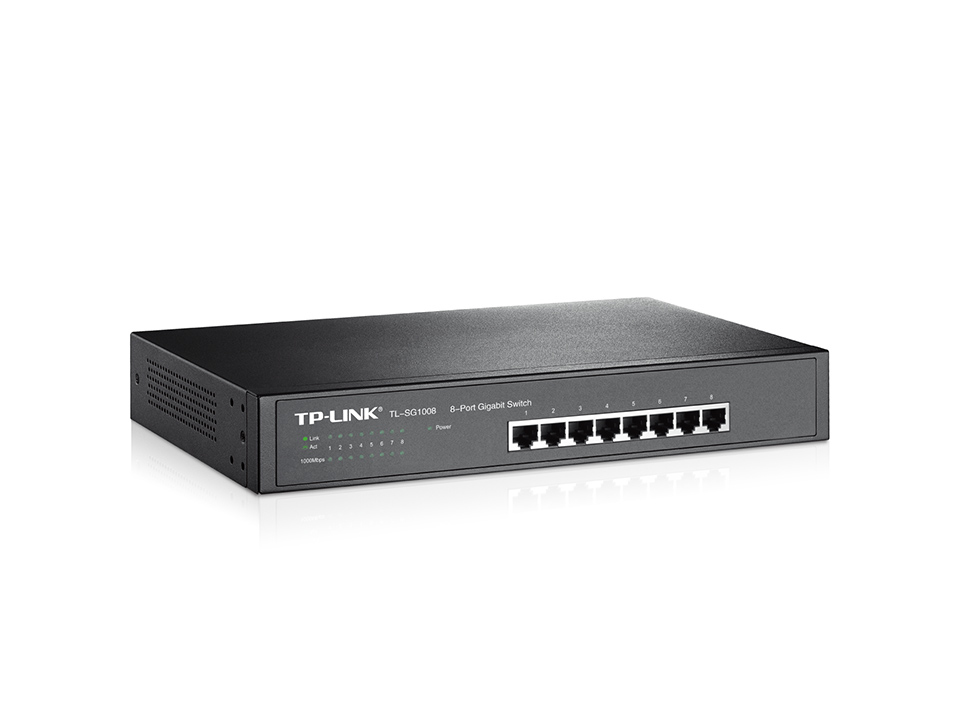

TP-Link 8-Port Gigabit Desktop/Rackmount Network Switch

What This Product Does
The TL-SG1008 8-Port Gigabit desktop/rack-mount switch provides an easy way to make the transition to Gigabit Ethernet. All 8 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1008 can save the power consumption, making it an eco-friendly solution for your business network.

TP-LINK Green Technology
This new generation The 8-Port Gigabit Desktop/Rackmount Switch TL-SG1008 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

High Performance
The TL-SG1008 features non-blocking wire-speed architecture with a 16Gbps switching capacity for maximum data throughput. An 4K MAC address table provides scalability for even the largest networks. It also supports 802.3x Flow Control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission.

Ease to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100 or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Compact size shell make it ideal for desktops with limited space while it is also rackmountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis. TL-SG1008 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

Management features
Switch type:	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:	8
Basic switching RJ-45 Ethernet ports type:	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity:	0
Installed SFP+ modules quantity:	0
Network
Networking standards:	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G support:	No
Copper ethernet cabling technology:	1000BASE-T, 100BASE-TX, 10BASE-T
Full duplex:	Yes
Flow control support:	Yes
Auto MDI/MDI-X:	Yes
Auto-negotiation:	Yes
Data transmission
MAC address table:	4000 entries
Switching capacity:	16 Gbit/s
Supported data transfer rates:	10/100/1000 Mbps
Store-and-forward:	Yes
Maximum data transfer rate:	1 Gbit/s
Jumbo frames support:	Yes
Jumbo frames:	16000
Protocols
Supported network protocols:	CSMA/CD, TCP/IP
Design
Rack mounting:	Yes
Form factor:	1U
Product colour:	Black
LED indicators:	Yes
Power
Power source:	AC
Power supply included:	Yes
AC input voltage:	100 - 240 V
AC input frequency:	50 - 60 Hz
Power consumption (typical):	4.3 W
Power over Ethernet (PoE)
Power over Ethernet (PoE):	No
Other features
Dimensions (WxDxH):	294 x 180 x 44 mm
Connectivity technology:	Wired
Bandwidth:	16 Gbit/s
Networking features:	Gigabit Ethernet
Input frequency:	50 - 60 Hz
Operational conditions
Operating temperature (T-T):	0 - 40 °C
Storage temperature (T-T):	-40 - 70 °C
Operating relative humidity (H-H):	10 - 90%
Storage relative humidity (H-H):	5 - 90%
Operating temperature (T-T):	32 - 104 °F
Heat dissipation:	14.67 BTU/h
Weight & dimensions
Width:	294 mm
Depth:	180 mm
Height:	44 mm
Packaging content
Cables included:	AC
Quick start guide:	Yes
Packaging data
Package type:	Box
Package width:	400 mm
Package depth:	250 mm
Package height:	80 mm
Package weight:	1.7 kg
Certificates
Certification:	FCC, CE, RoHS
Logistics data
Harmonized System (HS) code:	85176990
Connectivity LEDs:
Dimensions (W x D x H) (imperial):	248.9 x 157.5 x 43.2 mm (9.8 x 6.2 x 1.7")
