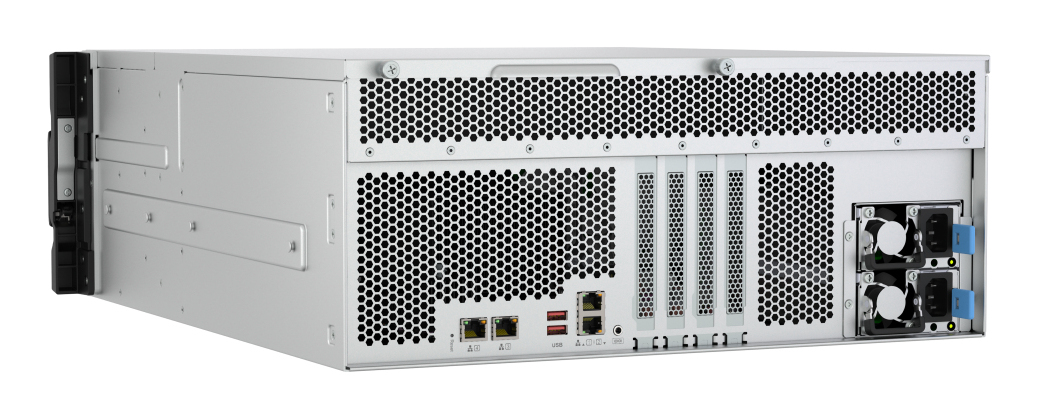

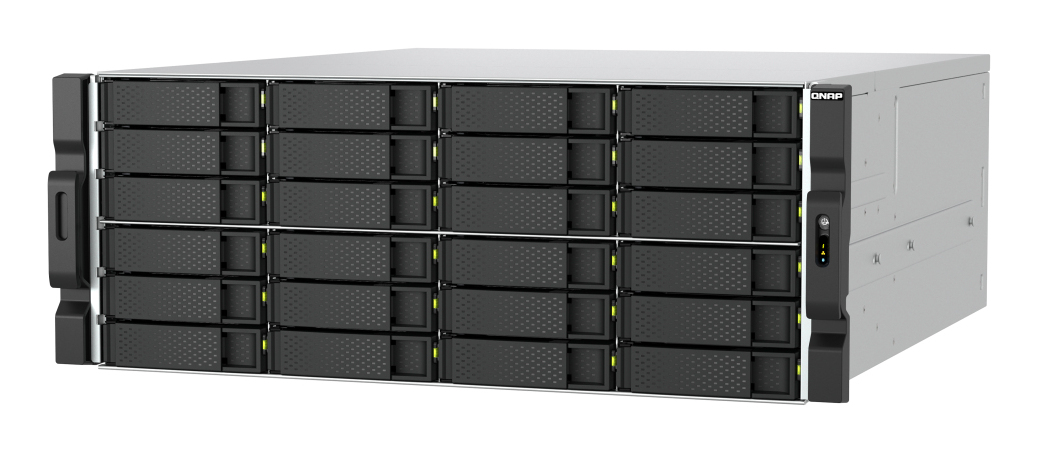

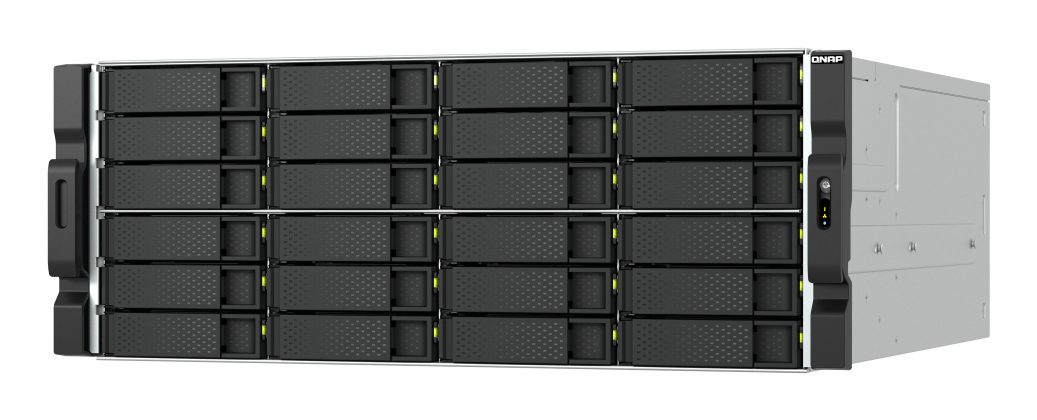

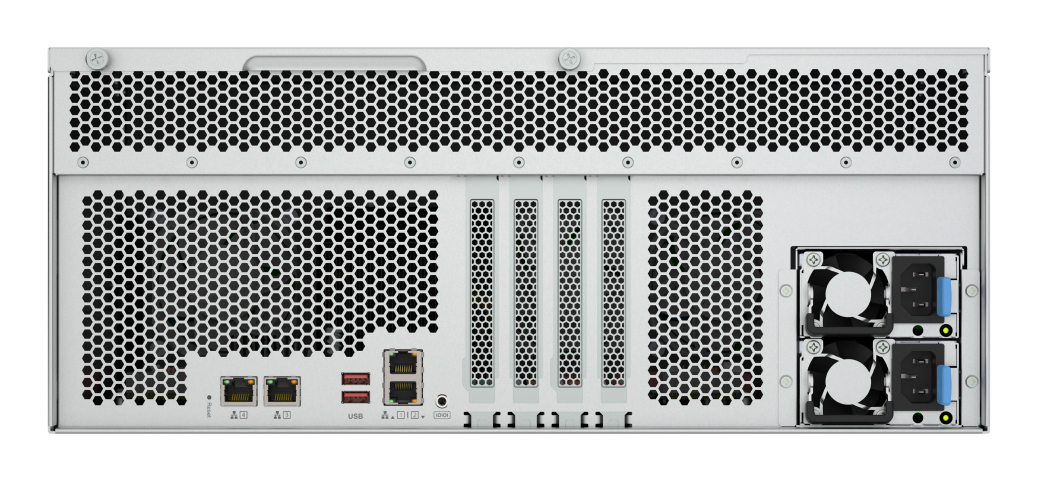

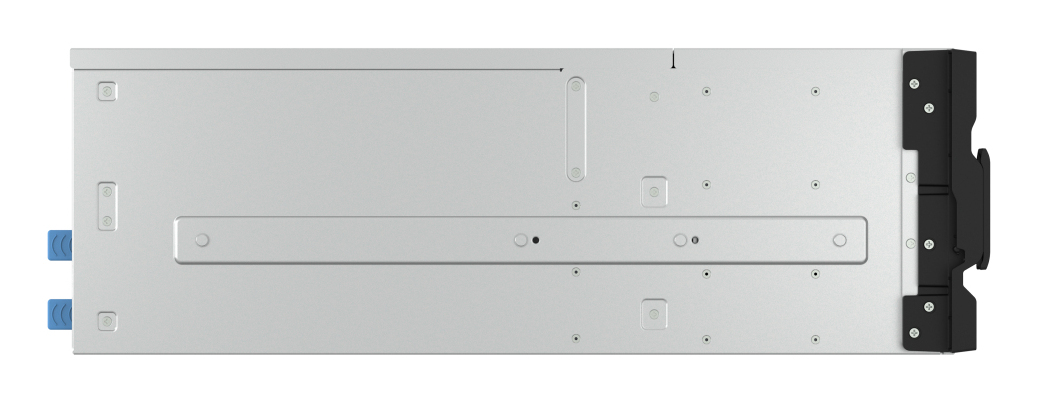

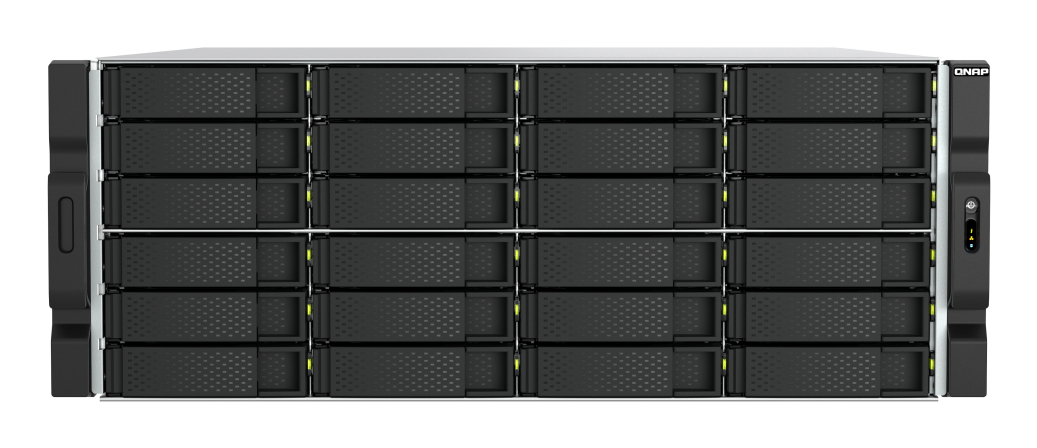

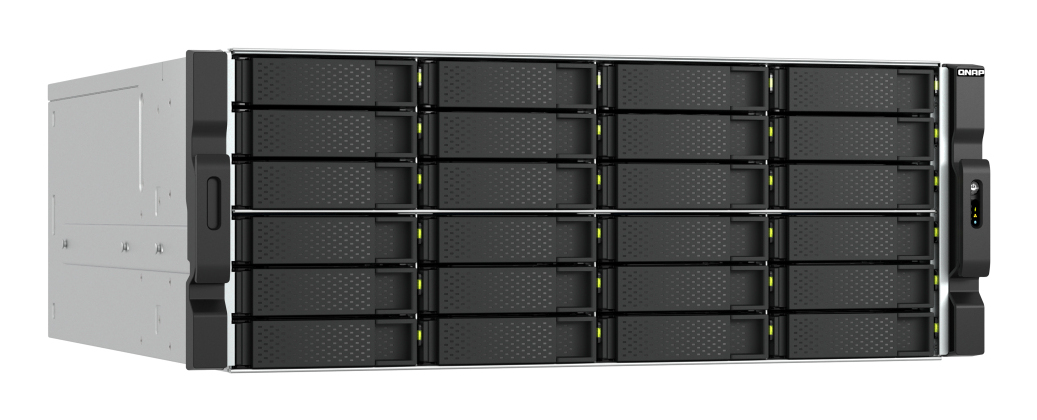

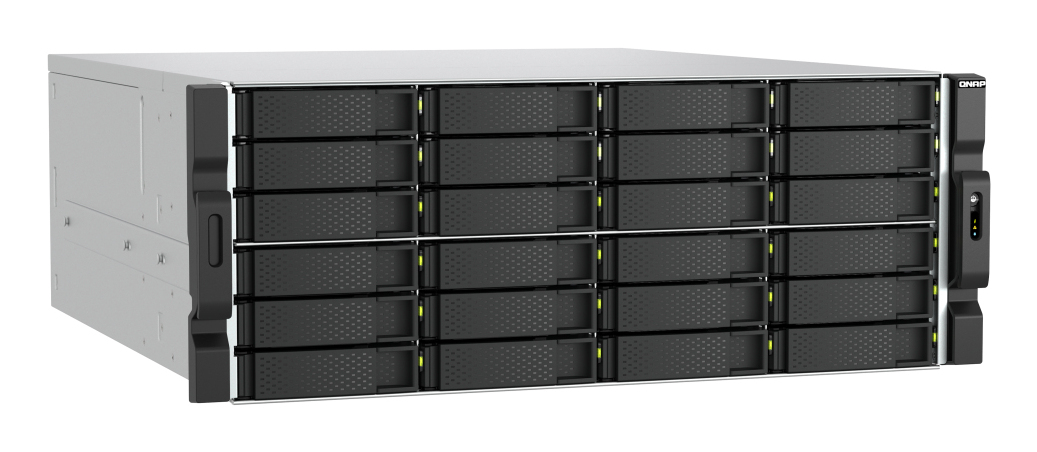

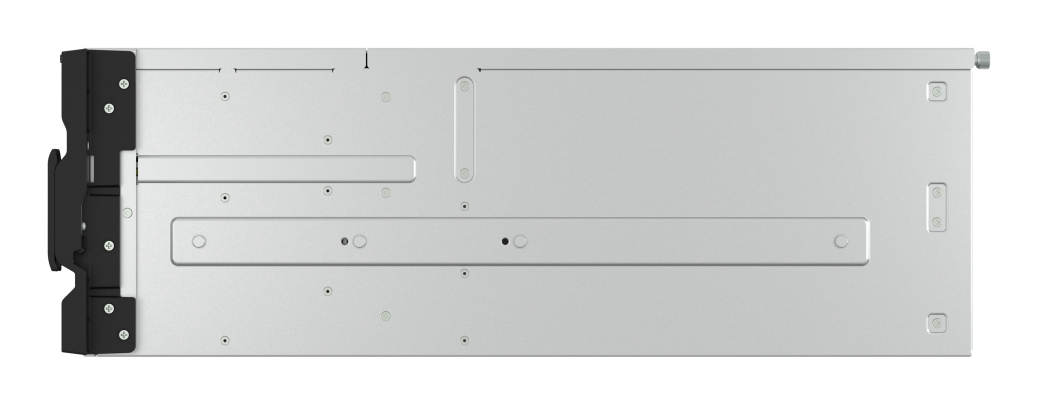

QNAP TS-H2477AXU-RP-R7-32G

TS-h2477AXU-RP
AMD Ryzen 7 PRO 7000 Series Processor and ZFS Data Integrity for Enterprise Storage and Virtualization

Purpose-built for high-performance environments, the TS-h2477AXU-RP features 24-bay SATA drive support and dual PCIe Gen 5 M.2 SSD slots to handle massive storage volumes and ultra-fast data access. Redundant power supplies ensure uninterrupted operation for mission-critical workloads. Powered by the AMD Ryzen 7 PRO 7000 series processor and the ZFS file system, it delivers enterprise-level data integrity and protection. Ideal for mid to large-sized teams running file servers, virtualization platforms, long-term data archiving, media production, and large-scale surveillance recording.

Storage
Storage drives installed:	No
Total installed storage capacity:	0 TB
Number of storage drives installed:	0
Number of storage drives supported:	24
Installed storage drive type:	No
Supported storage drive types:	HDD & SSD
Storage drive capacity:	0 GB
RAID support:	Yes
Supported storage drive interfaces:	M.2, Serial ATA II, Serial ATA III
Storage drive sizes supported:	2.5,3.5"
Number of system drives supported:	2
Number of M.2 (M & B) slots:	2
RAID levels:	0, 1, 5, 6, 10, 50, 60, JBOD
Online RAID migration:	Yes
Online RAID expansion:	Yes
RAID rebuild:	Yes
Hot-swap drive bays:	Yes
Supported file systems:	FAT32, HFS+, NTFS, exFAT, ext2, ext3, ext4
Bad block scan:	Yes
Disk roaming:	Yes
Processor
Processor family:	AMD Ryzen 7
Processor manufacturer:	AMD
Processor model:	7745
Processor generation:	AMD Ryzen PRO 7000 Series
Processor boost frequency:	5.3 GHz
Processor cores:	8
Processor threads:	16
Number of processors supported:	1
On-board graphics card model:	AMD Radeon Graphics
Memory
Internal memory:	32 GB
Internal memory type:	DDR5
Maximum RAM supported:	192 GB
Memory slots:	4
Memory form factor:	UDIMM
ECC:	No
Flash memory:	5000 MB
Network
Ethernet LAN:	Yes
Ethernet LAN data rates:	10,100,1000,2500,10000 Mbit/s
Ethernet LAN data rate supported (max):	10000 Mbit/s
DHCP server:	Yes
iSCSI support:	Yes
Supported network protocols:	IPv4, IPv6
Dynamic DNS (DDNS):	Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports:	4
USB port:	Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:	2
Design
Chassis type:	Rack (4U)
Cooling type:	Active
Product colour:	Black, Grey
Number of fans:	3 fan(s)
Fan diameter:	6 cm
LED indicators:	Power, Status
Performance
Type:	Storage server
Device class:	Small & Medium Business
Backup function:	Yes
Backup features:	Cloud, USB drive, iSCSI LUN
Buzzer:	Yes
Multilingual support:	Yes
Number of users:	4096 user(s)
Web-based management:	Yes
Remote administration:	PPTP, L2TP/IPSec, OpenVPN, WireGuard, QBelt
Reset button:	Yes
On/off switch:	Yes
Built-in FTP server:	Yes
System log:	Yes
Password authentication:	Yes
Disk scan:	Yes
S.M.A.R.T. support:	Yes
Share folder:
Software
Operating system installed:	QNAP QTS
Operating system version:	5.2.6
Power
Power supply location:	Built-in
Power supply unit (PSU) capacity:	550 W
Number of power supply units:	2
Redundant power supply (RPS) support:	Yes
AC input voltage:	100 - 240 V
Weight & dimensions
Width:	432.4 mm
Depth:	511.7 mm
Height:	177.3 mm
Package width:	600 mm
Package depth:	940 mm
Package height:	420 mm
Package weight:	27.7 kg
Packaging content
Cables included:	AC, LAN (RJ-45)
Number of screws:	168
Package type:	Box
Operational conditions
Operating temperature (T-T):	0 - 40 °C
Operating relative humidity (H-H):	5 - 95%
Storage temperature (T-T):	-20 - 70 °C
Other features
Warranty period:	5 year(s)
