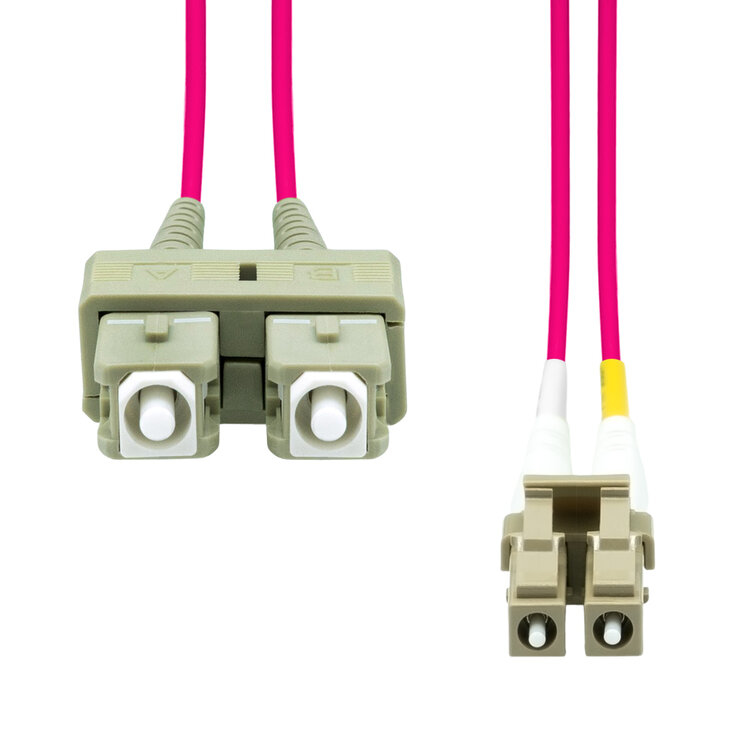

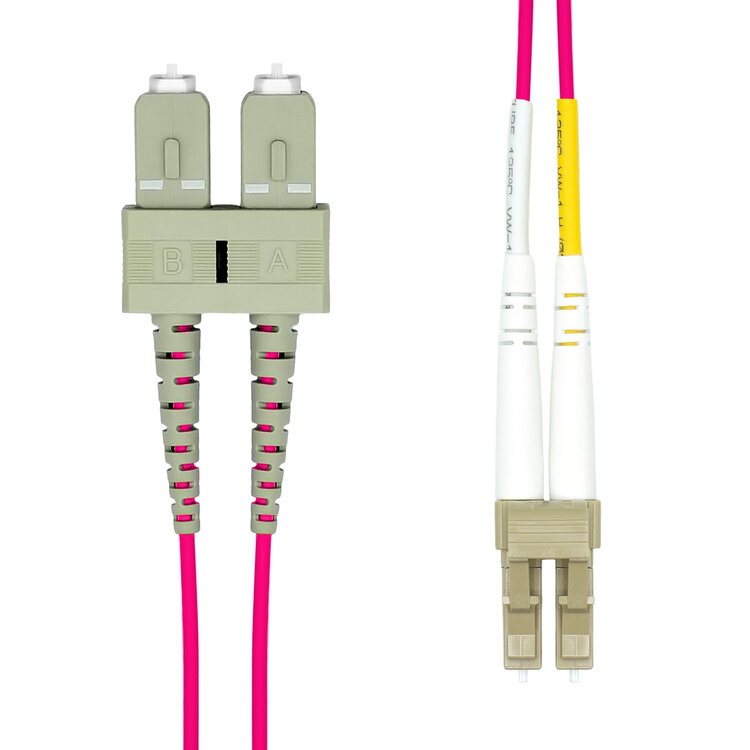

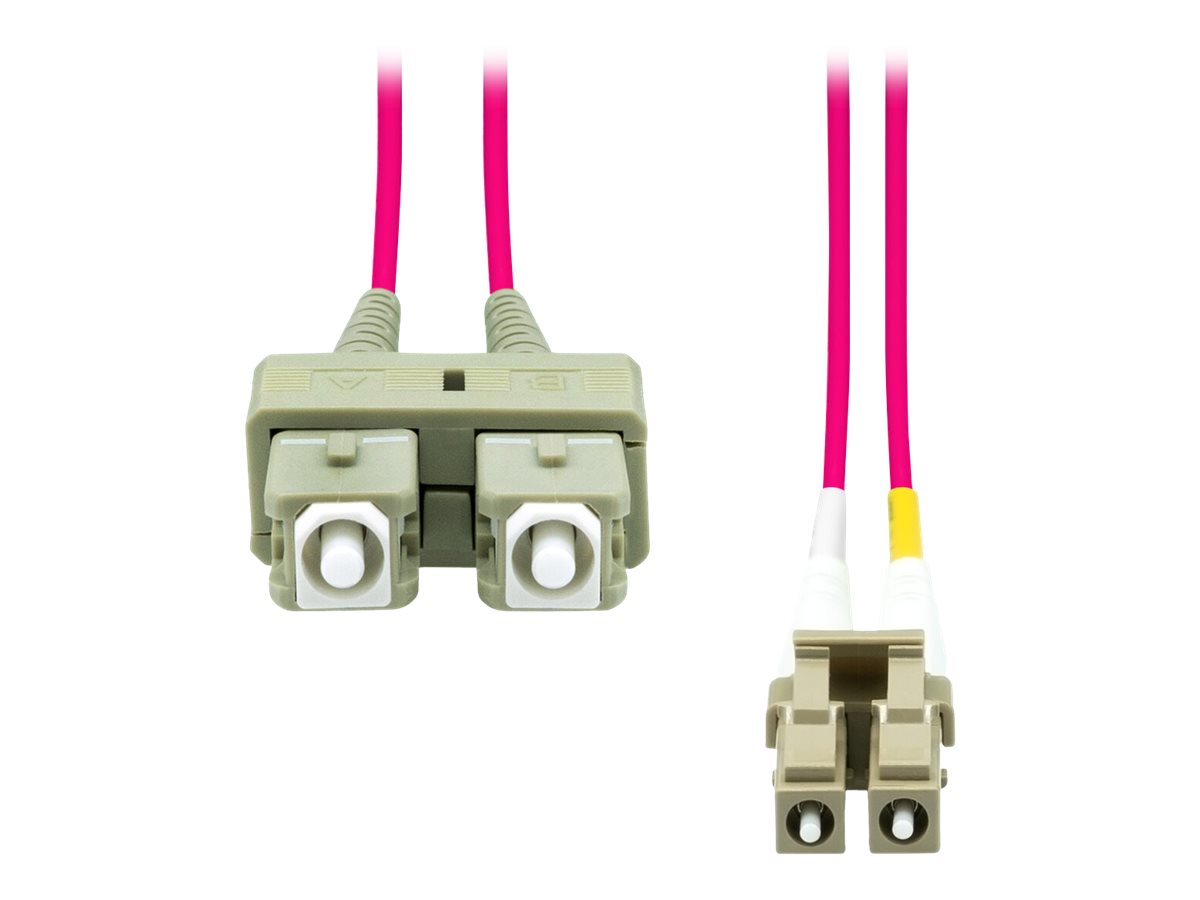

ProXtend LC-SC UPC OM4 Duplex MM Fiber Cable 5M

When engineering a high speed and bandwidth heavy network over long distances, there is no doubt that a fiber optic cable network is the most efficient and cost-effective choice.The ProXtend fiber optic patch cable range supports full duplex singlemode and multimode communication through cables with a transparent glass core, that are coated in a LSZH jacket and able to withstand temperatures from -20 up to 70 degrees Celsius.

Features
Cable length:	5 m
Fibre optic type:	OM4
Connector 1:	LC
Connector 2:	SC
Connector 1 gender:	Male
Connector 2 gender:	Male
Product colour:	Violet
Jacket material:	Low smoke zero halogen (LSZH)
Connector gender:	Male
Connector polish type:	UPC
Full duplex:
Core diameter:	50 µm
Cladding diameter:	125 µm
Fiber mode structure:	Multi-mode
Data transfer rate:	2 Gbit/s
Insertion loss:	0.3 dB
Return loss:	55 dB
Plug and Play:
Country of origin:	China
Technical details
Sustainability certificates:	RoHS
Operational conditions
Operating temperature (T-T):	-20 - 70 °C
Weight & dimensions
Cable diameter:	2 mm
Weight:	42 g
Bending radius:	5 cm
Packaging data
Quantity per pack:	1 pc(s)
Package width:	1.7 mm
Package depth:	1.7 mm
Package height:	0.1 mm
Package weight:	0.2 g
Logistics data
Harmonized System (HS) code:	85447000
