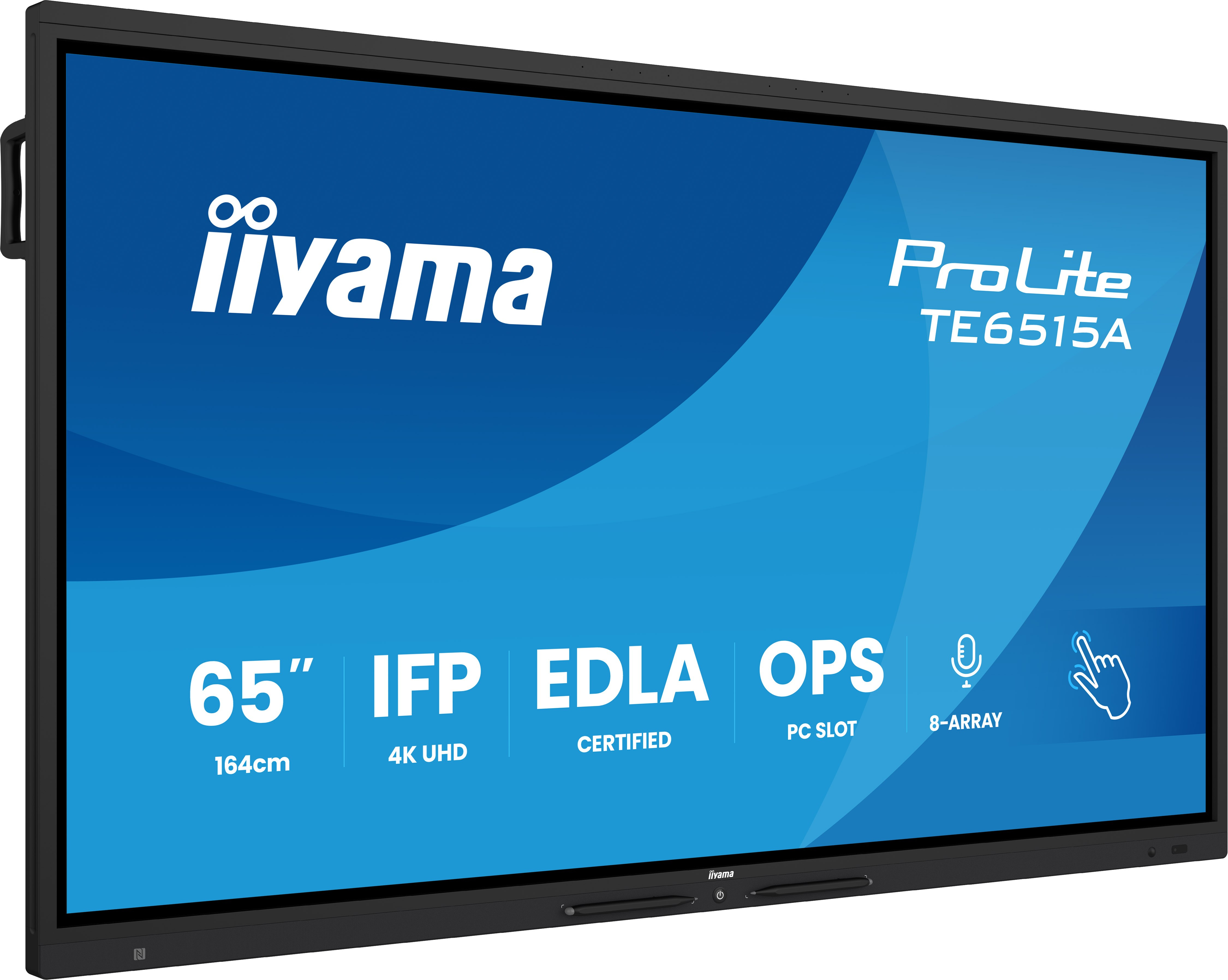

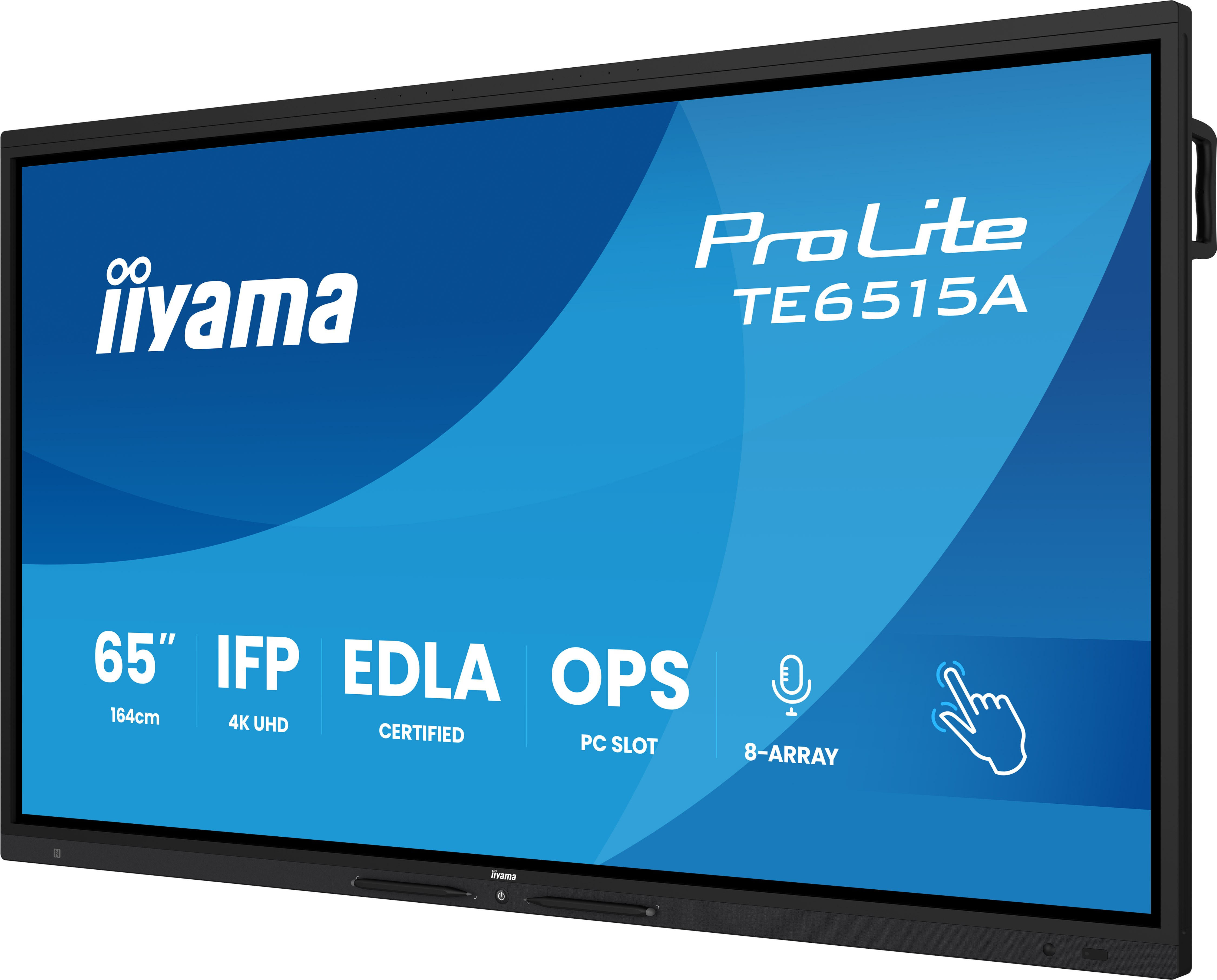

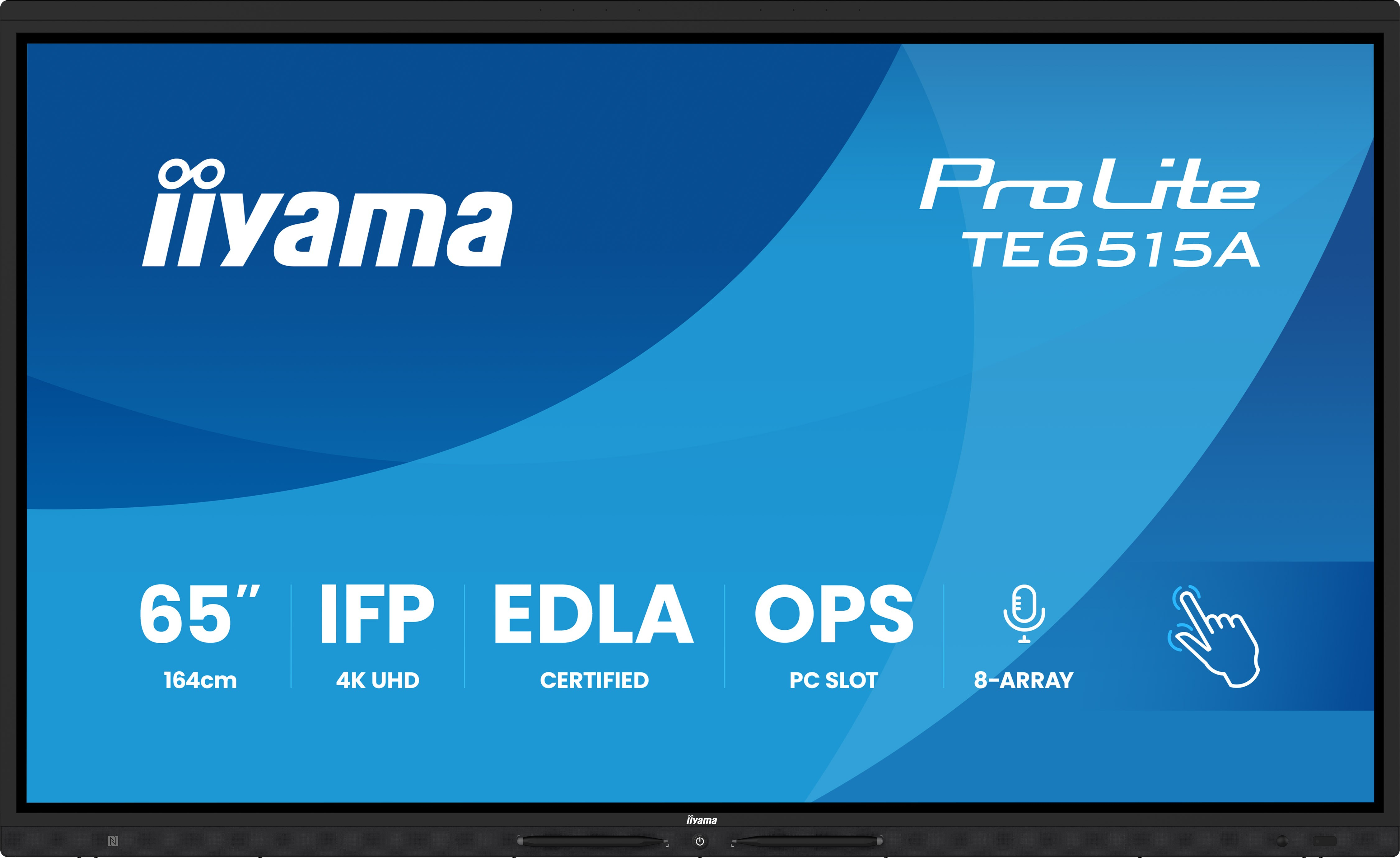

iiyama TE6515A-B1AG Signage Display Interactive flat panel 163.8 cm (64.5") Wi-Fi 550 cd/m² 4K Ultra HD Black Touchscreen Built-in processor Android

Elegance and functionality come together in the ProLite TE6515A-B1AG. This 65 4K UHD panel not only delivers precision and performance, but also brings a premium look to modern classrooms and collaborative business environments. With its button-free front panel (only a discreet power button), integrated pen holders, and a stylish fabric-covered bottom bezel that subtly houses high-quality front-facing speakers, the TE6515A elevates the visual experience of any room. It s more than a tool it s part of your space. Coupled with DeepContrast-IR+ technology and Palm Rejection, it offers fluid and natural writing on the Optical Bonding LCD, eliminating parallax for an intuitive feel. Powered by iiWare 21E with Android 14 (EDLA Certified), the display integrates effortlessly into Google environments. Features like WiFi6, Bluetooth 5.0 and PIR motion sensor add a layer of connectivity, energy efficiency, and access control. With iiControl (DMS), iiShare and integrated EShare app (wireless screen sharing), the TE6515A promotes seamless teamwork whether you're presenting, teaching, or brainstorming. The TE6515A-B1AG isn t just an interactive display it s a centerpiece for connection, creativity, and collaboration, all wrapped in a refined, modern design.

Display
Display diagonal:	163.8 cm (64.5")
Display resolution:	3840 x 2160 pixels
Display brightness:	550 cd/m²
HD type:	4K Ultra HD
Touchscreen:	Yes
Panel type:	IPS
Touchscreen technology:	Infrared
Number of simultaneous touchpoints:	40
Multi-touch:	Yes
Number of simultaneous touchpoints (Android):	32
Native aspect ratio:	16:9
Response time:	8 ms
Contrast ratio (typical):	1200:1
Viewing angle, horizontal:	178°
Viewing angle, vertical:	178°
Display number of colours:	1.07 billion colours
Pixel pitch:	0.372 x 0.372 mm
Active display area (W x H):	1428.5 x 803.5 mm
Display diagonal (metric):	163.9 cm
Native refresh rate:	60 Hz
Surface hardness:	7H
Glass thickness:	3.2 mm

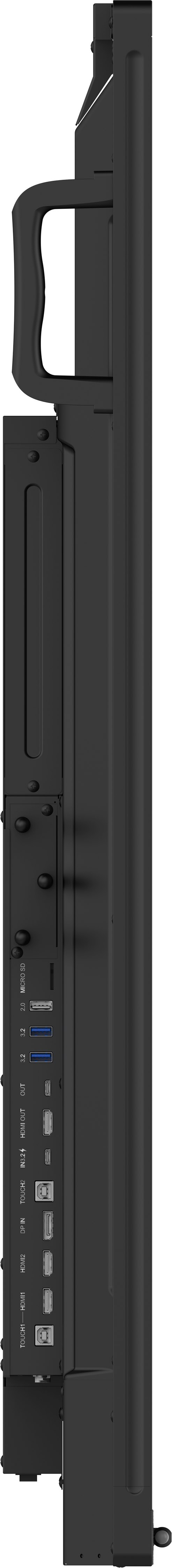

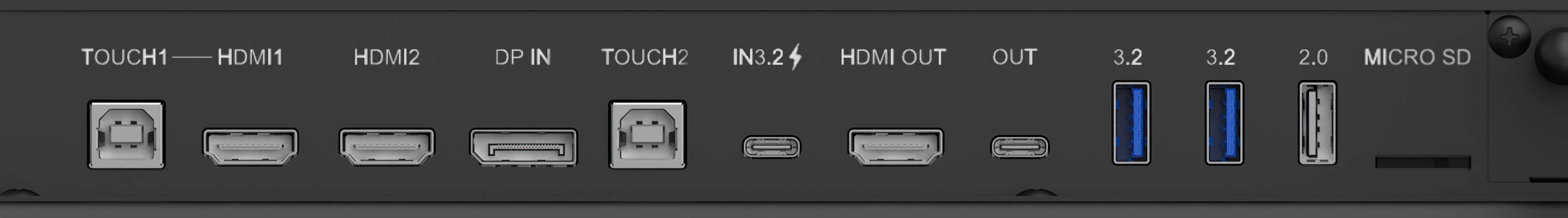

Ports & interfaces
HDMI ports quantity:	3
DVI port:	No
DisplayPorts quantity:	1
USB port:	Yes
HDMI version:	2.0
HDMI input ports quantity:	1
HDMI output ports quantity:	1
DisplayPorts in:	1
DisplayPort version:	1.2
USB ports quantity:	4
USB connector type:	USB Type-A, USB Type-C
USB Power Delivery (USB PD):	Yes
USB Power Delivery up to:	100 W
USB Type-C DisplayPort Alternate Mode:	Yes
Ethernet LAN (RJ-45) ports:	2
RS-232C:	Yes
Card reader integrated:	Yes
Compatible memory cards:	MicroSD (TransFlash)
OPS module slot:	Yes
Audio Return Channel (ARC):	Yes
Audio
Built-in speaker(s):	Yes
Number of built-in speakers:	2
RMS rated power:	60 W
Design
Product design:	Interactive flat panel
Product colour:	Black
Placement supported:	Indoor

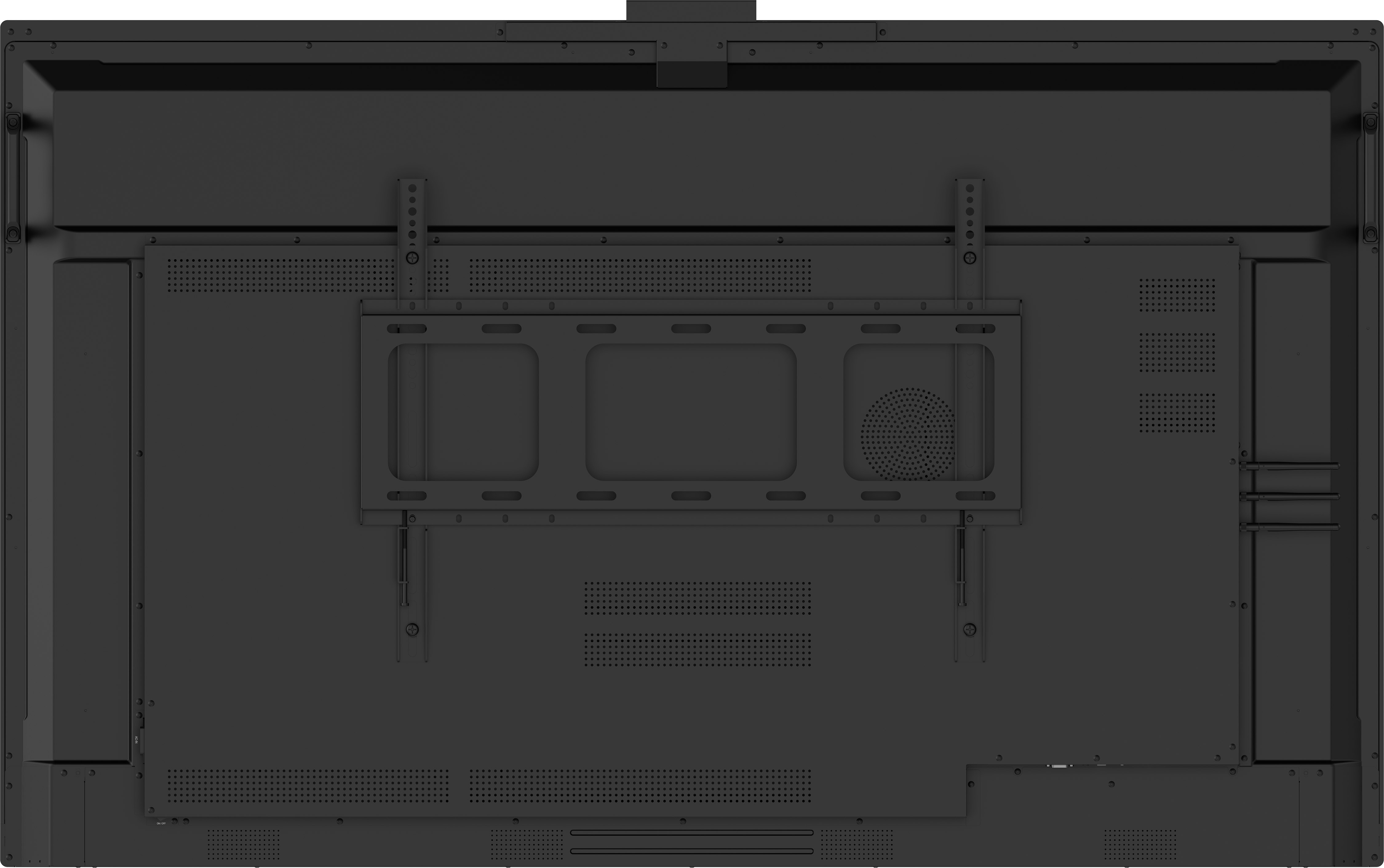

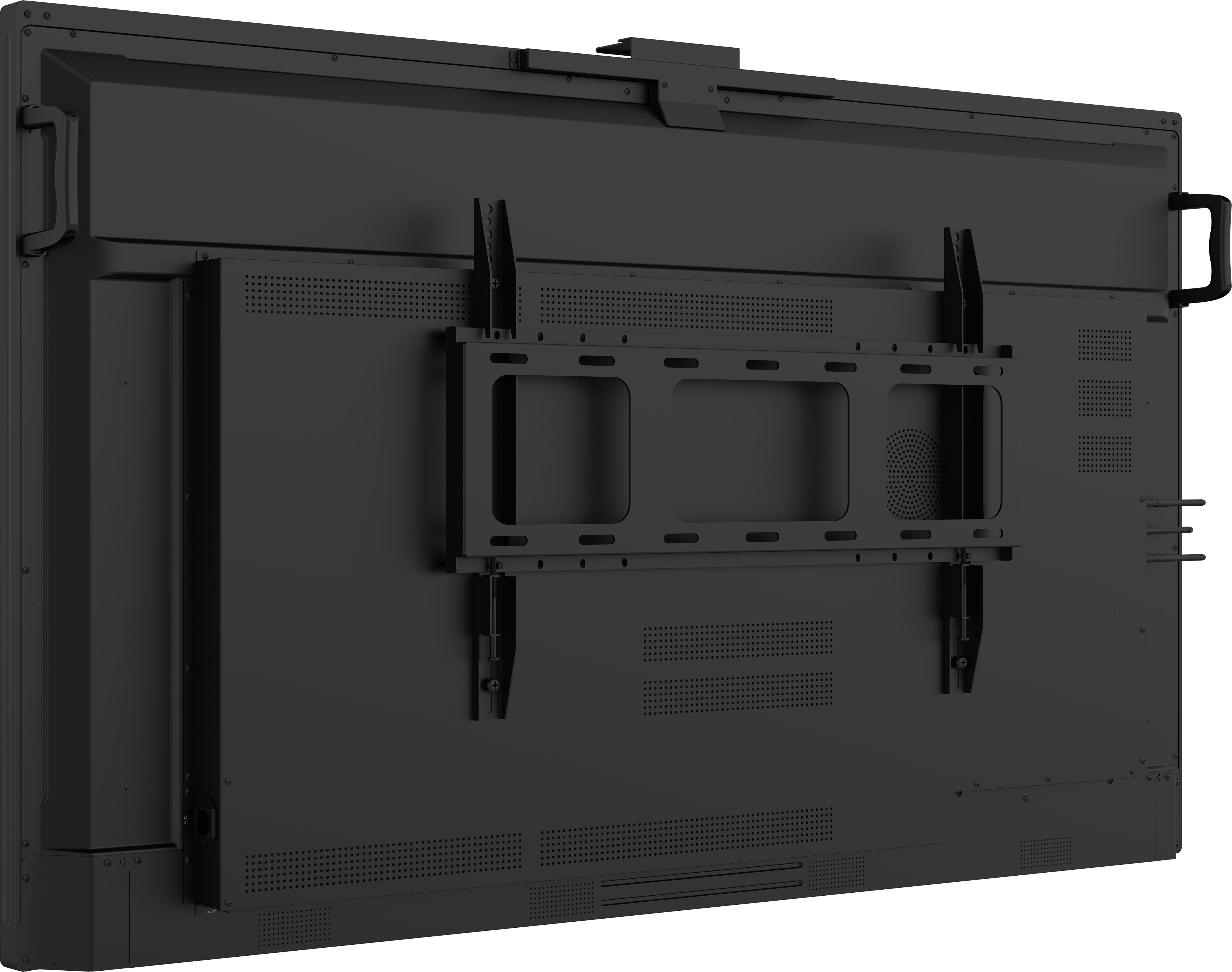

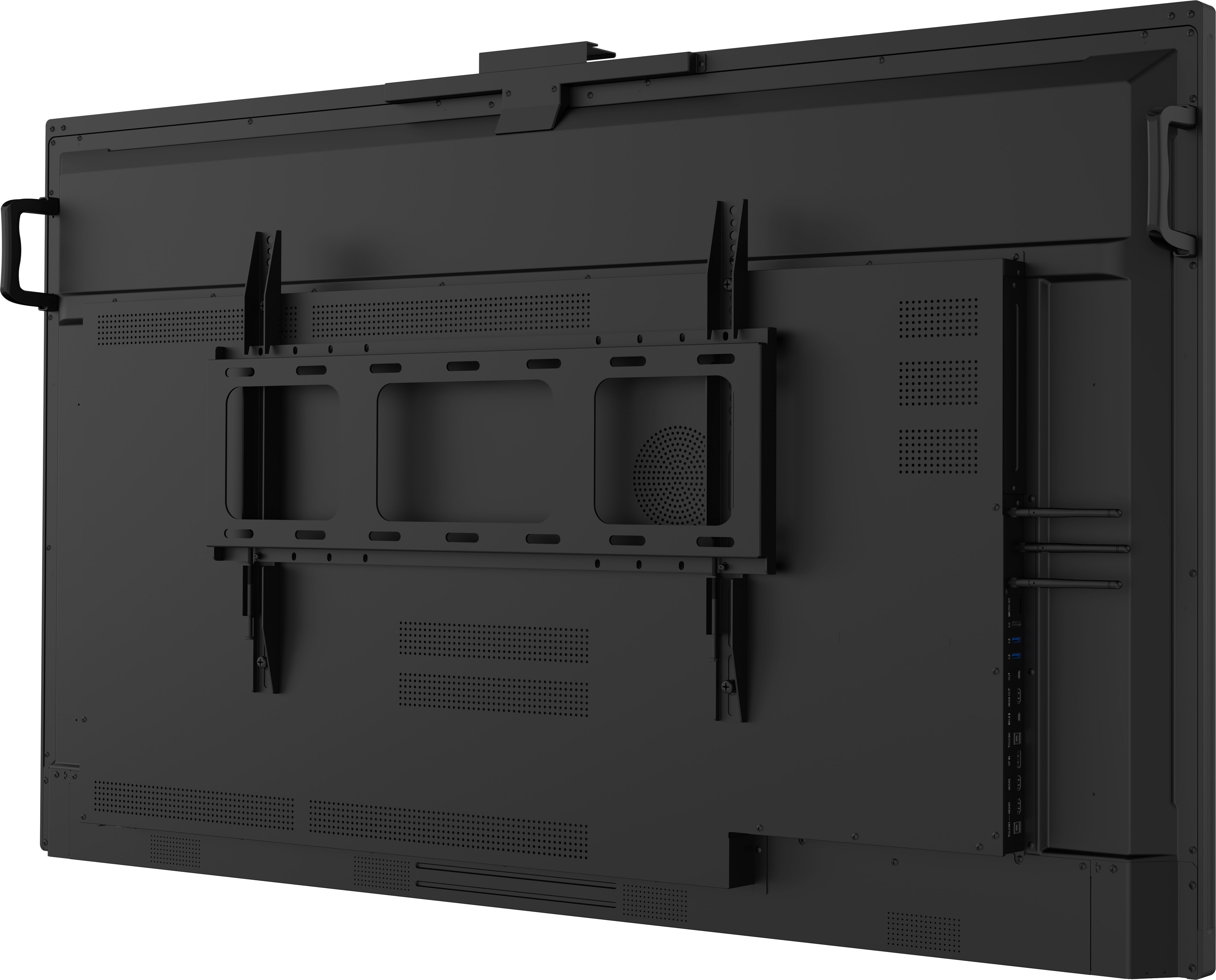

VESA mounting:	Yes
Orientation:	Horizontal
Screen shape:	Flat
Panel mounting interface:	600 x 400 mm
Bezel colour:	Black
Anti-glare screen:	Yes
Performance
Purpose:	Universal
Picture-in-Picture:	Yes
On Screen Display (OSD):	Yes
Number of OSD languages:	14
On Screen Display (OSD) languages:	CAT, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Norwegian, Dutch, Polish, Russian, Swedish
HDCP:	Yes
HDCP version:	2.2
Mean time between failures (MTBF):	50000 h
Power
Power consumption (typical):	195 W
Power consumption (standby):	0.5 W
Power consumption (off):	0.3 W
Energy efficiency class (SDR):	G
Energy efficiency class (HDR):	Not available
Energy consumption (SDR) per 1000 hours:	195 kWh
AC input voltage:	100 - 240 V
AC input frequency:	50/60 Hz
Energy efficiency scale:	A to G
Computer system
Built-in processor:	Yes
Processor manufacturer:	ARM
Processor architecture:	ARM Cortex-A53+Cortex-A72
Processor cores:	7
Internal memory:	16 GB
On-board graphics card model:	ARM Mali-G52
Internal storage capacity:	128 GB
Operating system installed:	Android
Operating system version:	14
Weight & dimensions
Display width:	1489.1 mm
Display depth:	87.1 mm
Display height:	911.8 mm
Display weight:	43.5 kg
Width:	1489.1 mm
Depth:	87.1 mm
Height:	911.8 mm
Weight:	43.5 kg
Packaging data
Package width:	1640 mm
Package depth:	185 mm
Package height:	1010 mm
Package weight:	47.4 kg
Packaging content
Remote control included:	Yes
Batteries included:	Yes
Stylus pen:	Yes
Number of stylus pens:	4
Cables included:	AC, USB, HDMI
Mounting kit:	Yes
Operational conditions
Operating temperature (T-T):	0 - 40 °C
Operating relative humidity (H-H):	-20 - 60%
Certificates
Certification:	CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, EPEAT, REACH (RoHS), EPEAT
Sensors
Ambient light sensor:	Yes
Motion sensor:	Yes
Network
Ethernet LAN:	Yes
Wi-Fi:	Yes
Ethernet LAN data rates:	1000 Mbit/s
Wi-Fi standards:	Wi-Fi 6 (802.11ax)
Technical details
OPS slot:	1
Sustainability certificates:	EPEAT, ErP, EPEAT Bronze
Warranty period:	5 year(s)
Compliance certificates:	CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE
Other features
Quick start guide:	Yes
Audio input:	Mini jack
Audio output:	Mini jack
Bluetooth:	Yes
Bluetooth version:	5.0
Built-in microphone:	Yes
Compatible operating systems:	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Power supply type:	Internal
Audio in (mini jack):	Yes
Playback media:
User controls:	personalization (theme, wallpaper, auto loop, screensaver), display (backlight, image mode, brightness, contrast, saturation, Hue, sharpness, colour temp., eye protection mode, energy saving, HDMI range), sound (volume direct, max volume, equalizer, balance, sound mode, bass, treble), general (radial menu, side menu bar, gesture interaction, screen recorder, free annotation), device (microphone, camera (external), speaker, NFC, CEC, ambient light sensor, stylus pen pickup sensor, PIR motion sensor), input settings (source lost detection, auto source switch, auto wakeup, OPS boot with system, power on source, rename input setting), system (power status, build version), admin (menu lock, system security, meeting mode, screen share, HDMI Mode, wake On Lan), applications (network & internet, connected devices, apps, notifications, storage, sound & vibration, display, wallpaper, accessibility, security & privacy, location, safety & emergency, passwords & accounts, digital wellbeing & parental controls, Google, system, about device)
