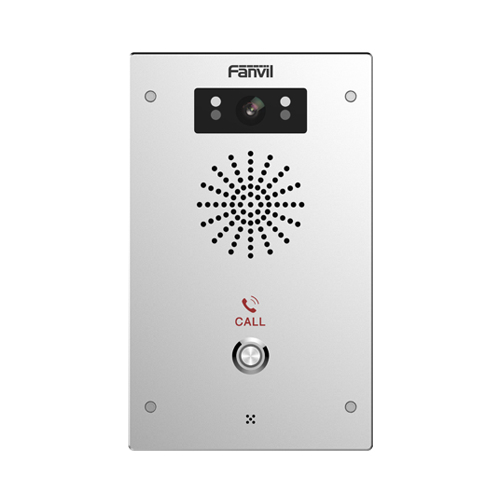

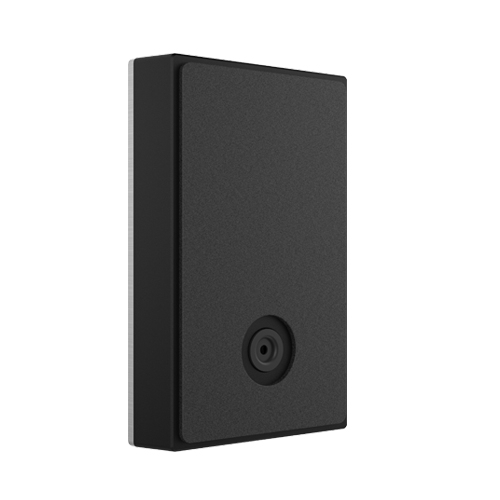

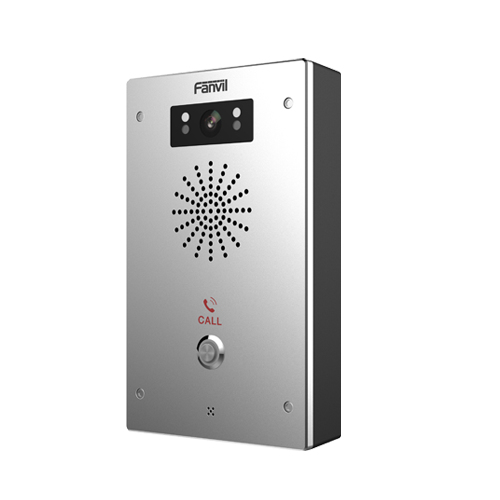

Fanvil i16V video intercom system 2 MP Stainless steel

The i16V SIP Video Intercom is designed for outdoor scenes with high reliability, HD Audio/Video, and IP65/IK10 protection grade. It combines security, audio/video intercom and broadcasting functionalities and offer the best communication solution for users.HD AudioBuilt-in 3W speaker with high HD audio quality and nice background noise reduction.HD VideoPress the "Call" button to make a call with full duplex video. Provide you the infrared night vision with built-in 720P HD camera.24H Video SurveillanceConnected with VMS video management system via ONVIF, the i16V could be used for 24H video monitoring.Multi-Protection DesignWith the design of the waterproof and dustproof grade IP65, the anti-collision standard IK10 and the wide temperature range from -40 to 70 , i16V can satisfy the special demands in various industries.Alarm Linkagei16V can trigger the record of camera video or the alarm indicator with the short output port.Access Controli16V can help open the door remotely by connecting to the electric lock with the short-circuit input port.Record Outputi16V can connect to the audio input port of the camera or digital record device with an record output port to provide 24h Monitor.External Active Speakeri16V can connect to speaker by the audio output port to play voice message or music.Easy to Be Configured and ManagedEasy to be managed with web online configuration; Batch deployment through Fanvil Device Management System

Technical details
Connectivity technology:	Wired
Colour:
Video codecs:	H.264
Number of buttons:	1 buttons
Relay inputs:	2
Certification:	CE/FCC
Design
Product colour:	Stainless steel
International Protection (IP) code:	IP65
IK code:	IK10
Network
Ethernet interface type:	Fast Ethernet
Ethernet LAN data rates:	10,100 Mbit/s
Ethernet LAN (RJ-45) ports:	1
Power over Ethernet (PoE):
Supported network protocols:	SIP2.0 UDP/TCP/TLS, RTP/RTCP/SRTP, STUN, DHCP, LLDP, PPPoE, 802.1x, L2TP, OpenVPN, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069
Networking standards:	IEEE 802.1x
Management features
Web-based management:
Syslog:
Camera
Megapixel (approx.):	2 MP
Maximum video resolution:	1280 x 720 pixels
Optical sensor size:	25.4 / 2.7 mm (1 / 2.7")
Maximum frame rate:	25 fps
Minimum illumination:	0.1 lx
Viewing angle, horizontal:	112°
Viewing angle, vertical:	84°
Power
Outdoor unit power type:	DC
Operational conditions
Operating temperature (T-T):	-40 - 70 °C
Storage temperature (T-T):	-40 - 70 °C
Operating relative humidity (H-H):	10 - 90%
Weight & dimensions
Width:	195 mm
Depth:	120 mm
Height:	34 mm
Weight:	1.01 kg
Packaging data
Package width:	260 mm
Package depth:	165 mm
Package height:	62 mm
