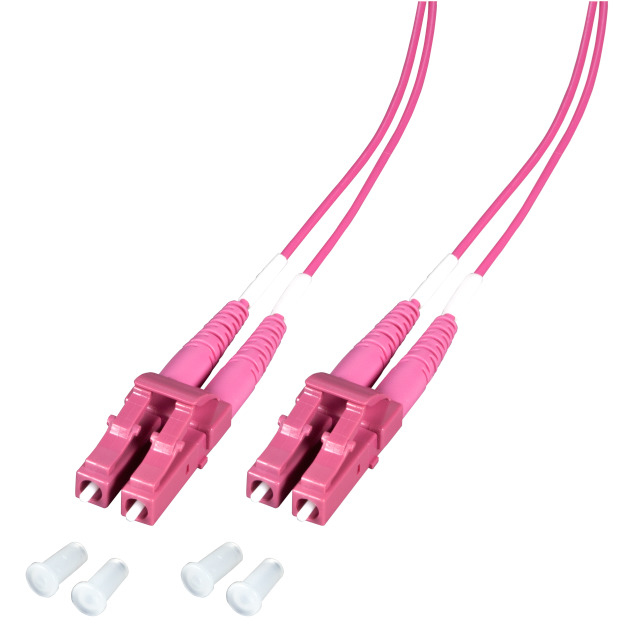

EFB Elektronik O0319.10-1.2 fibre optic cable 10 m 2x LC OM4 Violet

The 1.2 mm Duplex Jumper are characterized due to the small outer diameter. This is an advantage for the installers when they have limited space for cable management. The small outer diameter is also useful in projects with high density areas.

Characteristics
Space-saving installation due to the small outer diameter
Halogen free according to IEC-60754-2
Flame retardant according to IEC-60332-1
Low smoke according to IEC-61034
Connector in colour of category (aqua, erica-violet or blue)
LC connector in Compact design
EFB fiber connectors meet the quality classes
Grade B/2 according to IEC-61753-1 for Singlemode
Grade A/1 according to IEC-61753-122-2 (Draft) for Multimode
pre-coded
100% tested and with individuell measuring protocol

Features
Cable length:	10 m
Fibre optic type:	OM4
Connector 1:	2x LC
Connector 2:	2x LC
Connector 1 gender:	Male
Connector 2 gender:	Male
Product colour:	Violet
Jacket material:	Low smoke zero halogen (LSZH)
Full duplex:
Core diameter:	50 µm
Cladding diameter:	125 µm
Fiber mode structure:	Multi-mode
Insertion loss:	0.25 dB
Certification:	IEC-60754-2, IEC-60332-1, IEC-61034, IEC-61753-122-2, EN 50265-2-1, IEC 61754-20, IEC 60793-2
Technical details
Sustainability certificates:	RoHS
Doesn't contain:	Halogen
Operational conditions
Operating temperature (T-T):	-20 - 75 °C
Storage temperature (T-T):	-20 - 85 °C
Weight & dimensions
Cable diameter:	1.2 mm
Bending radius:	3.8 mm
Logistics data
Harmonized System (HS) code:	85447000
