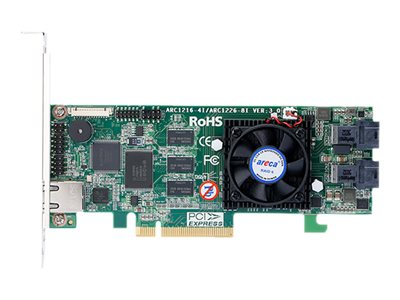

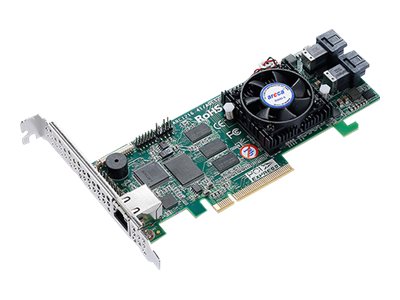

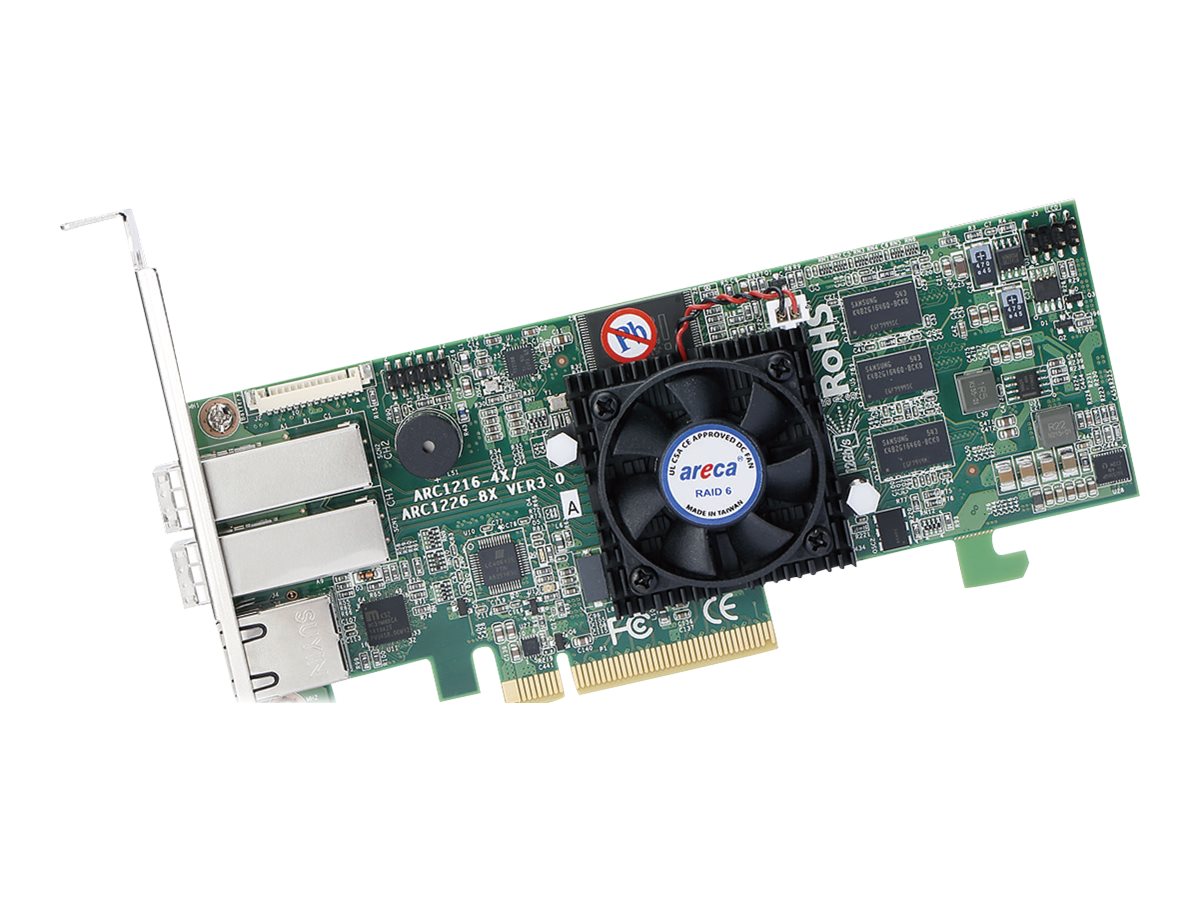

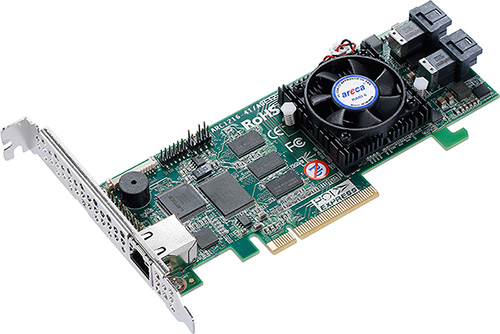

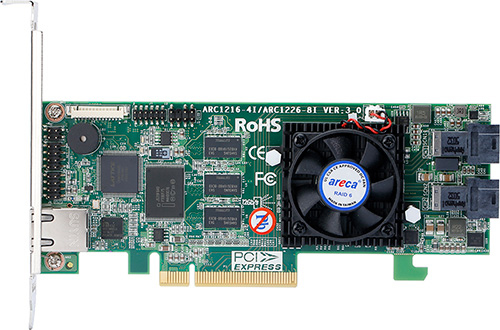

Areca ARC-1226-8I RAID controller PCI Express 3.0 12 Gbit/s

The 12Gb/s SAS is designed for backward compatibility with 6Gb/s and 3Gb/s SAS/SATA hard drives. The 12Gb/s SAS interface supports both 12Gb/s SAS disk drives for data-intensive applications and 6Gb/s SATA drives for low-cost bulk storage of reference data. The ARC-1216-4i/4x and ARC-1226-8i/8x RAID controllers only support directly attach to 4/8 SAS/SATA drives without supporting the expand function. The ARC-12x6 series default support 1GB on-board DDR3-1600 SDRAM memory.

Ports & interfaces
Supported storage drive interfaces:	SAS, Serial ATA
Host interface:	PCI Express
PCI Express slots version:	3.0
External SAS ports:	1
Performance
RAID levels:	0, 1, 1E, 3, 5, 6, 10, 30, 50, 60, JBOD
RAID Level Migration:
Data transfer rate:	12 Gbit/s
Connector orientation:	External
SSD support:
Internal memory:	1000 MB
Internal memory type:	DDR3
Memory clock speed:	1600 MHz
Online Capacity Expansion:
Processor
Built-in processor:
Processor frequency:	1200 MHz
Processor family:	Dual-Core
Power
Voltage:	12 V
Power consumption (typical):	14.4 W
System requirements
Windows operating systems supported:	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported:	Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported:
Server operating systems supported:	Windows Server 2003, Windows Server 2008, Windows Server 2012
Operational conditions
Operating temperature (T-T):	5 - 60 °C
Storage temperature (T-T):	-40 - 70 °C
Operating relative humidity (H-H):	15 - 80%
Storage relative humidity (H-H):	5 - 90%
Weight & dimensions
Width:	169.5 mm
Height:	64.4 mm
Other features
Other operating systems supported:	Solaris 11, Solaris 10, FreeBSD
