Precision-engineered for graphics excellence with hardware-calibrated precision (Delta E<2), calman ready calibration, and UHD Nano IPS display

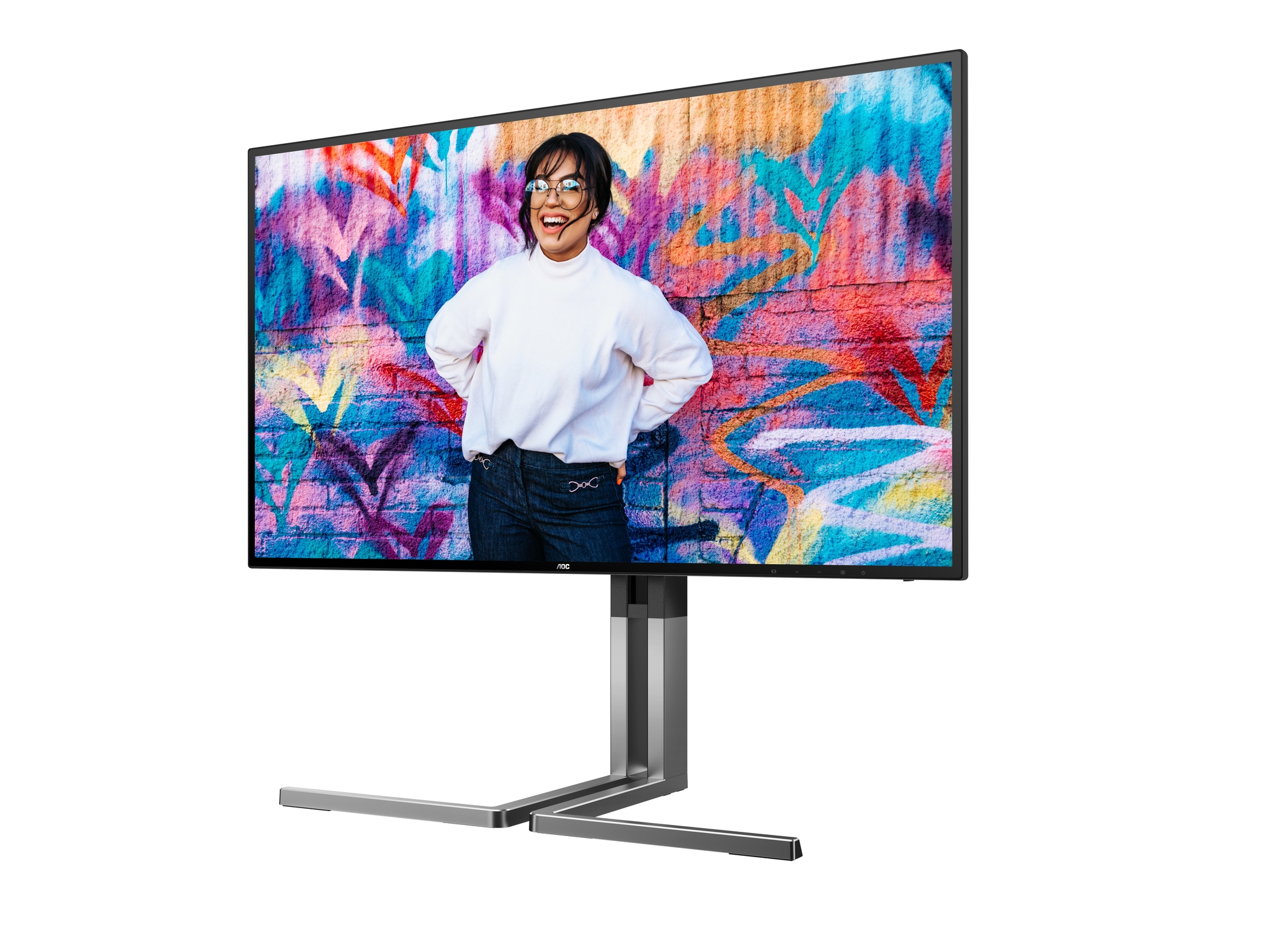

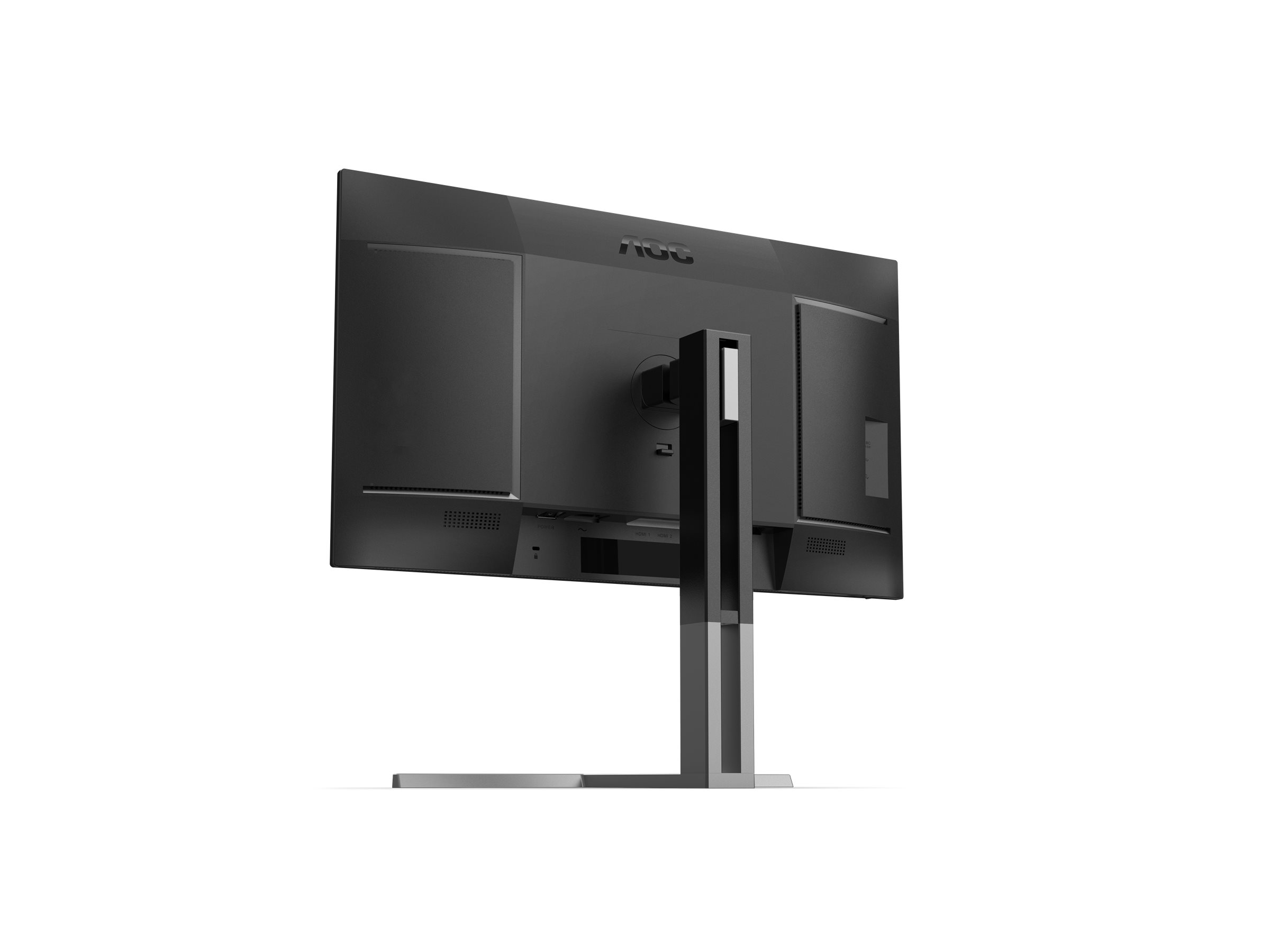

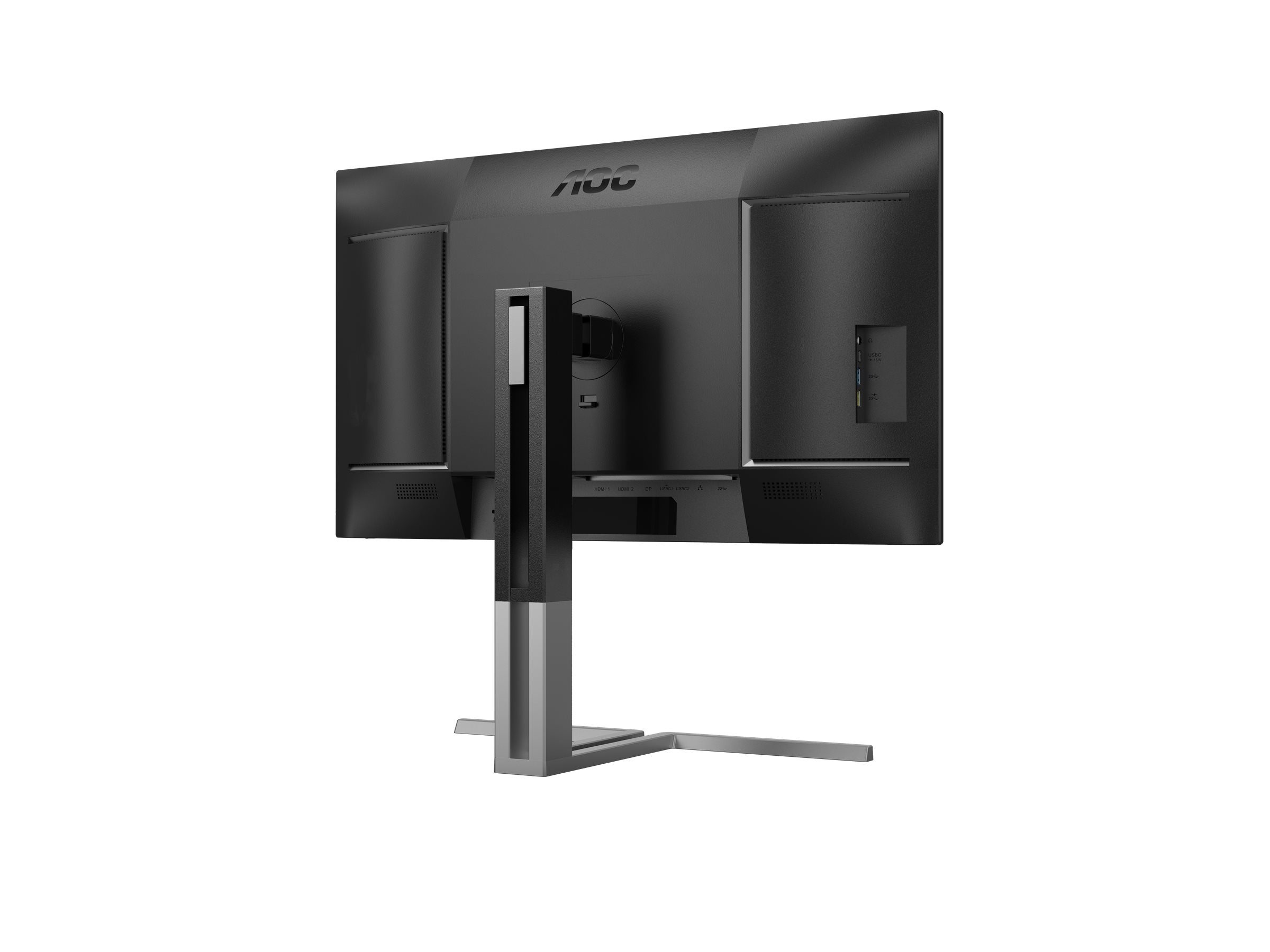

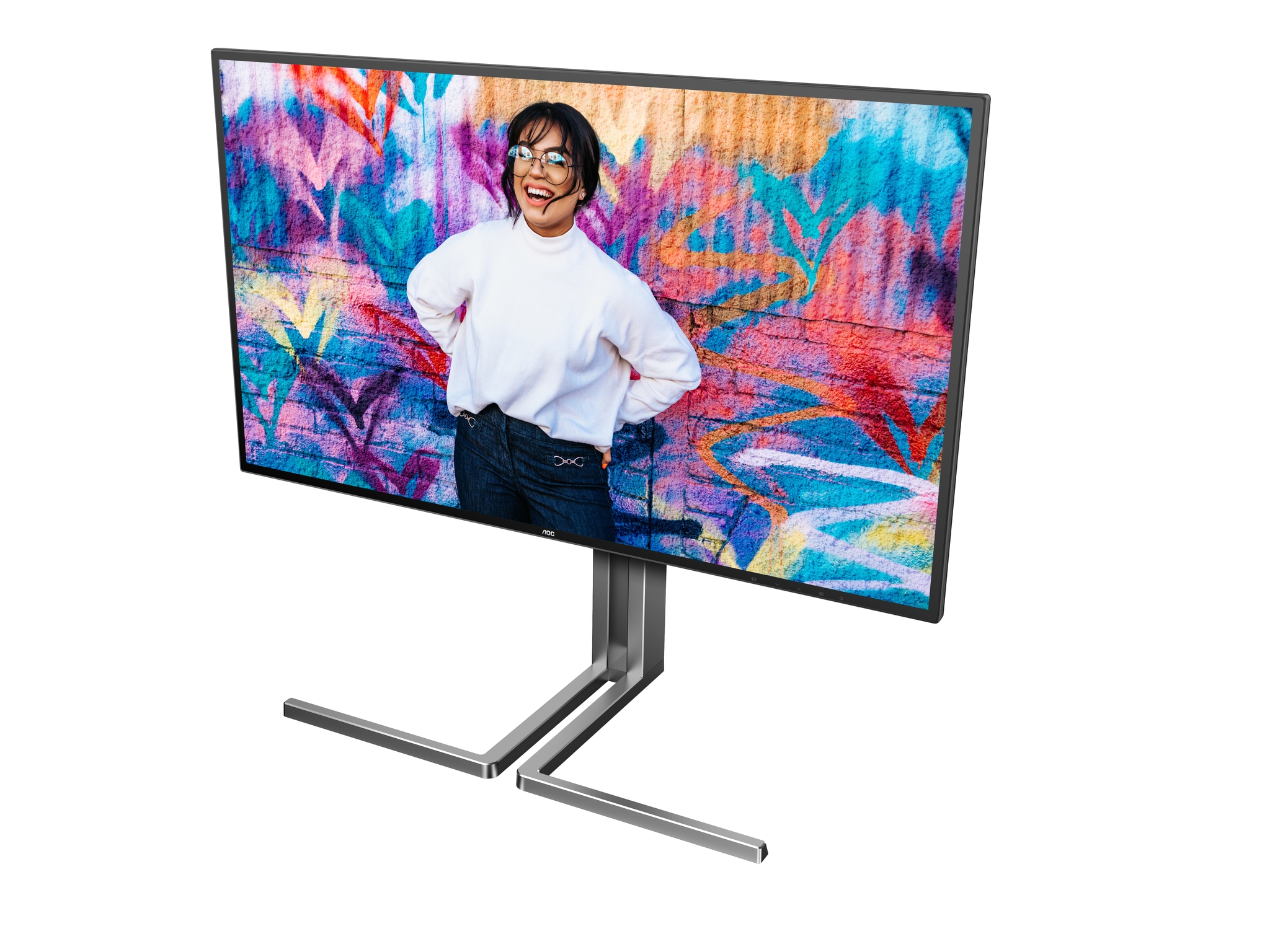

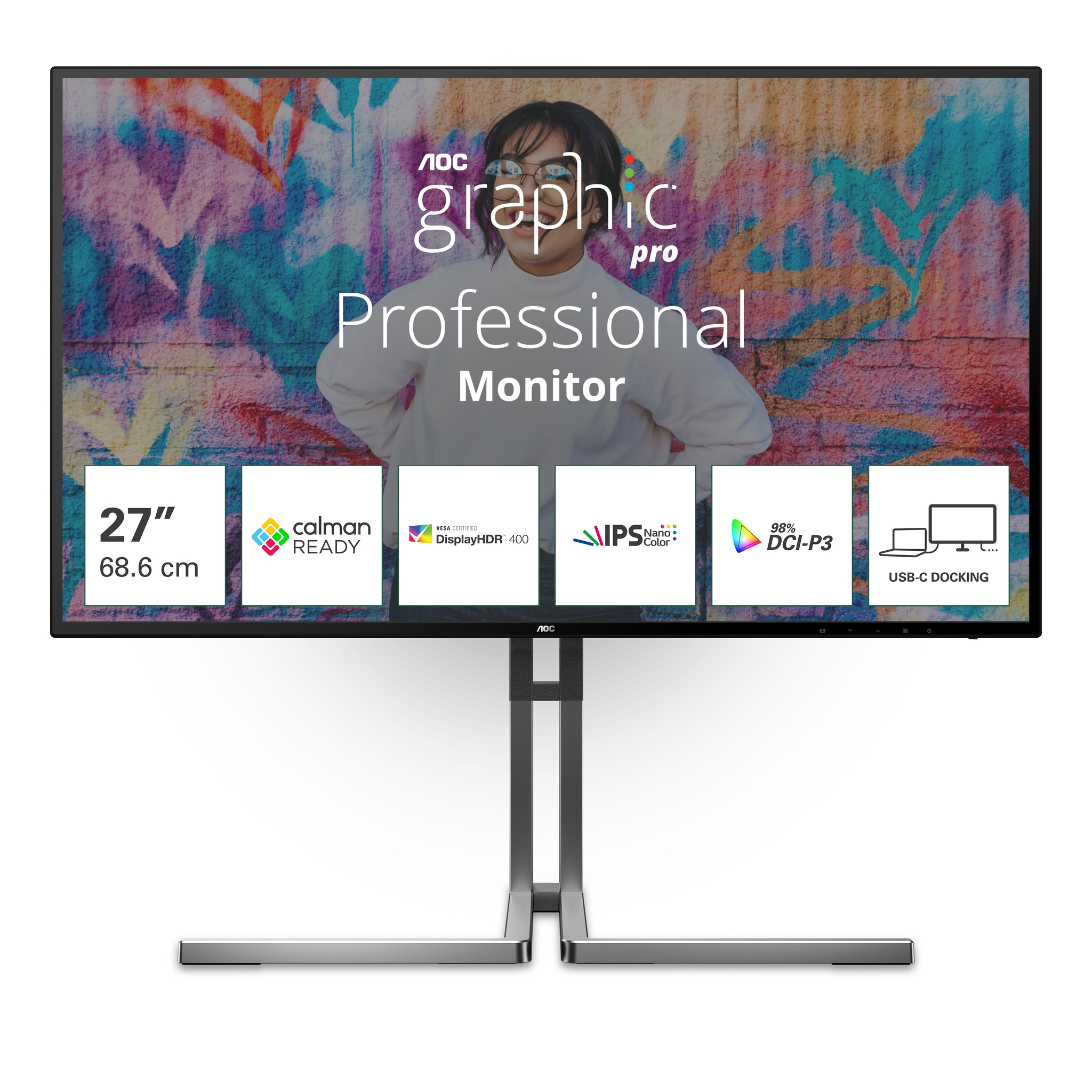

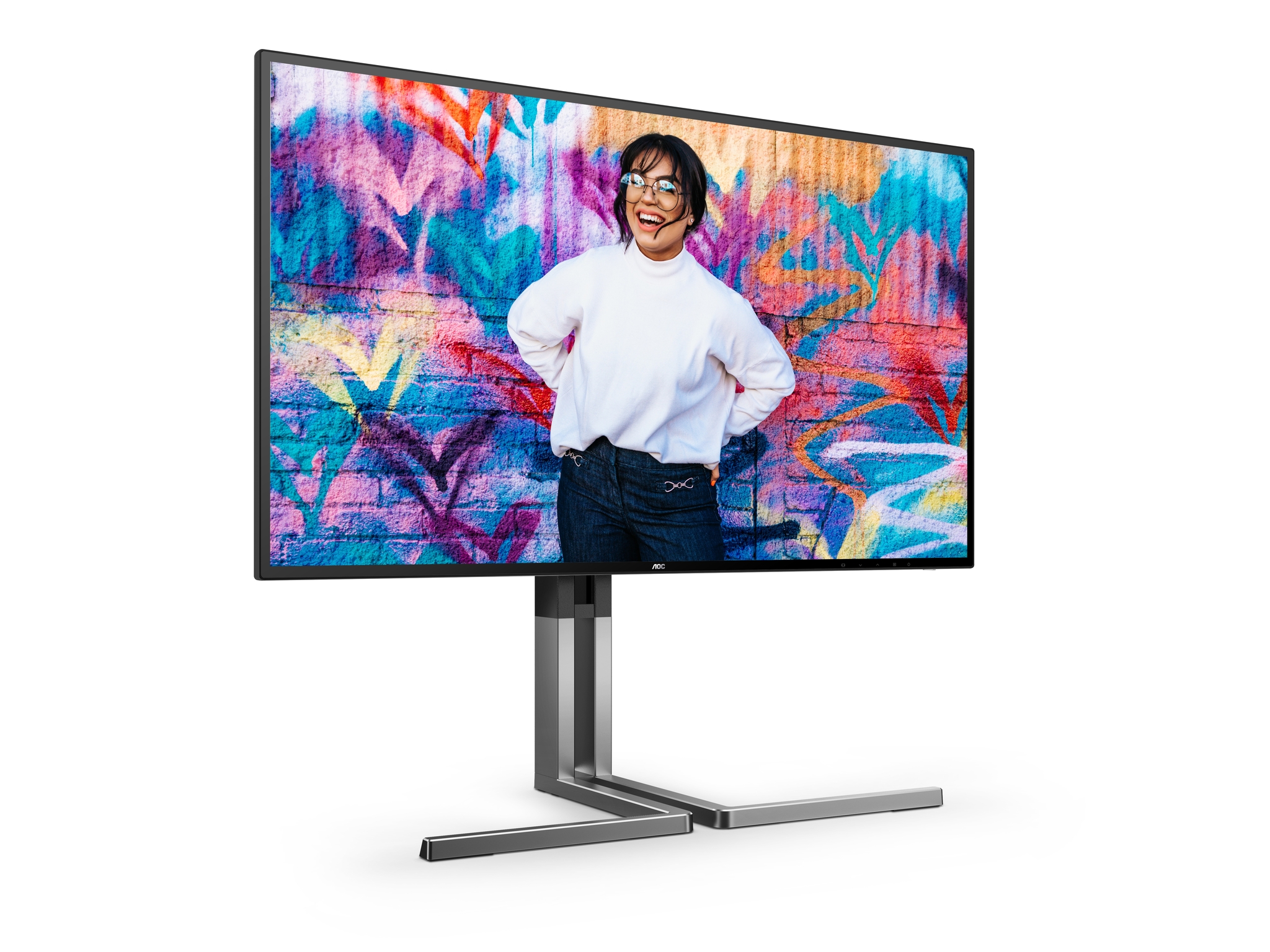

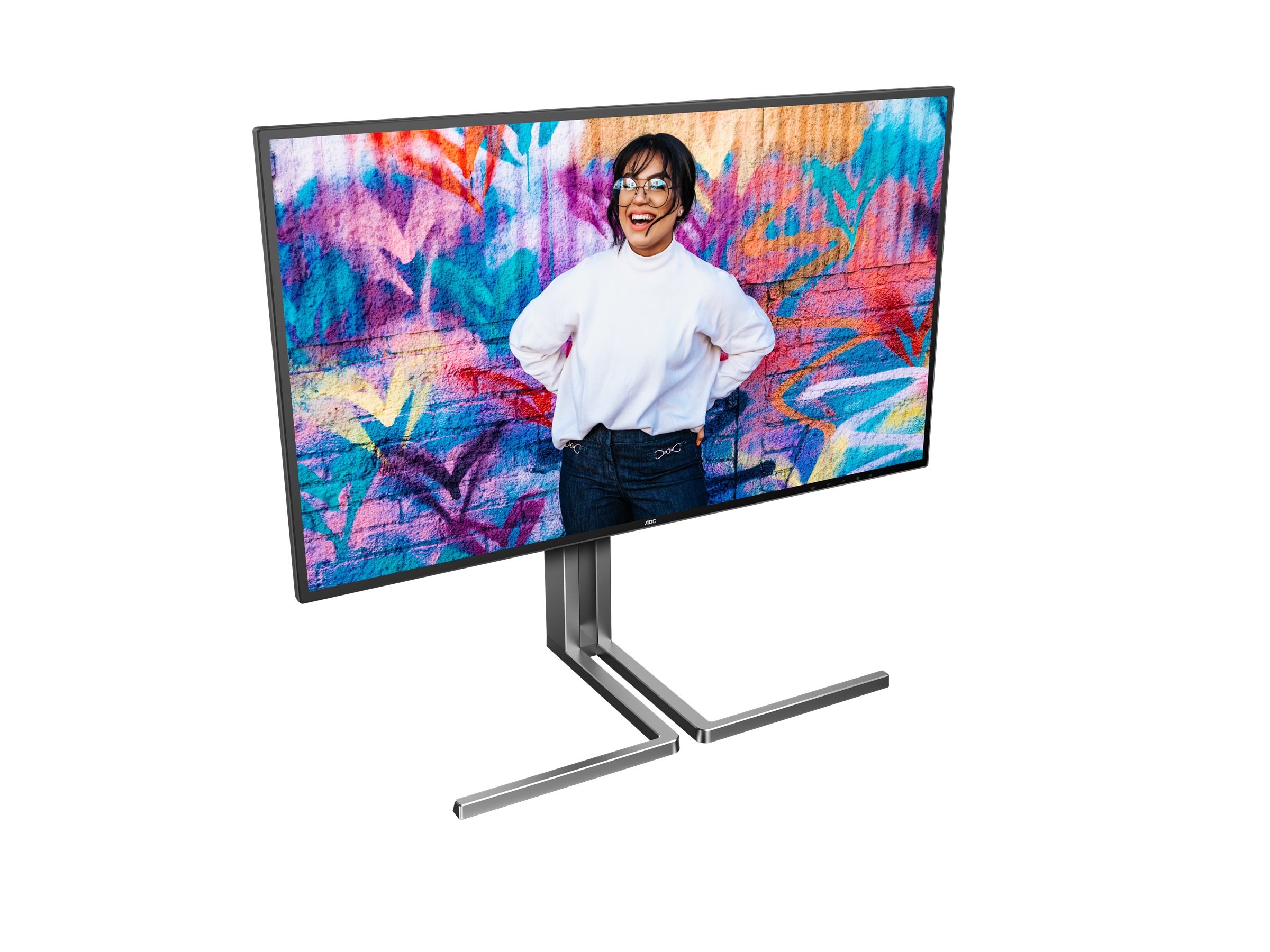

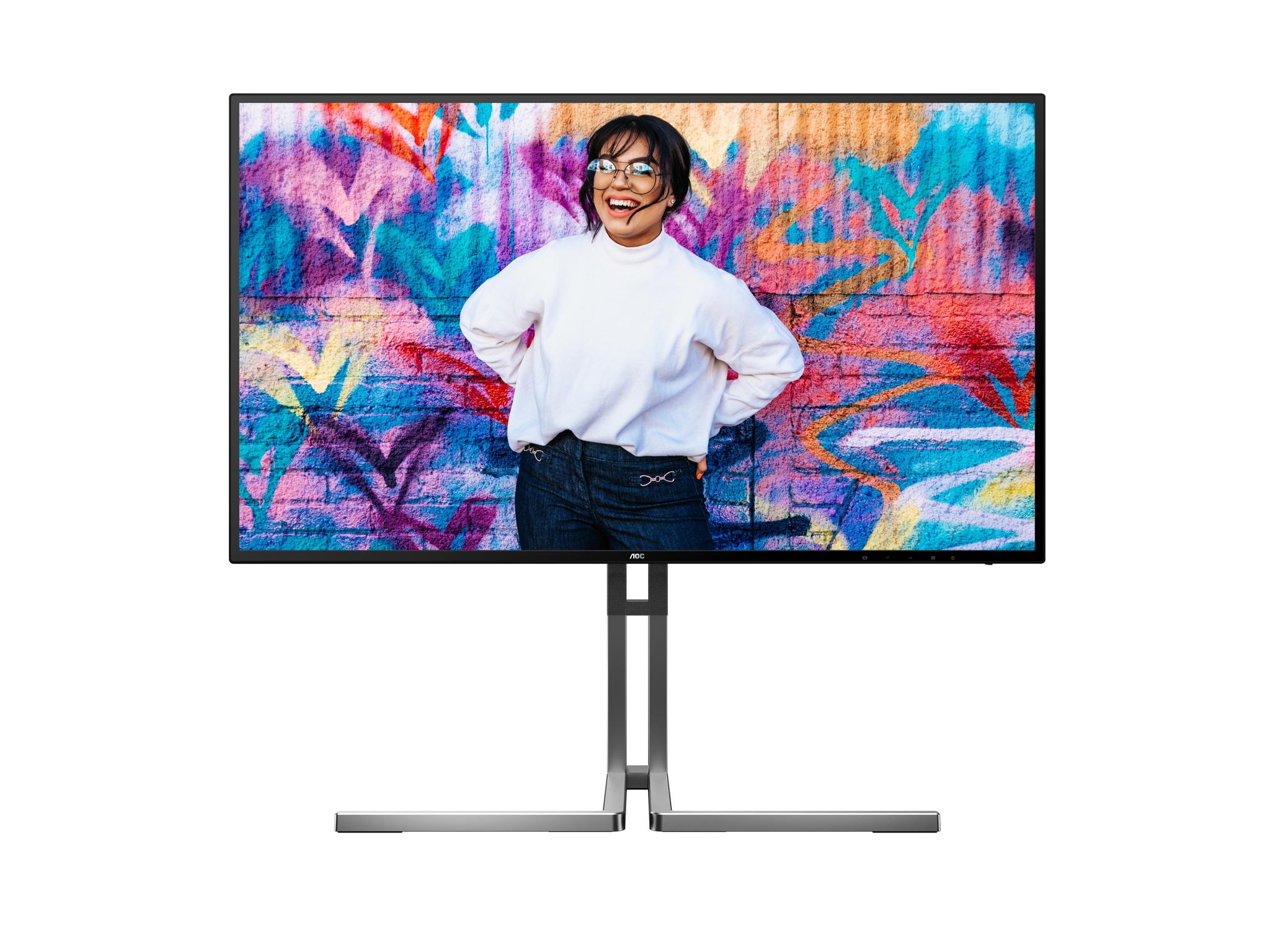

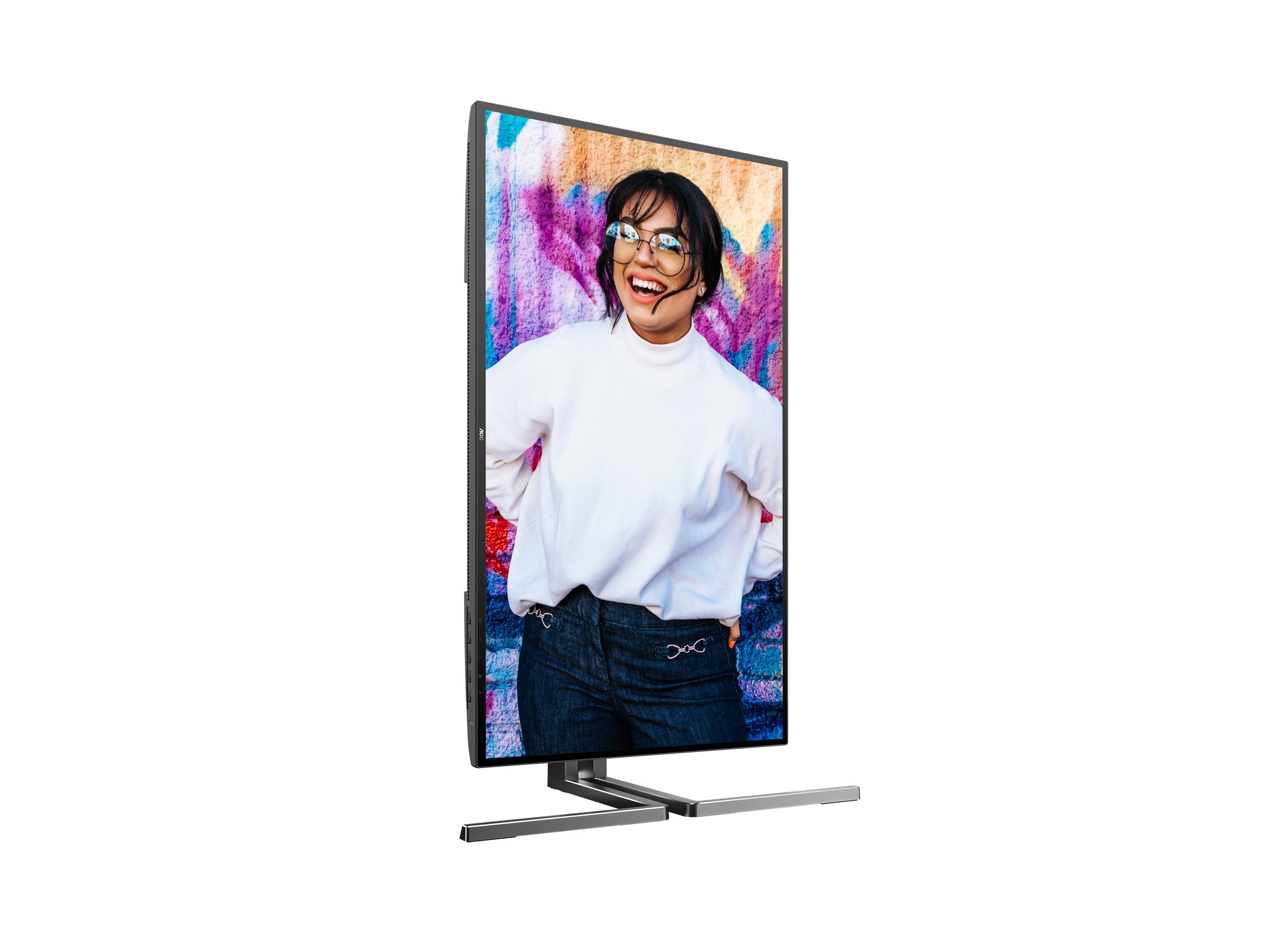

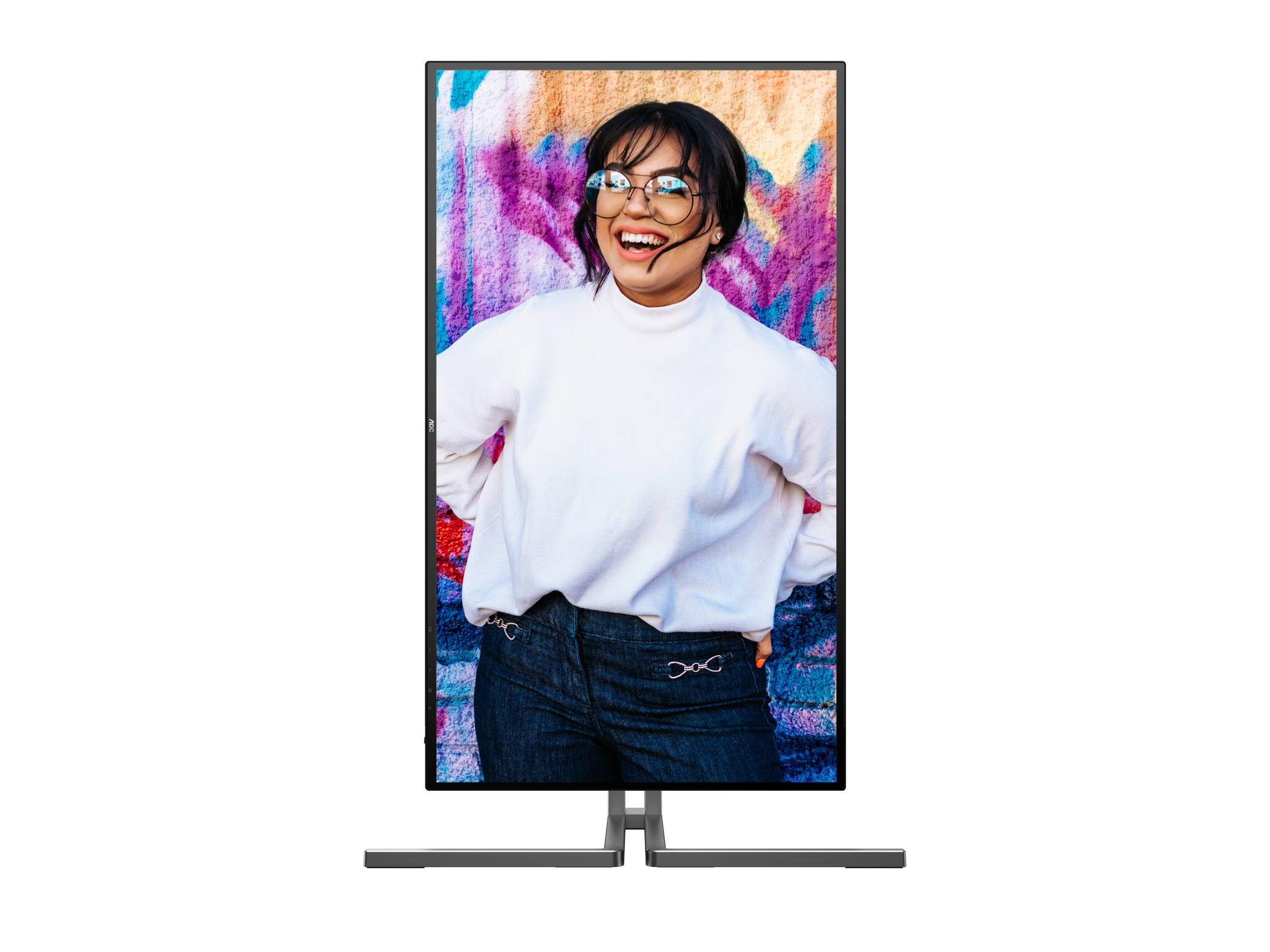

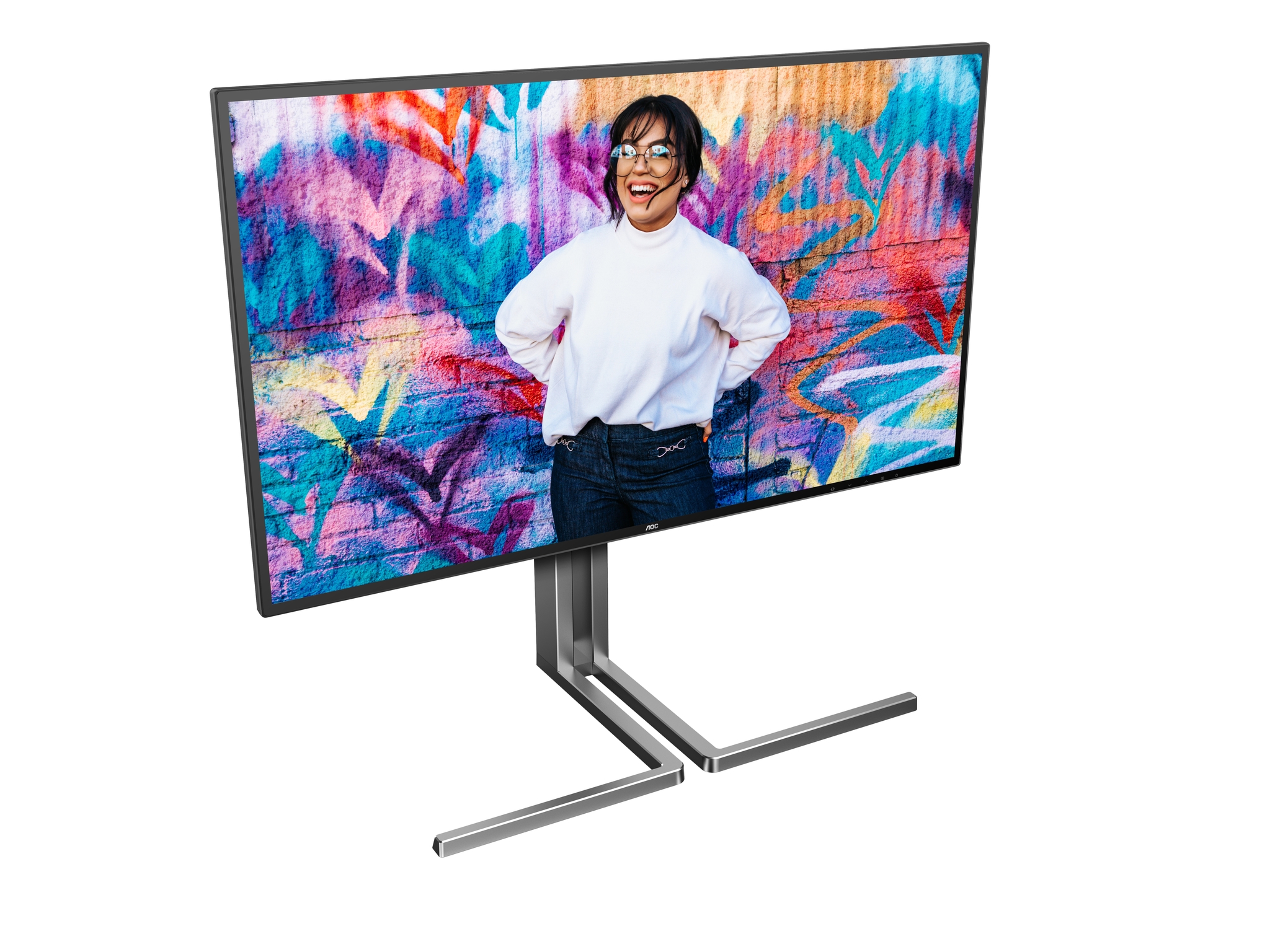

The AOC Graphic Pro U27U3CV delivers exceptional color accuracy straight out of the box, thanks to its hardware calibration achieving Delta E<2 (sRGB). Fine-tune settings effortlessly with the Calman Ready feature for optimal performance. With 98% coverage of the DCI P3, 100% of the sRGB and 100% of the Rec 709 color space, it's ideal for graphic and photo editing, offering superior quality compared to standard monitors. Its Delta E < 2 accuracy ensures precise color rendering, surpassing human eye perception. Enhanced with a 4-sided frameless screen, Vesa DisplayHDR 400, USB-C docking station, and sleek design, it stands as the top choice for professionals.
| Display | |
| Display diagonal: | 68.6 cm (27") |
| Display resolution: | 3840 x 2160 pixels |
| Native aspect ratio: | 16:9 |
| Display technology: | LCD |
| Touchscreen: | No |
| HD type: | 4K Ultra HD |
| Panel type: | Nano IPS |
| Response time: | 4 ms |
| Screen shape: | Flat |
| Contrast ratio (typical): | 1000:1 |
| Maximum refresh rate: | 60 Hz |
| Display number of colours: | 1.073 billion colours |
| LED backlight: | Yes |
| Backlight type: | W-LED |
| Display brightness (typical): | 400 cd/m² |
| Anti-glare screen: | Yes |
| Viewing angle, horizontal: | 178° |
| Viewing angle, vertical: | 178° |
| Pixel pitch: | 0.1554 x 0.1554 mm |
| Horizontal scan range: | 30 - 140 kHz |
| Vertical scan range: | 23 - 75 Hz |
| Viewable size, horizontal: | 59.7 cm |
| Viewable size, vertical: | 33.6 cm |
| Display diagonal (metric): | 68.5 cm |
| High Dynamic Range (HDR) supported: | Yes |
| High Dynamic Range (HDR) technology: | High Dynamic Range (HDR) 400 |
| DDC/CI: | Yes |
| Haze rate: | 25% |
| Surface hardness: | 3H |
| Colour gamut standard: | DCI-P3 |
| Colour gamut: | 98% |
| Performance | |
| Fast charging: | Yes |
| VESA Adaptive Sync support: | Yes |
| Flicker-free technology: | Yes |
| Multimedia | |
| Built-in speaker(s): | Yes |
| Built-in camera: | No |
| Number of speakers: | 2 |
| RMS rated power: | 6 W |
| Design | |
| Market positioning: | Graphics design |
| Product colour: | Black |
| Frameless design: | Yes |
| Detachable stand: | Yes |
| Feet colour: | Grey |
| Ports & interfaces | |
| Built-in USB hub: | Yes |
| HDMI: | Yes |
| Headphone out: | Yes |
| USB hub version: | 3.2 Gen 2 (3.1 Gen 2) |
| USB upstream port type: | USB Type-C |
| Number of upstream ports: | 2 |
| USB Type-A downstream ports quantity: | 4 |
| USB Type-C downstream ports quantity: | 1 |
| USB Type-C DisplayPort Alternate Mode: | Yes |
| USB Power Delivery: | Yes |
| USB Power Delivery up to: | 96 W |
| HDMI ports quantity: | 2 |
| HDMI version: | 2.0 |
| DisplayPorts quantity: | 1 |
| DisplayPort version: | 1.4 |
| Headphone outputs: | 1 |
| AC (power) in: | Yes |
| Network | |
| Ethernet LAN: | Yes |
| Ergonomics | |
| VESA mounting: | Yes |
| Height adjustment: | Yes |
| Panel mounting interface: | 100 x 100 mm |
| Height adjustment: | 15 cm |
| Pivot: | Yes |
| Pivot angle: | -90 - 90° |
| Swivelling: | Yes |
| Swivel angle range: | -15 - 15° |
| Tilt adjustment: | Yes |
| Tilt angle range: | -6.5 - 23° |
| Picture-in-Picture: | Yes |
| Plug and Play: | Yes |
| Power | |
| Power consumption (typical): | 44 W |
| Power consumption (standby): | 0.3 W |
| Power consumption (max): | 206 W |
| AC input voltage: | 100 - 240 V |
| AC input frequency: | 50/60 Hz |
| Input current: | 3 A |
| Power supply type: | Internal |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 40 °C |
| Storage temperature (T-T): | -25 - 55 °C |
| Operating relative humidity (H-H): | 10 - 85% |
| Storage relative humidity (H-H): | 5 - 93% |
| Operating altitude: | 0 - 5000 m |
| Non-operating altitude: | 0 - 12192 m |
| Weight & dimensions | |
| Width (with stand): | 612.7 mm |
| Depth (with stand): | 238.4 mm |
| Height (with stand): | 543.6 mm |
| Weight (with stand): | 6.54 kg |
| Packaging data | |
| Package type: | Box |
| Packaging content | |
| Stand included: | Yes |
| Cables included: | AC |
| Quick start guide: | Yes |
