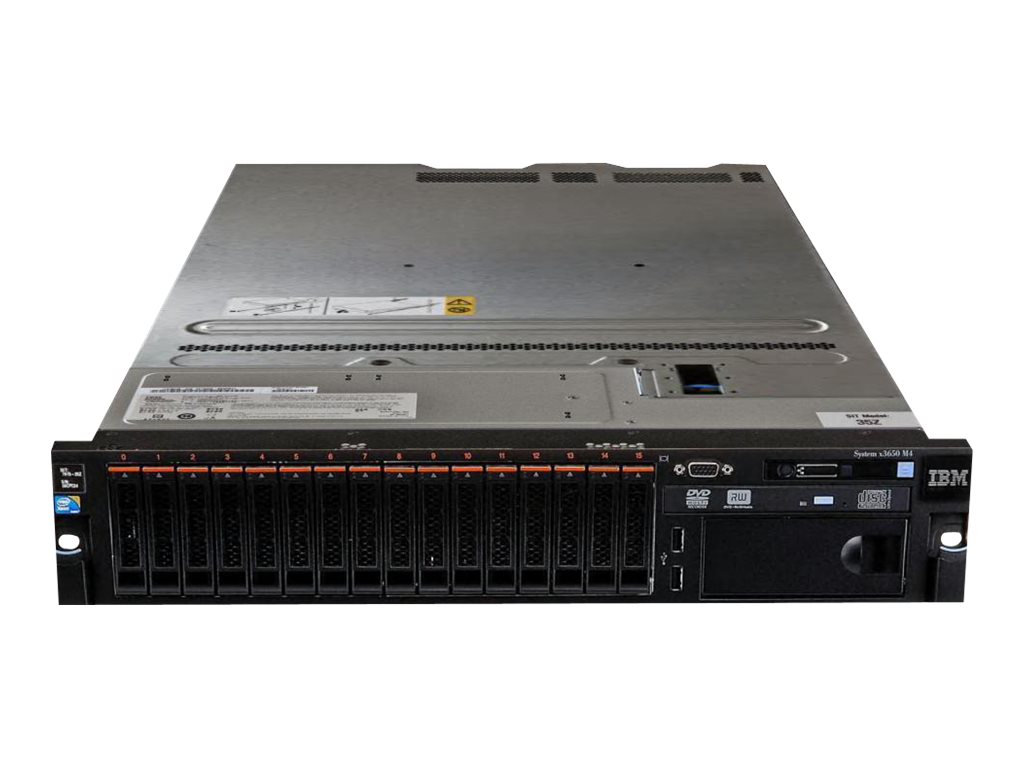

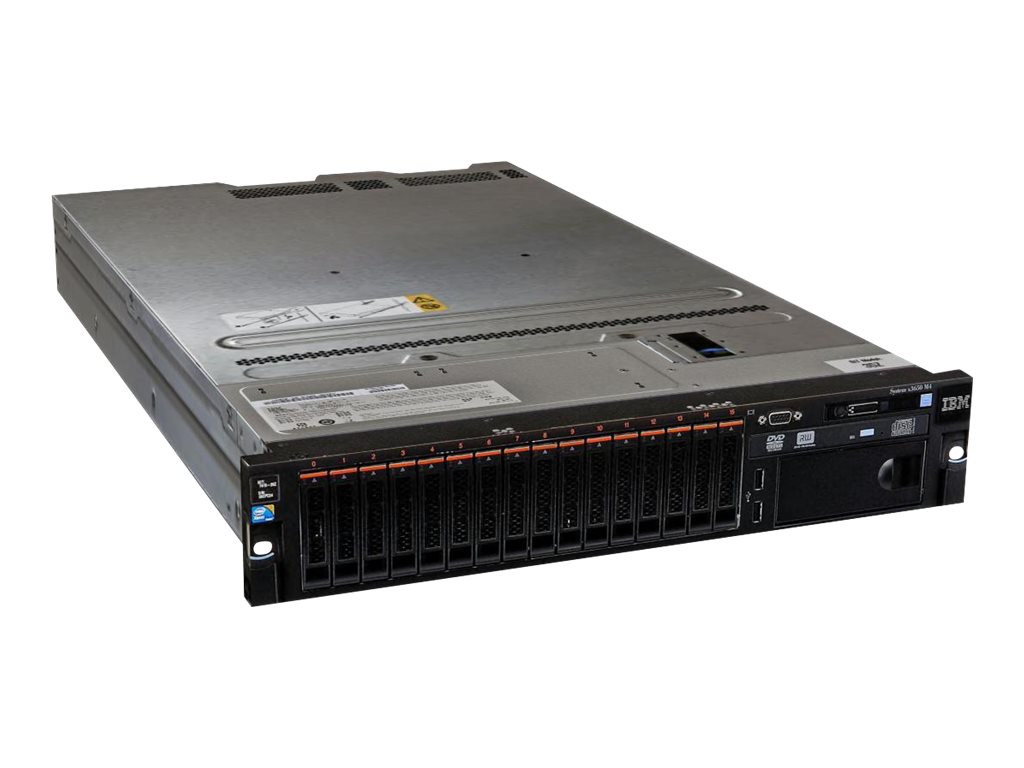

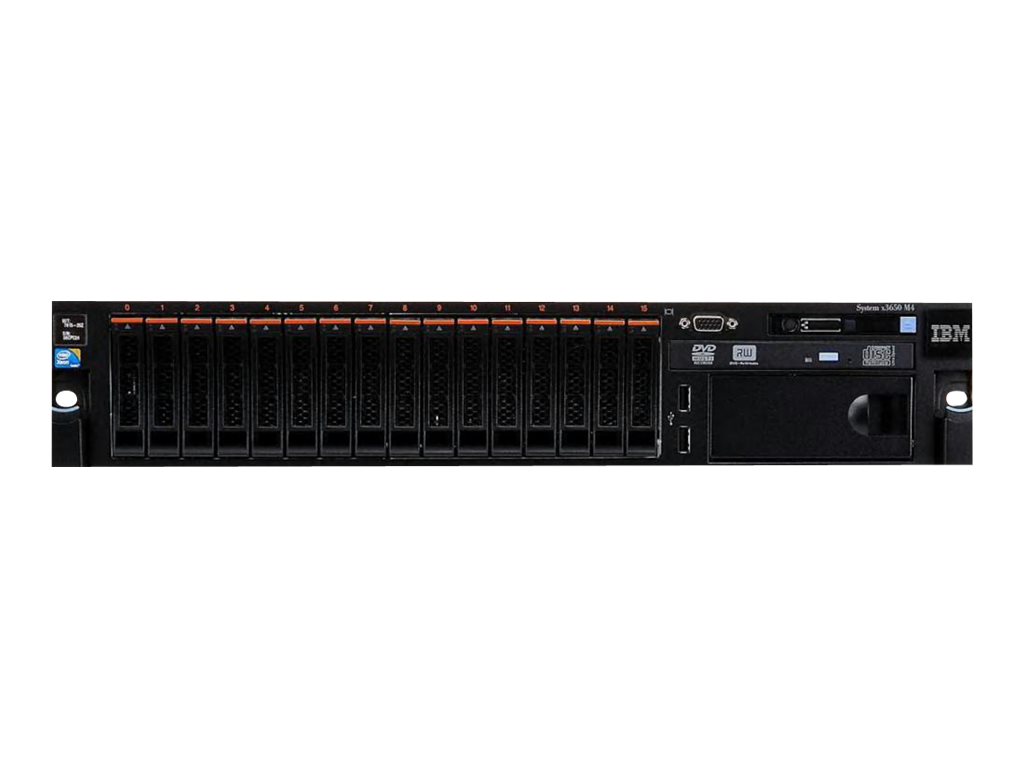

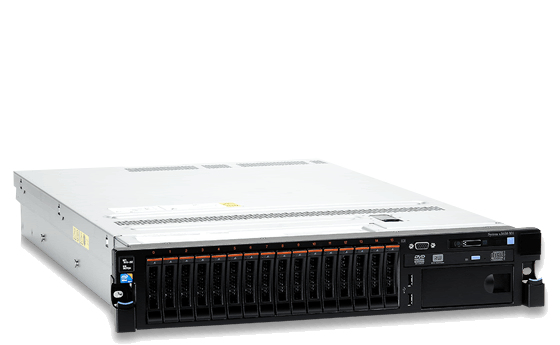

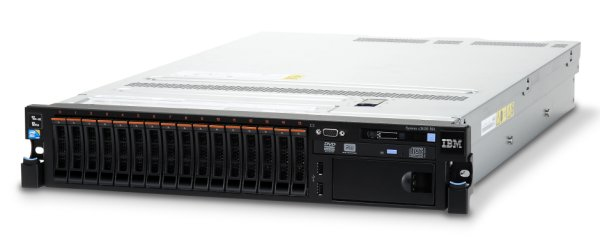

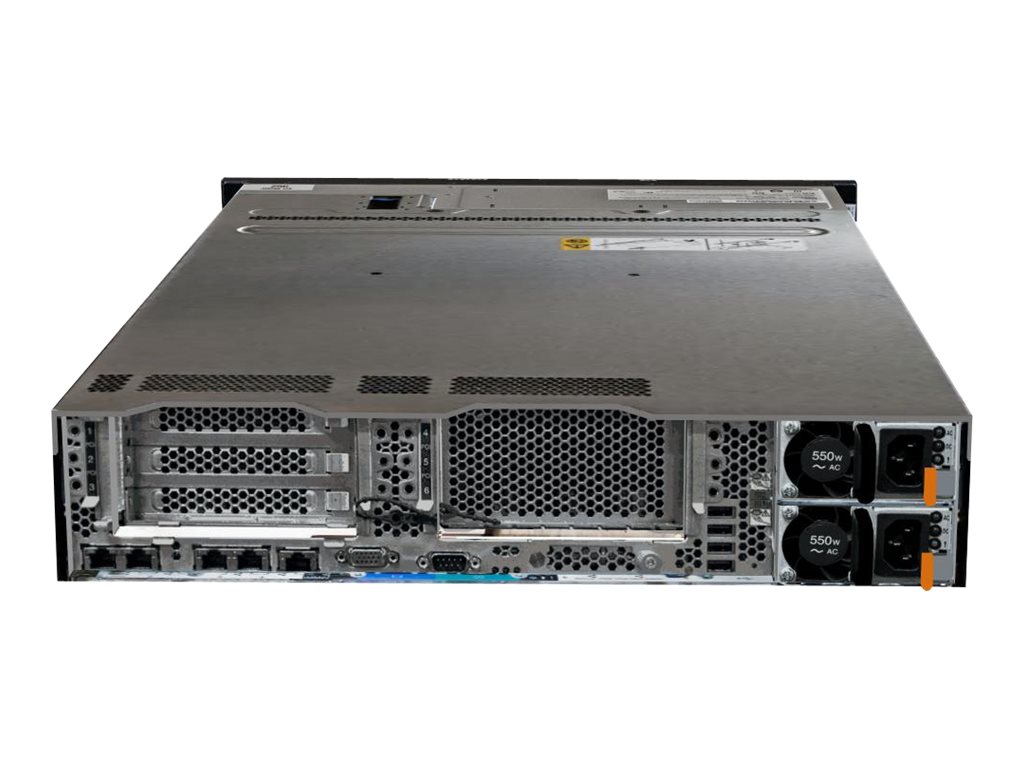

Lenovo System x3650 M4 server 600 GB Rack (2U) IntelŽ XeonŽ E5 Family E5-2620 2 GHz 8 GB DDR3-SDRAM 550 W
Product no.: 7915E2G
Highlights
- Innovative design, optimized for performance and reliability
- Wide range of business-critical applications, including cloud computing, virtual desktop, and business analytics
- Optimized for cloud computing and virtualization
- Outstanding reliability, availability and serviceability (RAS) for an improved business environment,
- Easy to deploy, integrate, service and manage
| Processor | |
| Processor family: | IntelŽ XeonŽ E5 Family |
| Processor manufacturer: | Intel |
| Processor model: | E5-2620 |
| Processor frequency: | 2 GHz |
| Processor boost frequency: | 2.5 GHz |
| Processor cores: | 6 |
| Processor cache: | 15 MB |
| Motherboard chipset: | IntelŽ C602J |
| Number of processors installed: | 1 |
| Thermal Design Power (TDP): | 95 W |
| Processor cache type: | Smart Cache |
| System bus rate: | 7.2 GT/s |
| Processor socket: | LGA 2011 (Socket R) |
| Processor lithography: | 32 nm |
| Processor threads: | 12 |
| Processor operating modes: | 64-bit |
| Stepping: | C2 |
| Bus type: | QPI |
| Number of QPI links: | 2 |
| Tcase: | 77.4 °C |
| Maximum internal memory supported by processor: | 750 GB |
| Memory types supported by processor: | DDR3-SDRAM |
| Memory clock speeds supported by processor: | 800,1066,1333 MHz |
| Memory bandwidth supported by processor (max): | 42.6 GB/s |
| Execute Disable Bit: | Yes |
| Idle States: | Yes |
| Thermal Monitoring Technologies: | Yes |
| Maximum number of PCI Express lanes: | 40 |
| Processor package size: | 52.5 x 45.0 mm |
| Supported instruction sets: | AVX |
| Scalability: | 2S |
| Embedded options available: | Yes |
| Graphics & IMC lithography: | 32 nm |
| CPU multiplier (bus/core ratio): | 25 |
| Conflict-Free processor: | No |
| Memory | |
| Internal memory: | 8 GB |
| Internal memory type: | DDR3-SDRAM |
| Memory slots: | 24 |
| ECC: | Yes |
| Memory layout (slots x size): | 1 x 8 GB |
| Storage | |
| Total storage capacity: | 600 GB |
| RAID support: | Yes |
| Optical drive type: | DVDąRW |
| Number of HDDs installed: | 2 |
| HDD capacity: | 300 GB |
| HDD speed: | 10000 RPM |
| Number of HDDs supported: | 8 |
| Supported HDD sizes: | 2.5" |
| RAID levels: | 0, 1, 10 |
| Supported RAID controllers: | M5110e |
| Hot-swap: | Yes |
| Graphics | |
| On-board graphics card: | Yes |
| On-board graphics card model: | Matrox G200eR2 |
| Maximum graphics card memory: | 16 MB |
| Network | |
| Ethernet LAN: | Yes |
| Cabling technology: | 10/100/1000Base-T(X) |
| Ethernet interface type: | Gigabit Ethernet |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports: | 4 |
| USB 2.0 ports quantity: | 6 |
| VGA (D-Sub) ports quantity: | 2 |
| Serial ports quantity: | 1 |
| Expansion slots | |
| PCI Express slots version: | 3.0 |
| Design | |
| Chassis type: | Rack (2U) |
| Product colour: | Black, Silver |
| Performance | |
| Trusted Platform Module (TPM): | Yes |
| Software | |
| Compatible operating systems: | Microsoft Windows Server 2012 R2, 2012, 2008 R2, 2008; Red Hat Enterprise Linux (RHEL) 5, 6, 7; SUSE Linux Enterprise Server (SLES) 10, 11, 12; VMware ESX 4.1 and ESXi 4.1, VMware vSphere (ESXi) 5.0, 5.1, 5.5. |
| Processor special features | |
| CPU configuration (max): | 2 |
| Enhanced Intel SpeedStep Technology: | Yes |
| IntelŽ Identity Protection Technology (IntelŽ IPT): | No |
| Intel Virtualization Technology for Directed I/O (VT-d): | Yes |
| IntelŽ Hyper Threading Technology (IntelŽ HT Technology): | Yes |
| IntelŽ Turbo Boost Technology: | 1.0 |
| Intel Flex Memory Access: | No |
| IntelŽ AES New Instructions (IntelŽ AES-NI): | Yes |
| Intel Trusted Execution Technology: | Yes |
| Intel Enhanced Halt State: | Yes |
| Intel VT-x with Extended Page Tables (EPT): | Yes |
| Intel Demand Based Switching: | Yes |
| Intel 64: | Yes |
| Intel Identity Protection Technology version: | 0.00 |
| Intel Virtualization Technology (VT-x): | Yes |
| Processor ARK ID: | 64594 |
| Power | |
| Redundant power supply (RPS) support: | Yes |
| Power supply: | 550 W |
| Number of redundant power supplies supported: | 2 |
| Number of redundant power supplies installed: | 2 |
| Power supply input frequency: | 50 - 60 Hz |
| Operational conditions | |
| Operating temperature (T-T): | 5 - 40 °C |
| Storage temperature (T-T): | -40 - 60 °C |
| Operating relative humidity (H-H): | 8 - 85% |
| Storage relative humidity (H-H): | 5 - 80% |
| Weight & dimensions | |
| Width: | 445 mm |
| Depth: | 746 mm |
| Height: | 86 mm |
| Features | |
| Images Type Map: |  |
Price:
1.020,08 €
22 % VAT incl. excl. Shipping costs
