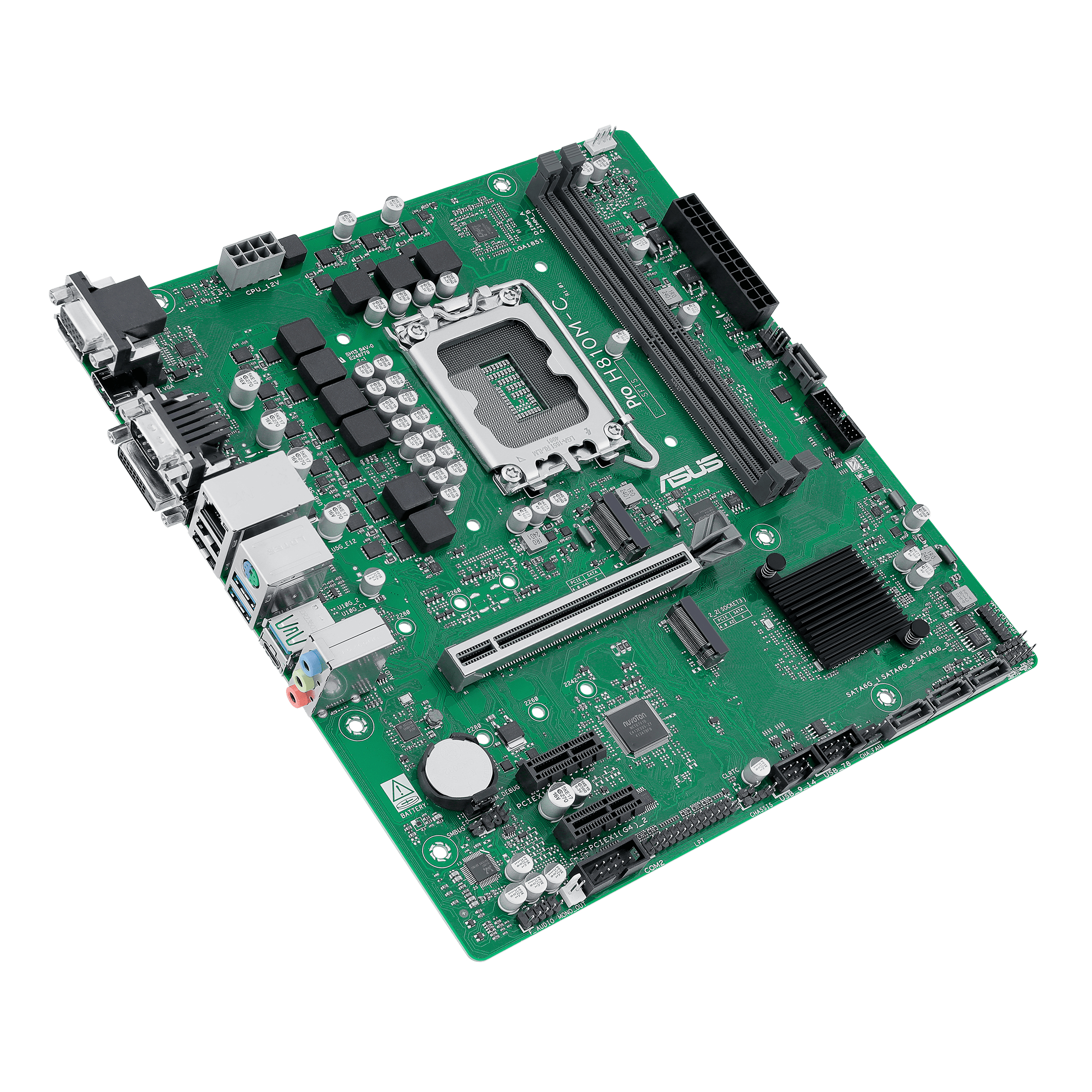

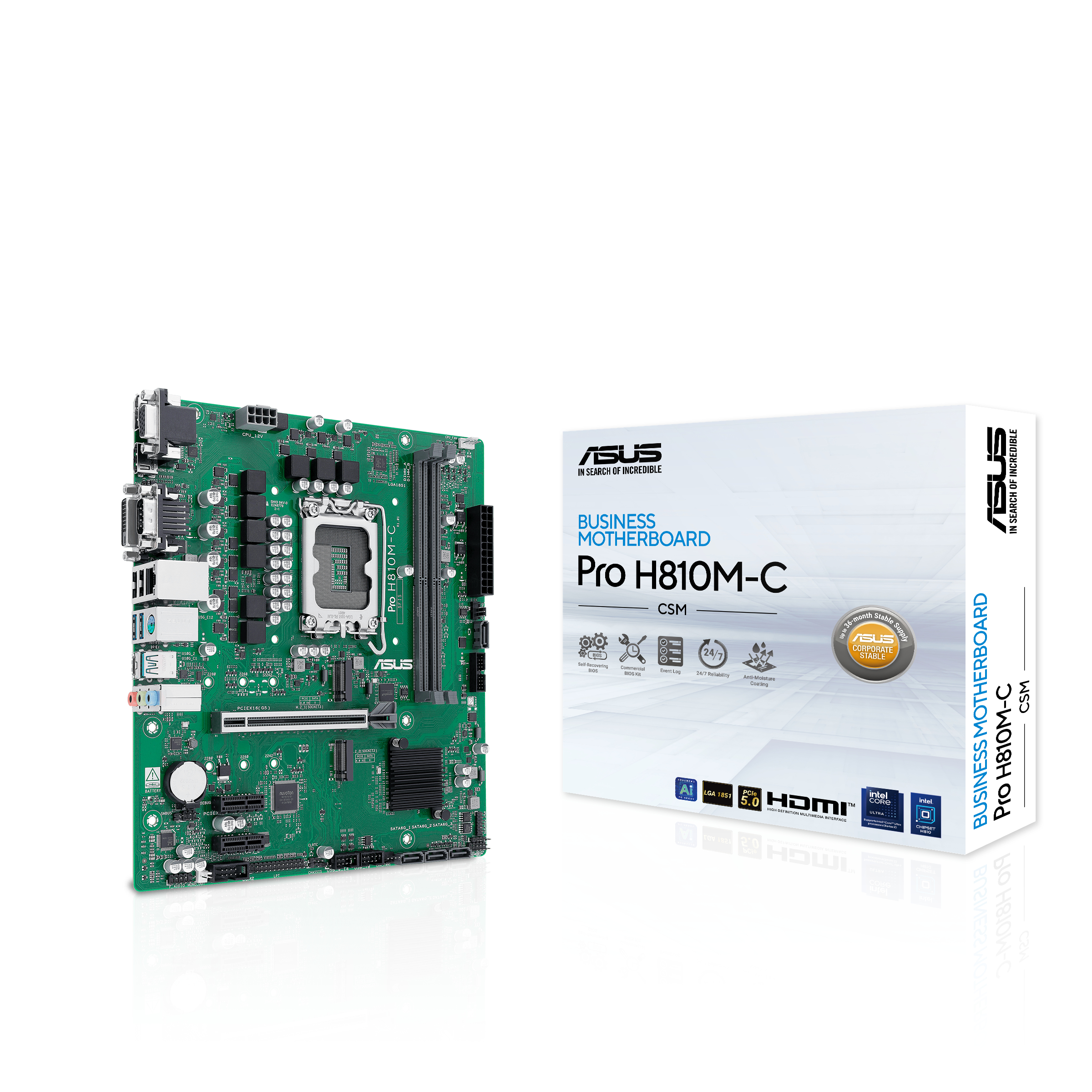

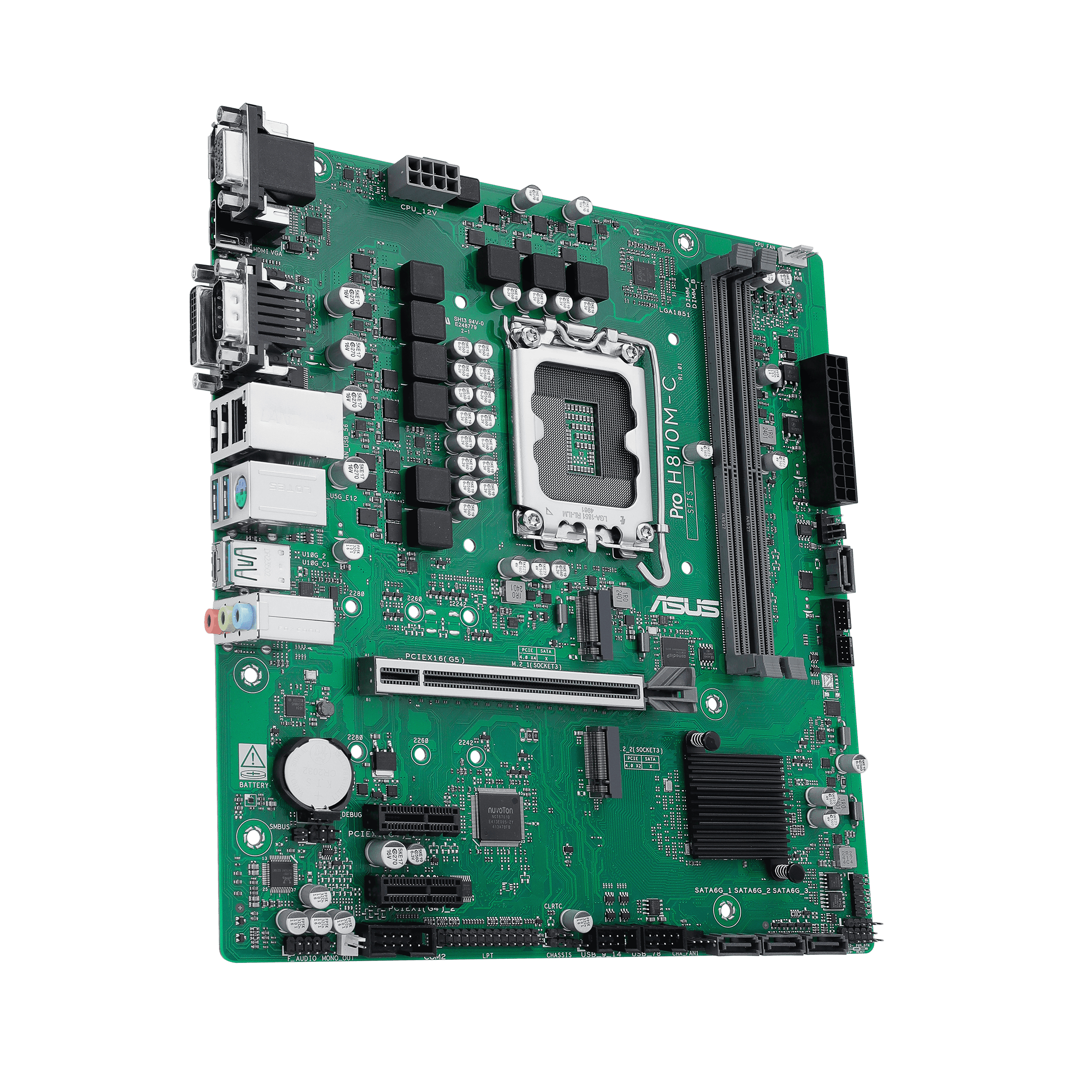

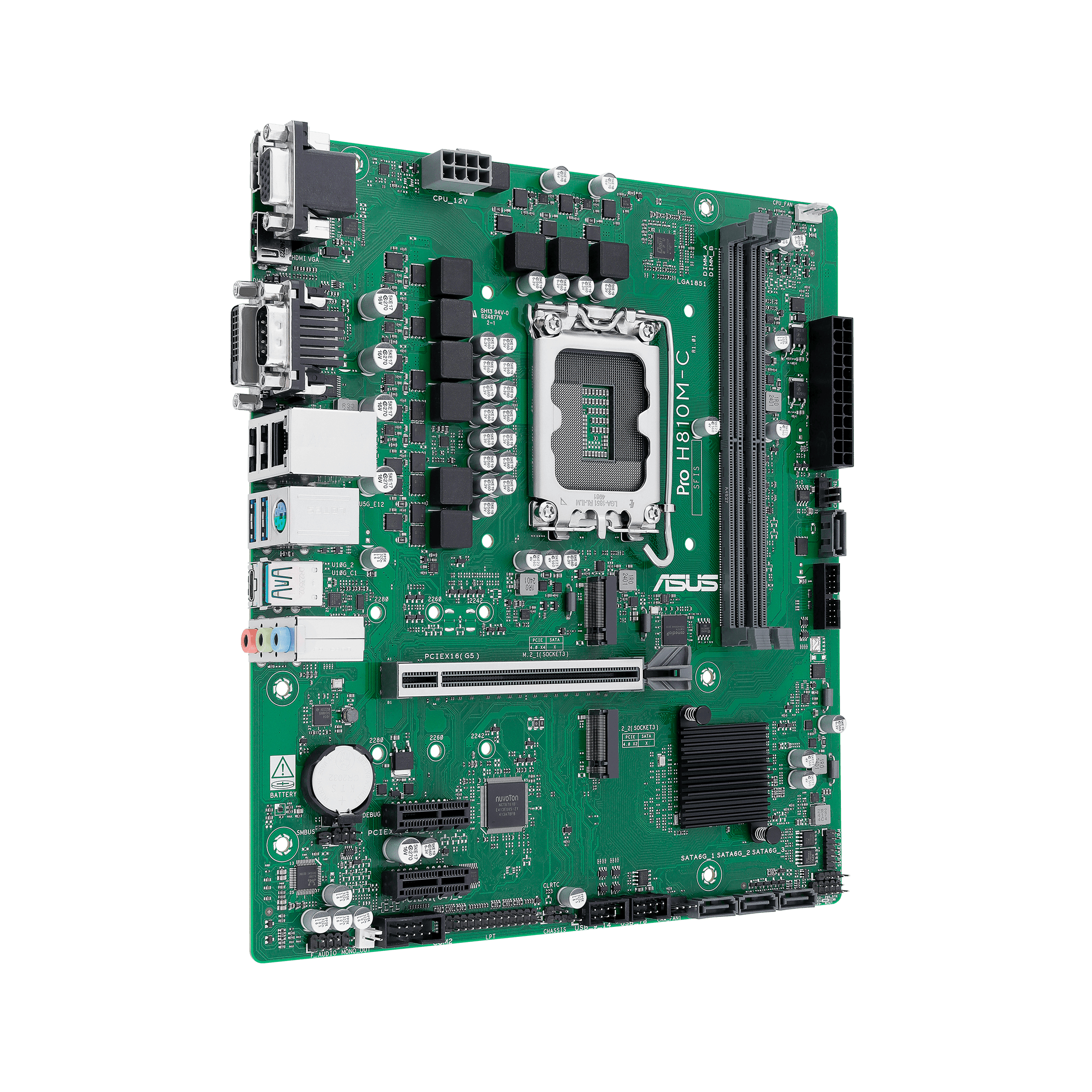

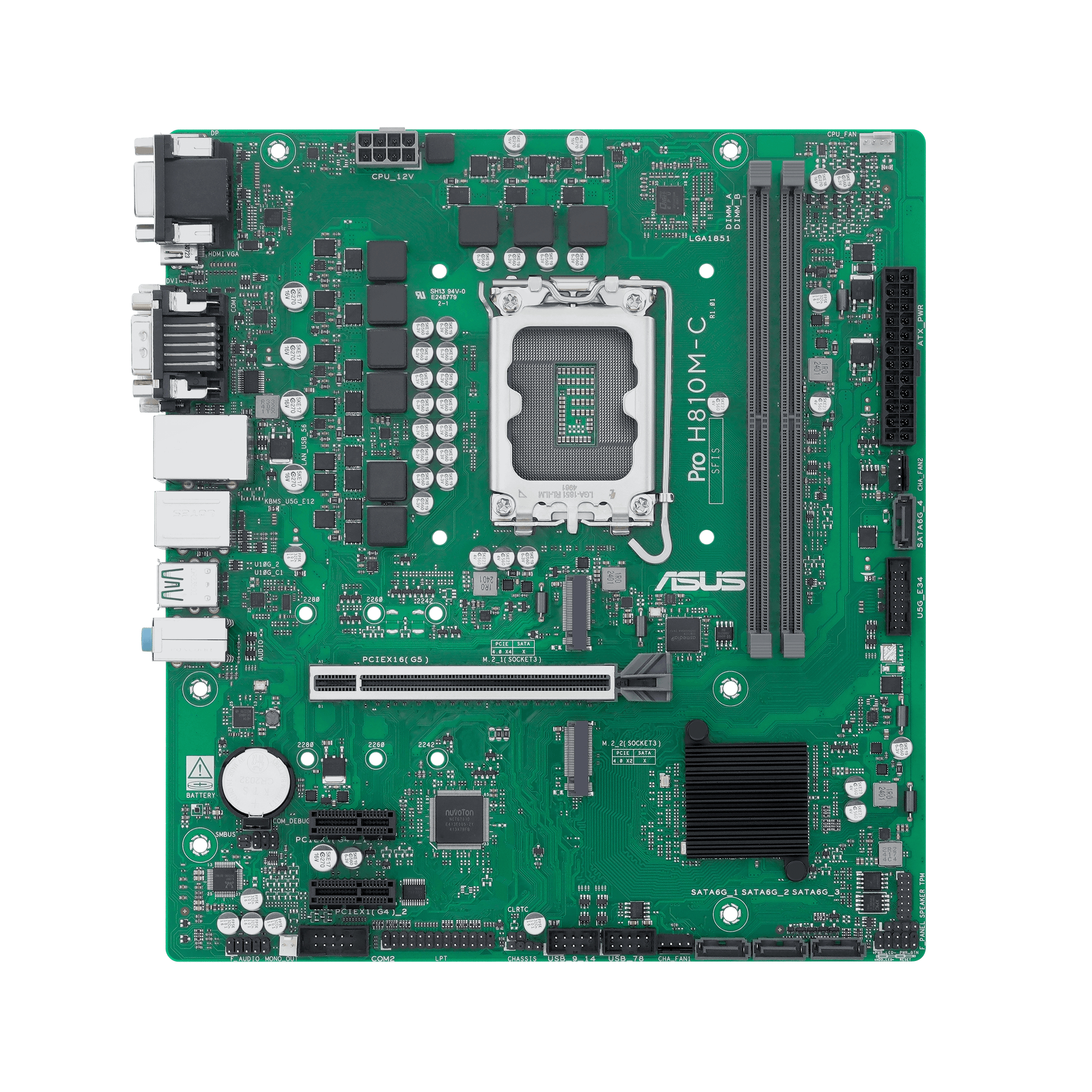

ASUS PRO H810M-C-CSM Intel H810 LGA 1851 (Socket V1) micro ATX
Product no.: 90MB1KHP-M0EAYC
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.
| Processor | |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1851 (Socket V1) |
| Compatible processor series: | Intel Core Ultra (Series 2) |
| Supported processor sockets: | LGA 1851 |
| Memory | |
| Supported memory types: | DDR5-SDRAM |
| Number of memory slots: | 2 |
| Maximum internal memory: | 128 GB |
| Memory slots type: | DIMM |
| Memory channels: | Dual-channel |
| ECC ompatibility: | Non-ECC |
| Unbuffered memory: | Yes |
| Storage controllers | |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| Number of HDDs supported: | 4 |
| Number of storage drives supported: | 6 |
| Graphics | |
| Parallel processing technology support: | Not supported |
| Internal I/O | |
| USB 2.0 connectors: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors: | 0 |
| Number of SATA III connectors: | 4 |
| Audio connector: | Yes |
| Front panel audio connector: | Yes |
| Front panel connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| CPU fan connector: | Yes |
| Number of CPU fan connectors: | 1 |
| Number of chassis fan connectors: | 2 |
| Chassis intrusion connector: | Yes |
| Number of COM connectors: | 1 |
| TPM connector: | Yes |
| 12V power connector: | Yes |

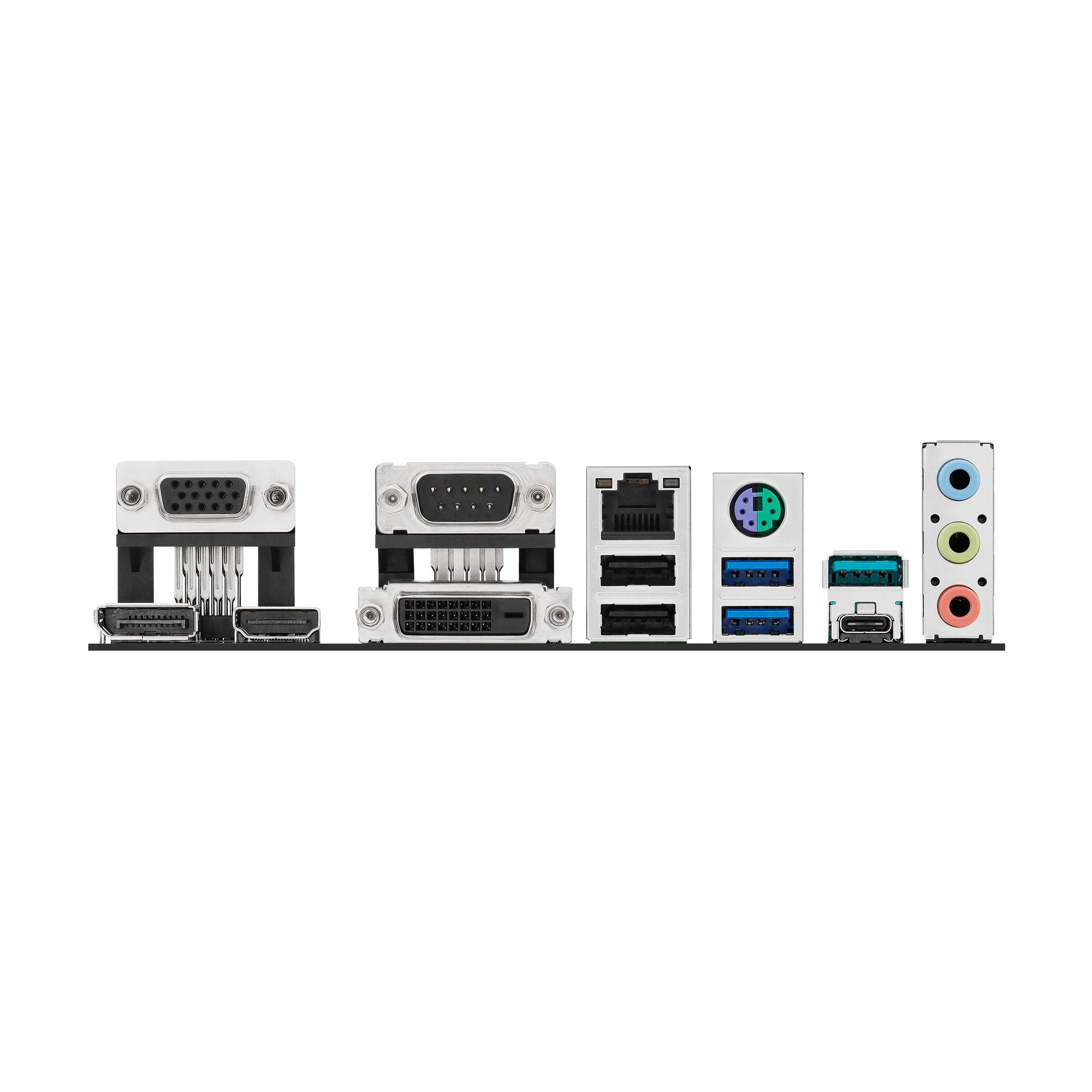

| Rear panel I/O ports | |
| USB 2.0 ports quantity: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| VGA (D-Sub) ports quantity: | 1 |
| HDMI ports quantity: | 1 |
| DVI-D ports quantity: | 1 |
| PS/2 ports quantity: | 1 |
| DisplayPorts quantity: | 1 |
| COM ports quantity: | 1 |
| Network | |
| Wi-Fi: | No |
| Ethernet LAN: | Yes |
| Ethernet interface type: | Gigabit Ethernet |
| Features | |
| Component for: | PC |
| Motherboard form factor: | micro ATX |
| Motherboard chipset family: | Intel |
| Motherboard chipset: | Intel H810 |
| Audio output channels: | 7.1 channels |
| Windows operating systems supported: | Windows 10 x64, Windows 11 |
| Expansion slots | |
| PCI Express x1 (Gen 4.x) slots: | 2 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| Number of M.2 (M) slots: | 2 |
| 1st M.2 largest key size: | 2280 |
| 1st M.2 highest PCI Express generation: | 4.0 |
| 2nd M.2 largest key size: | 2280 |
| 2nd M.2 highest PCI Express generation: | 4.0 |
| BIOS | |
| BIOS type: | UEFI AMI |
| BIOS memory size: | 256 Mbit |
| Packaging data | |
| Package width: | 270 mm |
| Package depth: | 263 mm |
| Package height: | 51.5 mm |
| Package weight: | 1 kg |
| Weight & dimensions | |
| Width: | 244 mm |
| Depth: | 222 mm |

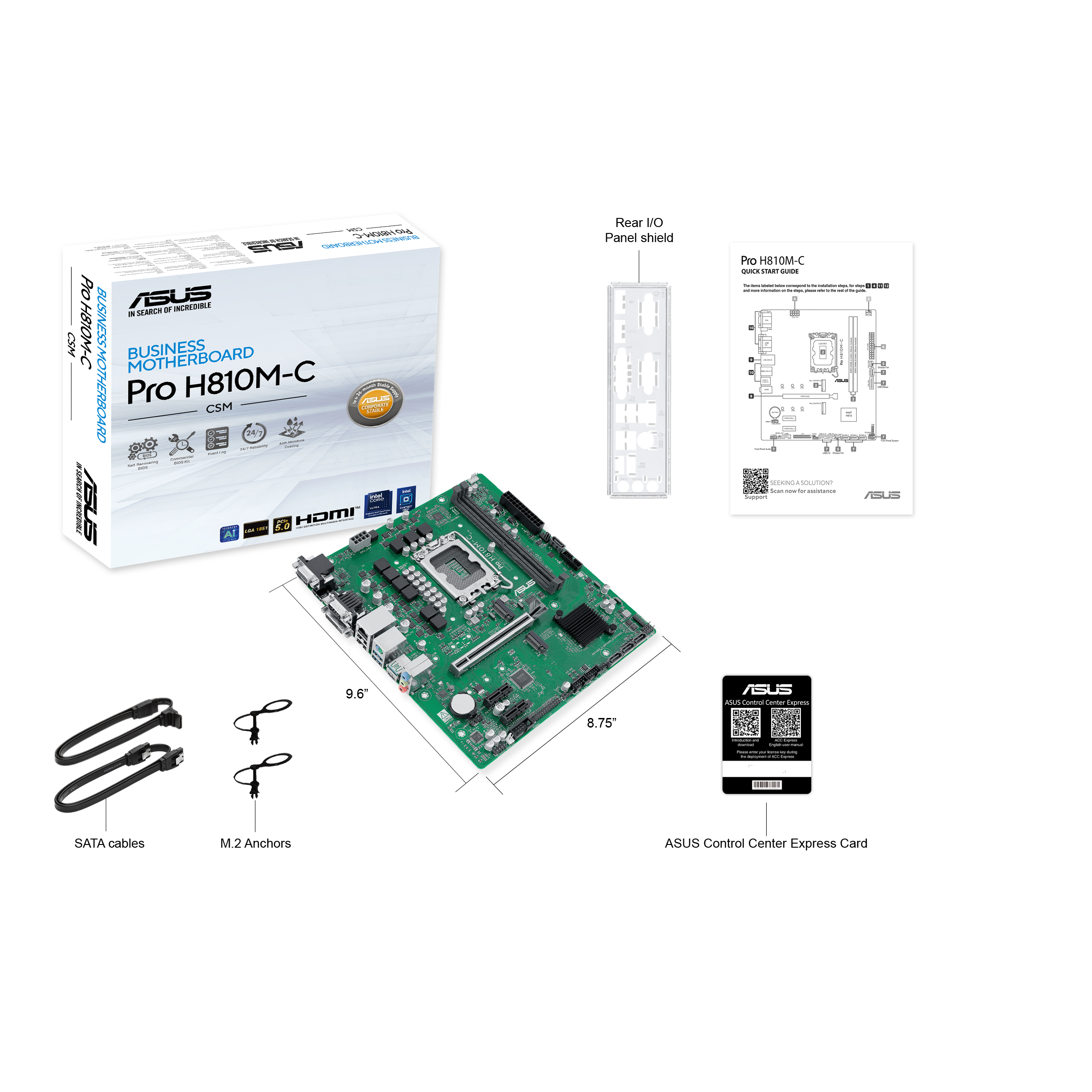

| Packaging content | |
| Cables included: | SATA |
Price:
0,00 €
19 % VAT incl. excl. Shipping costs
