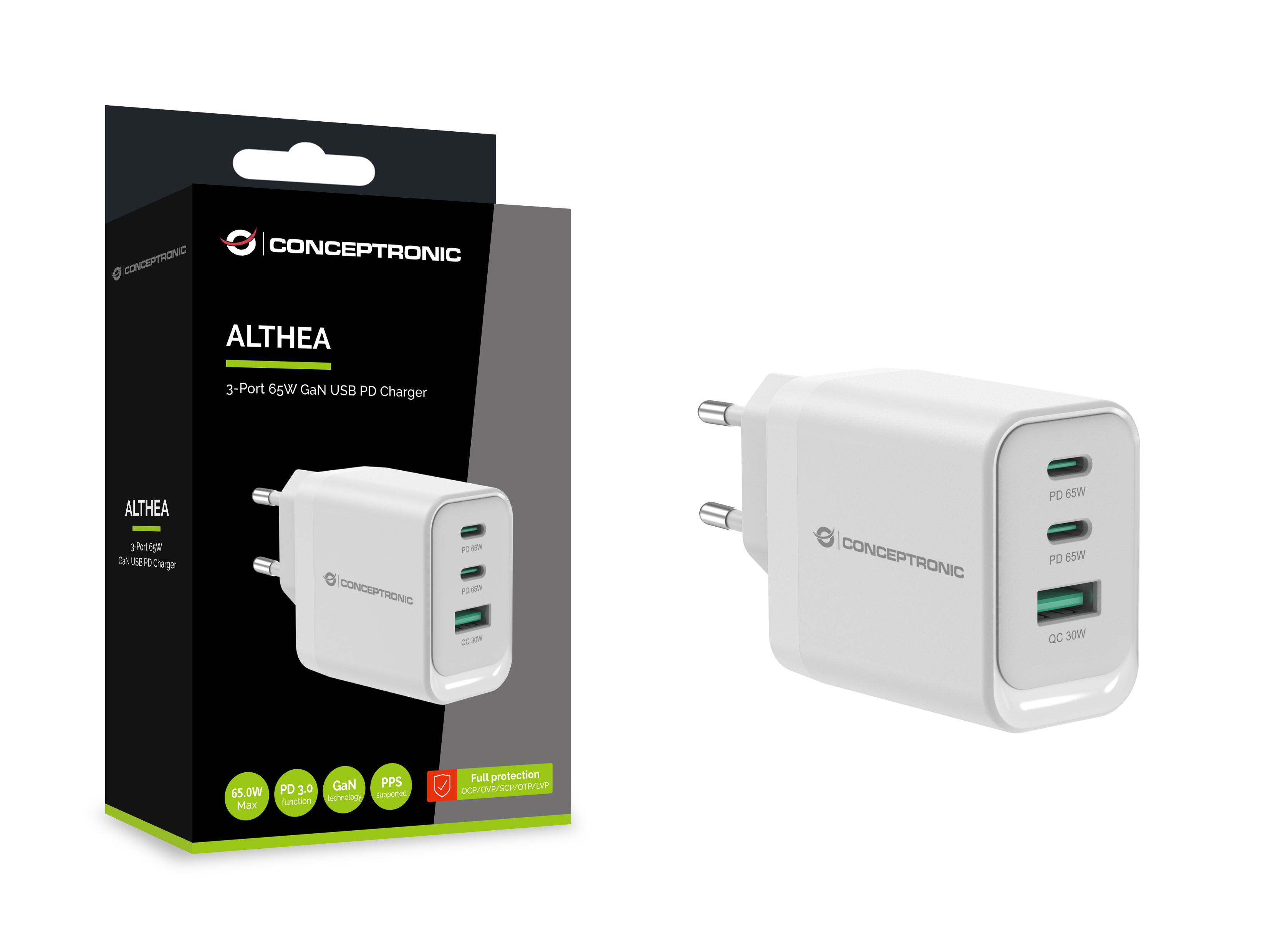

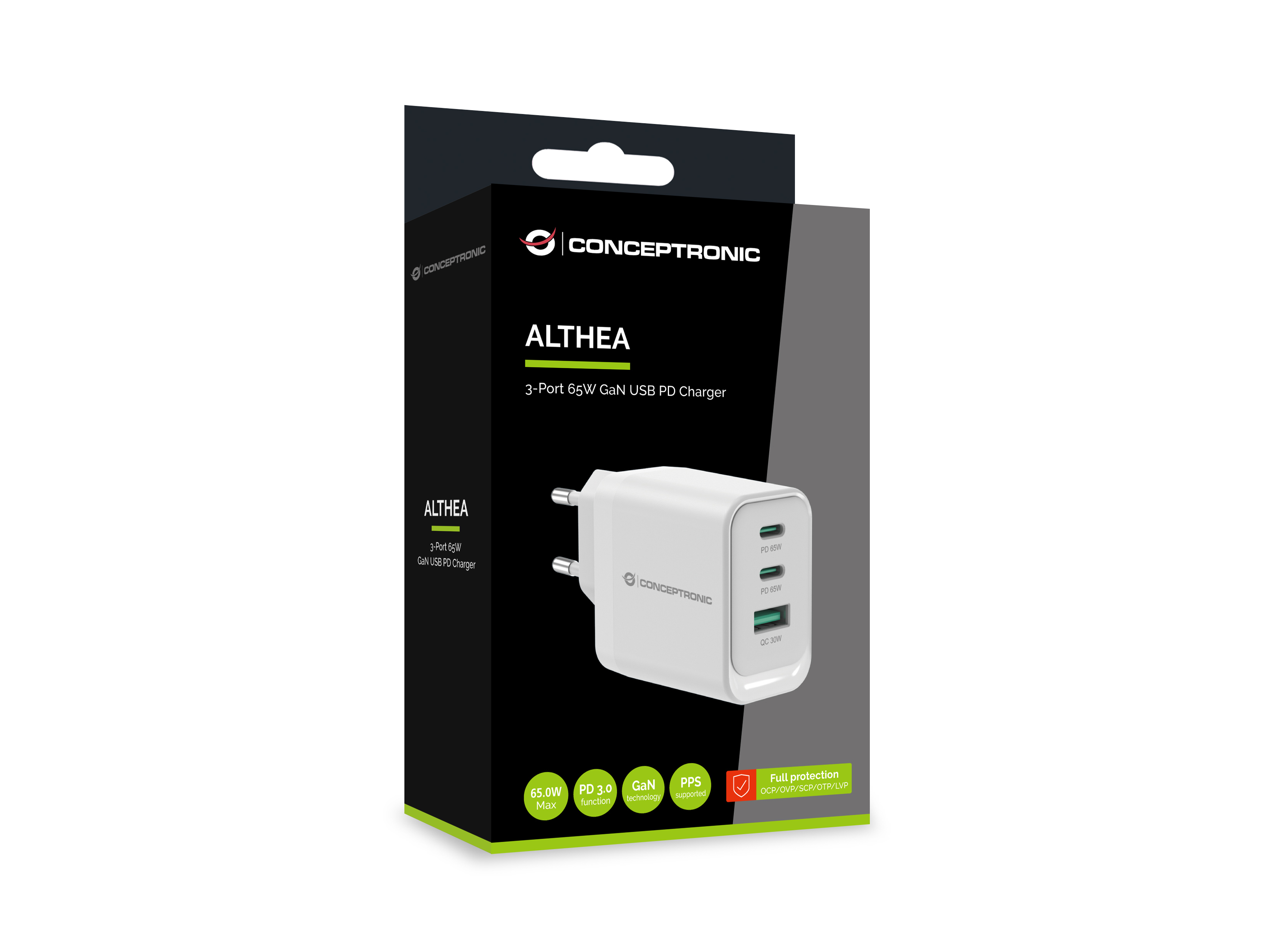

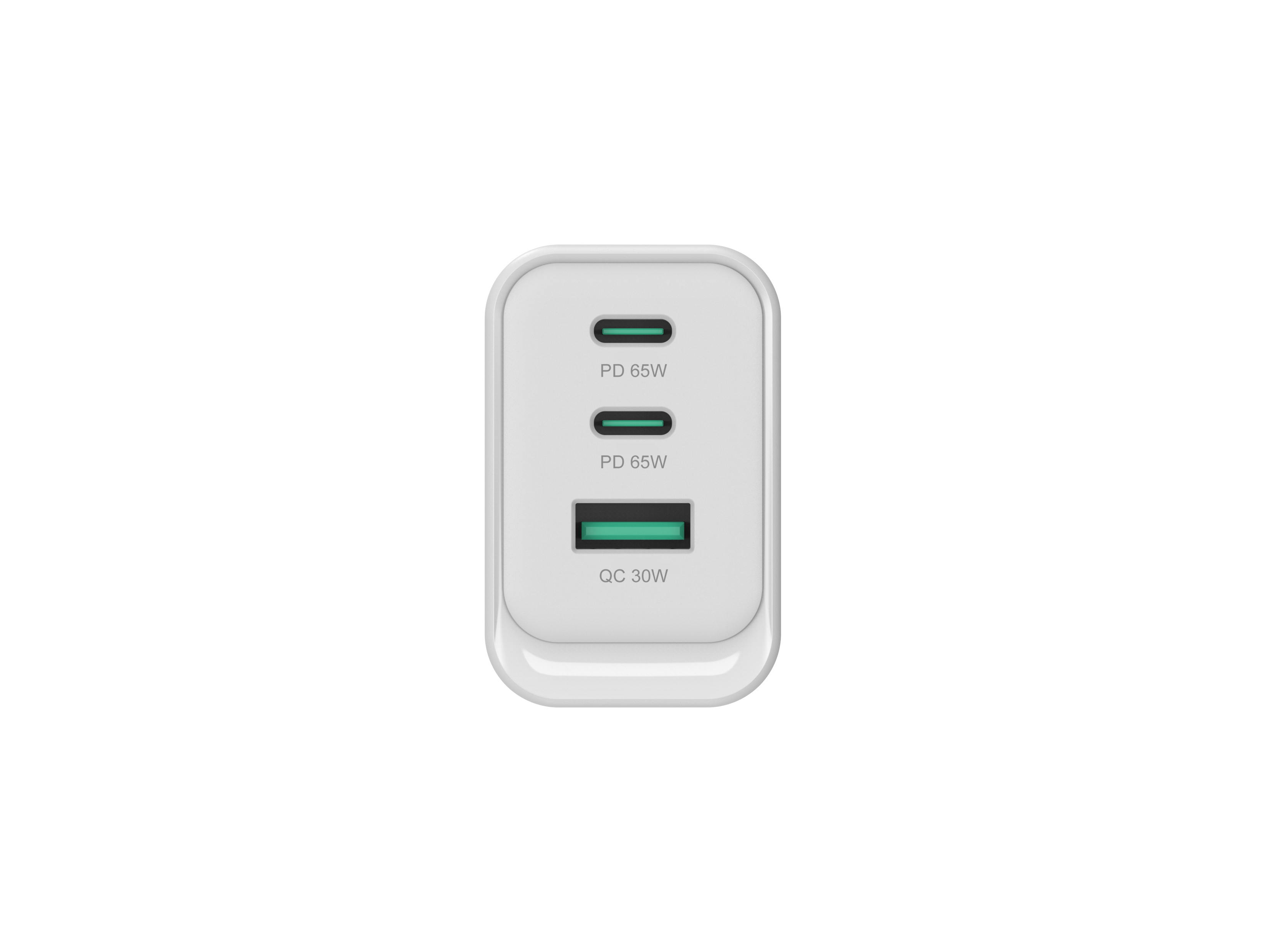

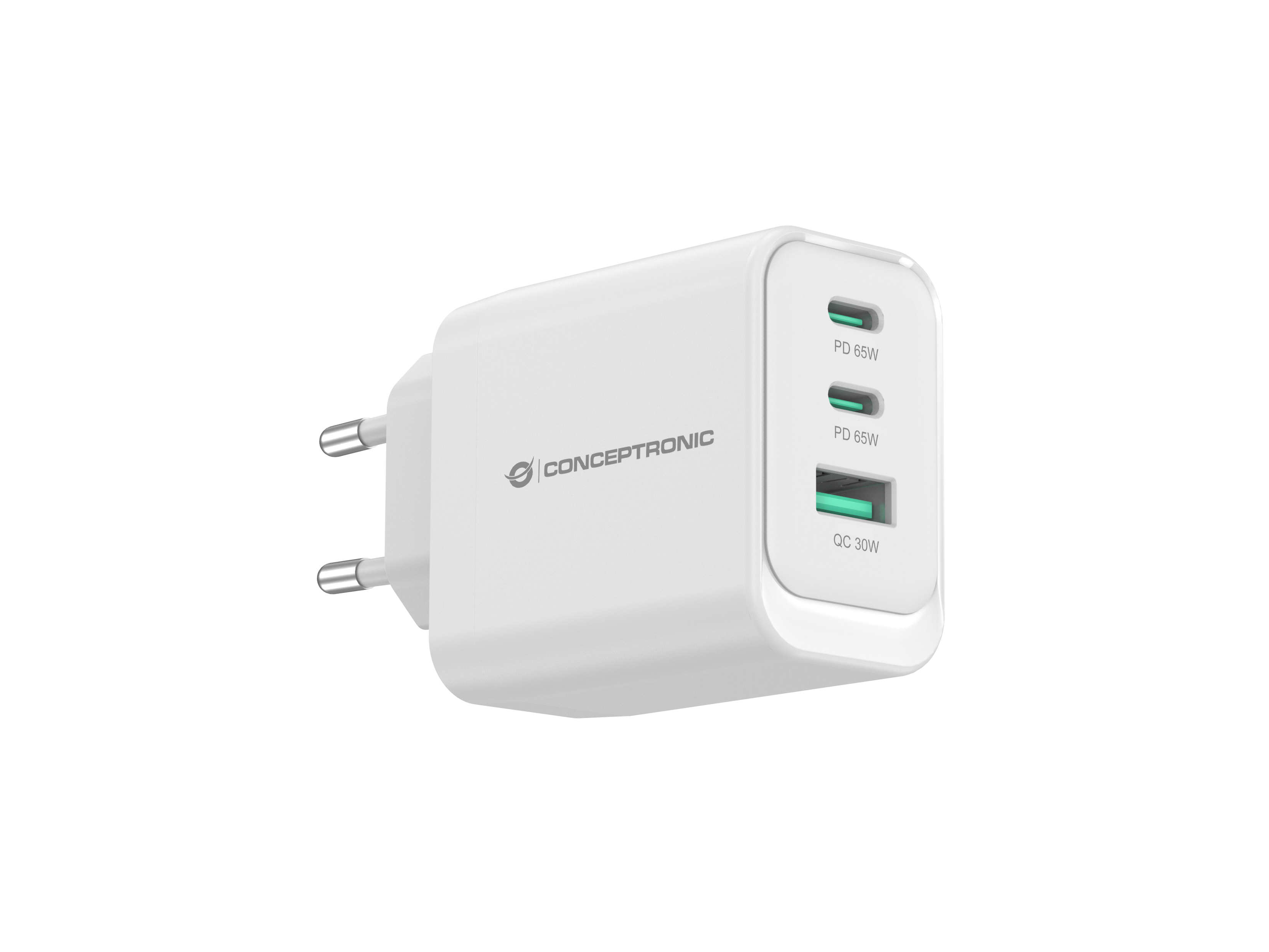

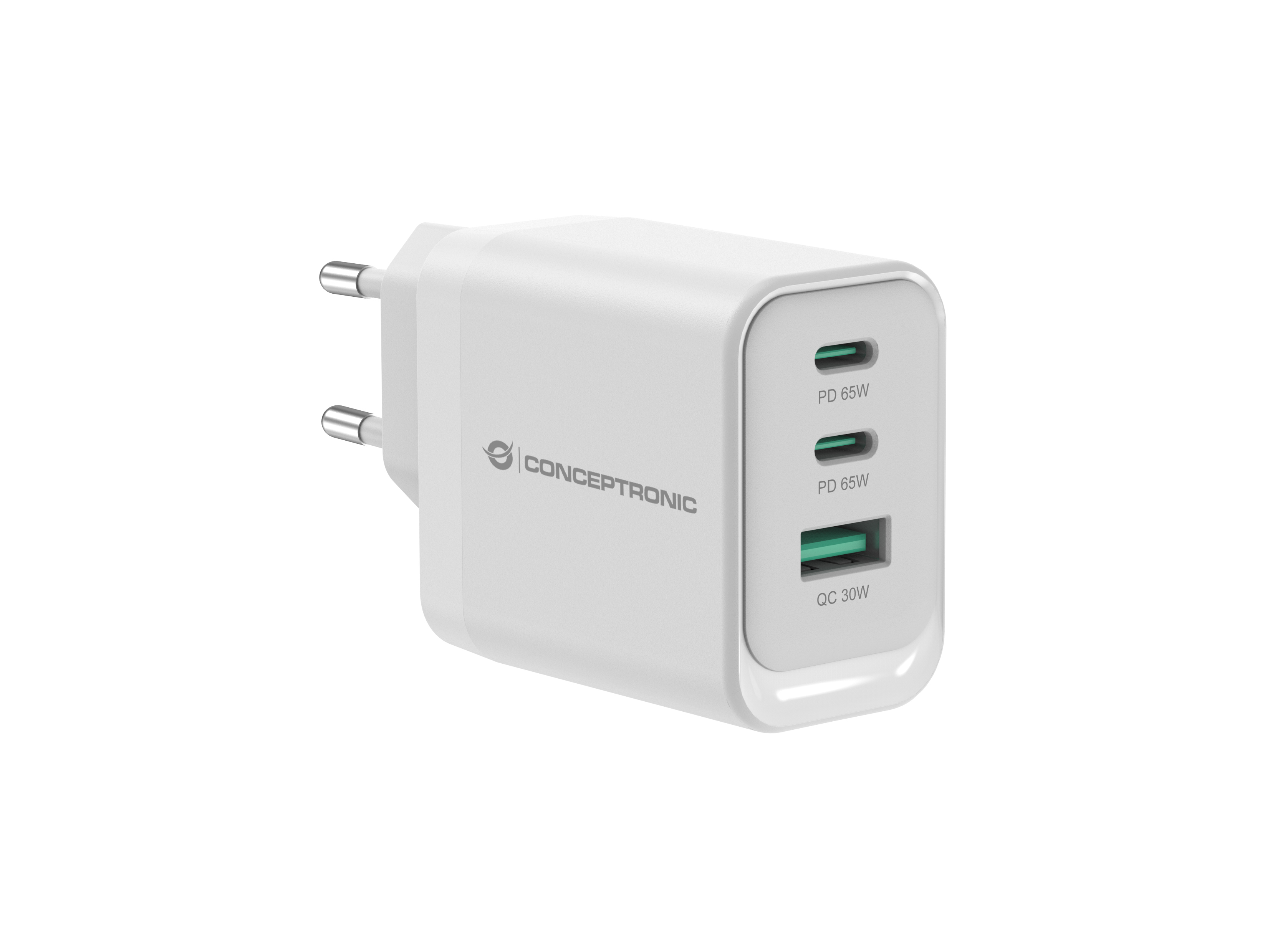

Conceptronic ALTHEA21W65 3-Port 65W GaN USB PD Charger, USB-C x 2, USB-A x 1, QC 3.0, PPS, PD 3.0
Product no.: ALTHEA21W65
This charger features cutting-edge Gallium Nitride (GaN) technology, delivering up to 65W of total power for faster and more efficient charging. It includes 3 versatile ports: 2 USB-C ports with USB Power Delivery (PD) 3.0 and 1 USB-A port with Quick Charge (QC) 3.0, allowing you to charge multiple devices simultaneously with varying power requirements. The charger supports output options ranging from 3.3V to 20.0V across its ports, ensuring broad compatibility with devices from smartphones to laptops. Enhanced safety features protect against overload, short circuiting, and overheating, safeguarding both the charger and connected devices. Additionally, it incorporates USB PD 3.0 and QC 3.0 technologies, along with Programmable Power Supply (PPS) compliance to maximize charging efficiency and minimize heat.
| Performance | |
| Charger type: | Indoor |
| Charger compatibility: | Universal |
| Power source type: | AC |
| Number of simultaneously connected devices (max): | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 1 |
| USB Type-C ports quantity: | 2 |
| Fast charging: | Yes |
| Fast charging technology: | Power Delivery 3.0, Programmable Power Supply (PPS), Quick Charge 3.0 |
| Programmable power supply (PPS): | Yes |
| USB Power Delivery (USB PD): | Yes |
| USB Power Delivery revision: | 3.0 |
| Power protection features: | Overheating, Overload, Short circuit |
| Design | |
| Product colour: | White |
| Cable length: | 1.5 m |
| Housing material: | Polycarbonate (PC) |
| Gallium nitride (GaN) transistors: | Yes |
| Power | |
| Input voltage: | 100 - 240 V |
| Input frequency: | 50 - 60 Hz |
| Input current: | 1.5 A |
| Maximum power: | 65 W |
| Maximum output voltage: | 20 V |
| Minimum output voltage: | 3.3 V |
| Port 1 output current: | 4.5 A |
| Port 2 output current: | 4.5 A |
| Port 3 output current: | 3 A |
| Weight & dimensions | |
| Width: | 57 mm |
| Depth: | 51 mm |
| Height: | 32 mm |
| Weight: | 129.6 g |
| Packaging data | |
| Package width: | 127 mm |
| Package depth: | 84 mm |
| Package height: | 35 mm |
| Package weight: | 177.6 g |
| Package type: | Hanging box |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 40 °C |
| Storage temperature (T-T): | -20 - 80 °C |
| Storage relative humidity (H-H): | 10 - 90% |
| Packaging content | |
| Cables included: | USB Type-C to USB Type-C |
| Manual: | Yes |
| Certificates | |
| Compliance certificates: | CE, RoHS |
| Technical details | |
| Master (outer) cases per pallet: | 32 pc(s) |
| Logistics data | |
| Customs product code (TARIC): | 8504408390 |
| Harmonized System (HS) code: | 850440 |
| Pallet gross width: | 120 cm |
| Pallet gross length: | 80 cm |
| Pallet gross height: | 159.2 cm |
| Master (outer) case width: | 385 mm |
| Master (outer) case length: | 272 mm |
| Master (outer) case height: | 360 mm |
| Master (outer) case gross weight: | 14.9 kg |
| Products per master (outer) case: | 80 pc(s) |
| Country of origin: | China |
Price:
41,00 €
19 % VAT incl. excl. Shipping costs
