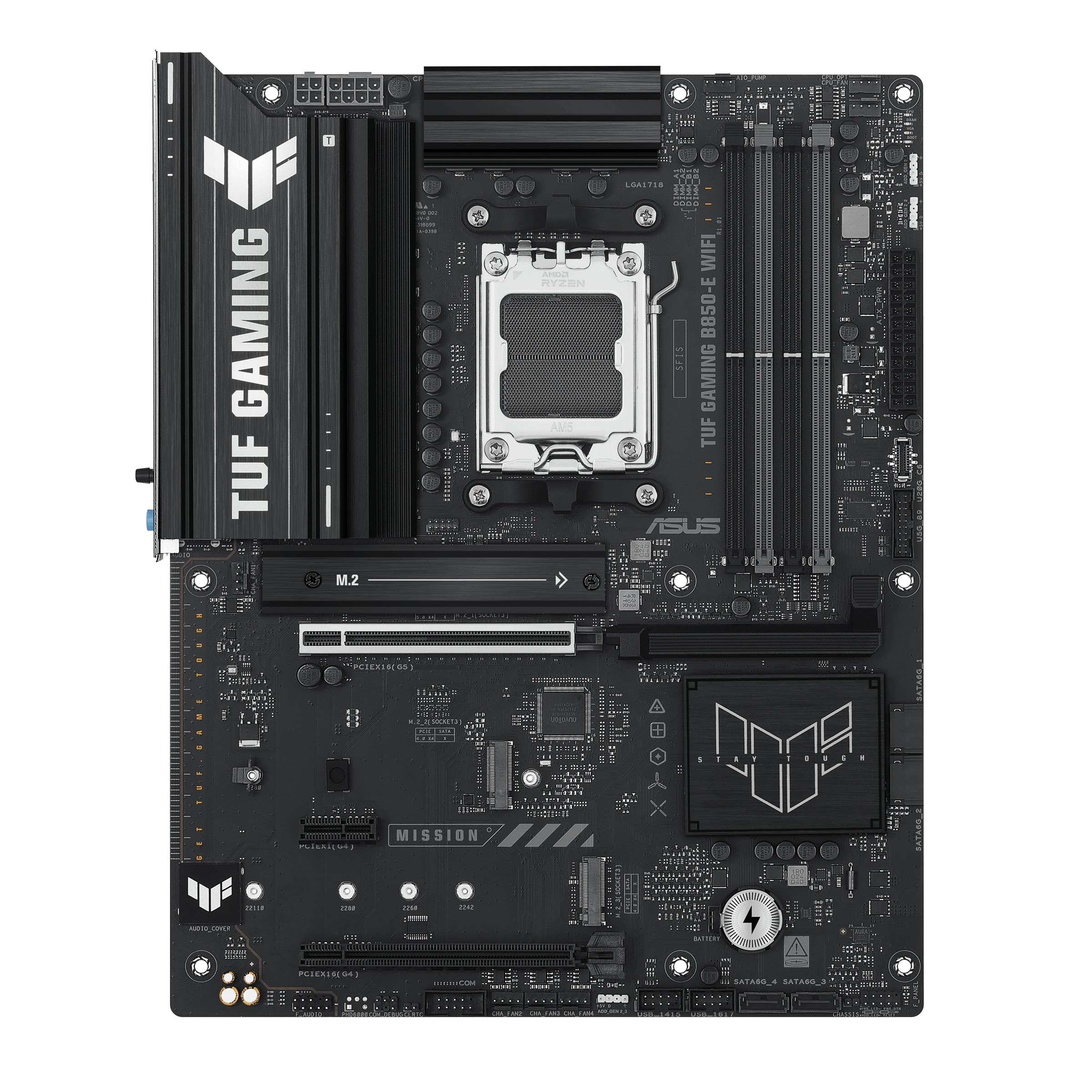

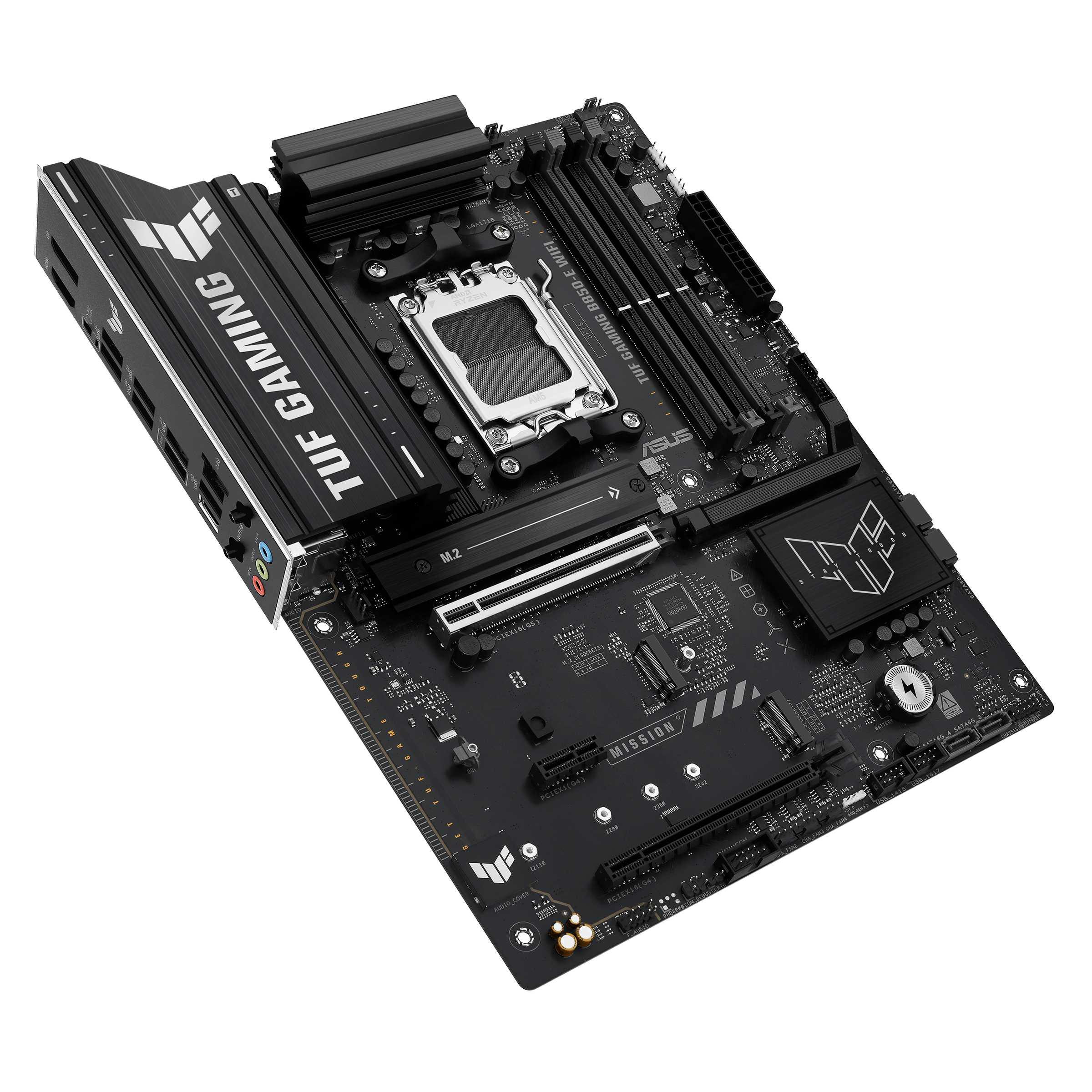

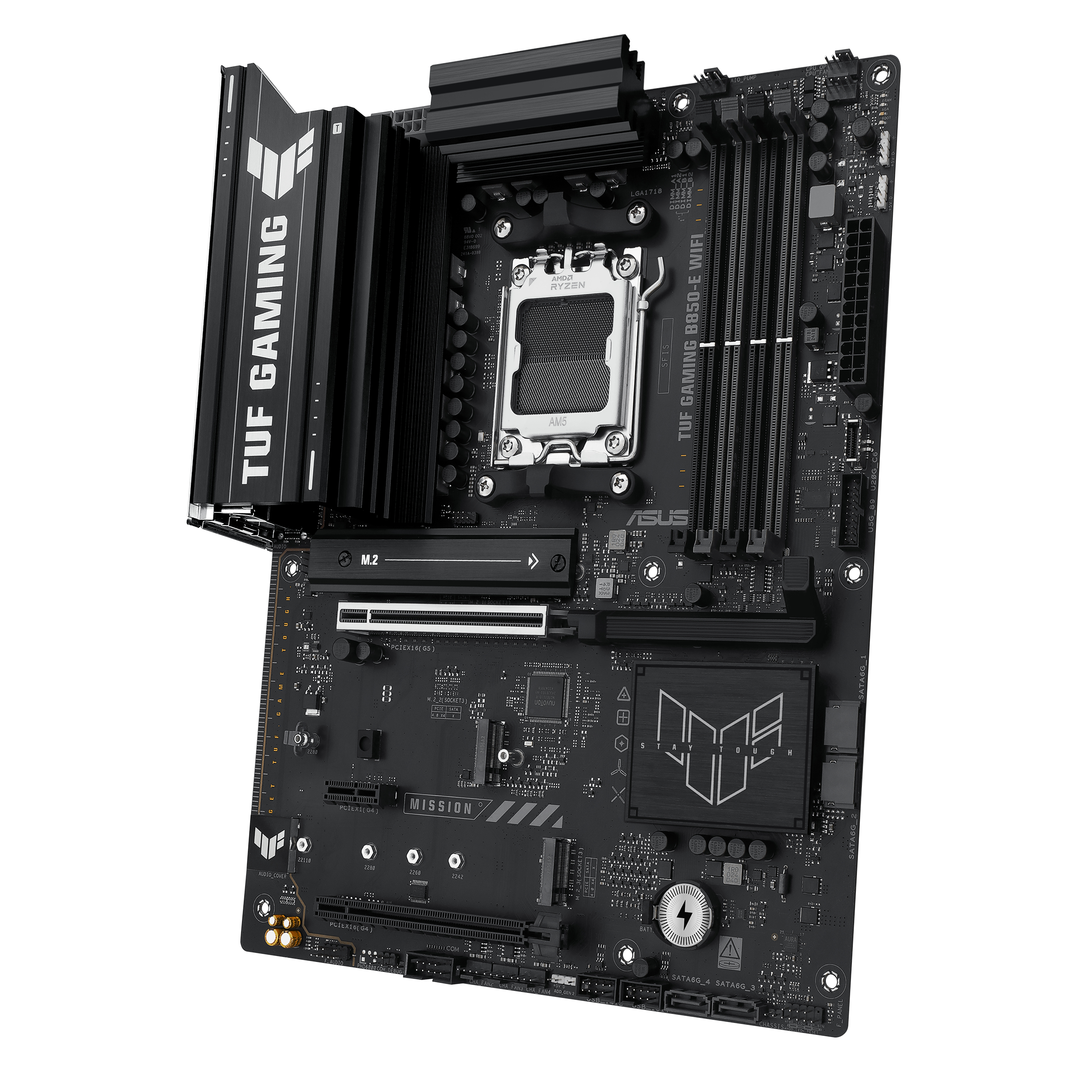

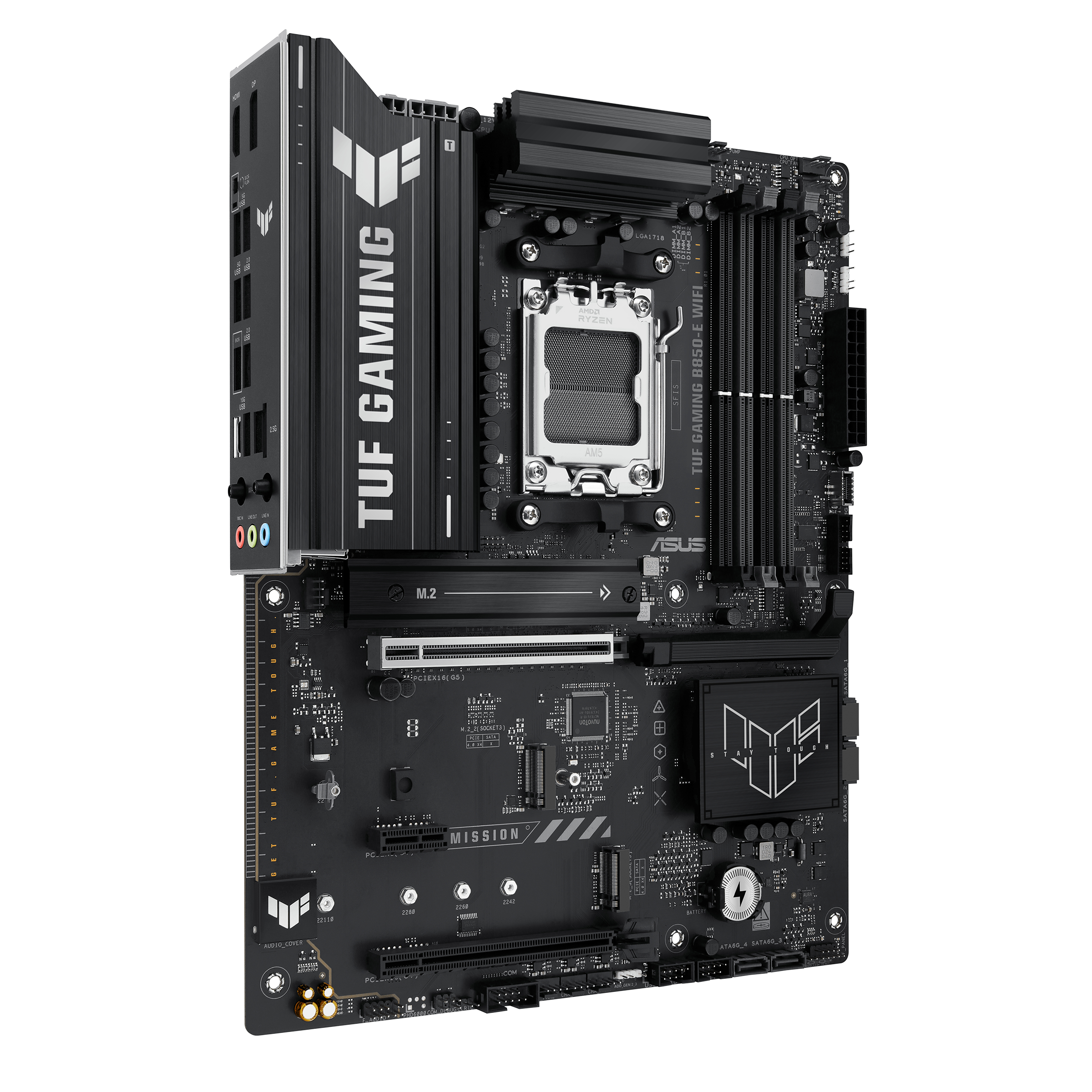

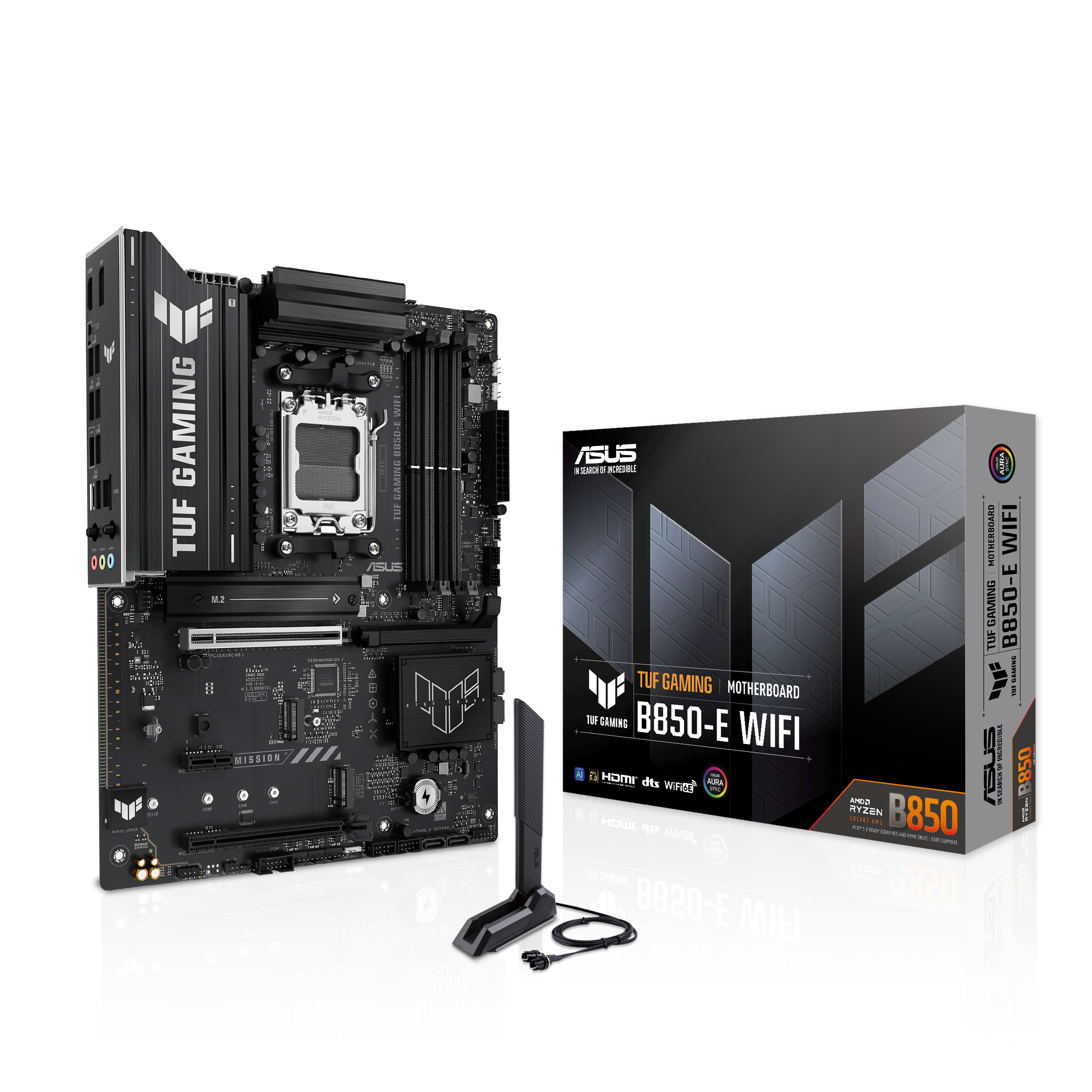

ASUS TUF GAMING B850-E WIFI AMD B850 Socket AM5 ATX
Product no.: 90MB1L20-M0EAY0
TUF GAMING B850-E WIFI
ASUS TUF GAMING B850-E WIFI takes all the essential elements of the latest AMD Ryzen processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
| Processor | |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM5 |
| Compatible processor series: | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Memory | |
| Supported memory types: | DDR5-SDRAM |
| Number of memory slots: | 4 |
| Maximum internal memory: | 256 GB |
| Memory slots type: | DIMM |
| Memory channels: | Dual-channel |
| ECC ompatibility: | ECC & Non-ECC |
| Supported memory clock speed (max): | 8000 MHz |
| Unbuffered memory: | Yes |
| Storage controllers | |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| Number of HDDs supported: | 4 |
| Number of storage drives supported: | 7 |
| RAID support: | Yes |
| RAID levels: | 0, 1, 5, 10 |
| Graphics | |
| Parallel processing technology support: | Not supported |
| Internal I/O | |
| USB 2.0 connectors: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors: | 0 |
| Number of SATA III connectors: | 4 |
| USB 3.2 Gen 2x2 connectors: | 1 |
| Front panel audio connector: | Yes |
| Front panel connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| CPU fan connector: | Yes |
| Number of CPU fan connectors: | 1 |
| Number of chassis fan connectors: | 4 |
| Chassis intrusion connector: | Yes |
| EPS power connector (8-pin): | Yes |
| Number of COM connectors: | 1 |
| 12V power connector: | Yes |

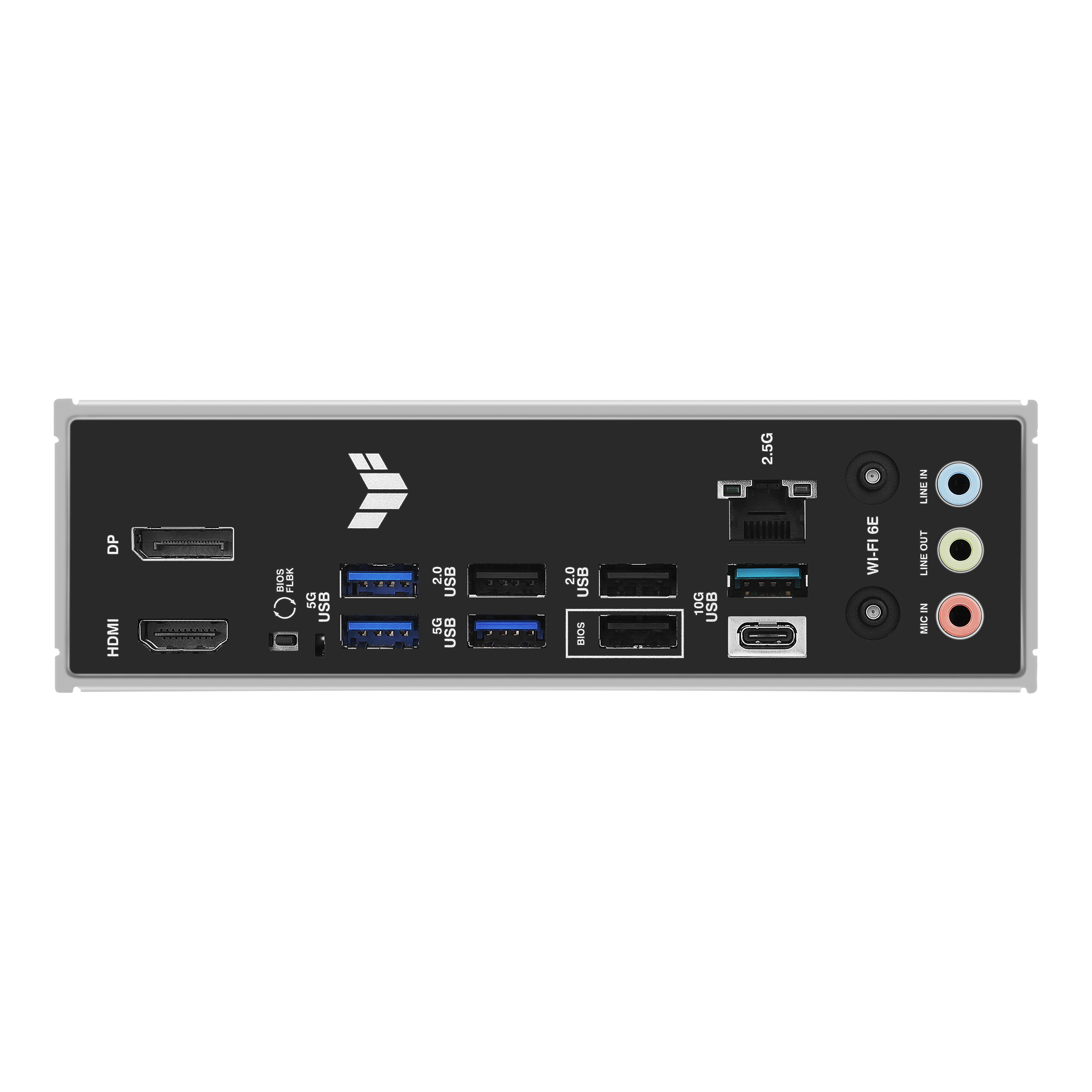

| Rear panel I/O ports | |
| USB 2.0 ports quantity: | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| VGA (D-Sub) ports quantity: | 0 |
| HDMI ports quantity: | 1 |
| DVI-D ports quantity: | 0 |
| DisplayPorts quantity: | 1 |
| Line-in: | Yes |
| Microphone in: | Yes |

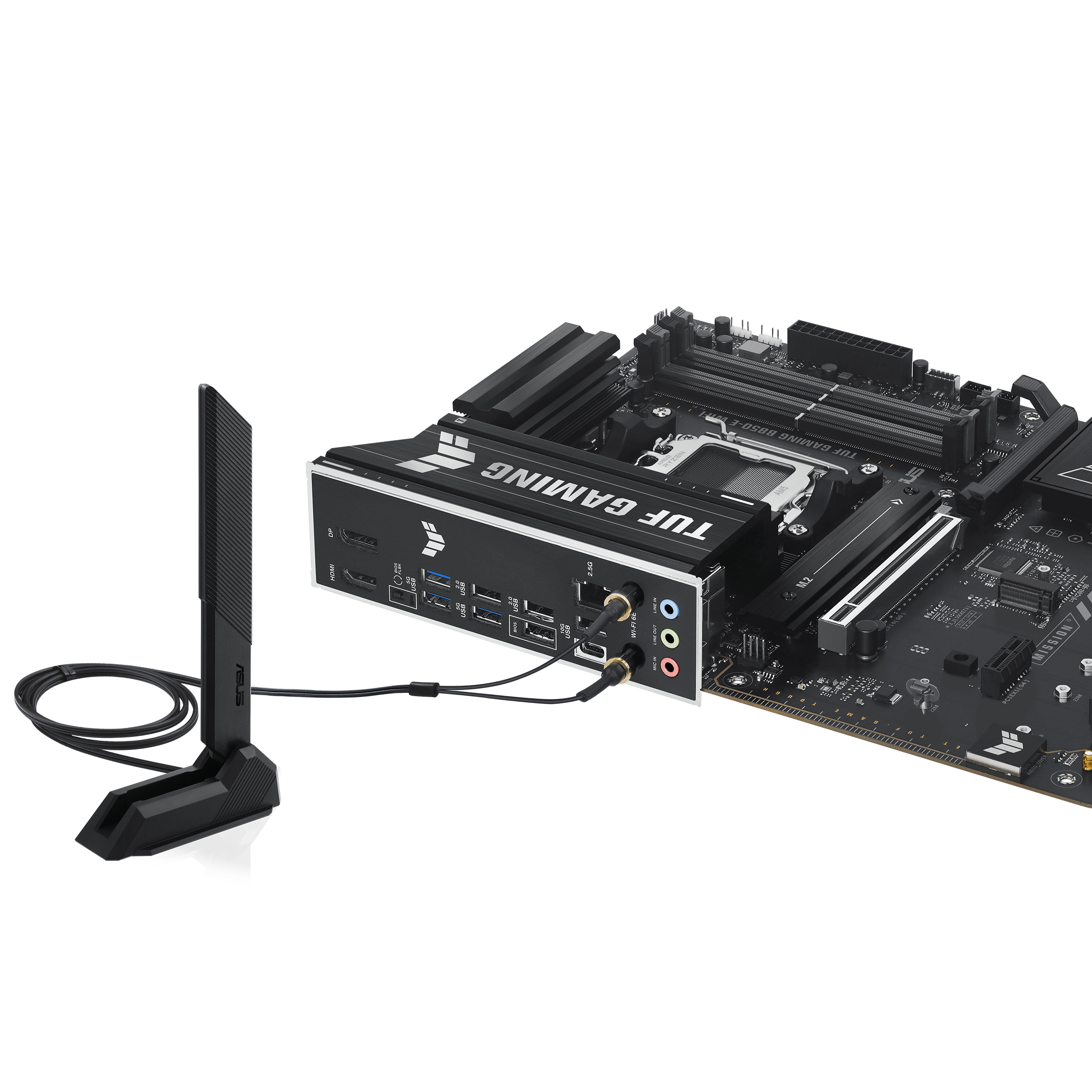

| WiFi-AP antenna jack: | 2 |
| USB connector type: | USB Type-A, USB Type-C |
| Network | |
| Wi-Fi: | Yes |
| Ethernet LAN: | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard: | Wi-Fi 6E (802.11ax) |
| Bluetooth: | Yes |
| Bluetooth version: | 5.3 |
| Features | |
| Component for: | PC |
| Motherboard form factor: | ATX |
| Motherboard chipset family: | AMD |
| Motherboard chipset: | AMD B850 |
| Audio output channels: | 7.1 channels |
| Product colour: | Multicolour |
| Windows operating systems supported: | Windows 10 x64, Windows 11 |
| Expansion slots | |
| PCI Express x1 (Gen 4.x) slots: | 1 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| Number of M.2 (M) slots: | 3 |
| BIOS | |
| BIOS type: | UEFI AMI |
| BIOS memory size: | 256 Mbit |
| Packaging data | |
| Package width: | 353 mm |
| Package depth: | 273 mm |
| Package height: | 68 mm |
| Package weight: | 1.78 kg |
| Weight & dimensions | |
| Width: | 305 mm |
| Depth: | 244 mm |
| Height: | 48 mm |

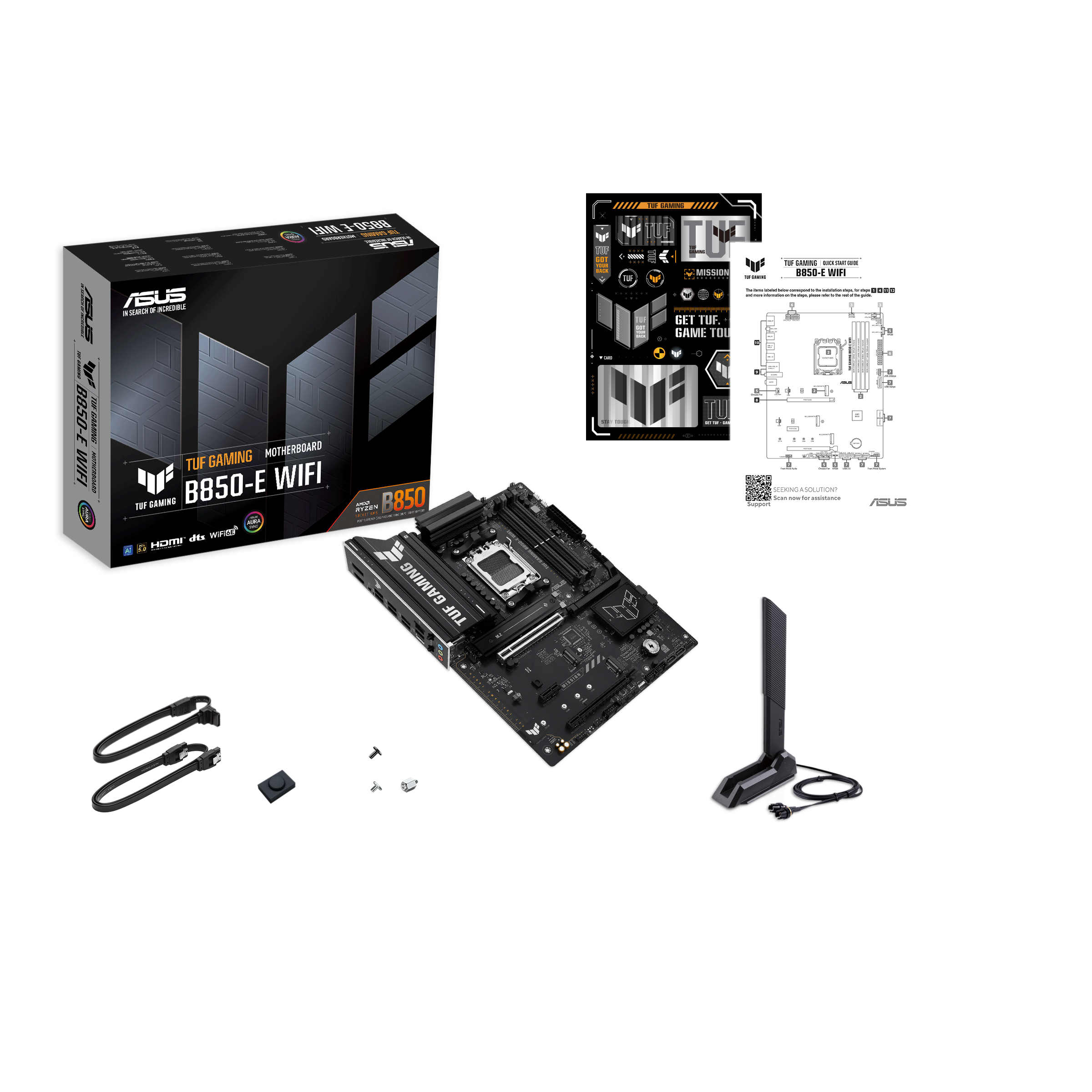

| Packaging content | |
| Antenna included: | Yes |
| Other features | |
| Weight: | 1.21 kg |
