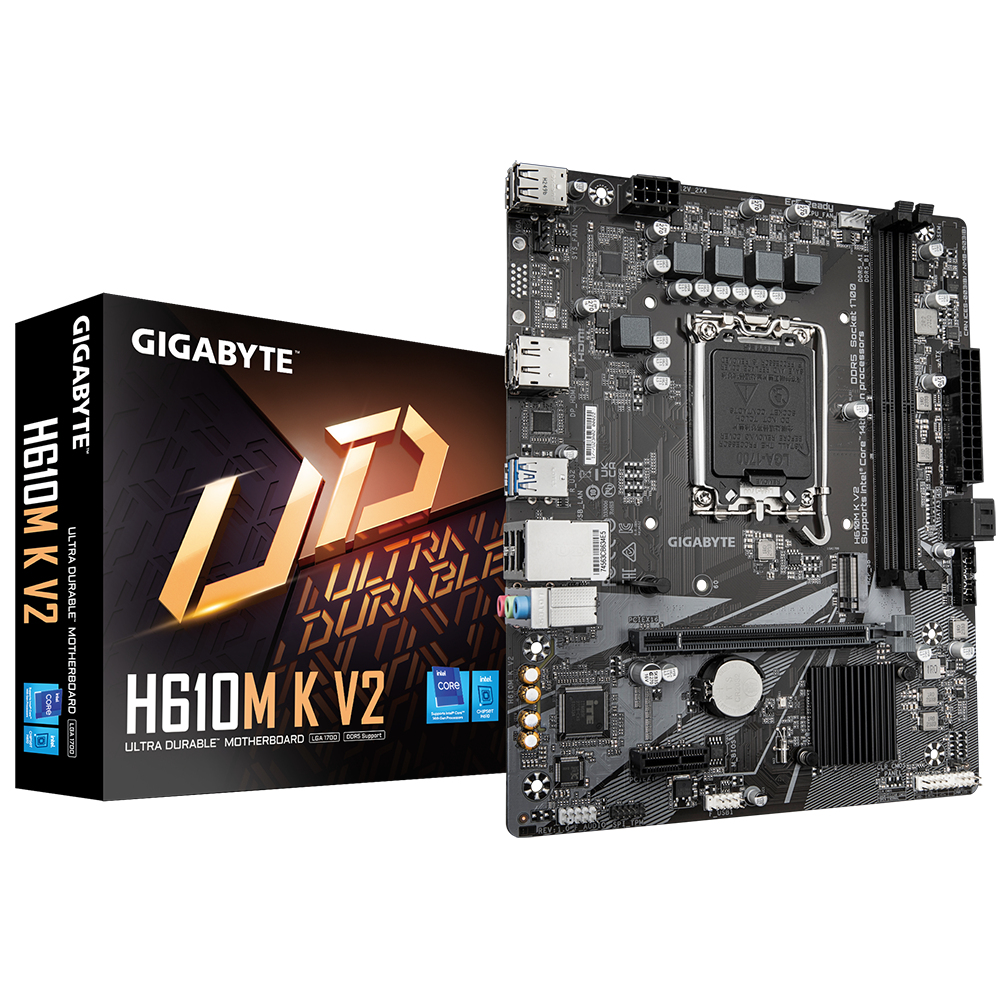

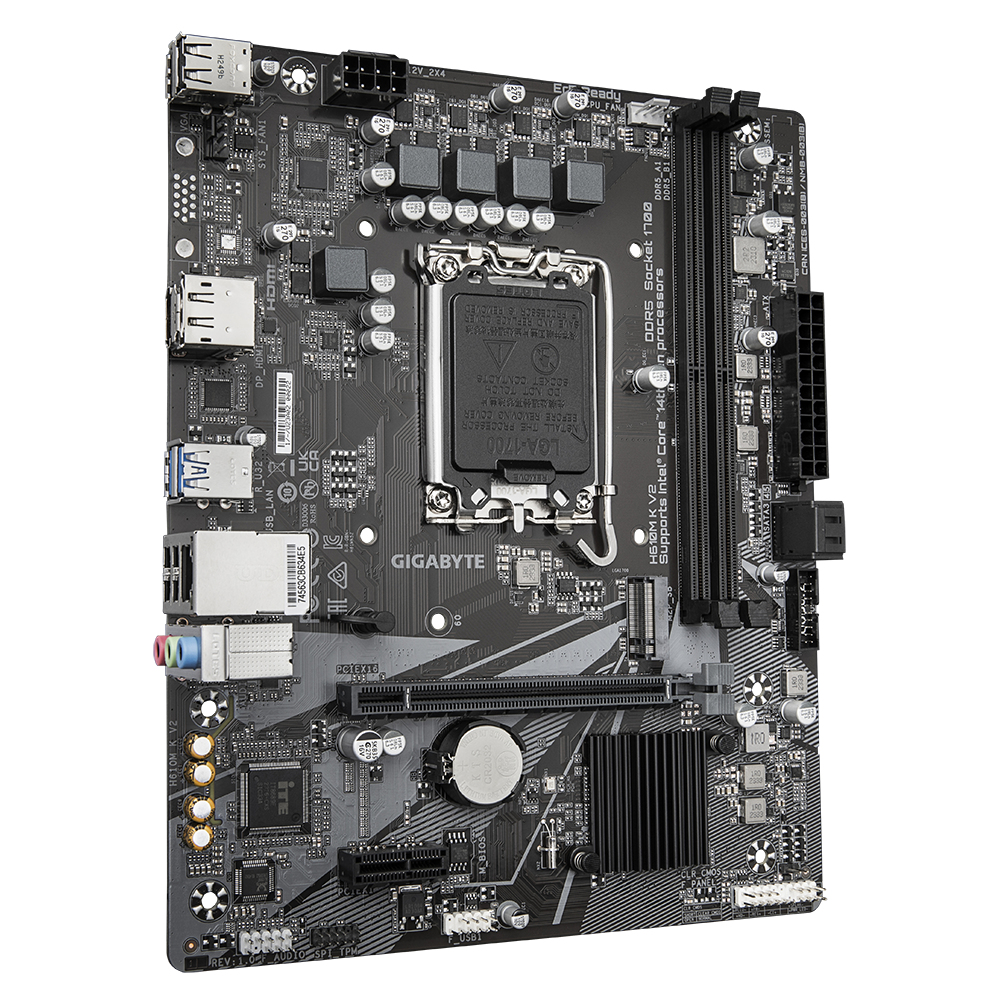

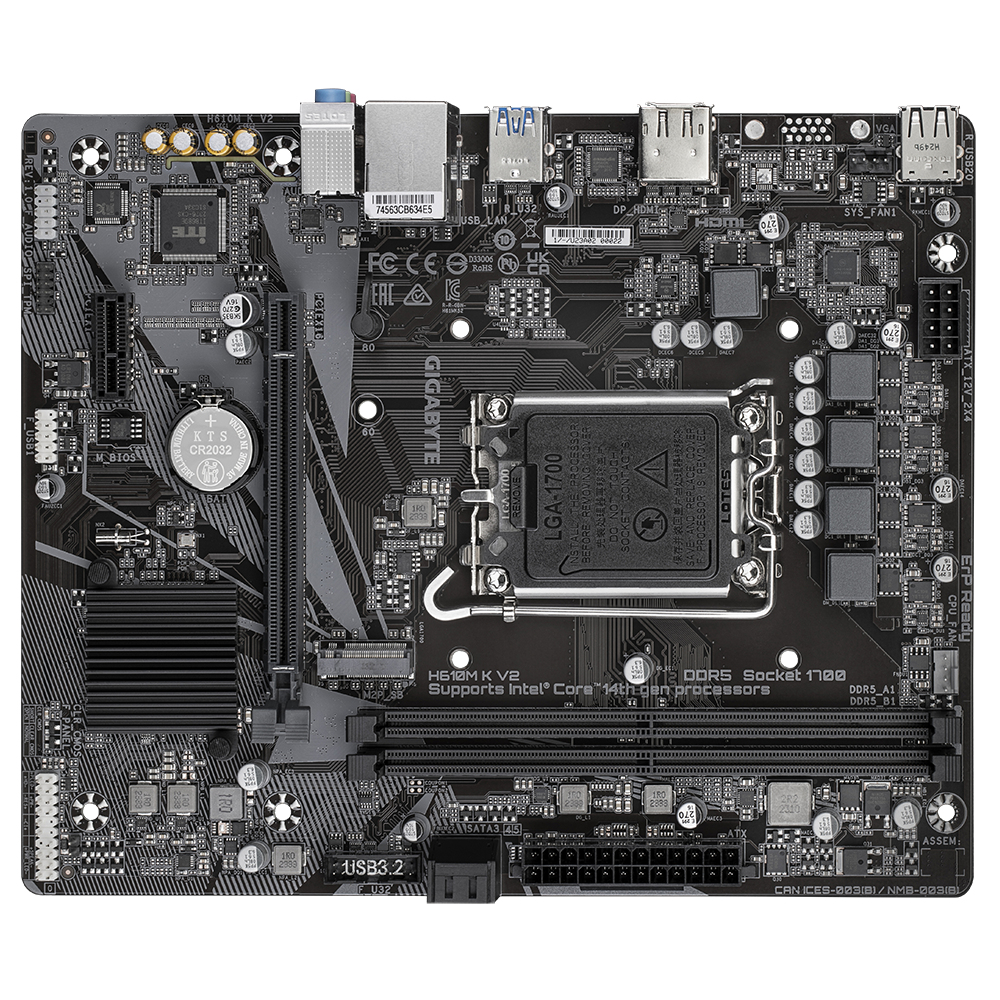

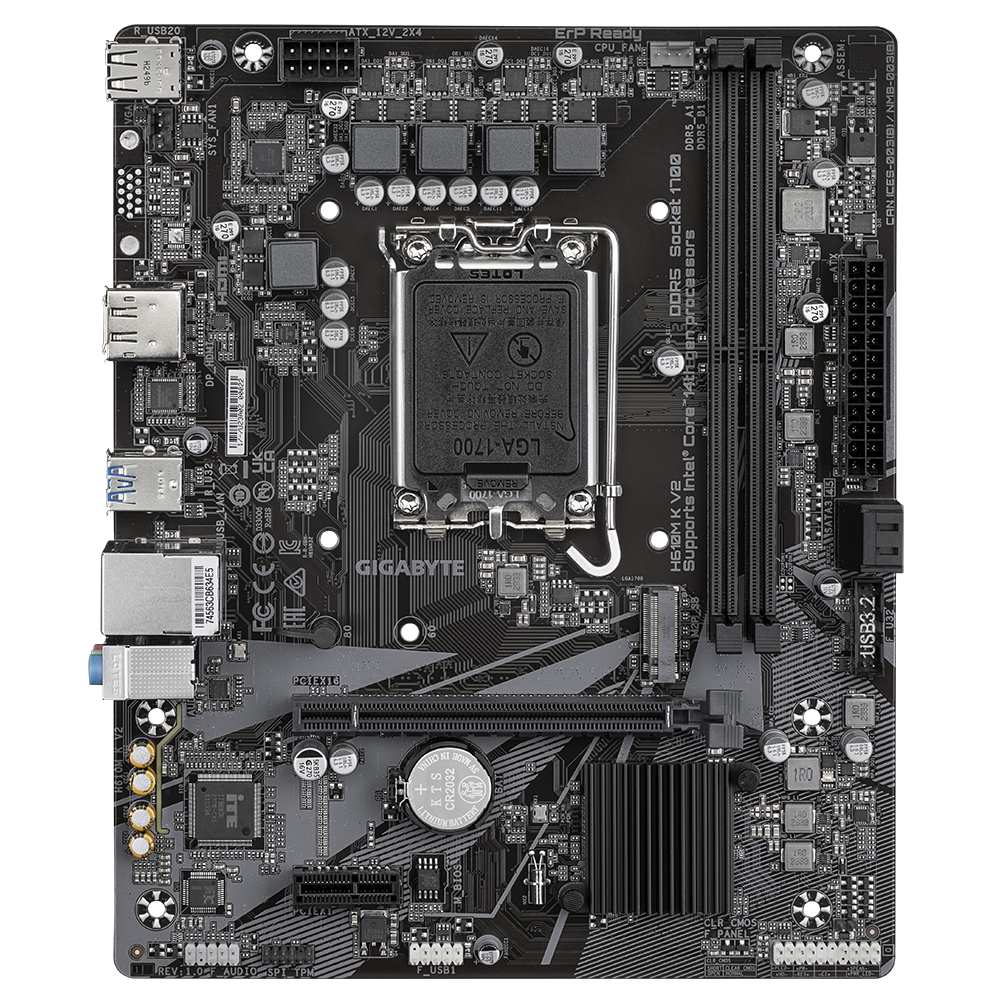

GIGABYTE H610M K V2 Motherboard - Intel Core 14th CPUs, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 1
Product no.: H610M K V2
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
| Processor | |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1700 |
| Compatible processor series: | Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® Gold |
| Supported processor sockets: | LGA 1700 |
| Memory | |
| Supported memory types: | DDR5-SDRAM |
| Number of memory slots: | 2 |
| Maximum internal memory: | 128 GB |
| Memory slots type: | DIMM |
| Memory channels: | Dual-channel |
| ECC ompatibility: | ECC & Non-ECC |
| Supported memory clock speeds: | 5600,5200,4800,4400 MHz |
| Supported memory clock speed (max): | 5600 MHz |
| Unbuffered memory: | Yes |
| Maximum internal memory per slot: | 64 GB |
| Storage controllers | |
| Supported storage drive interfaces: | M.2, PCI Express 3.0, SATA III |
| Supported storage drive types: | HDD & SSD |
| Number of HDDs supported: | 2 |
| Number of storage drives supported: | 3 |
| Graphics | |
| Parallel processing technology support: | Not supported |
| Maximum resolution: | 4096 x 2160 pixels |
| HDCP: | Yes |
| DirectX version: | 12.0 |
| Internal I/O | |
| USB 2.0 connectors: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors: | 0 |
| Number of SATA III connectors: | 2 |
| Front panel audio connector: | Yes |
| Front panel connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| CPU fan connector: | Yes |
| Number of CPU fan connectors: | 1 |
| EPS power connector (8-pin): | Yes |
| Number of EPS power connectors (8-pin): | 1 |
| TPM connector: | Yes |

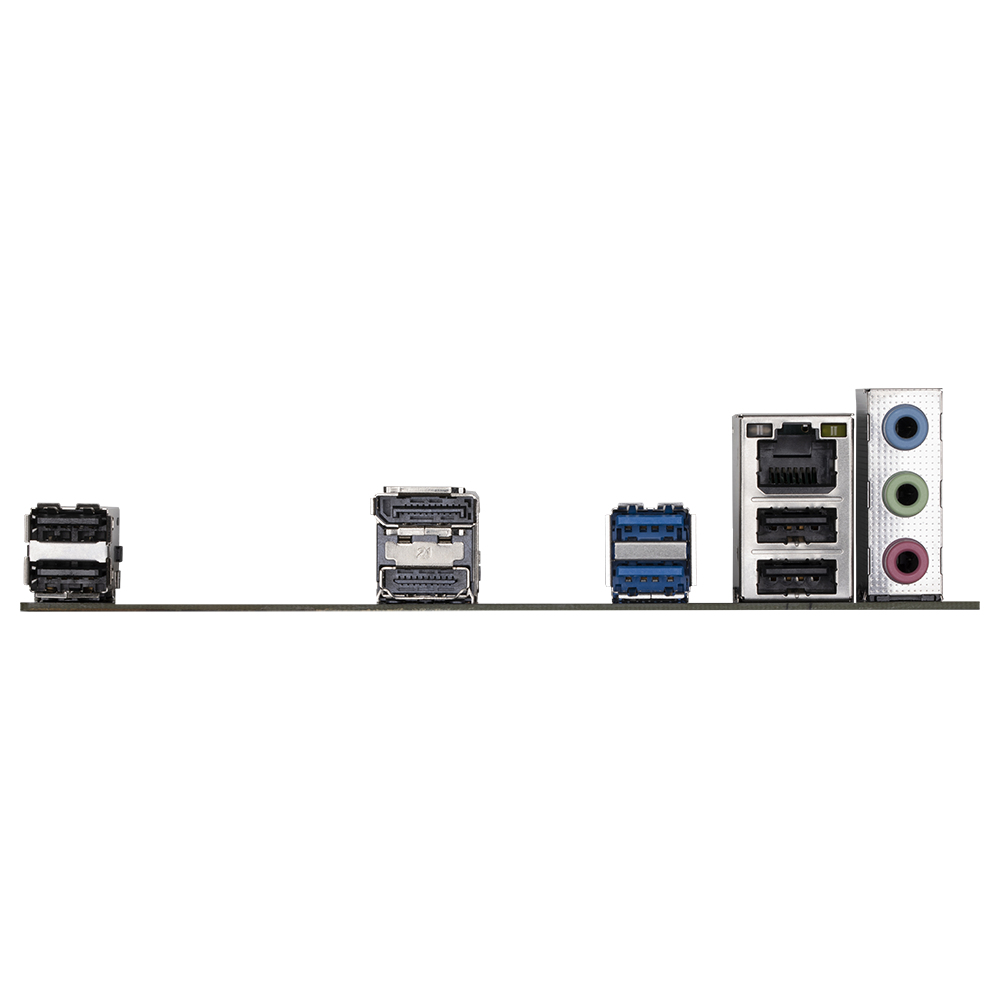

| Rear panel I/O ports | |
| USB 2.0 ports quantity: | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 0 |
| Ethernet LAN (RJ-45) ports: | 1 |
| VGA (D-Sub) ports quantity: | 0 |
| HDMI ports quantity: | 1 |
| DVI-D ports quantity: | 0 |
| HDMI version: | 2.1 |
| DisplayPorts quantity: | 1 |
| DisplayPort version: | 1.2 |
| Headphone outputs: | 1 |
| Line-in: | Yes |
| Microphone in: | Yes |
| Network | |
| Wi-Fi: | No |
| Ethernet LAN: | Yes |
| Ethernet interface type: | Gigabit Ethernet |
| LAN controller: | Realtek RTL8111H |
| Features | |
| Component for: | PC |
| Motherboard form factor: | micro ATX |
| Motherboard chipset family: | Intel |
| Motherboard chipset: | Intel H610 |
| Audio output channels: | 7.1 channels |
| Audio chip: | Realtek ALC897 |
| Product colour: | Dark brown |
| PC health monitoring: | Fan, Temperature, Voltage, Water cooling |
| Cooling type: | Passive |
| Power source type: | ATX |
| Windows operating systems supported: | Windows 10 x64, Windows 11 x64 |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots: | 1 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| Number of M.2 (M) slots: | 1 |
| 1st M.2 largest key size: | 2280 |
| 1st M.2 highest PCI Express generation: | 3.0 |
| BIOS | |
| BIOS type: | UEFI AMI |
| BIOS memory size: | 128 Mbit |
| ACPI version: | 5.0 |
| Clear CMOS jumper: | Yes |
| Desktop Management Interface (DMI) version: | 2.7 |
| System Management BIOS (SMBIOS) version: | 2.7 |
| Logistics data | |
| Products per shipping (inner) case: | 1 pc(s) |
| Battery | |
| Battery weight: | 3 g |
| Lithium weight per battery: | 0.07 g |
| Number of battery cells: | 1 |
| Battery technology: | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type: | CR2032 |
| Packaging data | |
| Package width: | 265 mm |
| Package depth: | 235 mm |
| Package height: | 52 mm |
| Package weight: | 723 g |
| Weight & dimensions | |
| Width: | 226 mm |
| Depth: | 185 mm |
| Height: | 35 mm |
| Packaging content | |
| Batteries included: | Yes |
| Screws included: | Yes |
| Other features | |
| Weight: | 650 g |
| Technical details | |
| Warranty period: | 3 year(s) |
Price:
75,99 €
19 % VAT incl. excl. Shipping costs
