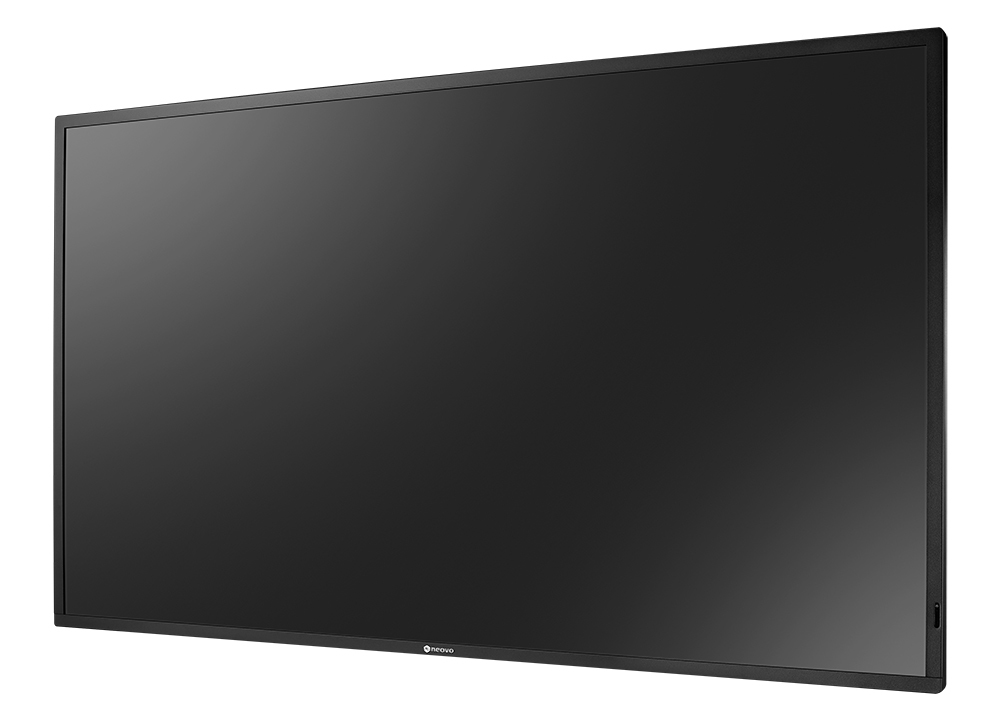

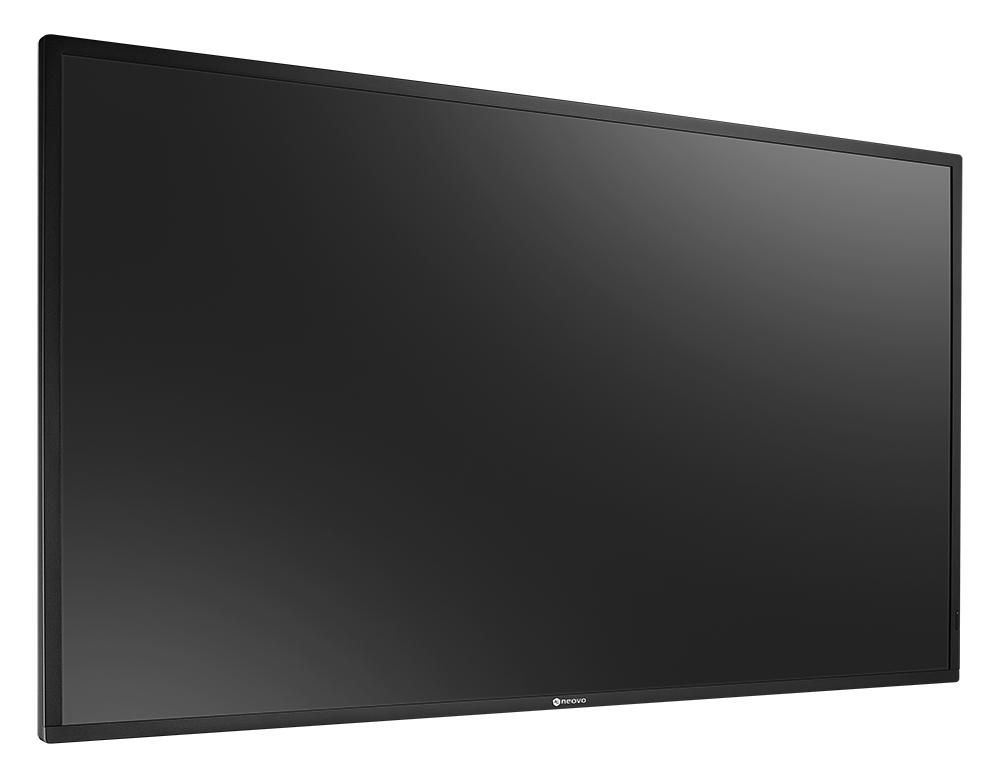

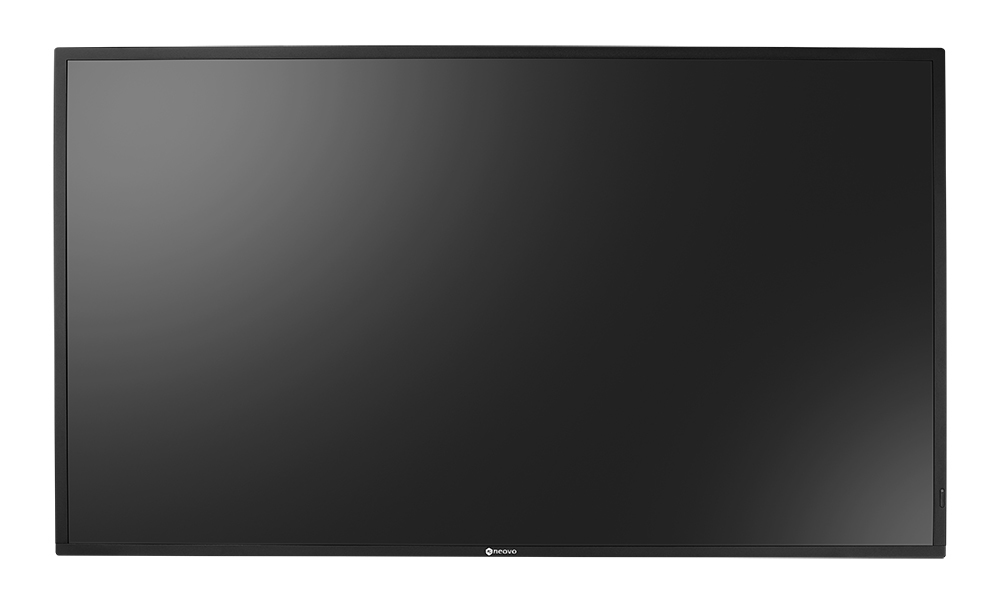

AG Neovo 55-Inch 4K Commercial Display
Product no.: PD55Q011M000

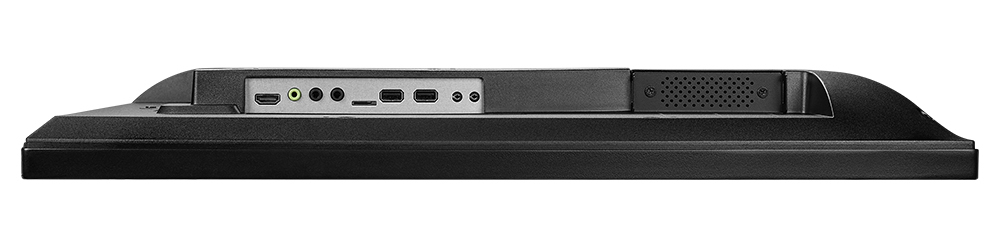

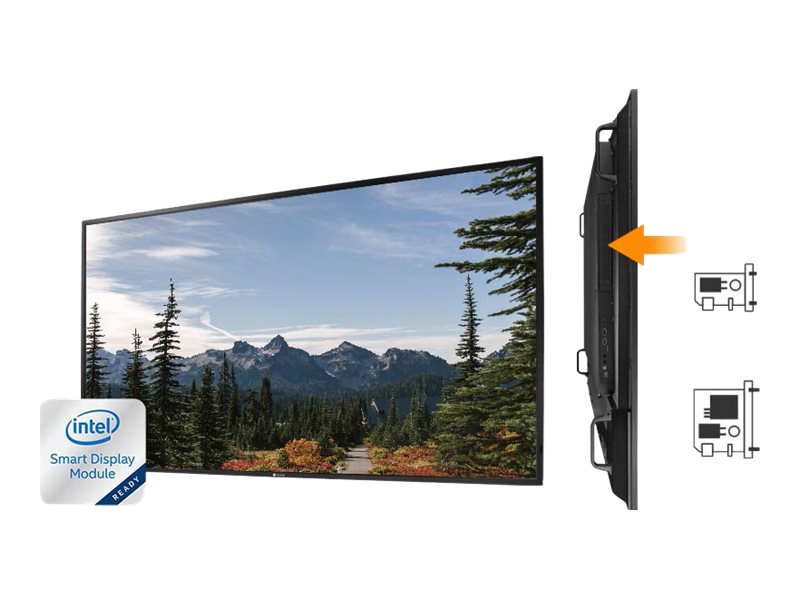

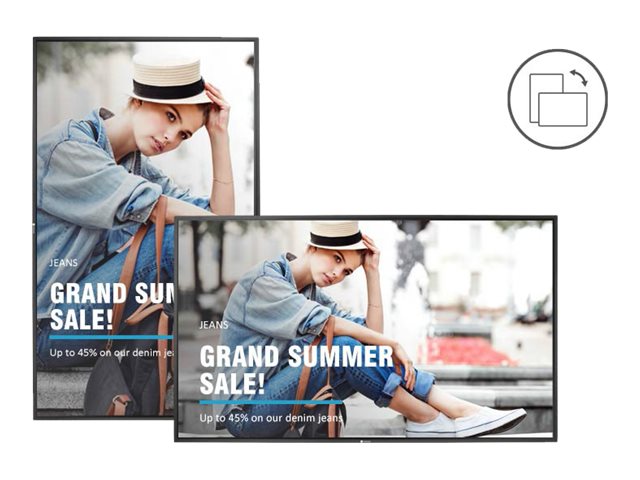

The PD-55Q 55-inch 4K commercial display features its 700 nits high brightness, suitable for use in different semi-outdoor environments, such as airport terminals, control rooms, and shopping malls. It integrates a full slate of input sources, including an embedded USB playback function, various I/O ports, and IntelŪ SDM slot. It allows you to broadcast multimedia content horizontally or vertically and it can meet different kinds of digital signage solutions as well as video wall installations.700 nits High BrightnessThe PD-55Q commercial display features 4K UHD, 10-bit colour depth, and 178-degree viewing angle for brilliant colour performance. Besides that, the display adopts a 700 nits brightness commercial-grade panel to deliver clear, bright, and detailed imagery even in the daylight or bright indoor environments.IPS Panel for 24/7 UseDesigned for 24/7 operation, the PD-55Q display is produced to meet the highest standard of IPS panel technology and take advantage of superior components to ensure a long product lifetime in demanding environments.Landscape/Portrait CapabilityThe commercial-grade signage-friendly and can perfectly fit either in a landscape or in a portrait mode to experience complete screen orientation flexibility and fulfill the need in different scenarios.Optional IntelŪ SDM CapabilityThe built-in SDM slot is designed for IntelŪ smart display module, which is ready to create powerful smart signage for more user-friendly applications.DisplayPort/IR/RS232 Daisy Chain FunctionalityWith DisplayPort daisy chain functionality, the video and audio can be delivered to multiple AG Neovo s large format displays using DisplayPort cables, and it saves a significant amount of time. IR/RS232 loop-through capability provides a convenient single point of control for multi-display installation.Embedded Image EnhancerThe embedded image enhancer features a 3D Comb Filter, 3D Deinterlace, and Noise Reduction to solve image issues offering crystal clarity to the most demanding environments.Integrated Content SchedulerThe built-in integrated scheduler in the OSD menu allows you to easily broadcast content based on source, time, and day by IR remote control.Patented Anti-Burn-in TechnologyTo combat the effects of traditional LCD burn-in or ghosting, AG Neovo utilises its patented Anti-Burn-in Technology to prevent image burn-in and assure the extended life span for displays.PID Command & Ctrl SoftwarePID Command & Ctrl provides intuitive user interfaces for remote management via laptops and mobile devices and offers easy creation on video wall displays. The software also has simple colour calibration, temperature check, IR/key locking options, and time on usage monitoring for daily maintenance.
| Display | |
| Display diagonal: | 138.7 cm (54.6") |
| Display technology: | LCD |
| Display resolution: | 3840 x 2160 pixels |
| Display brightness: | 700 cd/mē |
| HD type: | 4K Ultra HD |
| Touchscreen: |  |
| Panel type: | VA |
| LED backlight: |  |
| Response time: | 5 ms |
| Contrast ratio (typical): | 5000:1 |
| Viewing angle, horizontal: | 178° |
| Viewing angle, vertical: | 178° |
| Display number of colours: | 1.07 billion colours |
| Pixel pitch: | 0.315 x 0.315 mm |
| Number of displays: | 1 |
| Horizontal scan range: | 31 - 92 kHz |
| Vertical scan range: | 48 - 85 Hz |
| Haze rate: | 25% |
| Surface hardness: | 3H |
| Colour gamut: | 72% |

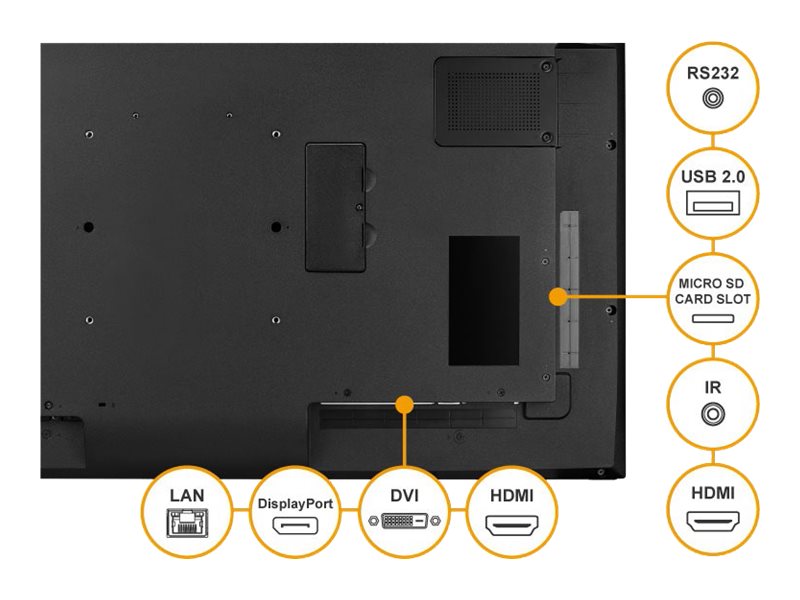

| Ports & interfaces | |
| HDMI ports quantity: | 3 |
| DVI port: | |
| DisplayPorts quantity: | 2 |
| USB port: | |
| Ethernet LAN: | |
| Wi-Fi: | |
| HDMI version: | 2.0 |
| DVI-I ports quantity: | 1 |
| DisplayPorts in: | 1 |
| DisplayPorts out: | 1 |
| USB ports quantity: | 2 |
| USB version: | 2.0 |
| Ethernet LAN (RJ-45) ports: | 1 |
| RS-232 interface: | |
| Infrared data port: | |
| Remote (IR) input: | 1 |
| Remote (IR) output: | 1 |
| Card reader integrated: | |
| Compatible memory cards: | MicroSD (TransFlash) |
| Audio | |
| Built-in speaker(s): | |
| Number of built-in speakers: | 2 |
| RMS rated power: | 10 W |
| Design | |
| Product design: | Digital signage flat panel |
| Product colour: | Black |
| Placement supported: | Indoor |
| VESA mounting: | |
| Orientation: | Horizontal/Vertical |

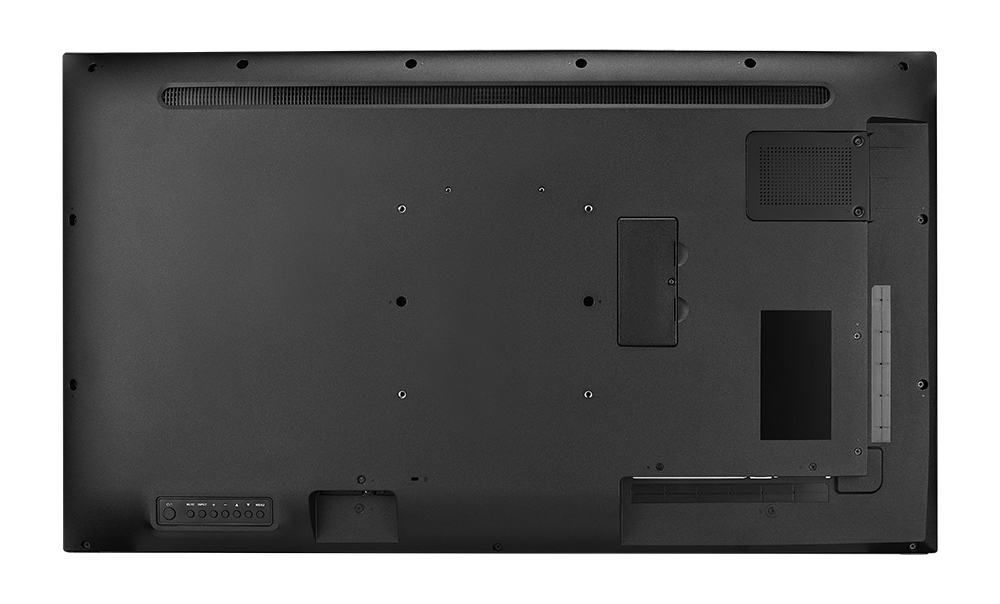

| Panel mounting interface: | 400 x 400 mm |
| Anti-glare screen: | |
| Performance | |
| Purpose: | Universal |
| TV tuner integrated: | |
| Operating hours (hours/days): | 24/7 |
| Power | |
| Power consumption (typical): | 177 W |
| Power consumption (standby): | 0.5 W |
| Energy efficiency class (SDR): | G |
| Energy consumption (SDR) per 1000 hours: | 177 kWh |
| AC input voltage: | 100 - 240 V |
| AC input frequency: | 50 - 60 Hz |
| Energy efficiency scale: | A to G |
| Computer system | |
| Computer system: | |
| Built-in processor: | |
| Weight & dimensions | |
| Display width: | 1247.8 mm |
| Display depth: | 63.6 mm |
| Display height: | 712.6 mm |
| Display weight: | 16.6 kg |
| Packaging data | |
| Package width: | 1350 mm |
| Package depth: | 160 mm |
| Package height: | 860 mm |
| Package weight: | 21.8 kg |
| Packaging content | |
| Remote control included: | |
| Batteries included: | |
| Cables included: | AC, HDMI |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 40 °C |
| Operating relative humidity (H-H): | 20 - 80% |
| Storage temperature (T-T): | -20 - 60 °C |
| Storage relative humidity (H-H): | 10 - 90% |
| Certificates | |
| Certification: | FCC CE LVD ICES-003(Issue 7) WEEE RoHS REACH |
| Logistics data | |
| Harmonized System (HS) code: | 85285210 |
| Features | |
| Wall mountable: | |
| Technical details | |
| Sustainability certificates: | RoHS |
| Other features | |
| Quick start guide: | |
| Audio input: | 1 |
| Audio output: | 1 |
| RS-232 input ports: | 1 |
| RS-232 output ports: | 1 |
| I/O ports: | SDM Slot |
Price:
2.194,99 €
