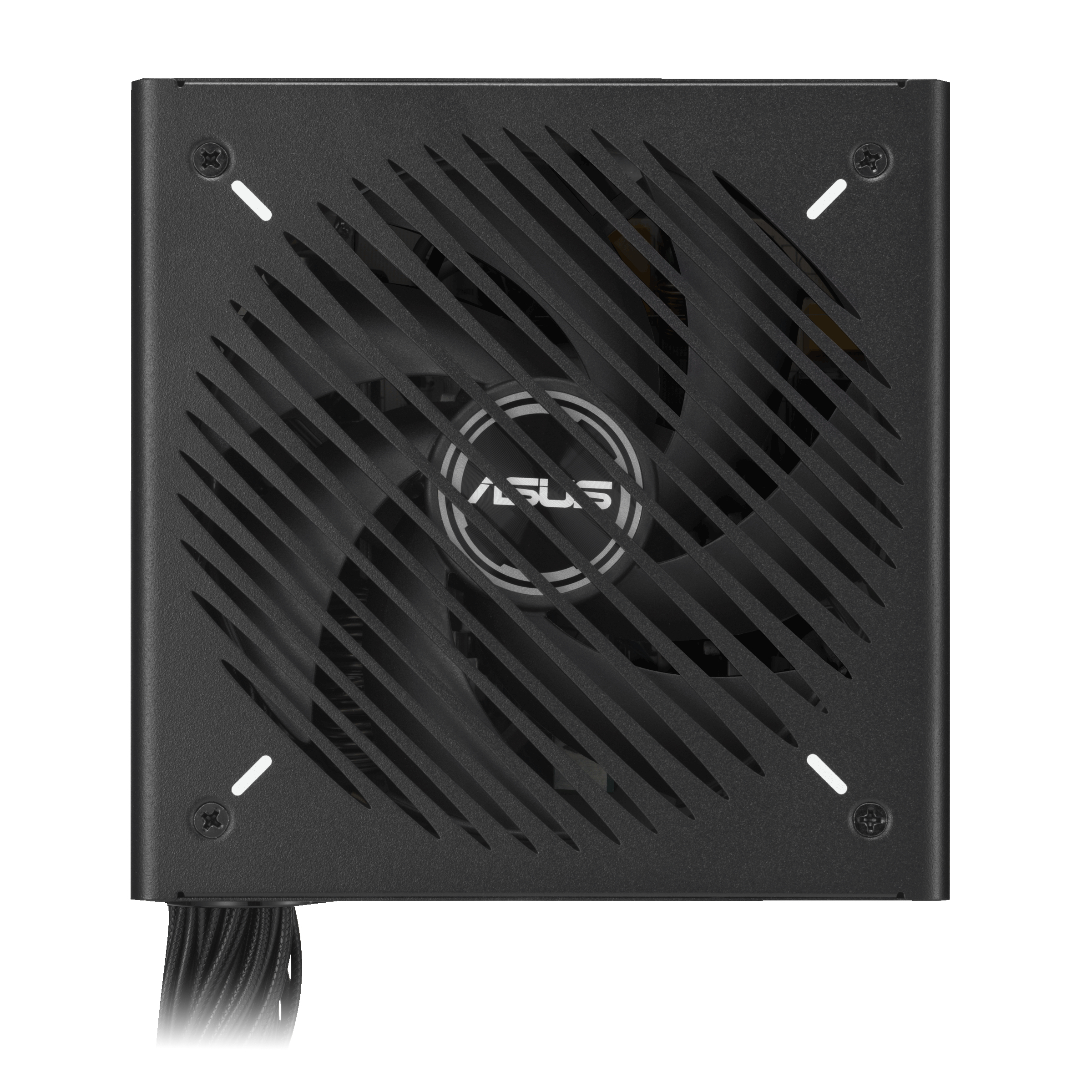

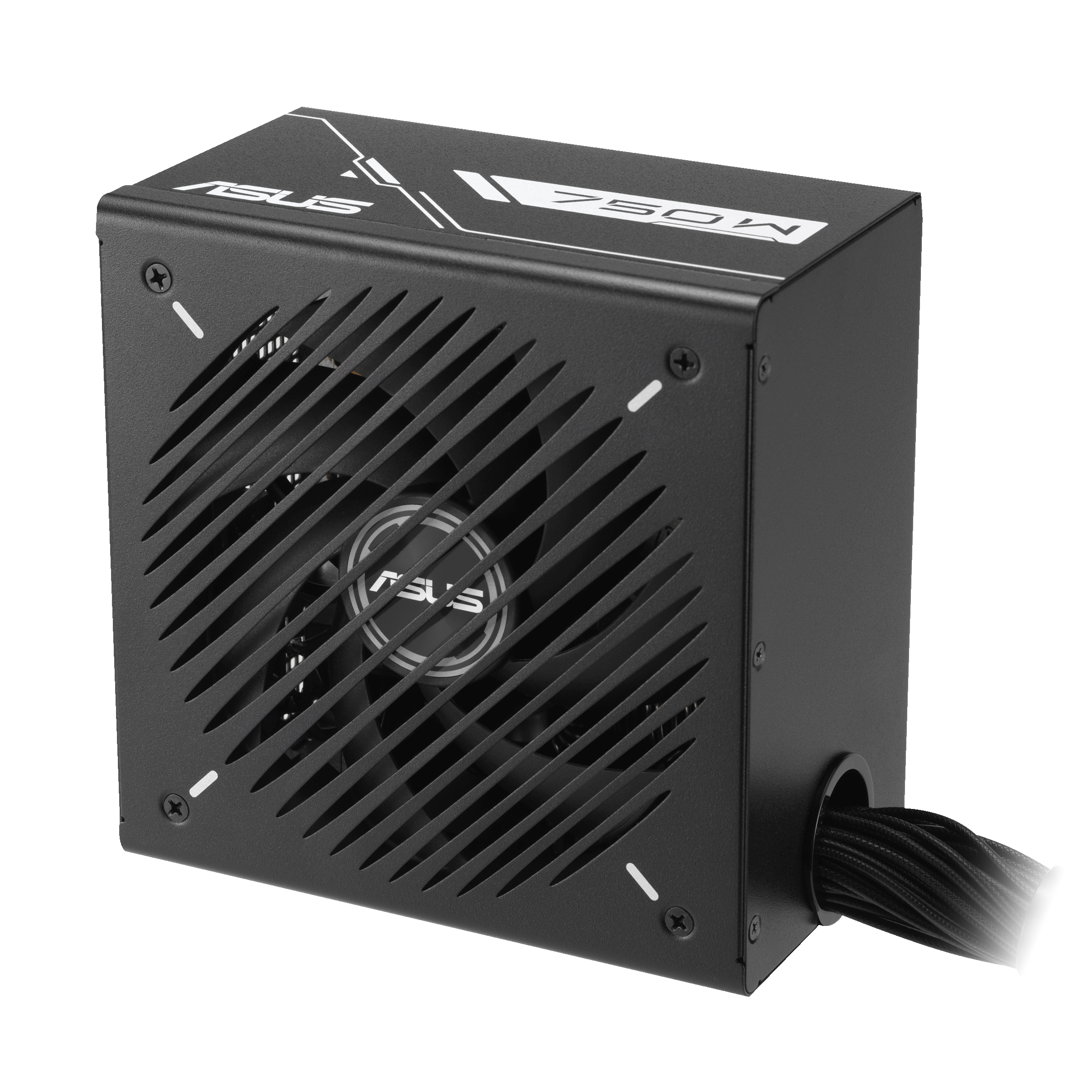

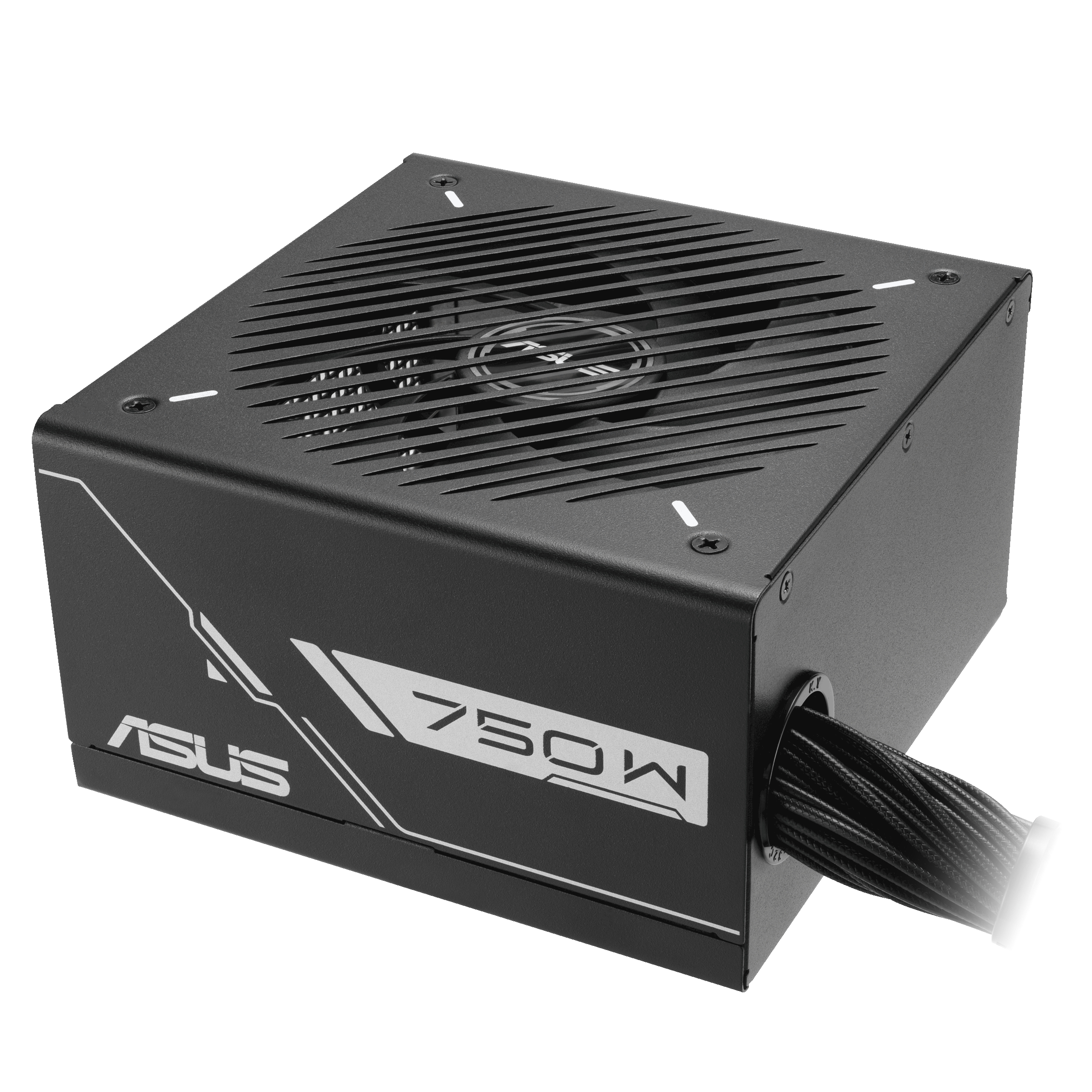

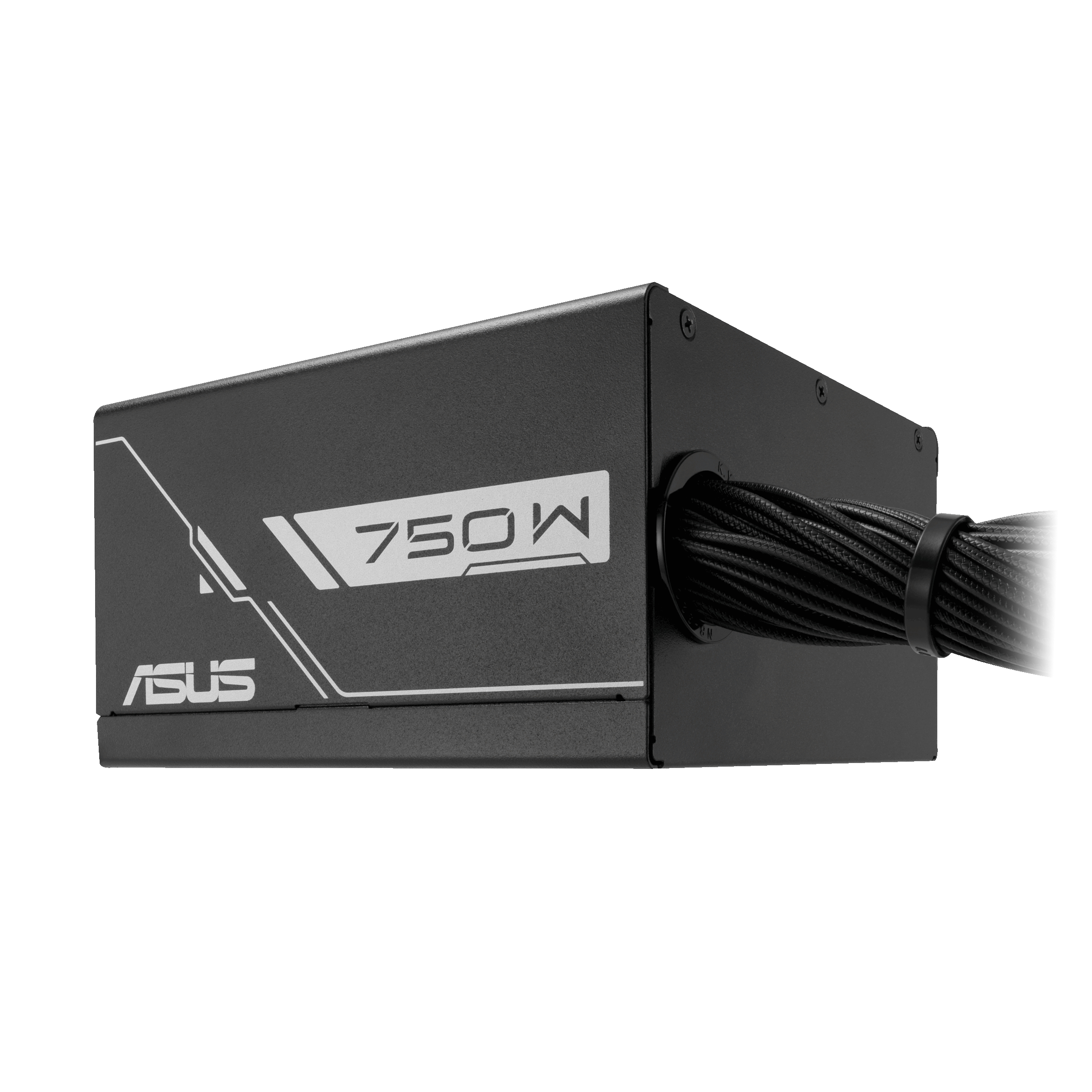

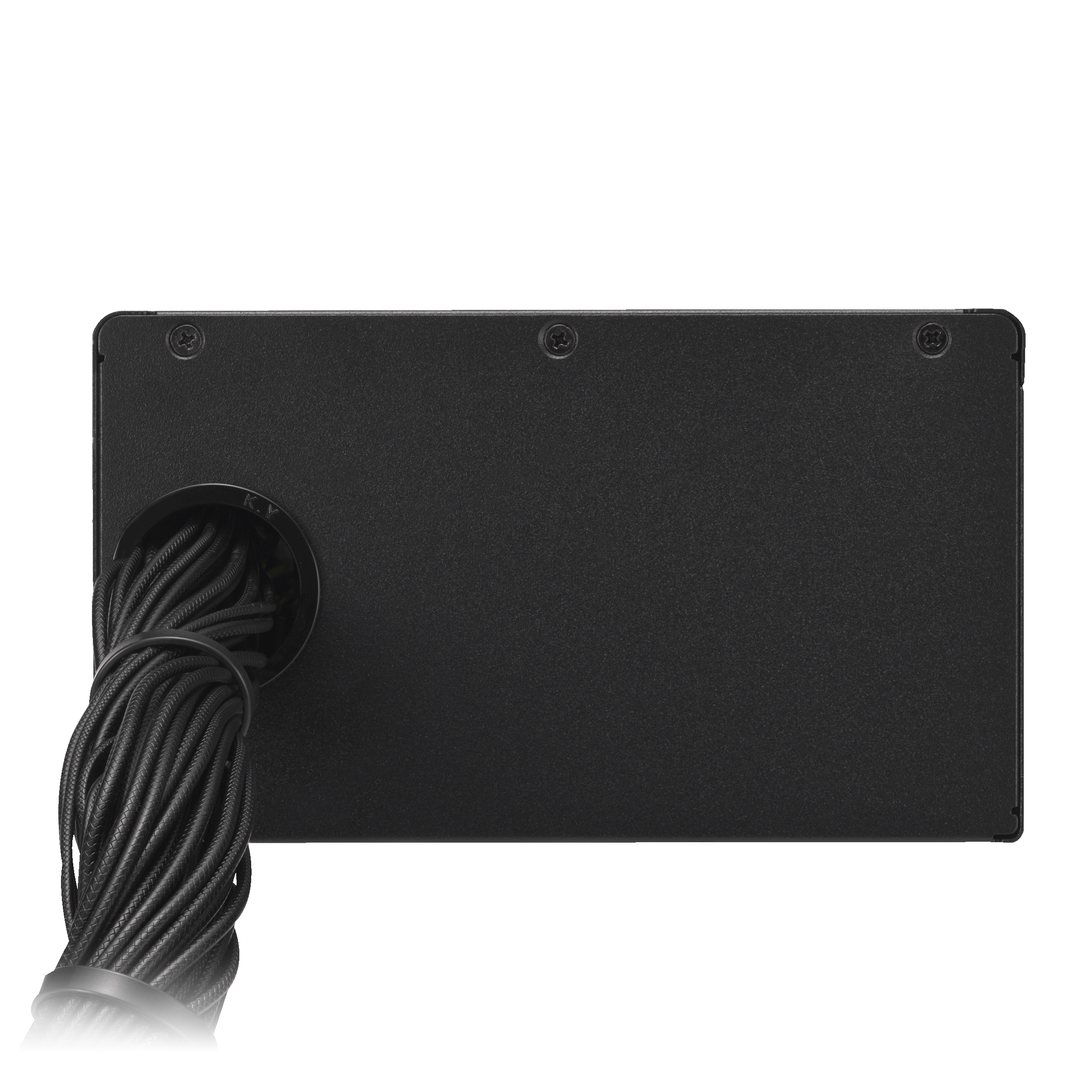

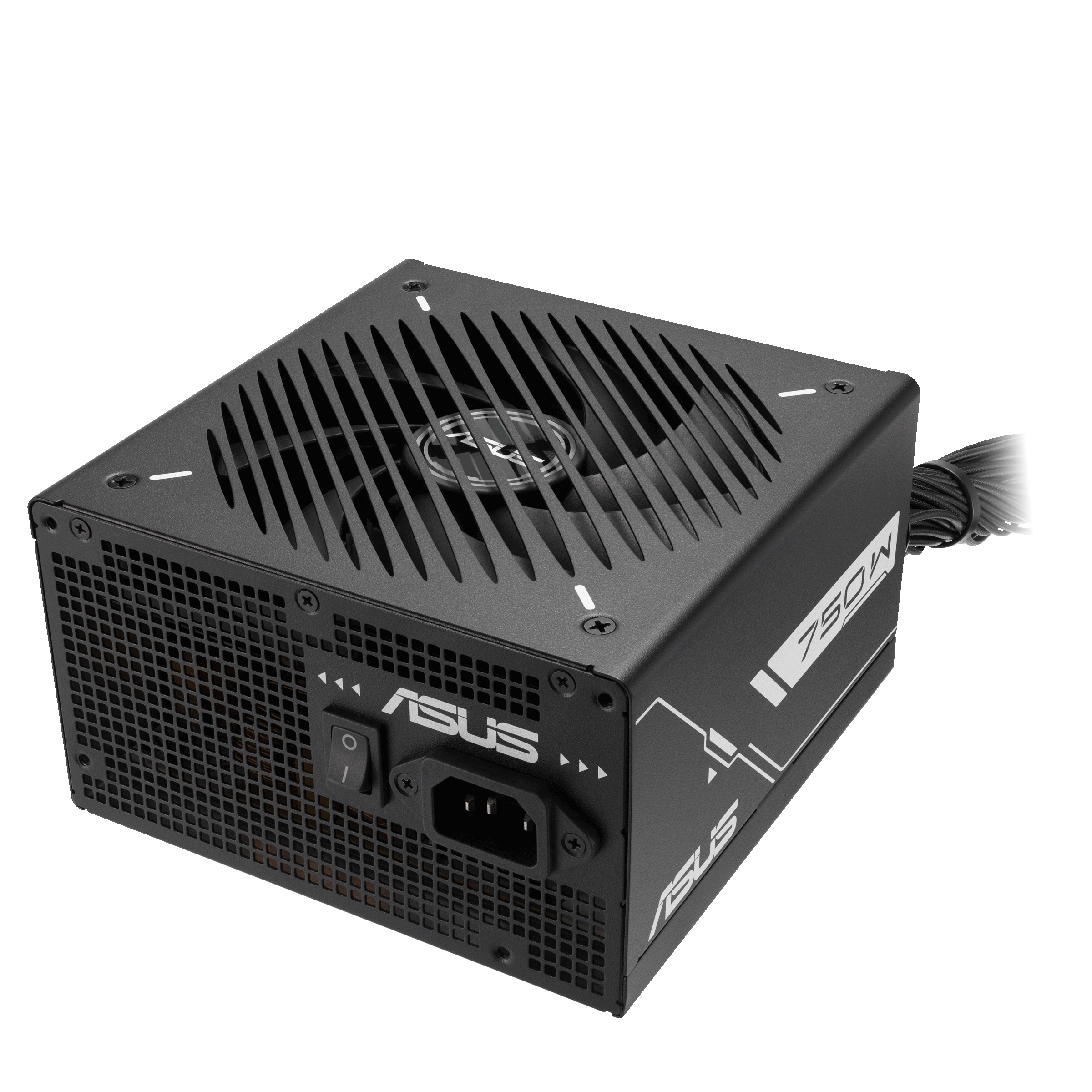

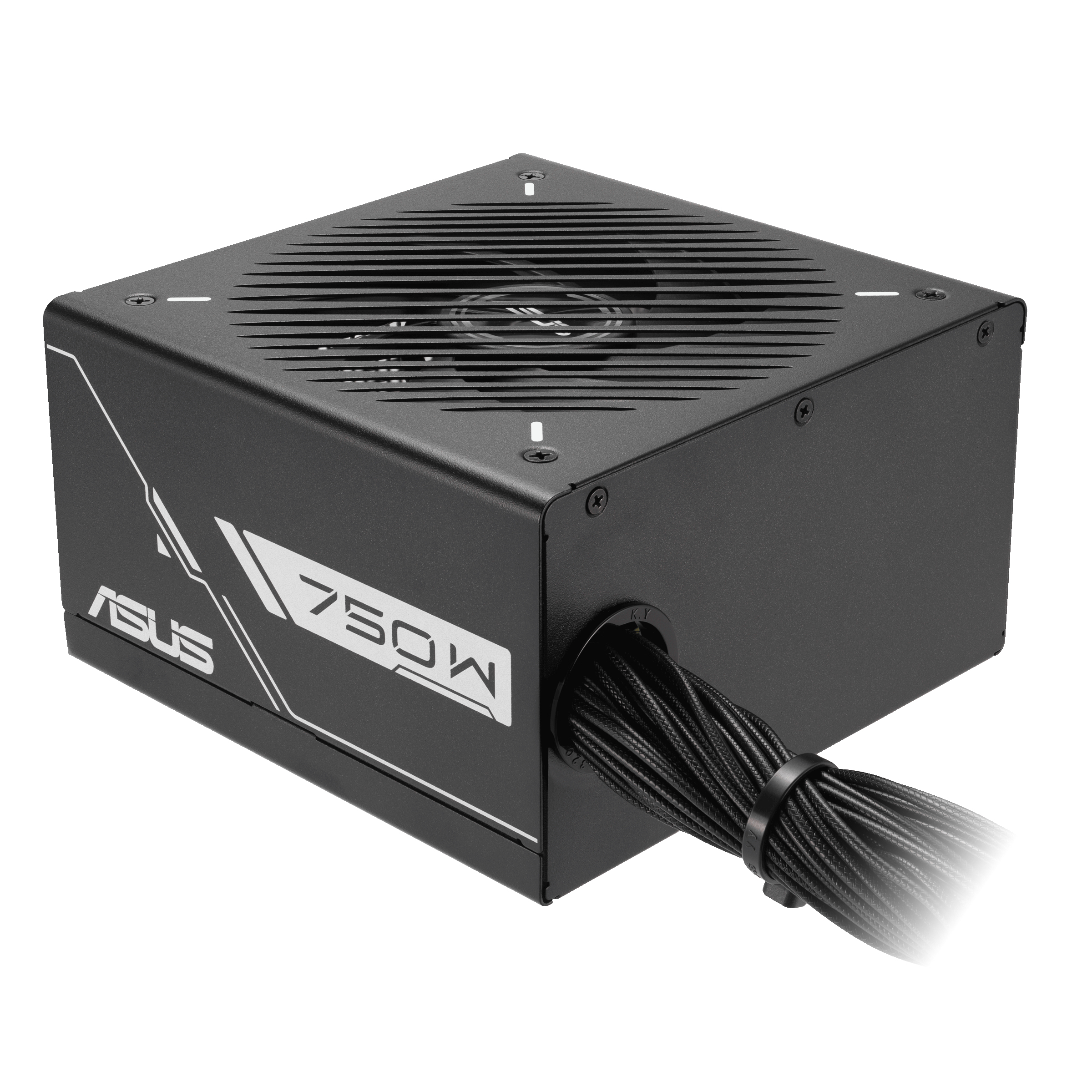

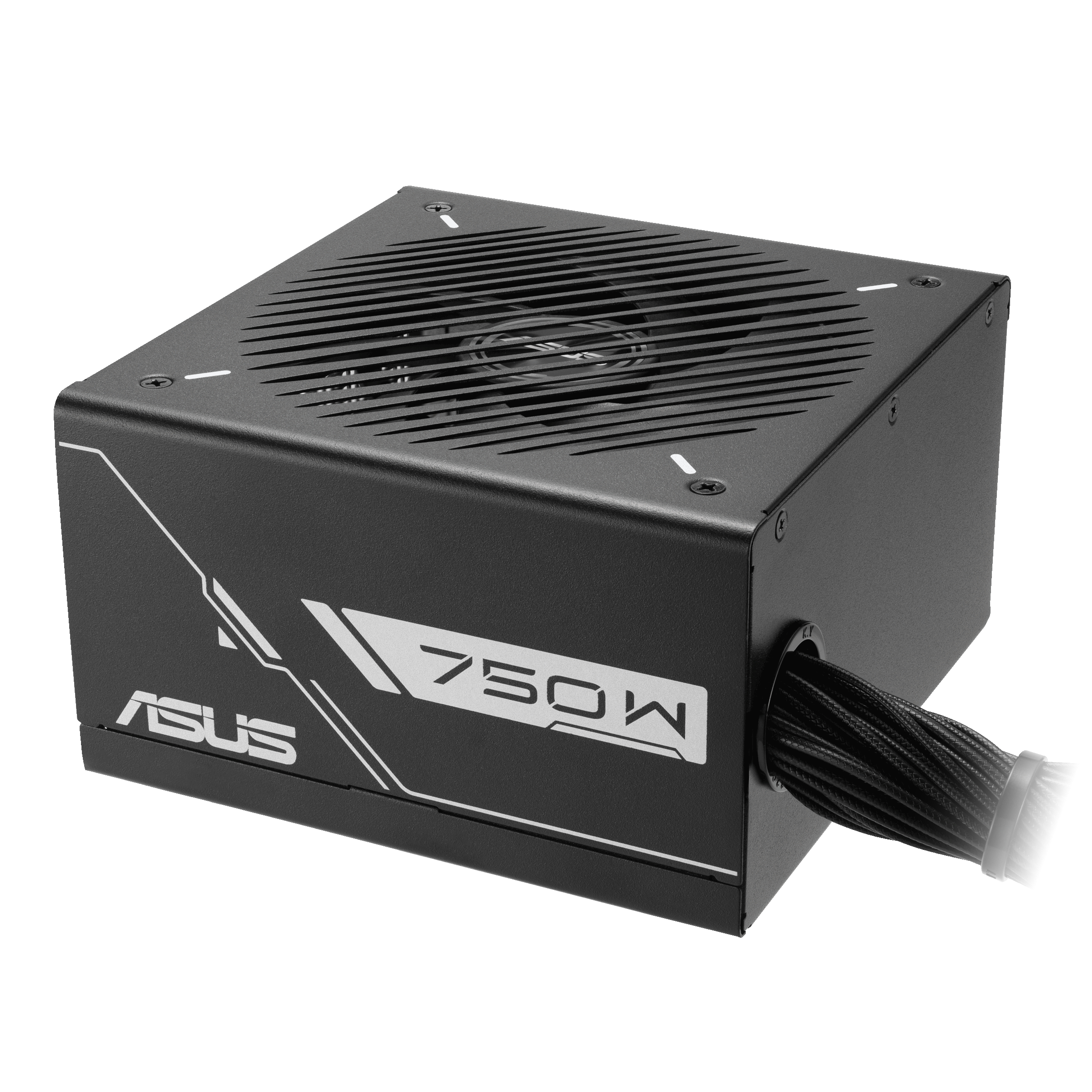

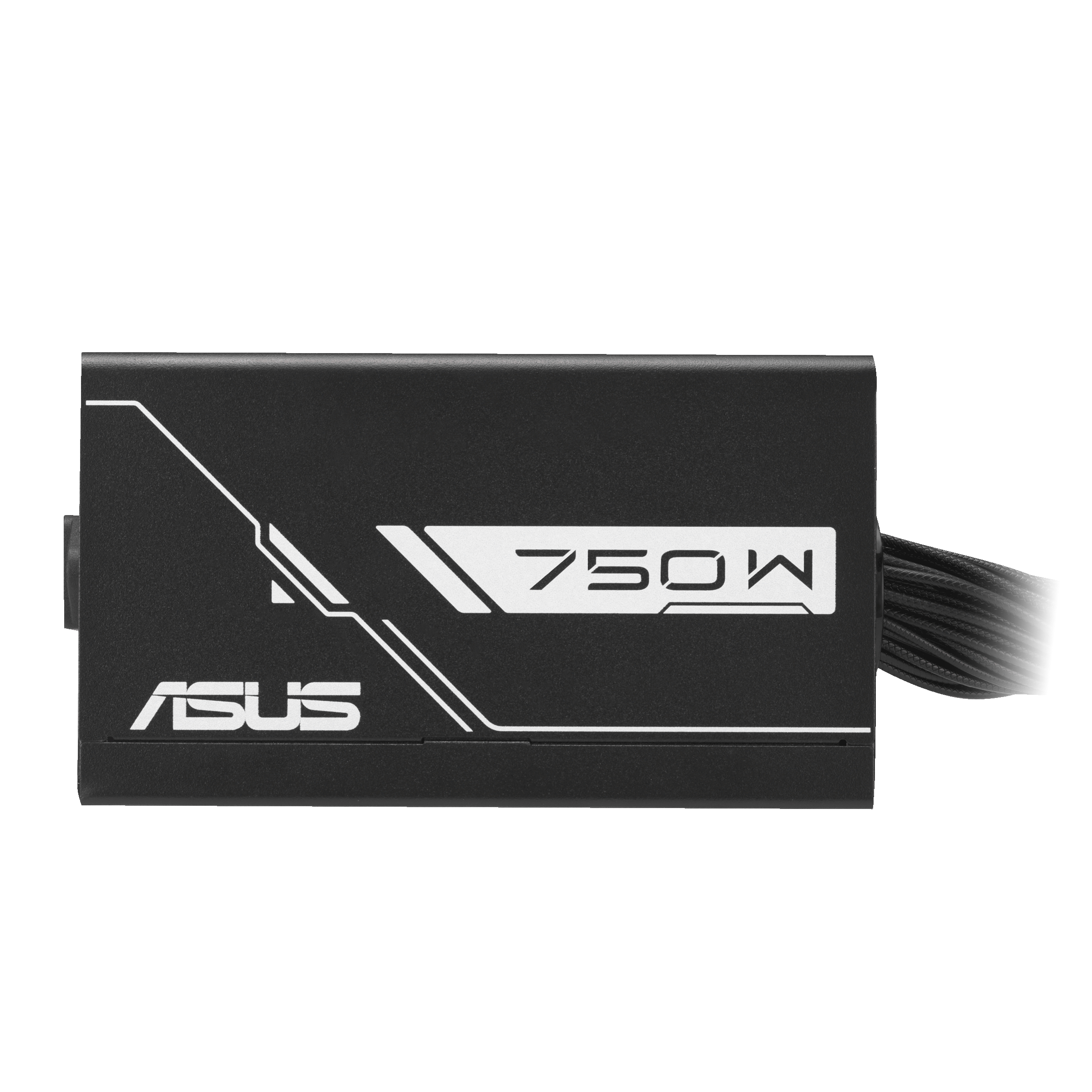

ASUS Prime -750B-BLACK power supply unit 750 W 20+4 pin ATX ATX
Product no.: 90YE00Y0-B0NA00
ASUS Prime 750W Bronze PSU brings efficient and durable power delivery to all-round PCs, and gaming rigs.
Prime Performance
With 80+ Bronze certification, dual ball fan bearings, etched cables and an 6-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to reliable performance for the system build.
| Power | |
| Total power: | 750 W |
| AC input voltage: | 100 - 240 V |
| Power Factor Correction (PFC) type: | Active |
| Combined power (+3.3V): | 120 W |
| Combined power (+12V): | 750 W |
| Combined power (+5V): | 120 W |
| Combined power (-12V): | 3.6 W |
| Combined power (+5Vsb): | 12.5 W |
| Max output current (+3.3V): | 20 A |
| Max output current (+12V): | 62.5 A |
| Max output current (+5V): | 20 A |
| Max output current (-12V): | 0.3 A |
| Max output current (+5Vsb): | 2.5 A |
| Power protection features: | Over current, Over power, Over voltage, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power connector: | 20+4 pin ATX |
| Peripheral (Molex) power connectors (4-pin): | 3 |
| Motherboard power cable length: | 60 cm |
| Number of SATA power connectors: | 6 |
| SATA power cable length: | 120,400 mm |
| Peripheral (Molex) power cable length: | 120,400 mm |
| PCI Express power connectors (8-pin): | 3 |
| CPU power connector (4+4 pin): | Yes |
| CPU power cable length: | 80 cm |
| Performance | |
| Purpose: | PC |
| Power supply unit (PSU) form factor: | ATX |
| 80 PLUS certification: | 80 PLUS Bronze |
| Bearing technology: | Ball bearing |
| Mean time between failures (MTBF): | 120000 h |
| Design | |
| Product colour: | Black |
| Cooling type: | Active |

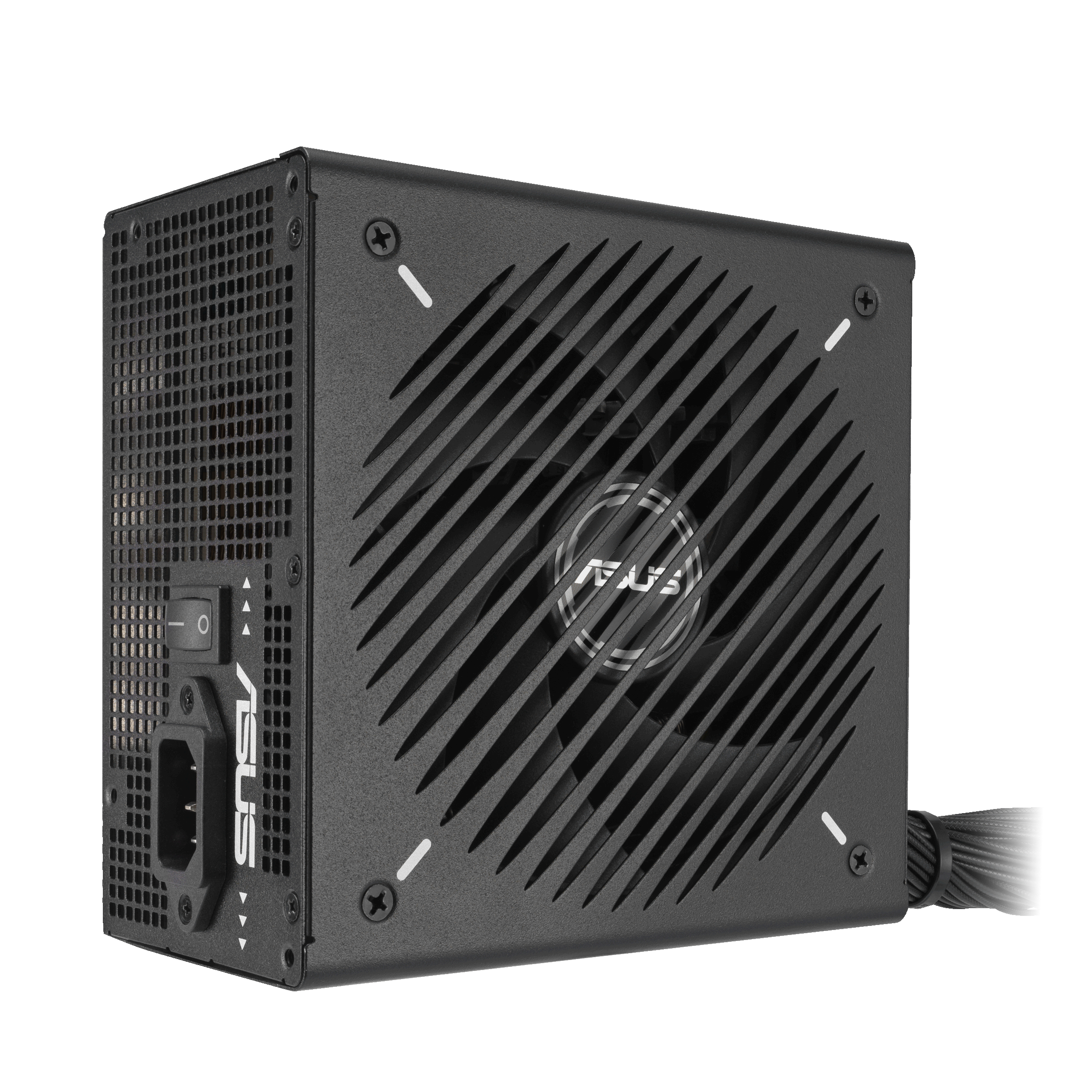

| Fan diameter: | 13.5 cm |
| Number of fans: | 1 fan(s) |
| Fan location: | Top |

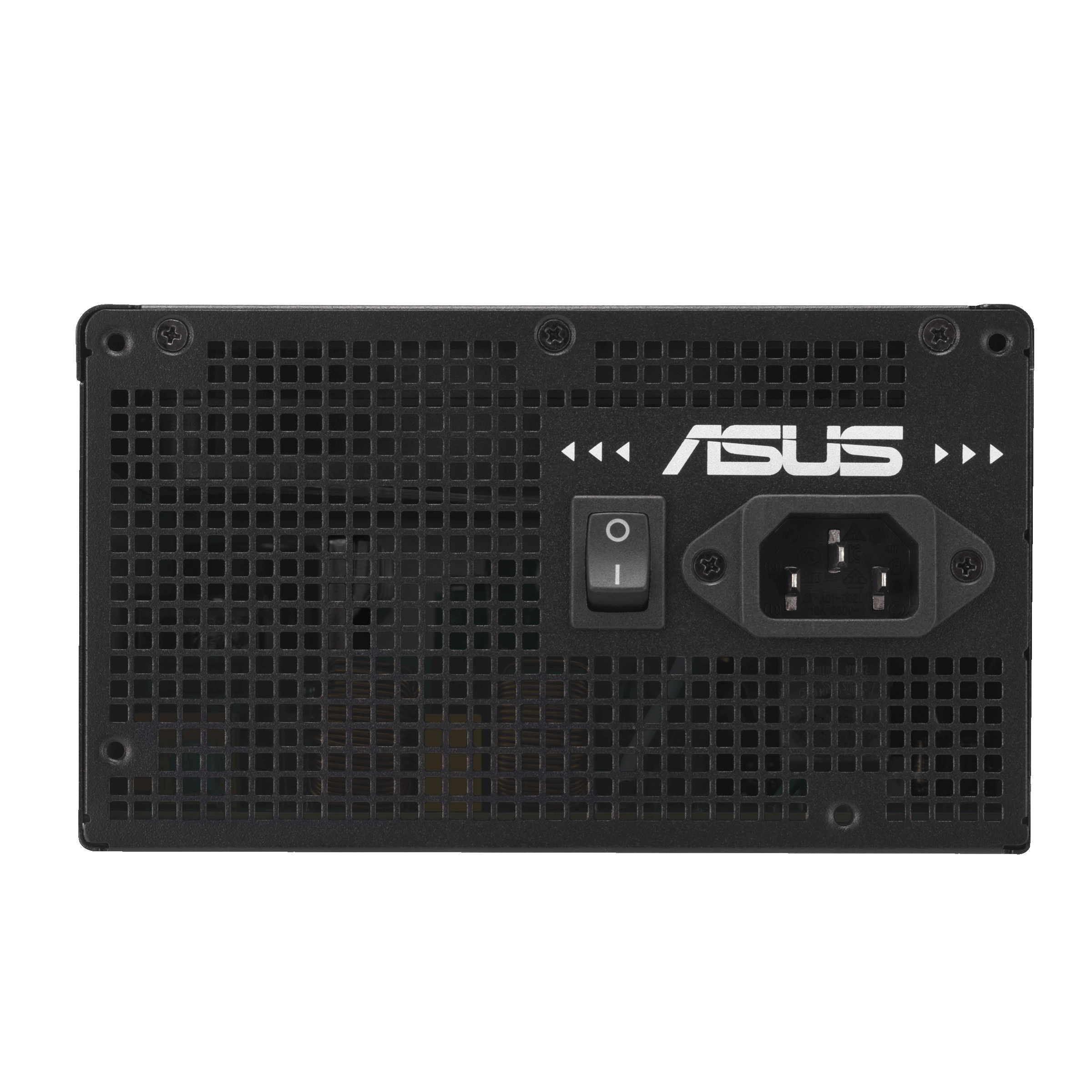

| On/off switch: | Yes |
| Weight & dimensions | |
| Width: | 150 mm |
| Depth: | 150 mm |
| Height: | 86 mm |
| Weight: | 1.92 kg |
| Packaging data | |
| Package width: | 340 mm |
| Package depth: | 196 mm |
| Package height: | 115 mm |
| Package weight: | 3 kg |
| Package type: | Box |
Price:
105,99 €
19 % VAT incl. excl. Shipping costs
