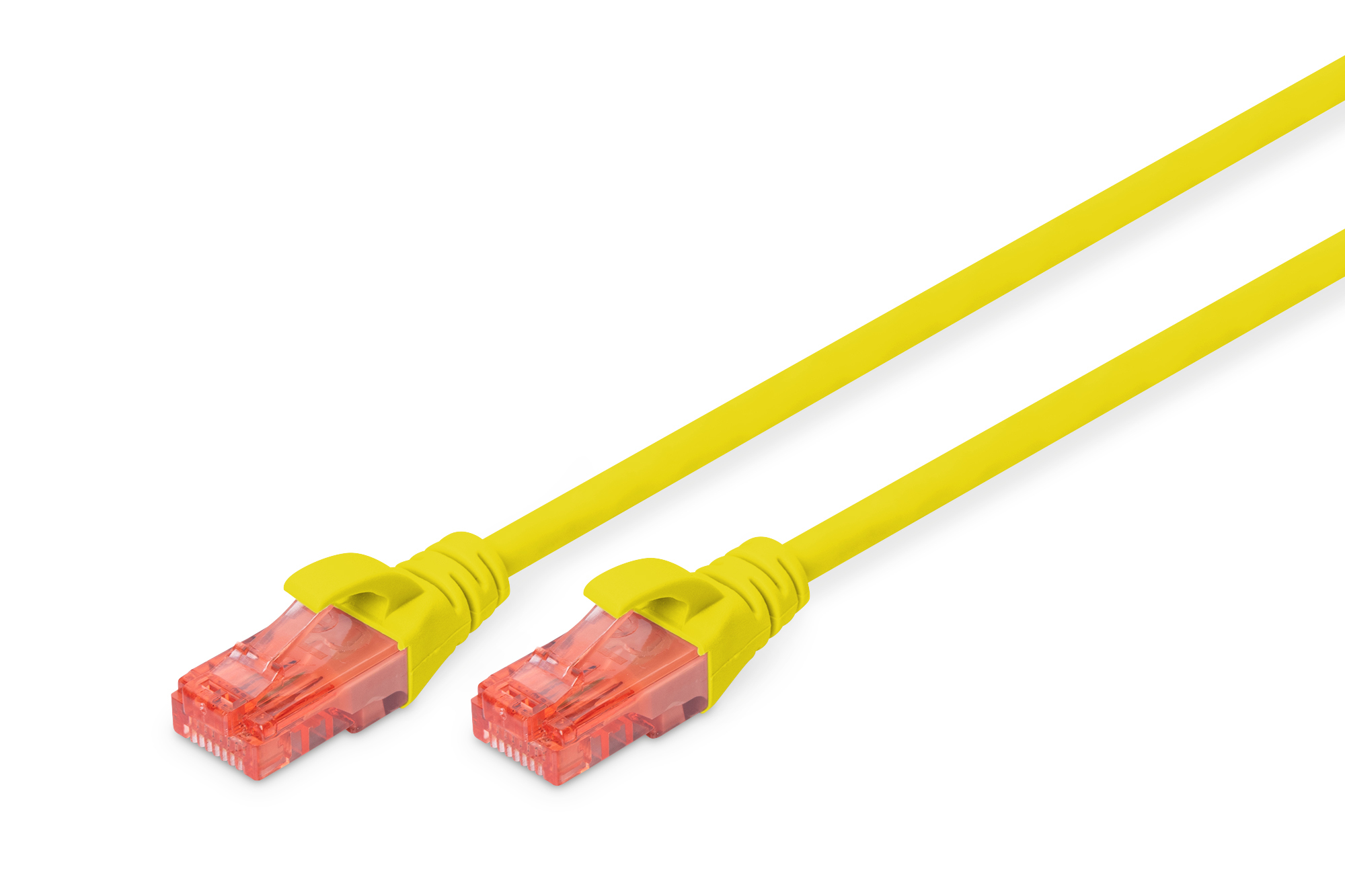

Digitus CAT 6 U/UTP patch cord - LSZH
Product no.: DK-1617-030/Y
Future-oriented standards and high-end quality for your network.- With LSZH (Low Smoke Zero Halogen) sheath for best fire behaviour and low smoke emissions.- Transparent red colored plug for easy identification of Category 6 (250 MHz)- Conductor: Copper (Cu)- PoE+ readyThe DIGITUS® Category 6 Class E patch cords are manufactured and tested to the ISO/IEC 11801 and DIN EN 50173 Category 6 specifications. They will guarantee the installed cabling system is compliant with the ISO & EN channel specification requirements and will provide optimum performance levels of DIGITUS® Category 6 cabling. The performance is tested up to 250 MHz inclusive performance characteristics such as near end cross talk ( NEXT ). DIGITUS® patch cords are designed and produced to fulfill the highest requirements of various application areas in full volume. Each cable is fitted with a molded boot which comes with kink protection and strain relief. Furthermore the boot is equipped with a latch protection that prevents the latching lever against breaking. You can easily identify the Category 6, because of the transparent red colored connector.
| Features | |
| Cable length: | 3 m |
| Cable standard: | Cat6 |
| Cable shielding: | U/UTP (UTP) |
| Connector 1: | RJ-45 |
| Connector 2: | RJ-45 |
| Product colour: | Yellow |
| Connector 1 gender: | Male |
| Connector 2 gender: | Male |
| Connector contacts plating: | Gold |
| Jacket material: | Low smoke zero halogen (LSZH) |
| Conductor type: | Stranded |
| Cable class: | E |
| Cabling technology: | 10GBase-T |
| AWG wire size: | 26/7 |
| Data transfer rate: | 10000 Mbit/s |
| Frequency: | 250 MHz |
| Country of origin: | China |
| Operational conditions | |
| Operating temperature (T-T): | -20 - 60 °C |
| Weight & dimensions | |
| Outer diameter: | 5 mm |
| Packaging data | |
| Package width: | 170 mm |
| Package depth: | 16 mm |
| Package weight: | 91.667 g |
| Package volume: | 680 cm³ |
| Package type: | Polybag |
| Logistics data | |
| Harmonized System (HS) code: | 84733080 |
| Other features | |
| Category: | 6 |
| UK Trade Tariff code: | 85444210 |
Price:
16,99 €
19 % VAT incl. excl. Shipping costs
