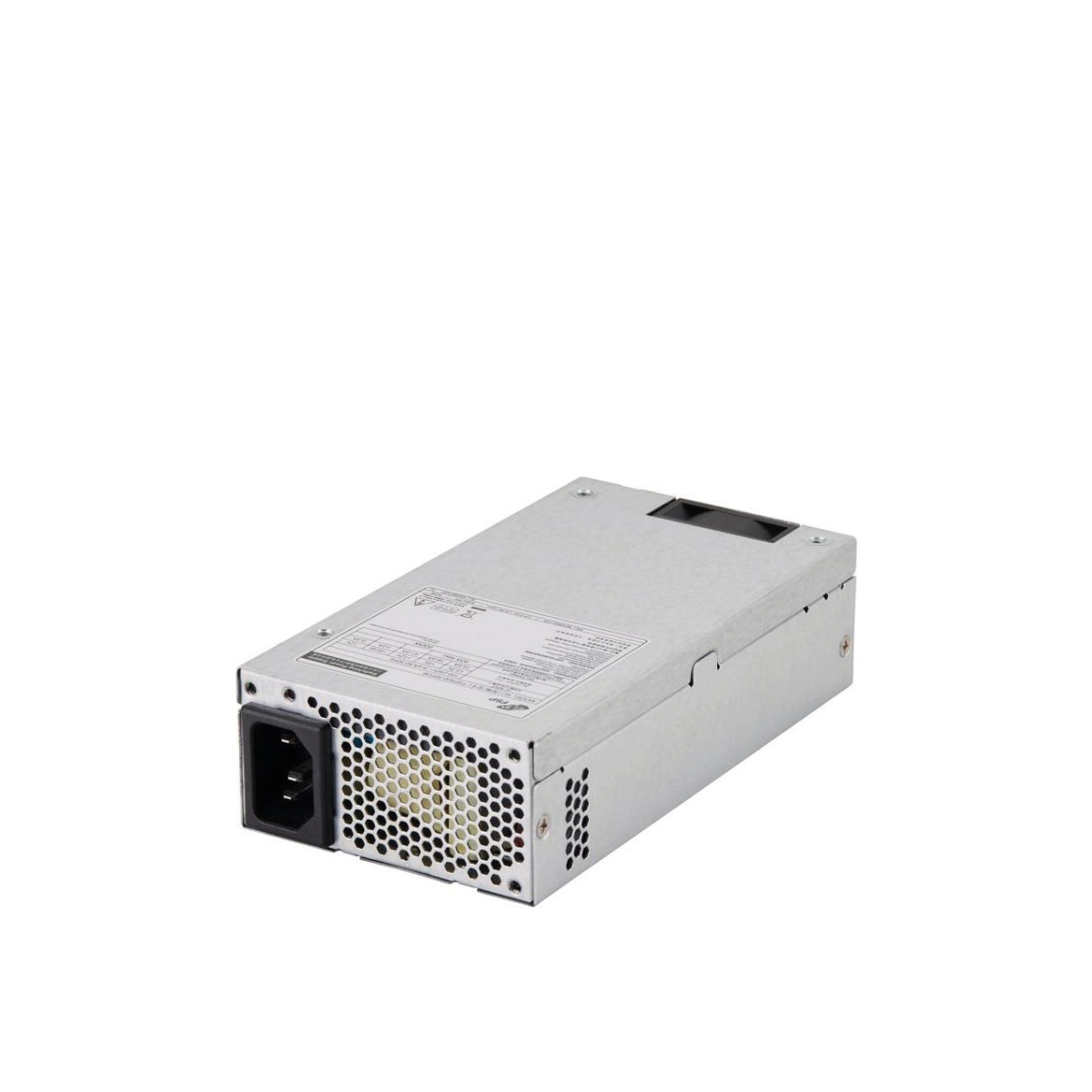

Shuttle FSP300 / 300 Watt power supply for compatible XPC Cubes
Product no.: FSP300
The Shuttle XPC Accessory FSP300 is a high-end power supply with a maximum output wattage of 300W suitable for certain Shuttle XPCs. Thanks to its 80 PLUS Bronze certification for power-efficient devices, this power supply is also suitable for ENERGY STARŪ compliant systems.
| Power | |
| Total power: | 300 W |
| AC input voltage: | 90 - 264 V |
| AC input frequency: | 47 - 63 Hz |
| Power Factor Correction (PFC) type: | Active |
| Combined power (+5Vsb): | 3 W |
| Max output current (+3.3V): | 12 A |
| Max output current (+12V): | 24 A |
| Max output current (+5V): | 14 A |
| Max output current (-12V): | 0.3 A |
| Power protection features: | Over voltage, Short circuit |
| Ports & interfaces | |
| Motherboard power connector: | 20-pin ATX |
| Peripheral (Molex) power connectors (4-pin): | 2 |
| Number of SATA power connectors: | 4 |
| PCI Express power connectors (6-pin): | 1 |
| ATX power connector (20+4 pin): | Yes |
| Performance | |
| Purpose: | PC |
| 80 PLUS certification: | 80 PLUS Bronze |
| Bearing technology: | Ball bearing |
| Mean time between failures (MTBF): | 100000 h |
| Compatible products: | Shuttle XPC SH610R4, SH510R4, SH570R6, SH570R6 Plus, SH570R8, SW580R8 |
| Design | |
| Product colour: | Grey |
| Cooling type: | Active |
| Fan diameter: | 4 cm |
| Number of fans: | 1 fan(s) |
| Fan location: | Rear |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 50 °C |
| Storage temperature (T-T): | -20 - 80 °C |
| Operating relative humidity (H-H): | 0 - 85% |
| Storage relative humidity (H-H): | 0 - 90% |
| Certificates | |
| Compliance certificates: | CCC, CE, Federal Communications Commission (FCC), cTUVus, UKCA, cUL |
| Weight & dimensions | |
| Width: | 150 mm |
| Depth: | 81.5 mm |
| Height: | 40.5 mm |
| Weight: | 700 g |
| Packaging data | |
| Package weight: | 900 g |
| Technical details | |
| Sustainability certificates: | ENERGY STAR |
| Logistics data | |
| Harmonized System (HS) code: | 85044083 |
| Sustainability compliance: | Yes |
Price:
87,72 €
20 % VAT incl. excl. Shipping costs
