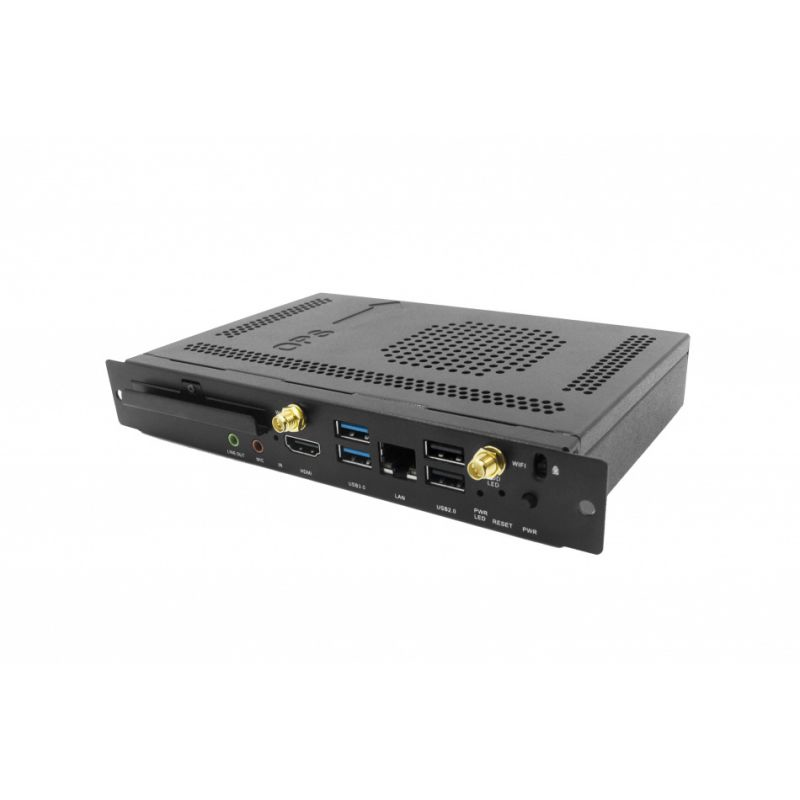

Newline S044P622 PC/workstation Rack-mounted chassis Intel® Core i5 i5-7200U 8 GB DDR4-SDRAM 256 GB SSD Windows 10 Pro Mini PC Black
Product no.: S044P622
Specially design for NEWLINE TRUTOUCH touchscreens, will bring you the best performance for
your presentations and multimedia content becoming the core of your all in one solution for
collaboration.
| Processor | |
| Processor family: | Intel® Core i5 |
| Processor manufacturer: | Intel |
| Processor model: | i5-7200U |
| Processor frequency: | 2.5 GHz |
| Processor generation: | 7th gen Intel® Core i5 |
| Processor cores: | 2 |
| Processor boost frequency: | 3.1 GHz |
| Processor socket: | BGA 1356 |
| Processor cache: | 3 MB |
| Processor cache type: | Smart Cache |
| Processor threads: | 4 |
| System bus rate: | 4 GT/s |
| Bus type: | OPI |
| Processor lithography: | 14 nm |
| Processor operating modes: | 64-bit |
| Processor codename: | Kaby Lake |
| Thermal Design Power (TDP): | 15 W |
| Configurable TDP-up frequency: | 2.7 GHz |
| Configurable TDP-up: | 25 W |
| Configurable TDP-down: | 7.5 W |
| Configurable TDP-down frequency: | 0.8 GHz |
| Tjunction: | 100 °C |
| PCI Express slots version: | 3.0 |
| Maximum number of PCI Express lanes: | 12 |
| PCI Express configurations: | 1x2+2x1, 1x4, 2x2, 4x1 |
| Number of processors installed: | 1 |
| Stepping: | H0 |
| Maximum internal memory supported by processor: | 32 GB |
| Memory types supported by processor: | DDR3L, DDR4-SDRAM, LPDDR3-SDRAM |
| Memory clock speeds supported by processor: | 1600,1866,2133 MHz |
| Memory bandwidth supported by processor (max): | 34.1 GB/s |
| ECC supported by processor: |  |
| Memory | |
| Internal memory: | 8 GB |
| Maximum internal memory: | 32 GB |
| Internal memory type: | DDR4-SDRAM |
| Memory layout (slots x size): | 2 x 4 GB |
| Memory slots: | 2x SO-DIMM |
| Memory clock speed: | 2133 MHz |
| Memory channels: | Dual-channel |
| Storage | |
| Total storage capacity: | 256 GB |
| Optical drive type: | |
| Storage media: | SSD |
| Number of SSDs installed: | 1 |
| SSD capacity: | 256 GB |
| SSD interface: | M.2 |
| Graphics | |
| Discrete graphics card: | |
| On-board graphics card: |  |
| Discrete graphics card model: | Not available |
| On-board graphics card model: | Intel® HD Graphics 620 |
| On-board graphics card family: | Intel® HD Graphics |
| On-board graphics card base frequency: | 300 MHz |
| On-board graphics card dynamic frequency (max): | 1000 MHz |
| Maximum on-board graphics card memory: | 32 GB |
| Number of displays supported (on-board graphics): | 3 |
| On-board graphics card DirectX version: | 12.0 |
| On-board graphics card OpenGL version: | 4.4 |
| On-board graphics card ID: | 0x5916 |
| On-board graphics card 4K support: | |
| Network | |
| Ethernet LAN: | |
| Wi-Fi: | |
| Ethernet LAN data rates: | 10,100,1000 Mbit/s |
| Cabling technology: | 10/100/1000Base-T(X) |
| Top Wi-Fi standard: | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards: | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth: | |
| Bluetooth version: | 4.0 |
| Ports & interfaces | |
| USB 2.0 ports quantity: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 5 |
| HDMI ports quantity: | 2 |
| DVI port: | |
| HDMI version: | 1.4/2.0 |
| Ethernet LAN (RJ-45) ports: | 1 |
| Microphone in: | |
| Headphone outputs: | 1 |
| Line-out: | |
| DC-in jack: | |
| On/off button: | |
| Expansion slots | |
| Mini PCI Express slots: | 1 |
| Design | |
| Chassis type: | Rack-mounted chassis |
| Product colour: | Black |
| Placement supported: | Horizontal |
| Housing material: | Metal |
| Performance | |
| Product type: | Mini PC |
| Market positioning: | Business |
| Audio chip: | Realtek ALC662 |
| Audio system: | High Definition Audio |
| Trusted Platform Module (TPM): | |
| Software | |
| Operating system installed: | Windows 10 Pro |
| Operating system architecture: | 64-bit |
| Processor special features | |
| Intel® Small Business Advantage (Intel® SBA): | |
| Intel® Wireless Display (Intel® WiDi): | |
| Intel 64: | |
| Enhanced Intel SpeedStep Technology: | |
| Embedded options available: | |
| Intel® InTru 3D Technology: | |
| Intel® Insider : | |
| Intel® Clear Video HD Technology (Intel® CVT HD): | |
| Intel Clear Video Technology: | |
| Intel VT-x with Extended Page Tables (EPT): | |
| Intel TSX-NI: | |
| Idle States: | |
| Thermal Monitoring Technologies: | |
| Intel Stable Image Platform Program (SIPP): | |
| Intel® AES New Instructions (Intel® AES-NI): | |
| Intel® Secure Key: | |
| Intel® OS Guard: | |
| Intel Trusted Execution Technology: | |
| Execute Disable Bit: | |
| Intel Flex Memory Access: | |
| Intel Enhanced Halt State: | |
| Intel Software Guard Extensions (Intel SGX): | |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID): | |
| Processor package size: | 42 X 24 mm |
| Supported instruction sets: | AVX 2.0, SSE4.1, SSE4.2 |
| Processor code: | SR2ZU |
| CPU configuration (max): | 1 |
| Graphics & IMC lithography: | 14 nm |
| Intel Virtualization Technology for Directed I/O (VT-d): | |
| Intel Identity Protection Technology version: | 1.00 |
| Intel Stable Image Platform Program (SIPP) version: | 0.00 |
| Intel Secure Key Technology version: | 1.00 |
| Intel Virtualization Technology (VT-x): | |
| Intel Smart Response Technology version: | 1.00 |
| Intel TSX-NI version: | 0.00 |
| Processor ARK ID: | 95443 |
| Intel® Smart Response Technology: | |
| Intel® Turbo Boost Technology: | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology): | |
| Intel® Quick Sync Video Technology: | |
| Intel® My WiFi Technology (Intel® MWT): | |
| Intel® Identity Protection Technology (Intel® IPT): | |
| Conflict-Free processor: | |
| Power | |
| DC input voltage: | 12 - 19 V |
| Operational conditions | |
| Operating temperature (T-T): | -5 - 45 °C |
| Storage temperature (T-T): | -20 - 70 °C |
| Operating relative humidity (H-H): | 10 - 95% |
| Storage relative humidity (H-H): | 10 - 95% |
| Weight & dimensions | |
| Width: | 180 mm |
| Depth: | 119 mm |
| Height: | 30 mm |
| Weight: | 900 g |
| Packaging content | |
| Display included: | |
| Manual: | |
| AC adapter included: | |
Price:
327,99 €
19 % VAT incl. excl. Shipping costs
