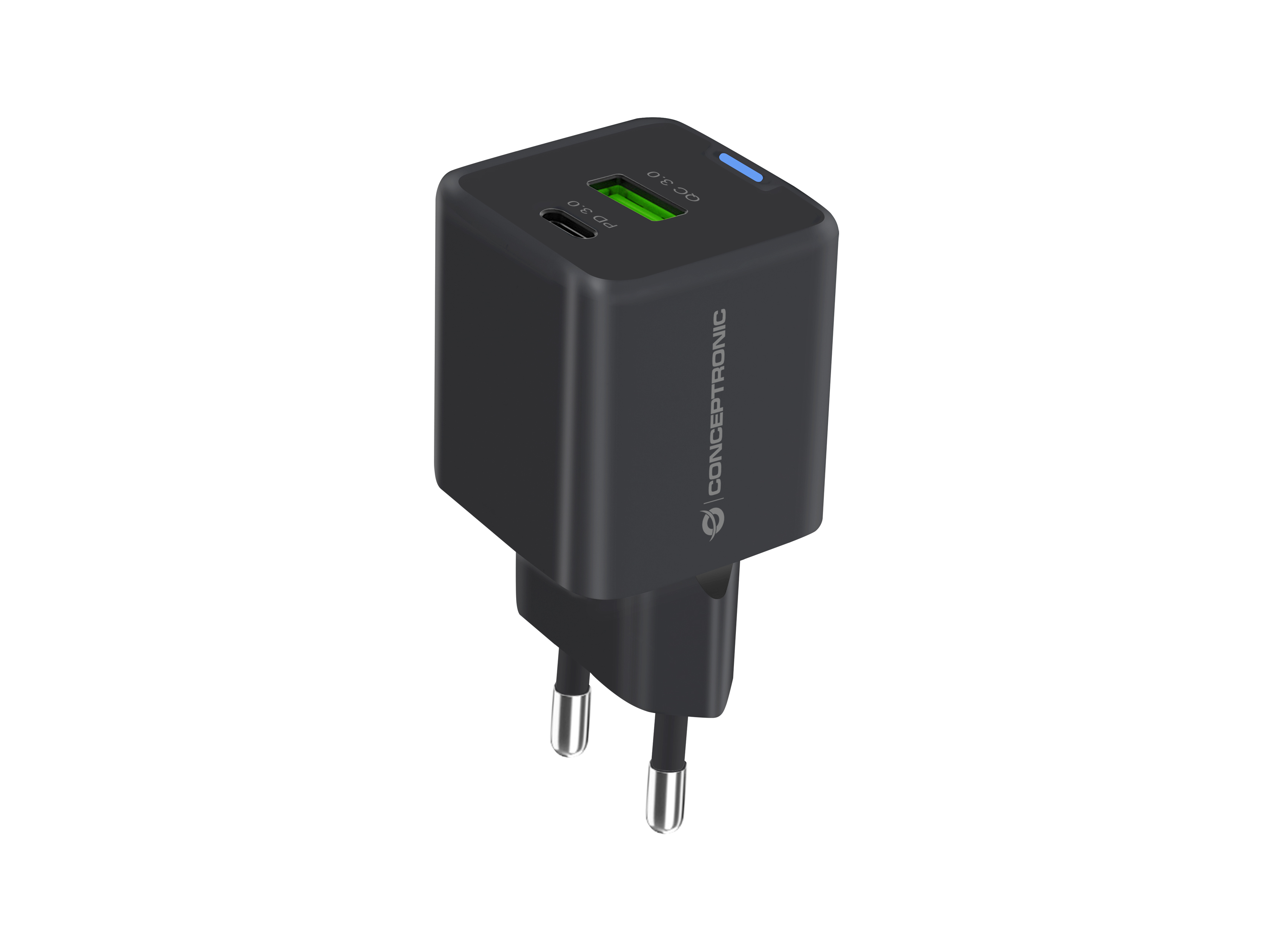

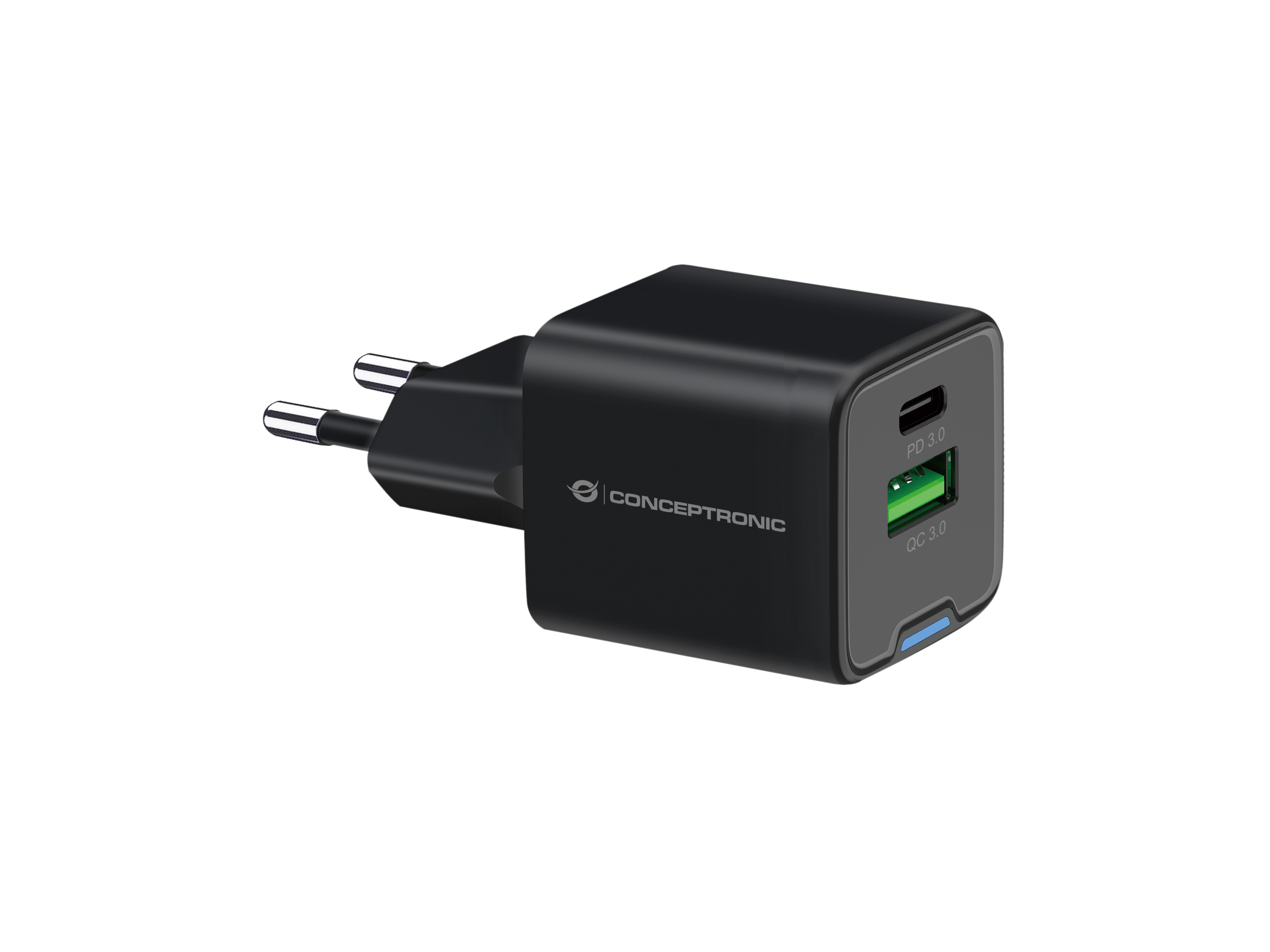

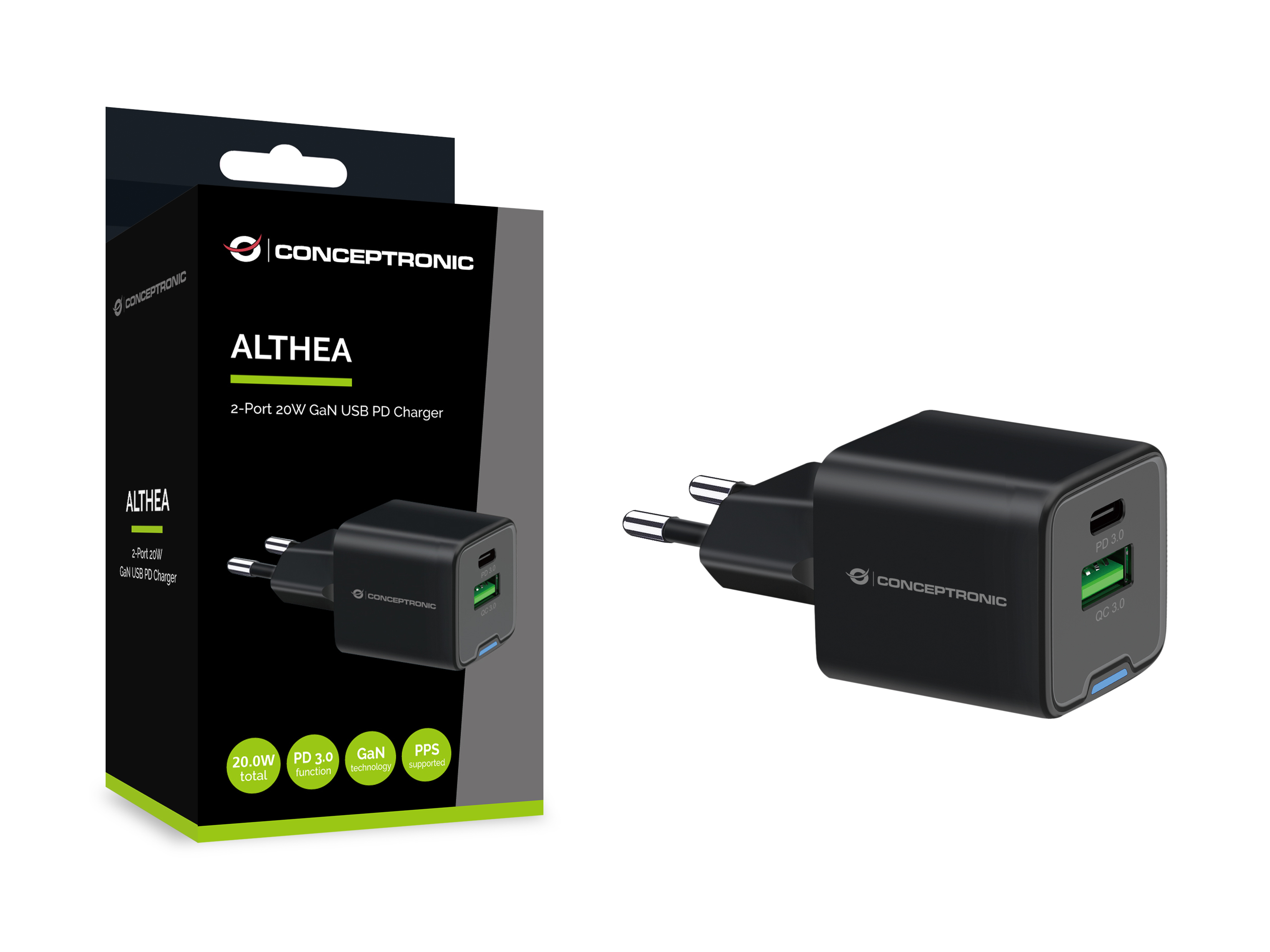

Conceptronic 2-Port 20W GaN USB PD Charger, USB-C x 1, USB-A x 1, QC 3.0, PPS
Product no.: ALTHEA15B
The ALTHEA15B USB charger offers efficient and fast charging, featuring a USB Type-C port with Power Delivery (PD) technology that automatically detects and charges devices such as Nintendo Switch, iPad, iPhone, Samsung etc., at up to 20W speed. The charger is protected against overload, short circuiting and overheating, and with a compact and light-weight design, it is a great travel device and daily companion.
| Performance | |
| Charger type: | Indoor |
| Charger compatibility: | Universal |
| Power source type: | AC |
| Number of simultaneously connected devices (max): | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 1 |
| USB Type-C ports quantity: | 1 |
| Fast charging: | Yes |
| Fast charging technology: | Power Delivery, Quick Charge 3.0 |
| Power protection features: | Overheating, Overload, Short circuit |
| Country of origin: | China |
| Design | |
| Product colour: | Black |
| Gallium nitride (GaN) transistors: | Yes |
| Power | |
| Input voltage: | 100 - 240 V |
| Input frequency: | 50 - 60 Hz |
| Input current: | 0.5 A |
| Maximum power: | 20 W |
| Maximum output voltage: | 12 V |
| Minimum output voltage: | 3.3 V |
| Output current (5V): | 3 A |
| Output current (9V): | 2.22 A |
| Output current (12V): | 1.67 A |
| Weight & dimensions | |
| Width: | 35 mm |
| Depth: | 72 mm |
| Height: | 33.5 mm |
| Weight: | 50.2 g |
| Packaging data | |
| Package type: | Hanging box |
| Package width: | 53.5 mm |
| Package depth: | 172 mm |
| Package height: | 37 mm |
| Package weight: | 58 g |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 40 °C |
| Storage temperature (T-T): | -20 - 80 °C |
| Operating relative humidity (H-H): | 5 - 95% |
| Packaging content | |
| Manual: | Yes |
| Technical details | |
| Sustainability certificates: | ErP |
| Compliance certificates: | CE, REACH, RoHS |
| Logistics data | |
| Harmonized System (HS) code: | 8504401300 |
| Pallet gross width: | 120 cm |
| Pallet gross length: | 80 cm |
| Pallet gross height: | 180 cm |
| Master (outer) case width: | 450 mm |
| Master (outer) case length: | 450 mm |
| Master (outer) case height: | 380 mm |
| Master (outer) case gross weight: | 6.8 kg |
| Products per master (outer) case: | 100 pc(s) |
| Sustainability compliance: | Yes |
Price:
25,99 €
19 % VAT incl. excl. Shipping costs
