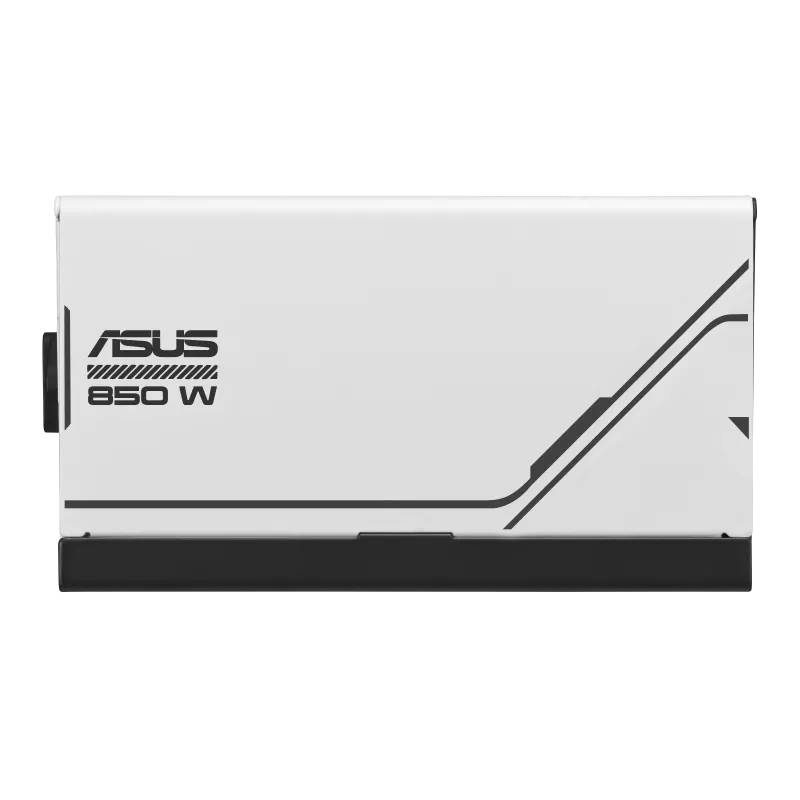

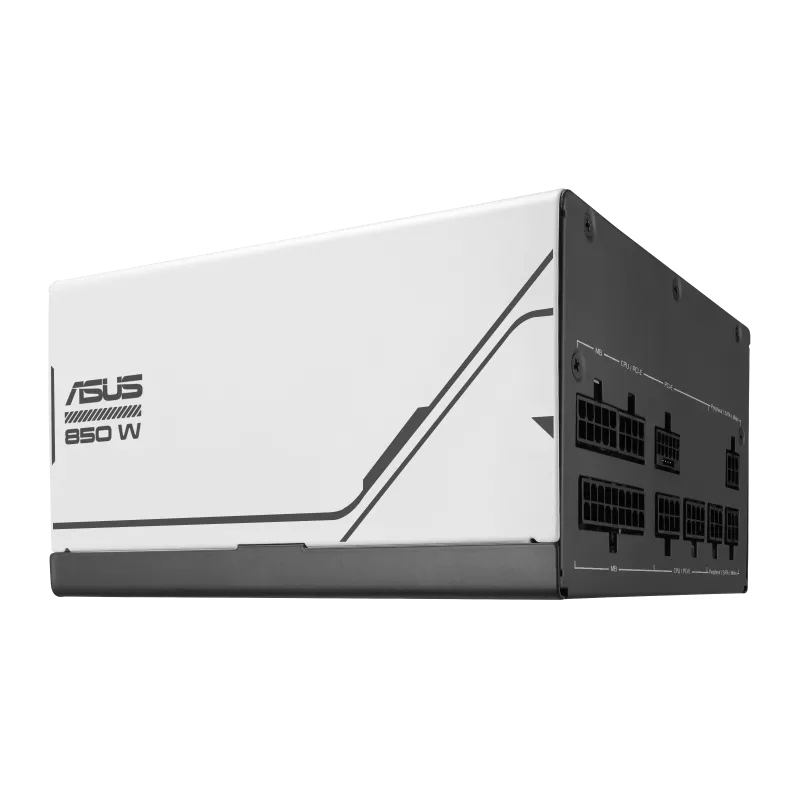

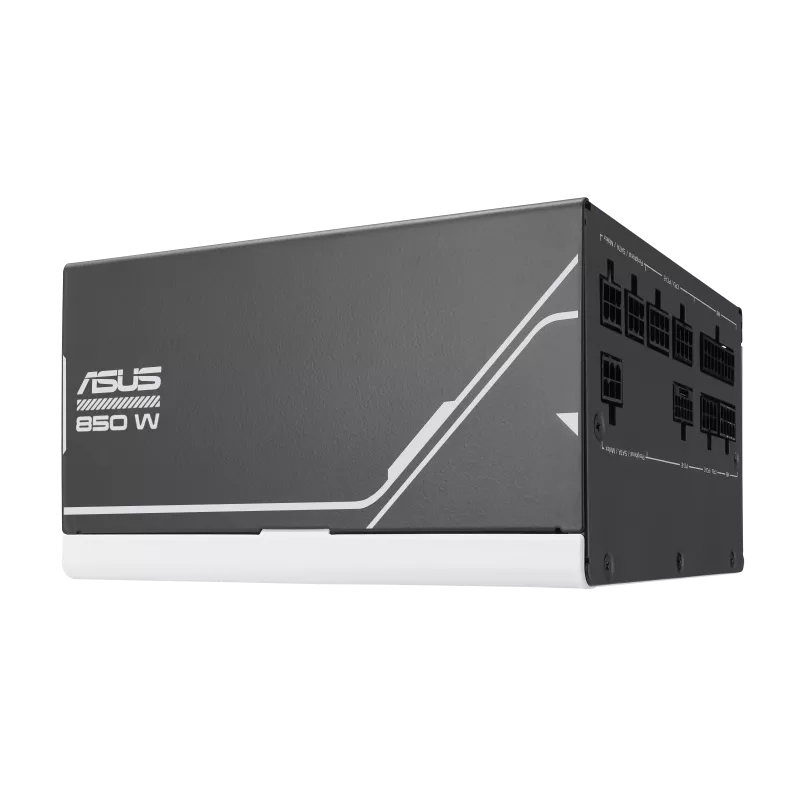

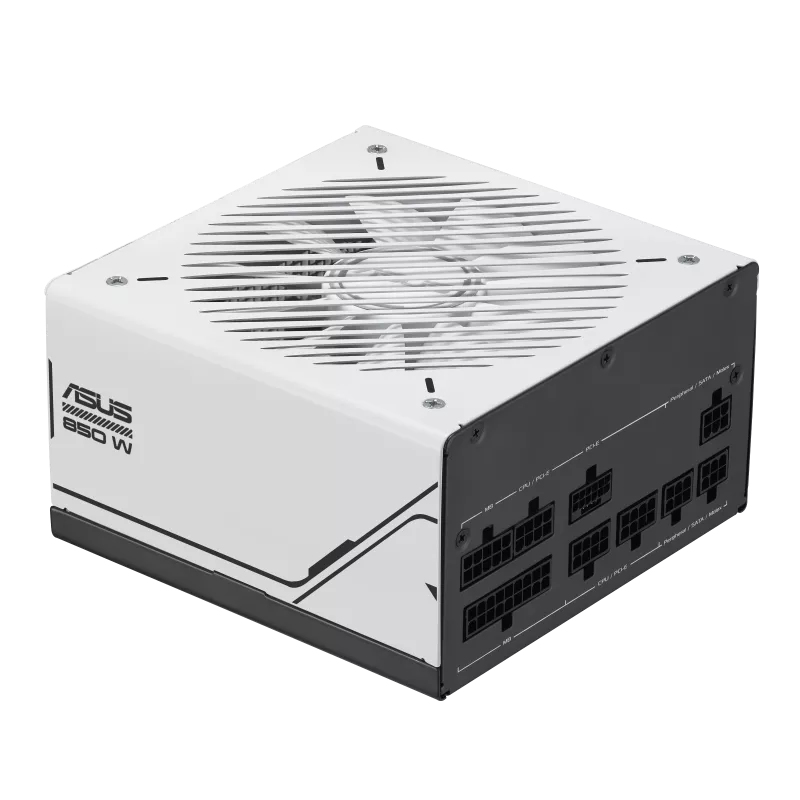

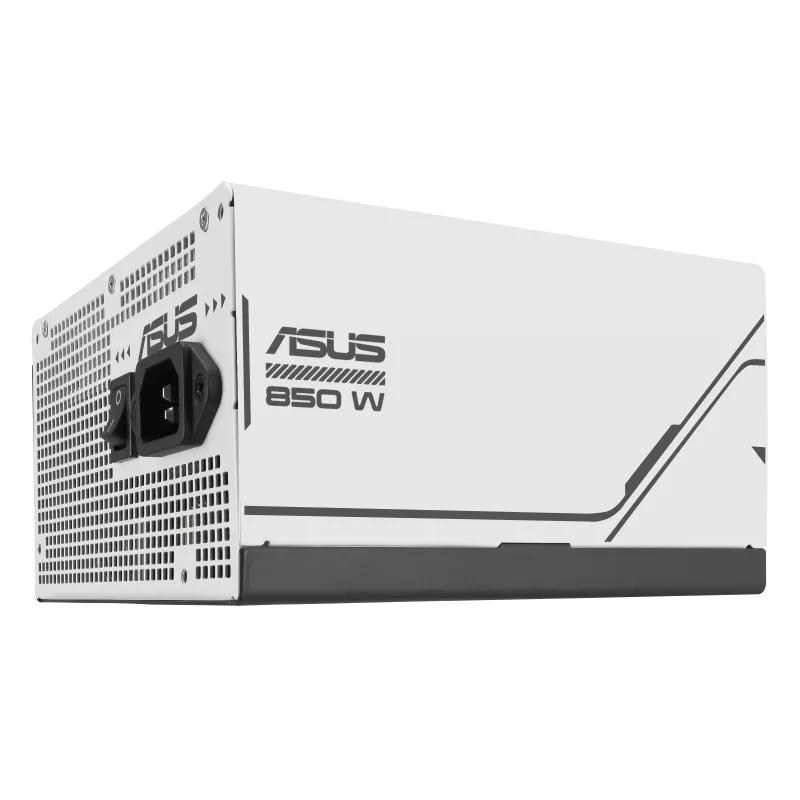

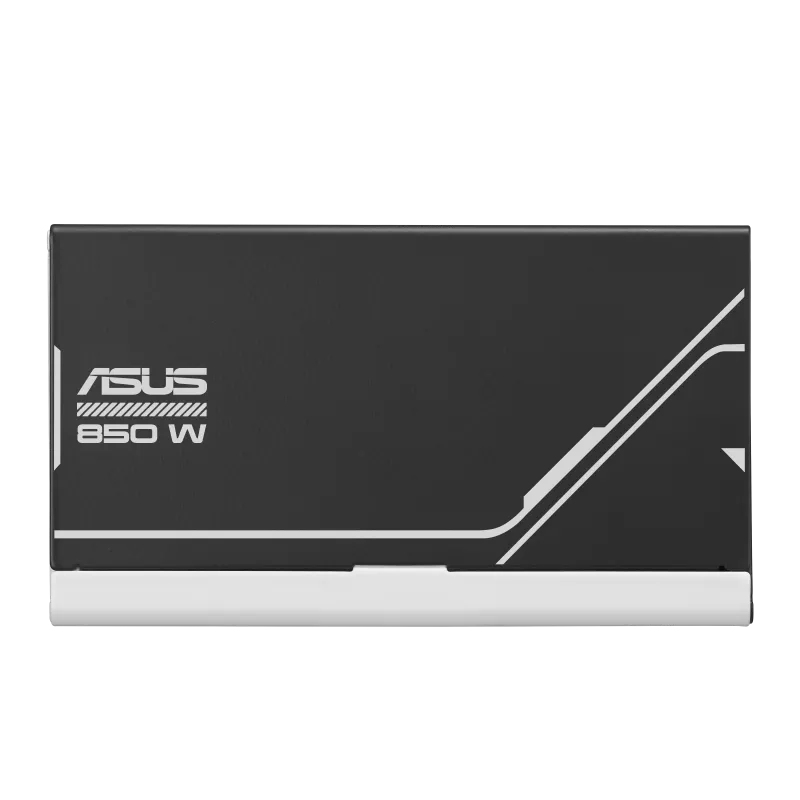

ASUS Prime 850W Gold ( AP-850G ) power supply unit 20+4 pin ATX ATX Black, White
Product no.: 90YE00U0-B0NB00
PRIME PERFORMANCE
With 80+ Gold certification, dual ball bearing fans, and an 8-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to high-performance workstations, all-round PCs, and gaming rigs.

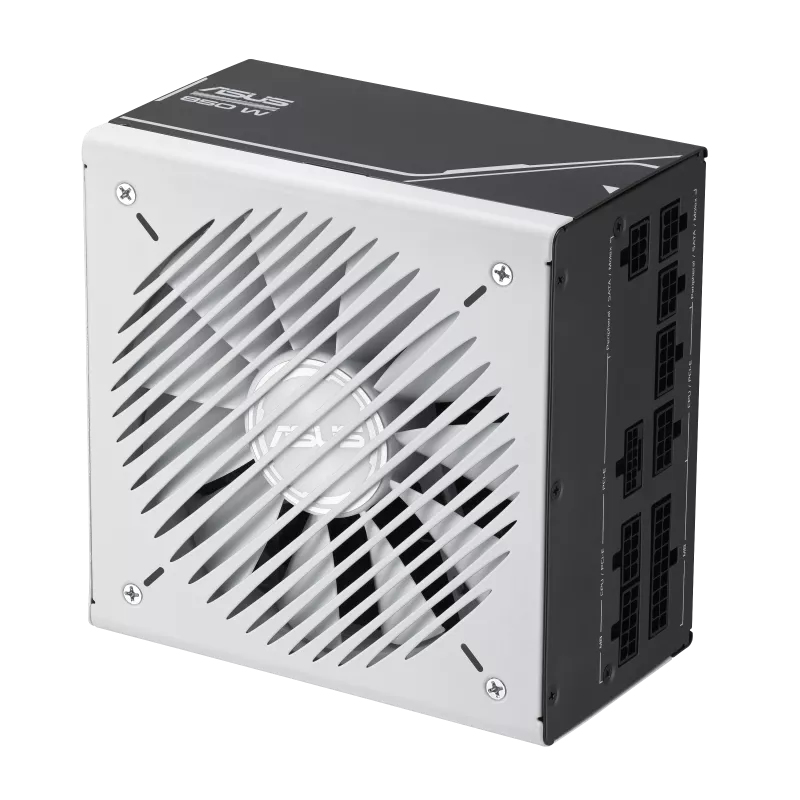

DUAL BALL FAN BEARINGS
Exemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.
80 PLUS GOLD CERTIFICATION
The ASUS Prime 850W Gold PSU features efficient, low-ESR capacitors to ensure efficient operation affording it 80 PLUSŪ Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.
ATX 3.0 COMPATIBLE
The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ASUS Prime 850W Gold steps ahead of the curve by being fully compliant. A 16-pin PCIe cable that is compatible with PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities.
| Power | |
| Total power: | 850 W |
| AC input voltage: | 100 - 240 V |
| Combined power (+3.3V): | 110 W |
| Combined power (+12V): | 846 W |
| Combined power (+5V): | 110 W |
| Combined power (-12V): | 3.6 W |
| Combined power (+5Vsb): | 12.5 W |
| Max output current (+3.3V): | 20 A |
| Max output current (+12V): | 70.5 A |
| Max output current (+5V): | 20 A |
| Max output current (-12V): | 0.3 A |
| Max output current (+5Vsb): | 2.5 A |
| Power protection features: | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |

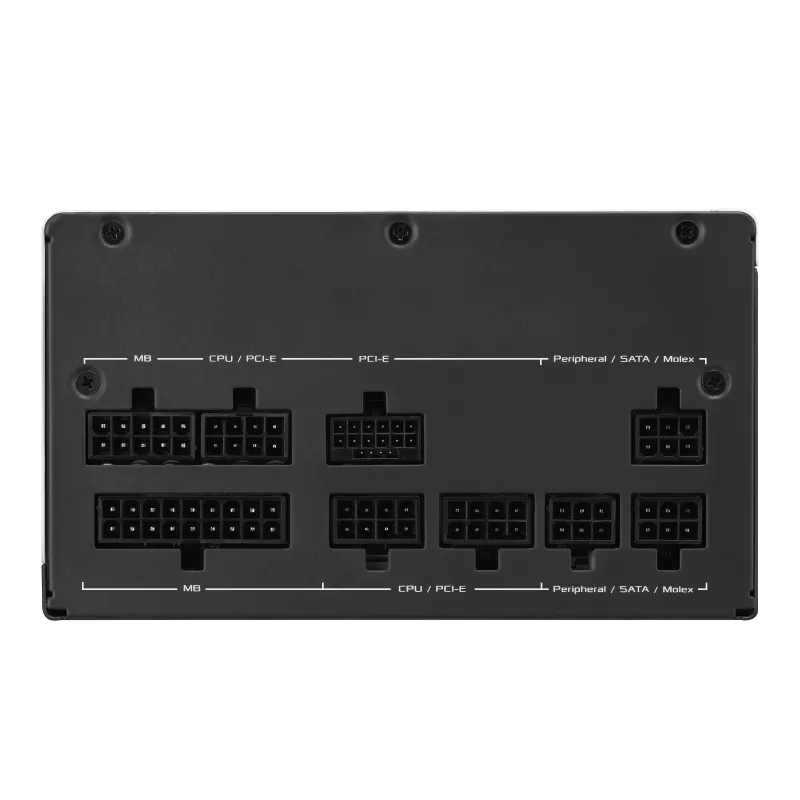

| Ports & interfaces | |
| Motherboard power connector: | 20+4 pin ATX |
| Peripheral (Molex) power connectors (4-pin): | 3 |
| Motherboard power cable length: | 61 cm |
| Number of SATA power connectors: | 5 |
| SATA power cable length: | 120,400 mm |
| Peripheral (Molex) power cable length: | 150,400 mm |
| PCI Express power connectors (8-pin): | 3 |
| PCI Express power connectors (16-pin): | 1 |
| PCI Express power cable length: | 67.5 cm |
| CPU power connector (4+4 pin): | Yes |
| CPU power cable length: | 65 cm |
| Cabling type: | Fully-Modular |
| Performance | |
| Purpose: | PC |
| Power supply unit (PSU) form factor: | ATX |
| 80 PLUS certification: | 80 PLUS Gold |
| ATX version: | 3.0 |
| Bearing technology: | DBB |
| Design | |
| Product colour: | Black, White |
| Cooling type: | Active |
| Number of fans: | 1 fan(s) |
| Fan location: | Top |

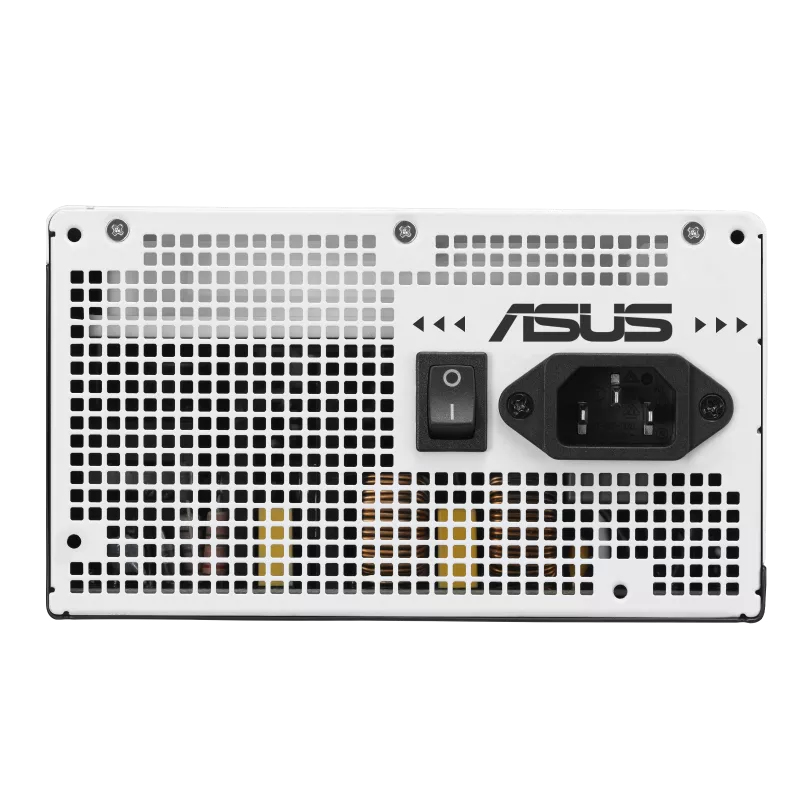

| On/off switch: | Yes |
| Packaging content | |
| Cables included: | AC, CPU, PCIe, Peripheral (Molex), SATA |
| Weight & dimensions | |
| Width: | 150 mm |
| Depth: | 150 mm |
| Height: | 86 mm |
| Weight: | 1.5 kg |
| Packaging data | |
| Package weight: | 2.72 kg |
| Package type: | Box |
| Technical details | |
| Sustainability certificates: | RoHS |
Price:
113,99 €
19 % VAT incl. excl. Shipping costs
