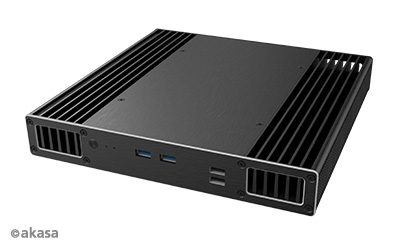

Akasa Plato TN Ultra Small Form Factor (USFF) Black
Product no.: A-NUC65-M1B
Low profile fanless case for 11th Generation IntelŽ NUC board (Tiger Canyon)
Compatible with the following IntelŽ NUC Board:
NUC11TNKi3 / NUC11TNHi3 / NUC11TNBi3
NUC11TNKi5 / NUC11TNHi5 / NUC11TNBi5
NUC11TNKv5 / NUC11TNHv5 / NUC11TNBv5
NUC11TNKi7 / NUC11TNHi7 / NUC11TNBi7
Perfect Features for Commercial Applications
Supports Tiger Canyon models with quad 4K displays or one 8K display outputs, making it ideal for
digital signage applications or where multiple displays are required.
Supports Intel's commercial board with vProŽ Technology support for array of applications including
robotic assembly lines.
Fanless
Aluminium fanless CPU cooling design
Stylish front panel diamond edge finish
Wide USB Connectivity
Front dual USB 3.2 Gen 1 and dual USB 2.0 ports
Supports up to Four 4K Displays
The Plato TN case provides connector openings for connectivity for up to four 4K displays. Perfect for an array of business applications such assecurity and digital signage.
Optional Rackmount Front Panel
1U Rackmount front panel (Product Code: A-NUC39-FP03) available to mount the Plato TN case on a wall rack, cabinet and appliance server applications
| Design | |
| Form factor: | Ultra Small Form Factor (USFF) |
| Type: | PC |
| Product colour: | Black |
| Material: | Aluminium |
| Number of 2.5" bays: | 1 |
| Rack mounting: | No |
| Side window: | No |
| Suitable for: | Home/Office |
| Illumination: | No |
| Built-in speaker(s): | No |
| On/off button: | Yes |
| LED indicators: | Yes |
| Cable lock slot: | Yes |
| Cable lock slot type: | Kensington |
| Power supply | |
| Power supply included: | No |
| Power supply location: | External |
| Number of power supply units: | 1 |
| Ports & interfaces | |
| HDMI ports quantity: | 2 |
| Audio input: | Yes |
| Audio output: | Yes |
| Storage | |
| Supported HDD sizes: | 2.5" |
| SSD form factor: | 2.5" |
| Number of HDDs supported: | 1 |
| Packaging content | |
| VESA mounting: | Yes |
| Weight & dimensions | |
| Width: | 247 mm |
| Depth: | 240 mm |
| Height: | 38.5 mm |
Price:
151,99 €
19 % VAT incl. excl. Shipping costs
