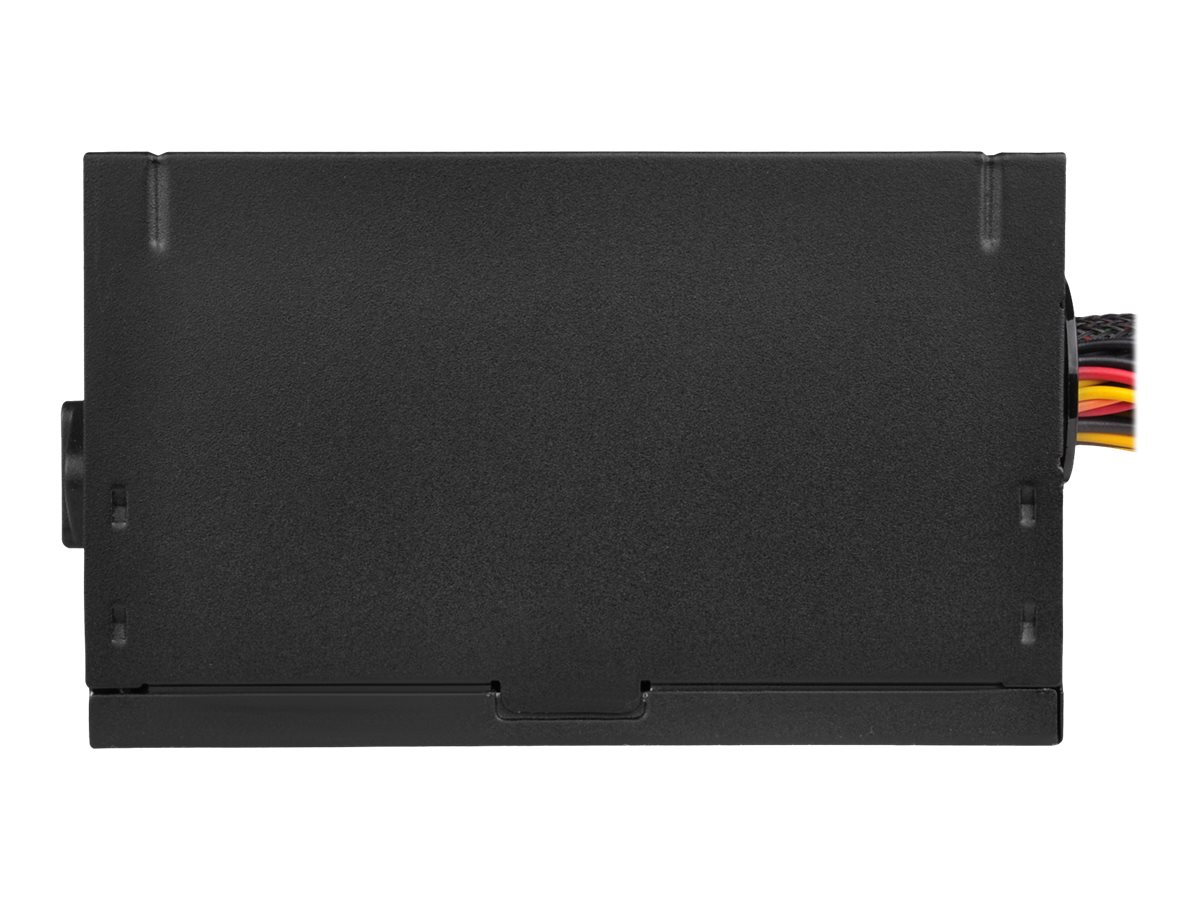

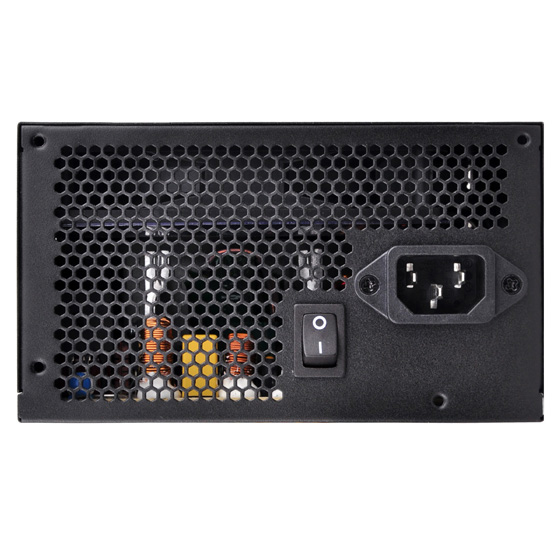

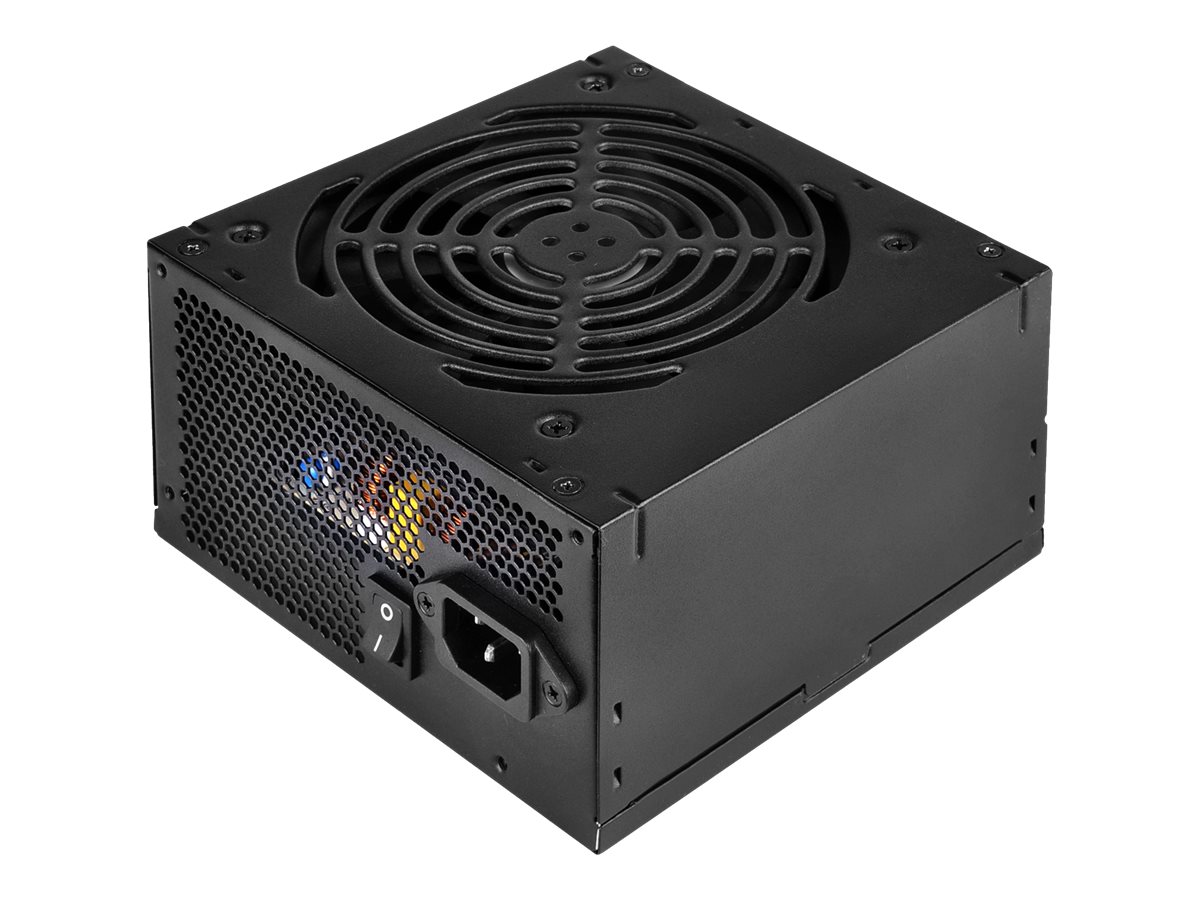

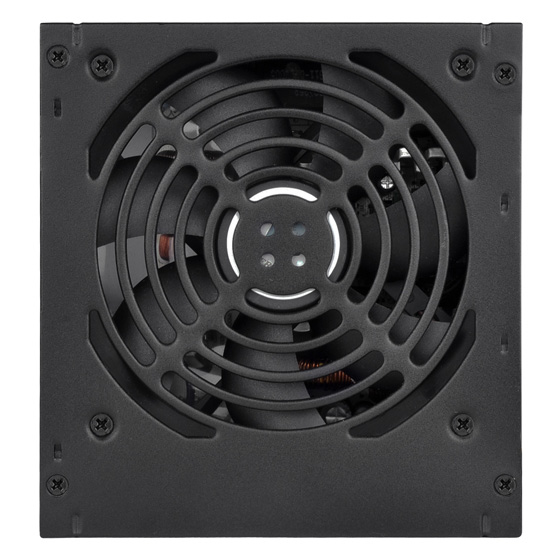

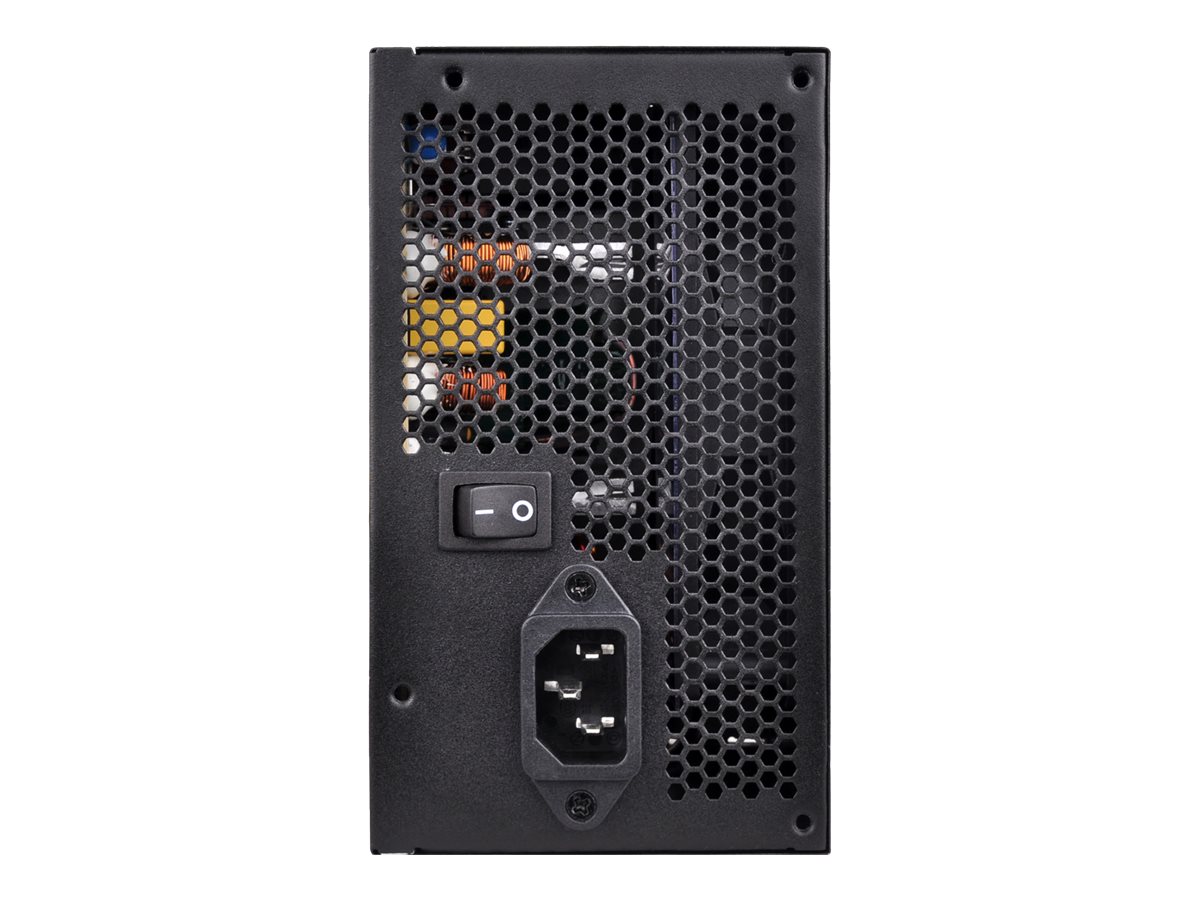

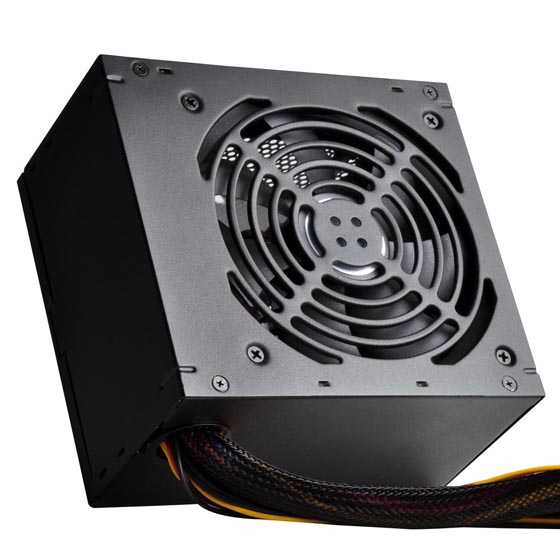

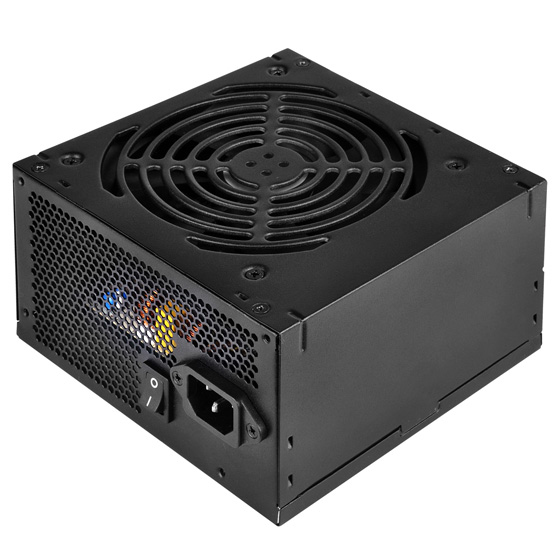

Silverstone ST40F-ES230 power supply unit 400 W 20-pin ATX ATX Black
Product no.: SST-ST40F-ES230
The Strider Essential series is a line of power supplies designed with high affordability and great performance. They have 80 PLUS certification with maximum efficiency of up to 85% under 230V. Equipped with powerful single +12V rail and quiet running fan, they also provide stable performance with minimum noise. For longevity, they are based on proven design and built with quality components to support 24/7 operation at up to 40 degrees Celsius. Even high-end systems with powerful graphics cards can be powered easily by Strider Essential PSUs standard 8pin/6pin PCI-E connectors, making them an outstanding choice for those seeking best value and performance for their money.
| Power | |
| Total power: | 400 W |
| AC input voltage: | 180 - 264 V |
| AC input frequency: | 47 - 63 Hz |
| Input current: | 3 A |
| Power Factor Correction (PFC) type: | Active |
| Combined power (+3.3V): | 100 W |
| Combined power (+12V): | 360 W |
| Combined power (+5V): | 100 W |
| Max output current (+3.3V): | 17 A |
| Max output current (+12V): | 30 A |
| Max output current (+5V): | 16 A |
| Max output current (-12V): | 0.3 A |
| Max output current (+5Vsb): | 2.5 A |
| Efficiency: | 85% |
| Power protection features: | Over power, Over voltage, Short circuit |
| Ports & interfaces | |
| Motherboard power connector: | 20-pin ATX |
| Peripheral (Molex) power connectors (4-pin): | 3 |
| Motherboard power cable length: | 50 cm |
| Number of SATA power connectors: | 4 |
| EPS power connector (8-pin): |  |
| PCI Express power connectors (6-pin): | 2 |
| Floppy drive power connector: | 1 |
| Floppy disk drive connector: | |
| PCI Express connector: | |
| Performance | |
| Purpose: | PC |
| Power supply unit (PSU) form factor: | ATX |
| 80 PLUS certification: | 80 PLUS |
| Noise level: | 18 dB |
| Mean time between failures (MTBF): | 100000 h |
| Design | |
| Product colour: | Black |
| Fan diameter: | 12 cm |
| Number of fans: | 1 fan(s) |
| On/off switch: | |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 40 °C |
| Weight & dimensions | |
| Width: | 150 mm |
| Depth: | 140 mm |
| Height: | 86 mm |
| Weight: | 1.26 kg |
| Technical details | |
| Sustainability certificates: | RoHS |
| Logistics data | |
| Harmonized System (HS) code: | 84733020 |
Price:
61,99 €
19 % VAT incl. excl. Shipping costs
