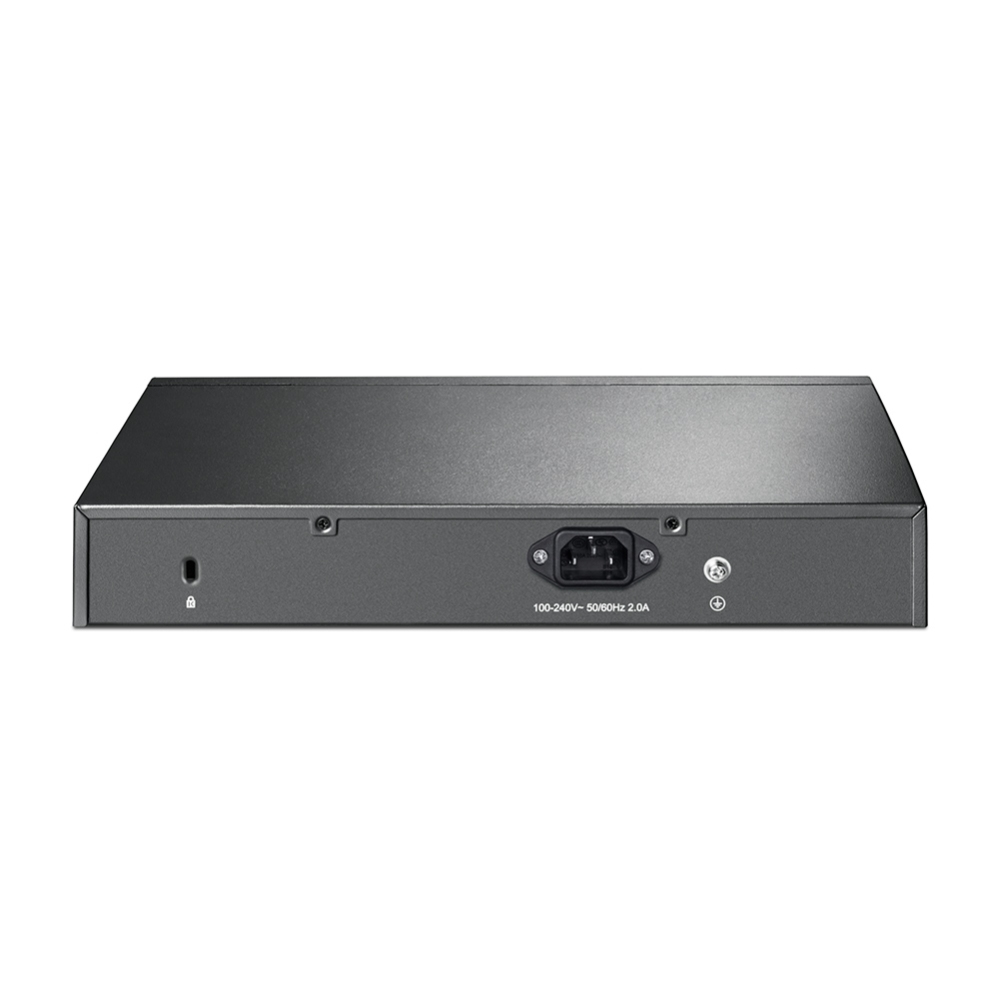

TP-Link TL-SG1016PE network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Product no.: TL-SG1016PE
What This Product DoesThe TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 150 W*, up to 30 W per port, TL-SG1016PE powers more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE saves the power consumption, making it an eco-friendly solution for your business network.How This Product Works8 ports of TL-SG1016PE support Power over Ethernet Plus (PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). In this situation, the electrical power is transmitted along with data in a single cable, allowing you to expand your network where there are electrical cables or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones.Overload ArrangementTL-SG1016PE has a priority function which helps protect the system when its power is overloaded. If all PoE+ devices power consumption is greater than or equal to 150 W, a priority will be arranged among the 8 PoE+ ports, at which point the system will cut off the power of the lowest-priority port. Port Priority FunctionPriority (port 1>port 2>port 3>port 4> port 5>port 6>port 7>port 8): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2, 3, 4, and 6 are using 30 W (maximum power per port is 30 W), the system power is 150 W in total (PoE max LED will be green if all PoE PDs power consumption is >= 150W). If there is an additional PD inserted to Port 5 with 20 W then the system will cut off Port 6 to protect the system, this means Port 1, 2 ,3, and 4 will use 120 W, and Port 5 will use 20 W, and no power will be supplied to Port 6.Easy To UseTL-SG1016PE is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-LINK TL-SG1016PE 16-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE+ is a great choice for expanding your home or office network.
| Management features | |
| Switch type: | Managed |
| Switch layer: | L2 |
| Quality of Service (QoS) support: |  |
| Web-based management: | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity: | 16 |
| Basic switching RJ-45 Ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity: | 16 |
| Network | |
| Networking standards: | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support: |  |
| Copper ethernet cabling technology: | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported: | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Port mirroring: | |
| Full duplex: | |
| Flow control support: | |
| Link aggregation: | |
| Broadcast storm control: | |
| Rate limiting: | |
| Auto MDI/MDI-X: | |
| Auto-negotiation: | |
| VLAN support: | |
| Virtual LAN features: | Port-based VLAN, Tagged VLAN |
| Number of VLANs: | 4000 |
| Data transmission | |
| MAC address table: | 8000 entries |
| Switching capacity: | 32 Gbit/s |
| Throughput: | 23.8 Mpps |
| Store-and-forward: | |
| Number of queues: | 4 |
| Jumbo frames support: | |
| Jumbo frames: | 10000 |
| Security | |
| IGMP snooping: | |
| Static port security: | |
| Loop protection: | |
| Design | |
| Rack mounting: | |
| Stackable: | |
| Product colour: | Black |
| LED indicators: | |
| Number of fans: | 1 fan(s) |
| Certification: | FCC, CE, RoHS |
| Power | |
| Power supply included: | |
| AC input voltage: | 100 - 240 V |
| AC input frequency: | 50 - 60 Hz |
| Power consumption (max): | 124.4 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE): | |
| Power over Ethernet plus (PoE+) ports quantity: | 8 |
| Power over Ethernet (PoE) power per port: | 30 W |
| Total Power over Ethernet (PoE) budget: | 110 W |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 40 °C |
| Storage temperature (T-T): | -40 - 70 °C |
| Operating relative humidity (H-H): | 10 - 90% |
| Storage relative humidity (H-H): | 5 - 90% |
| Weight & dimensions | |
| Width: | 294 mm |
| Depth: | 180 mm |
| Height: | 44 mm |
| Packaging data | |
| Cables included: | AC |
| Rack mount kit: | |
| Logistics data | |
| Harmonized System (HS) code: | 85176990 |
Price:
135,99 €
19 % VAT incl. excl. Shipping costs
