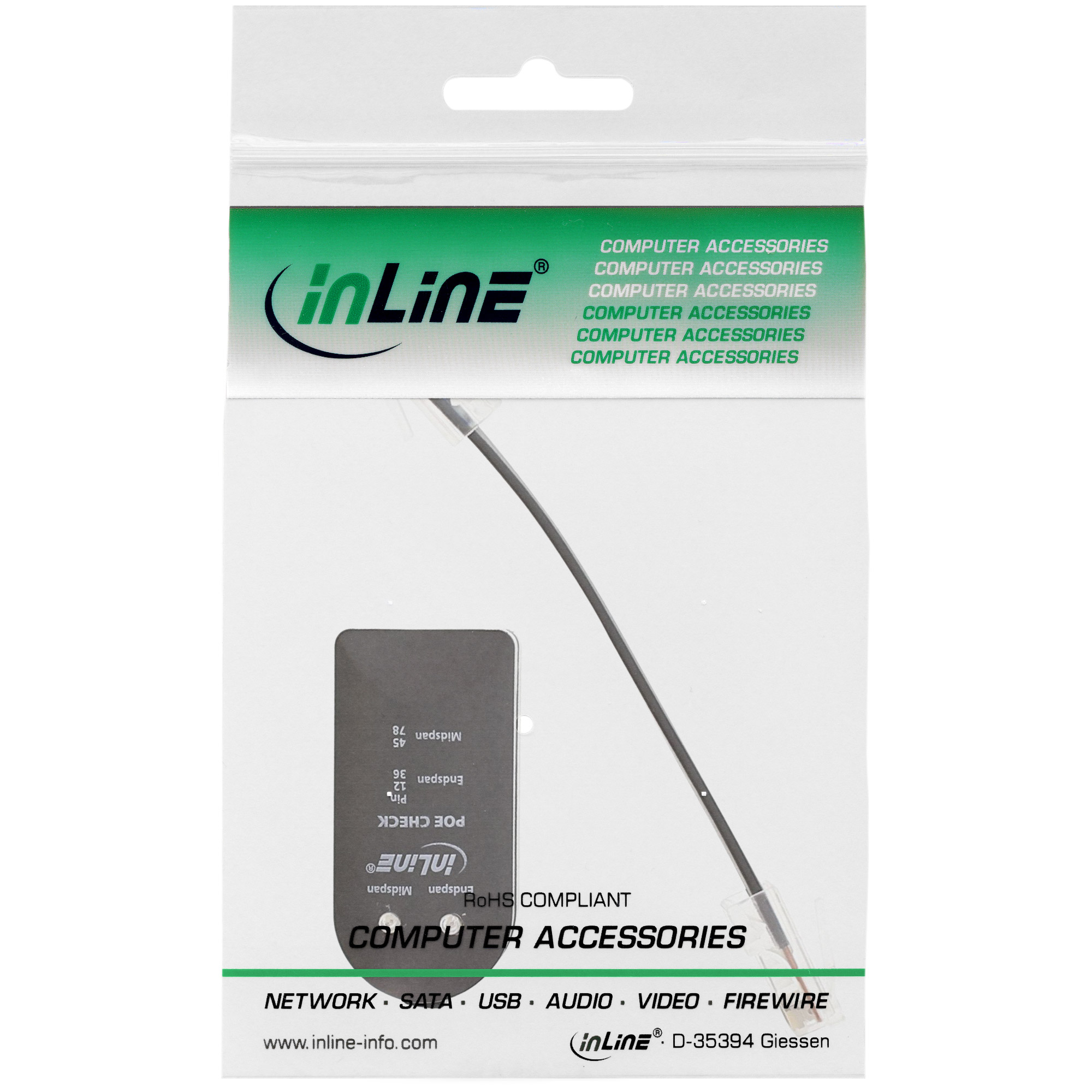

InLine PoE / PoE+ tester

Product no.: 79999I

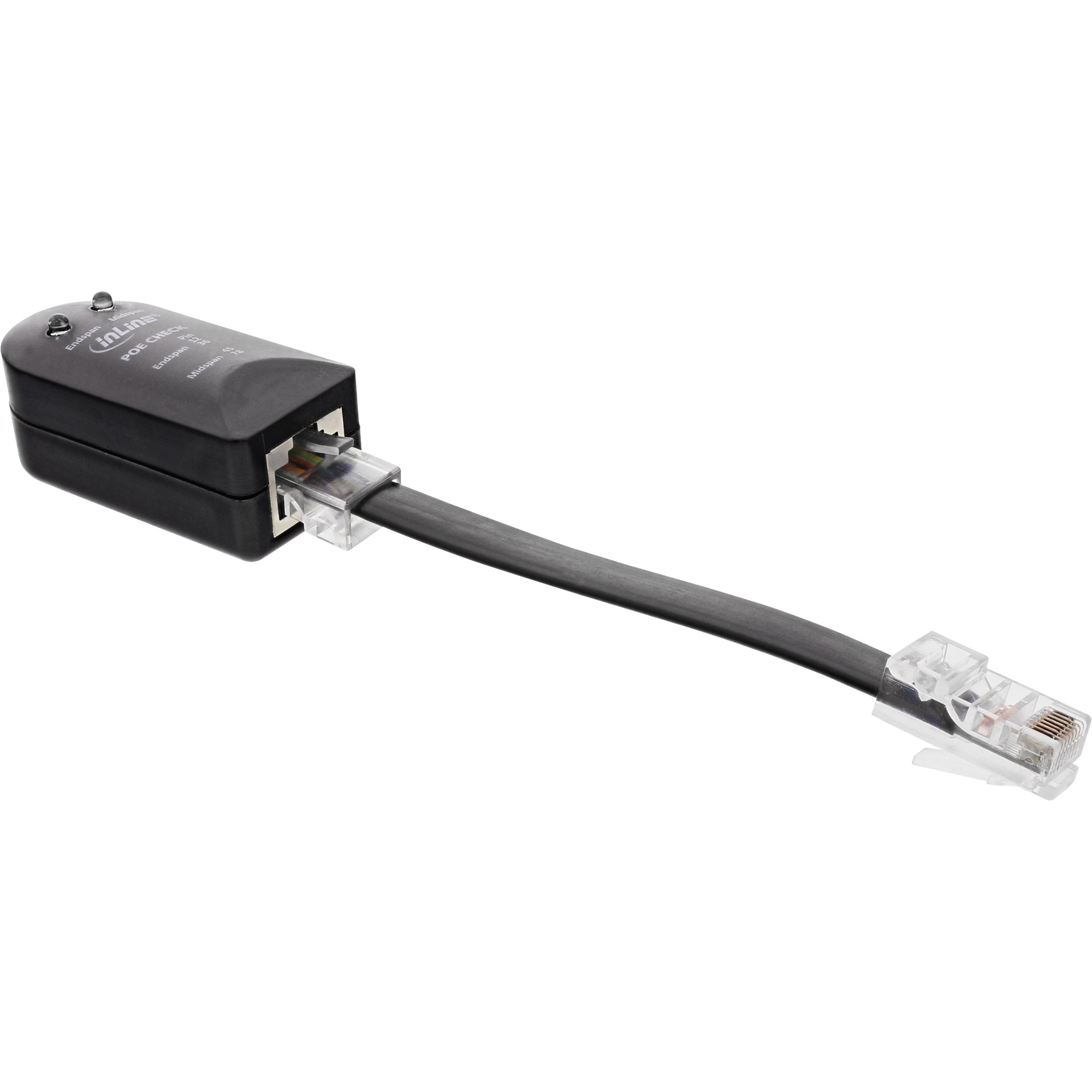

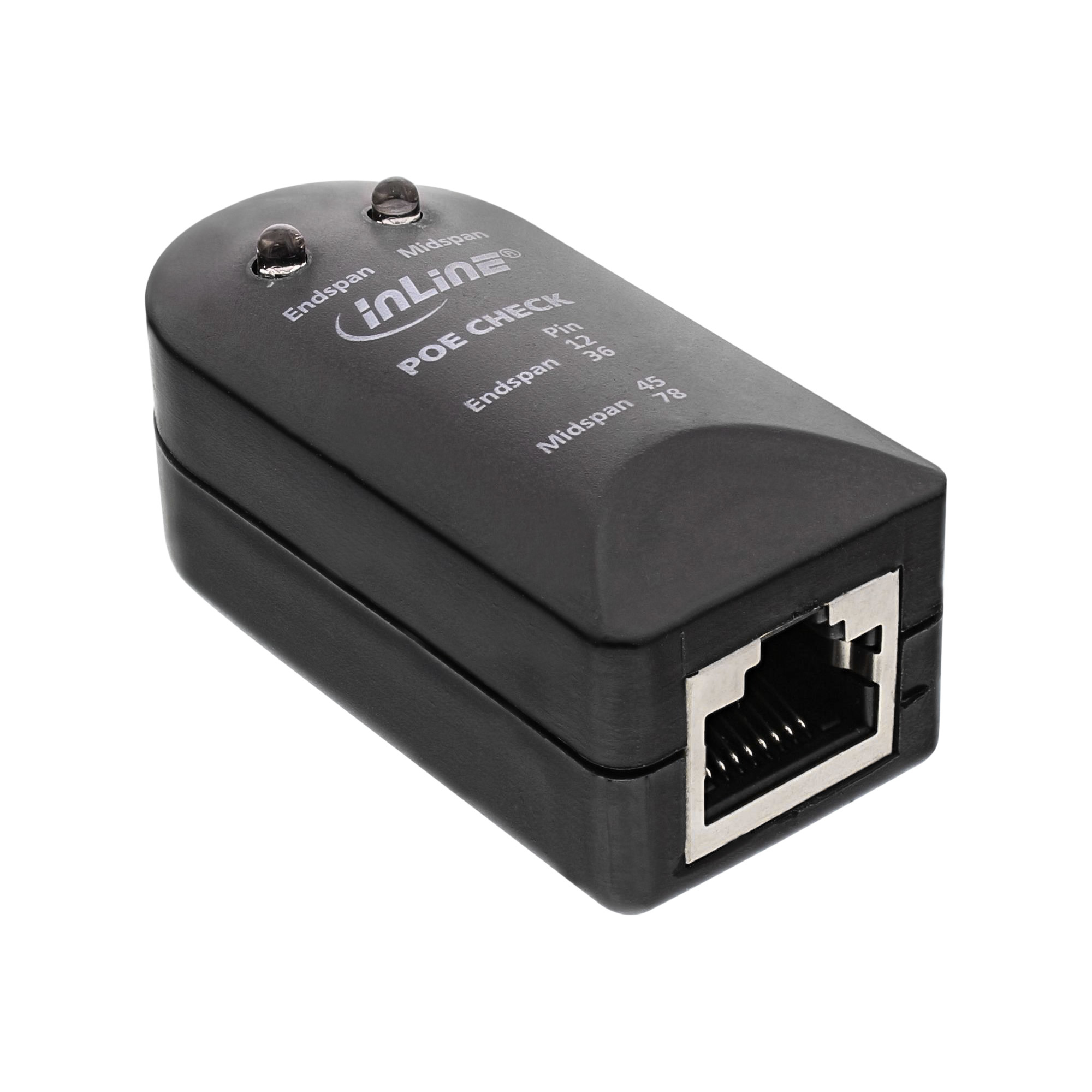

The PoE Tester is suitable for testing the PoE / PoE + connections to IEEE 802.3af and IEEE 802.3at compliant with a voltage of 37-57V for. Other standards as Telephone / ISDN voltages are not supported. Connect the RJ45 connector of the PoE tester using the supplied short cable, the other end of the cable to the test RJ45 port. The following display options are available: 1. The LED lights Endspan: There is a PoE voltage via pin 1,2,3,6 in Endspan mode to the socket. 2. The LED lights Miadspan: There is a PoE voltage via pin 4,5,7,8 in Midspan mode to the socket. 3. No LED lights up: The tested RJ45 connector does not have PoE voltage.

Network
Power over Ethernet (PoE):
Networking standards:	IEEE 802.3af, IEEE 802.3at
Features
Product colour:	Black
LED indicators:
Ports & interfaces
Ethernet LAN (RJ-45) ports:	1
Power
Power over Ethernet (PoE) voltage:	57 V

Price:

29,48 €

21 % VAT incl. excl. Shipping costs
